Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.1ton
Wheelbase:: 3360mm
Cargo box type:: Van body
Model code (announced):: QL5040XXYBEVBNHA2
Type:: enclosed cargo truck
Box length class:: 4.2m
Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 300km
Motor 1 Brand: Jingjin
Curb Weight: 3.085ton

Overview

The Qingling Isuzu Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) is a Light Truck featuring 300km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.1t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): QL5040XXYBEVBNHA2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.81m
CLTC range: 300km
Curb Weight: 3.085ton
Rated payload: 1.1ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Chongqing
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ220XSA10
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 140kW
Battery/Charging
Battery Brand: EVE
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.46kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.13m
Cargo box width: 2.1m
Cargo box height: 2.1m
Cab parameters
Cab: Single Row
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1805kg
rear axle allowable load: 2690kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Tire Pressure Monitoring System (TPMS):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

Exterior3

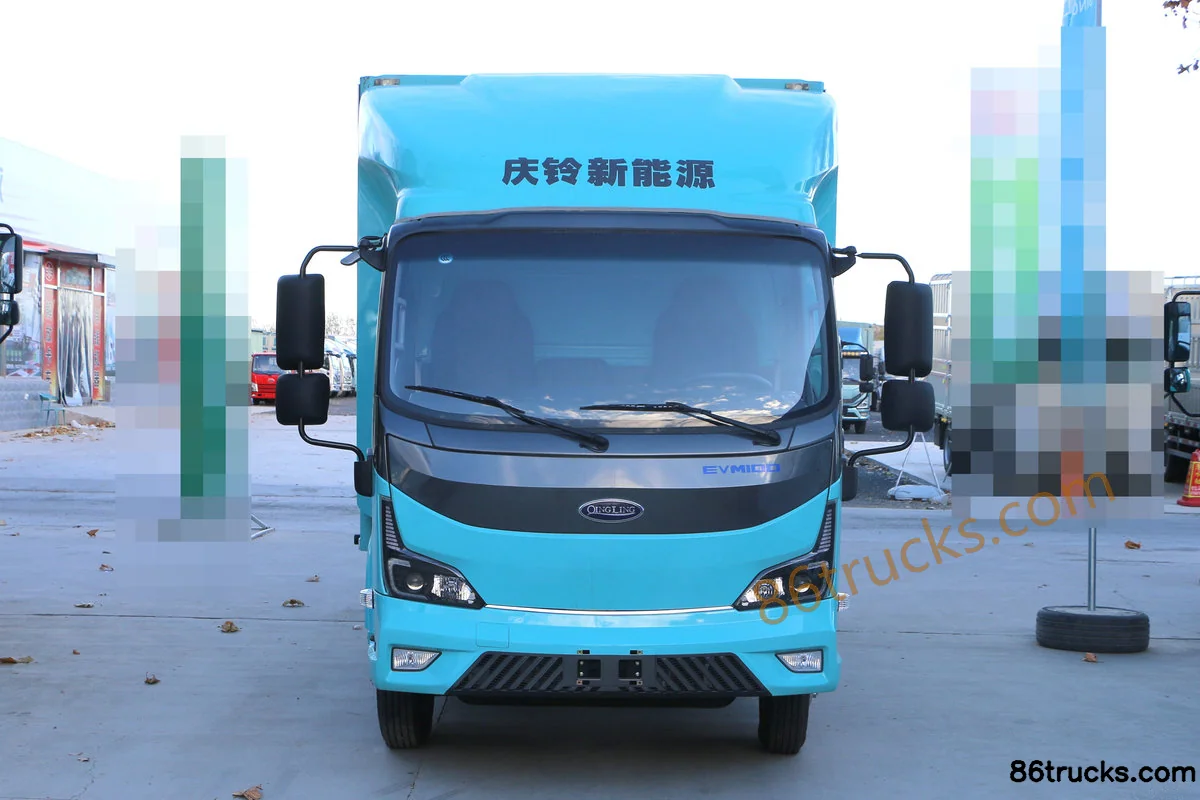

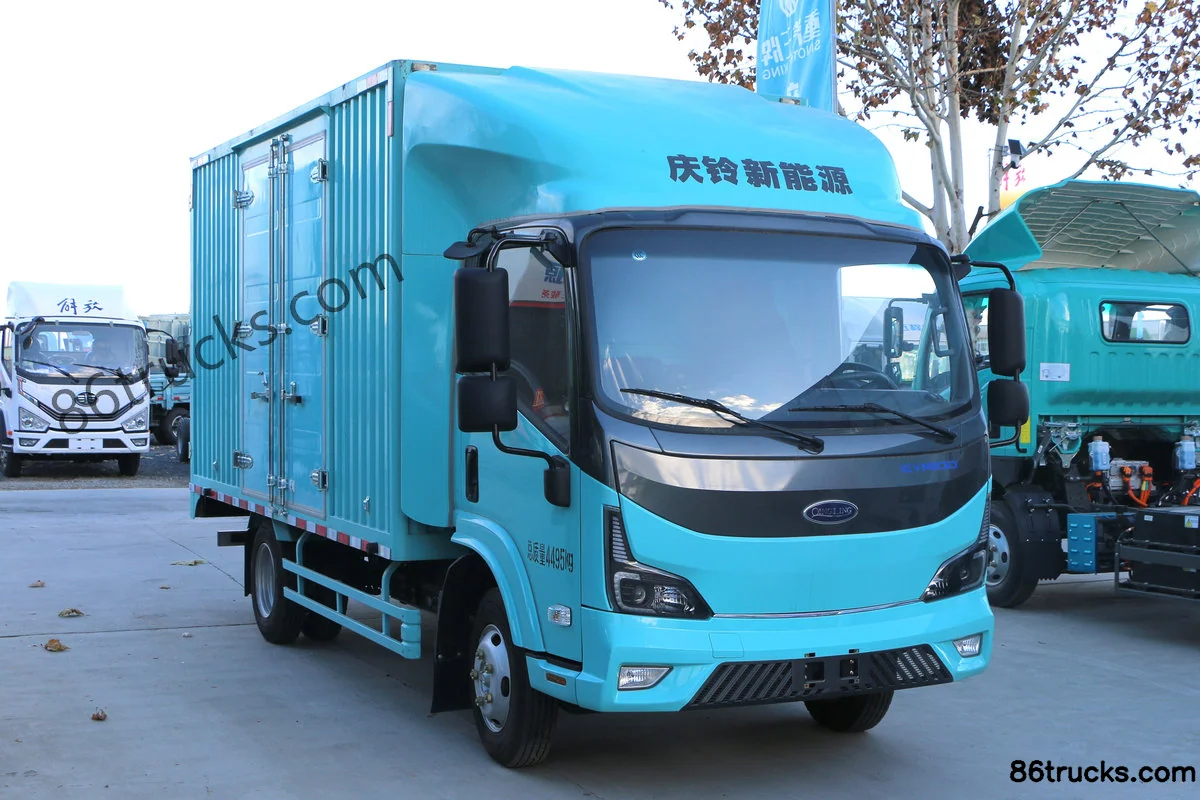

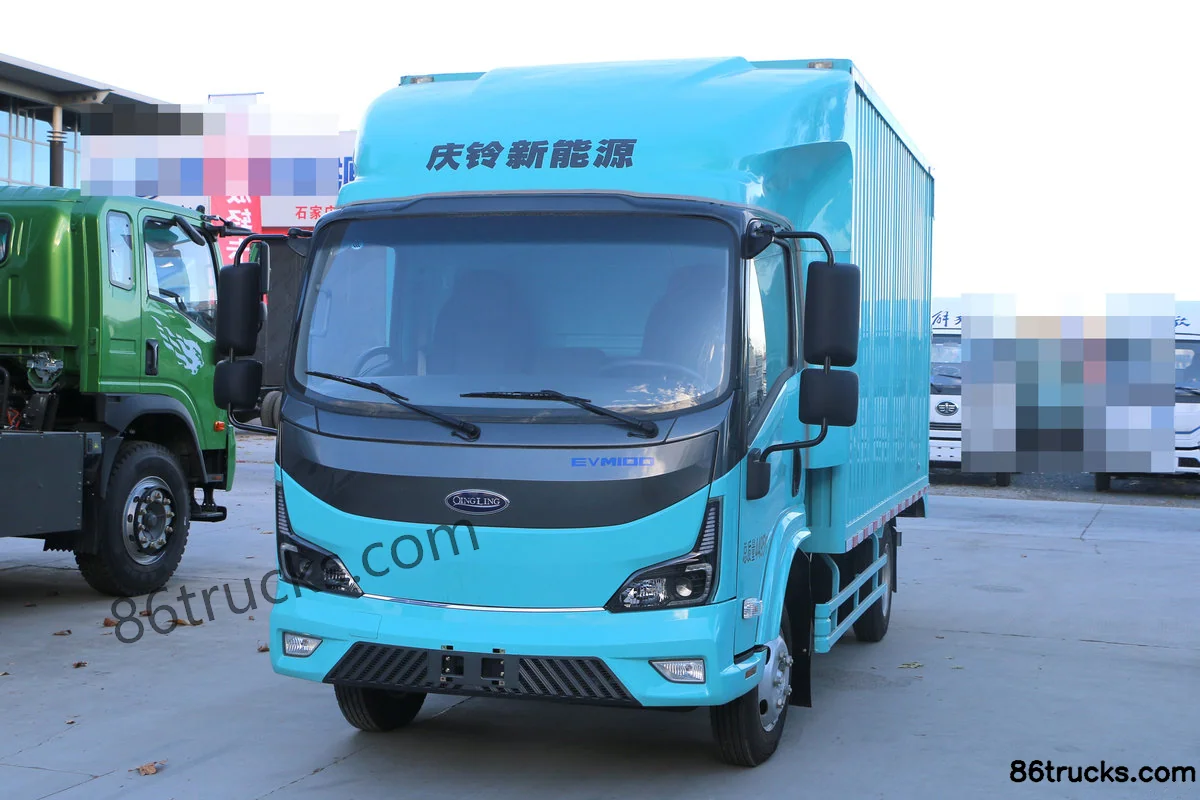

Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Exterior (1) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Exterior (2) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

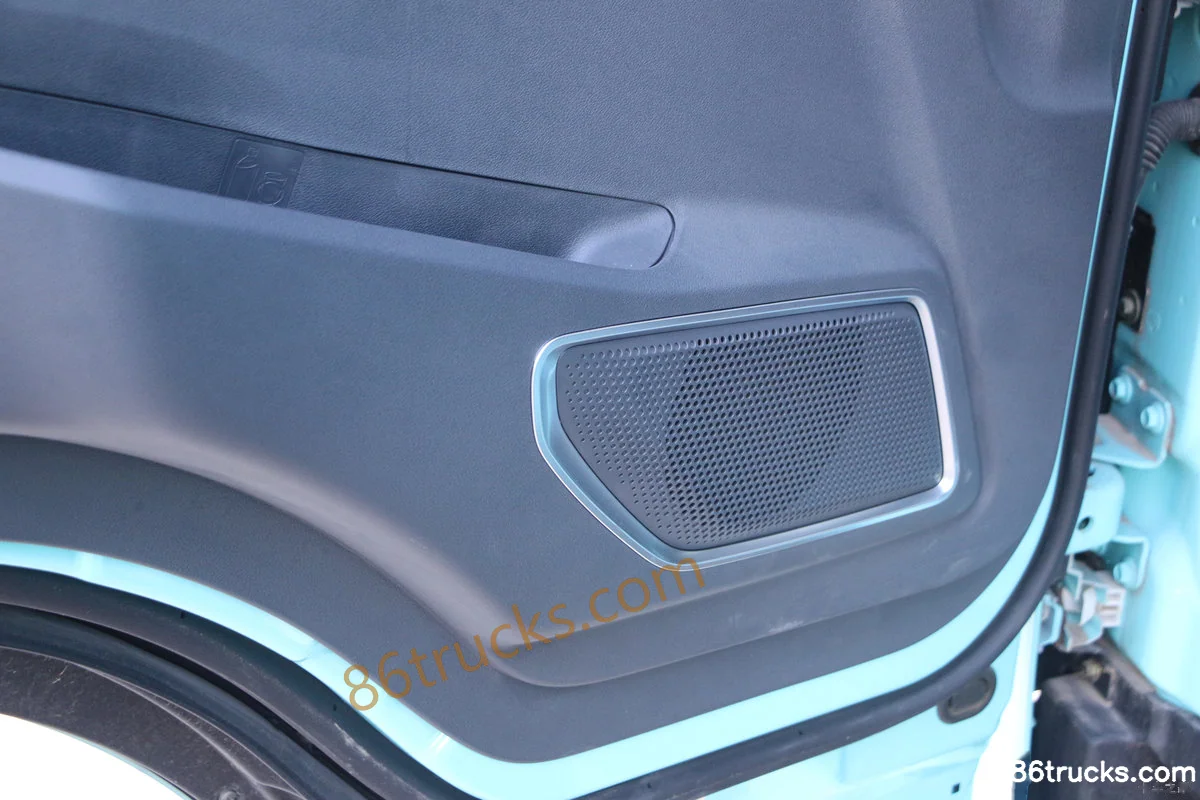

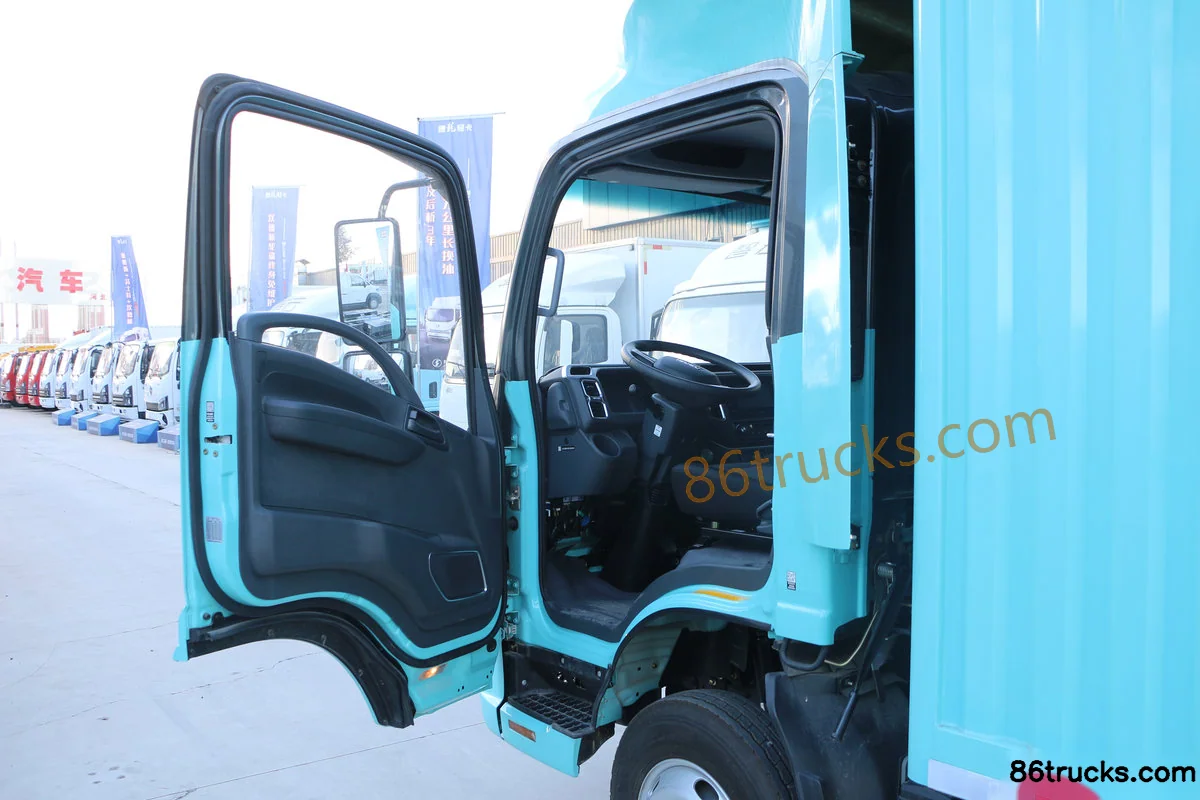

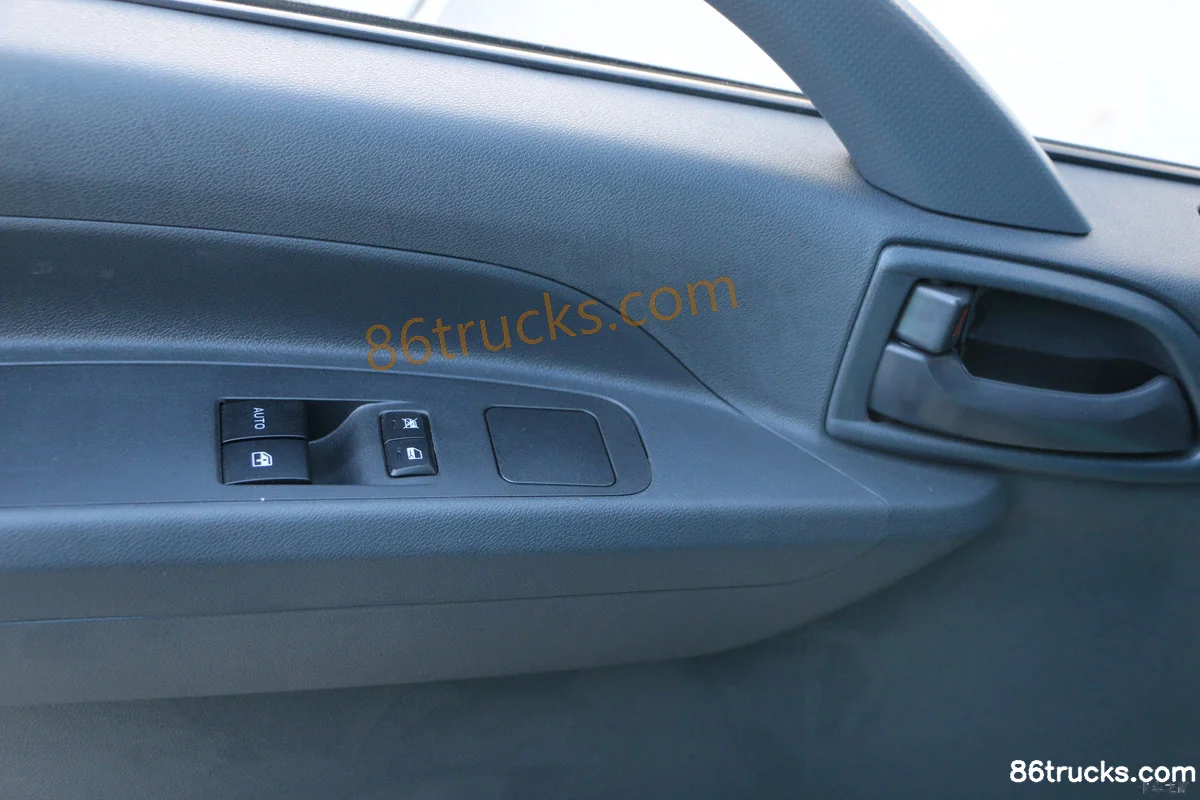

Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Interior (1) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Interior (2) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

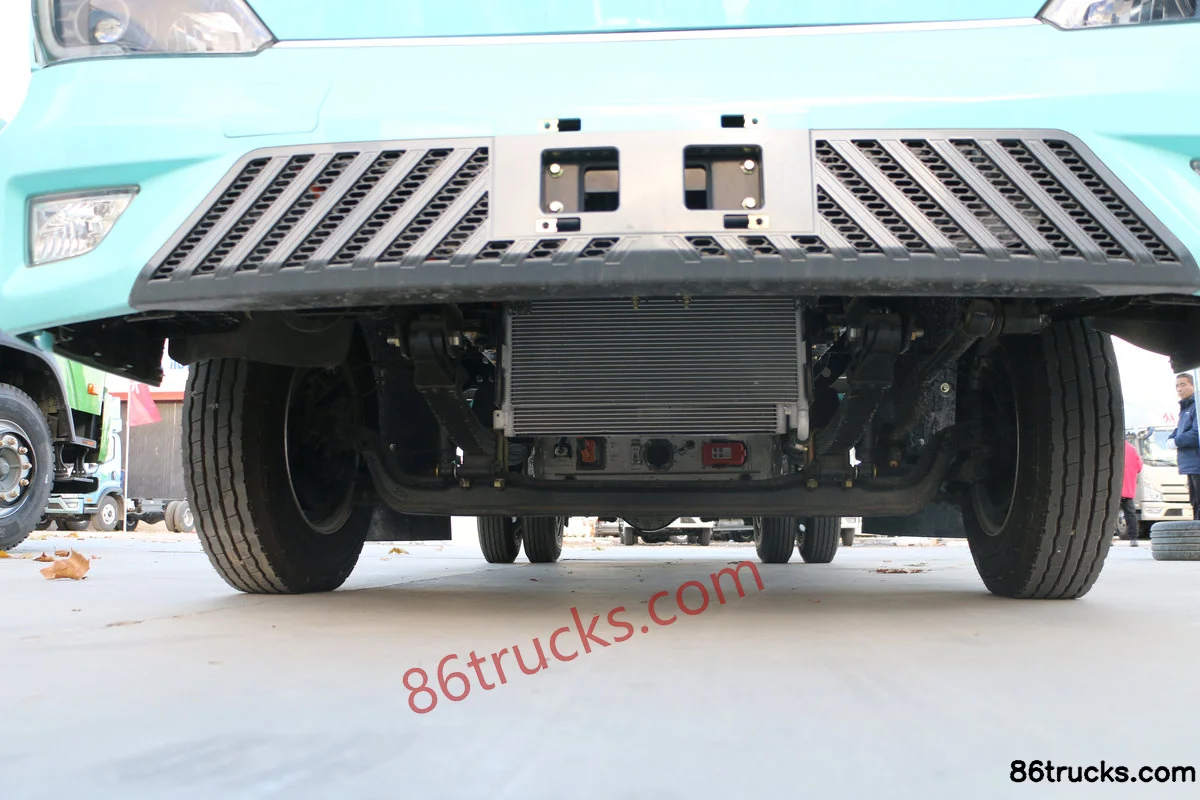

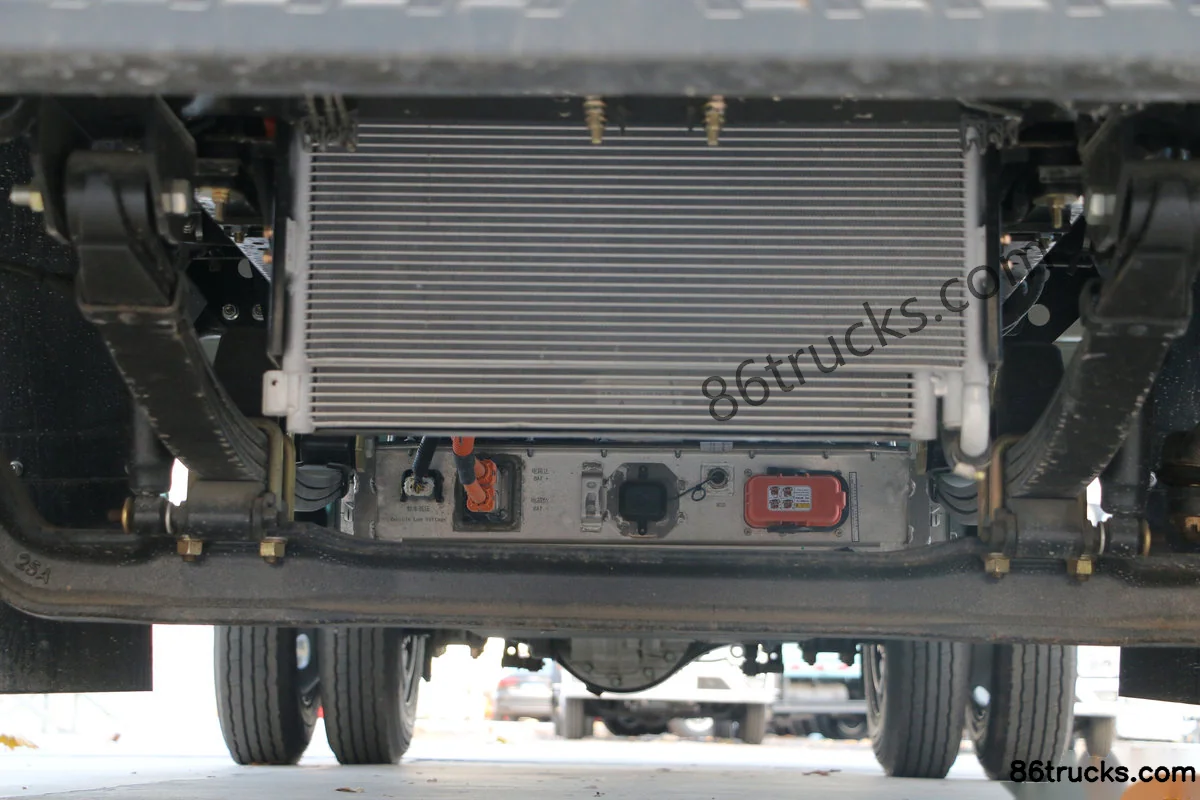

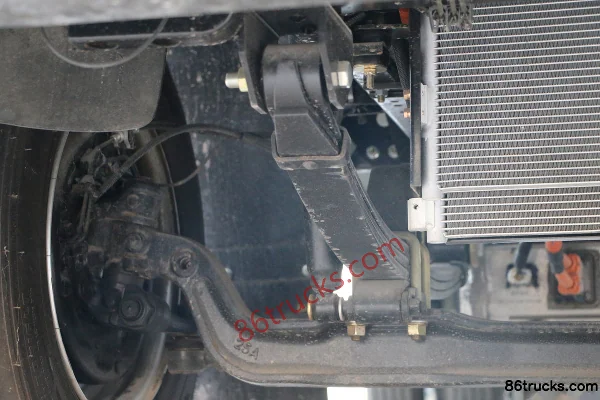

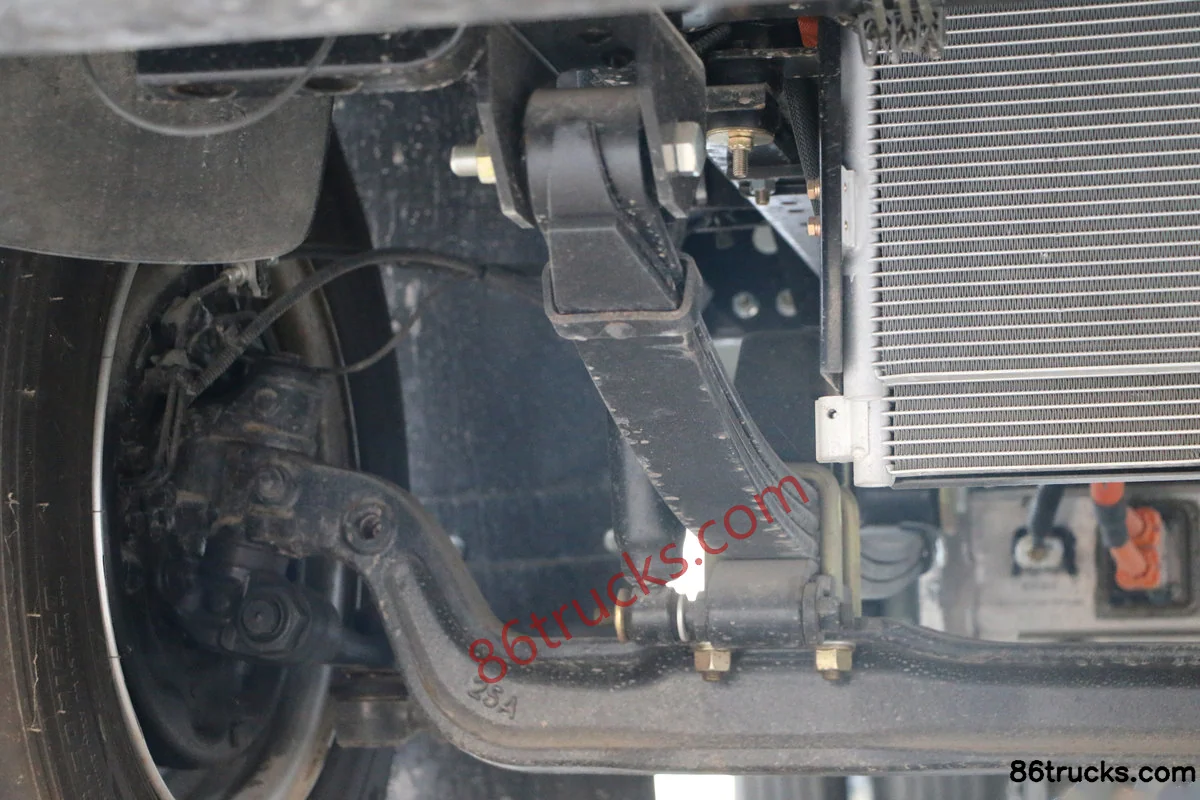

Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Chassis (1) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Chassis (2) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

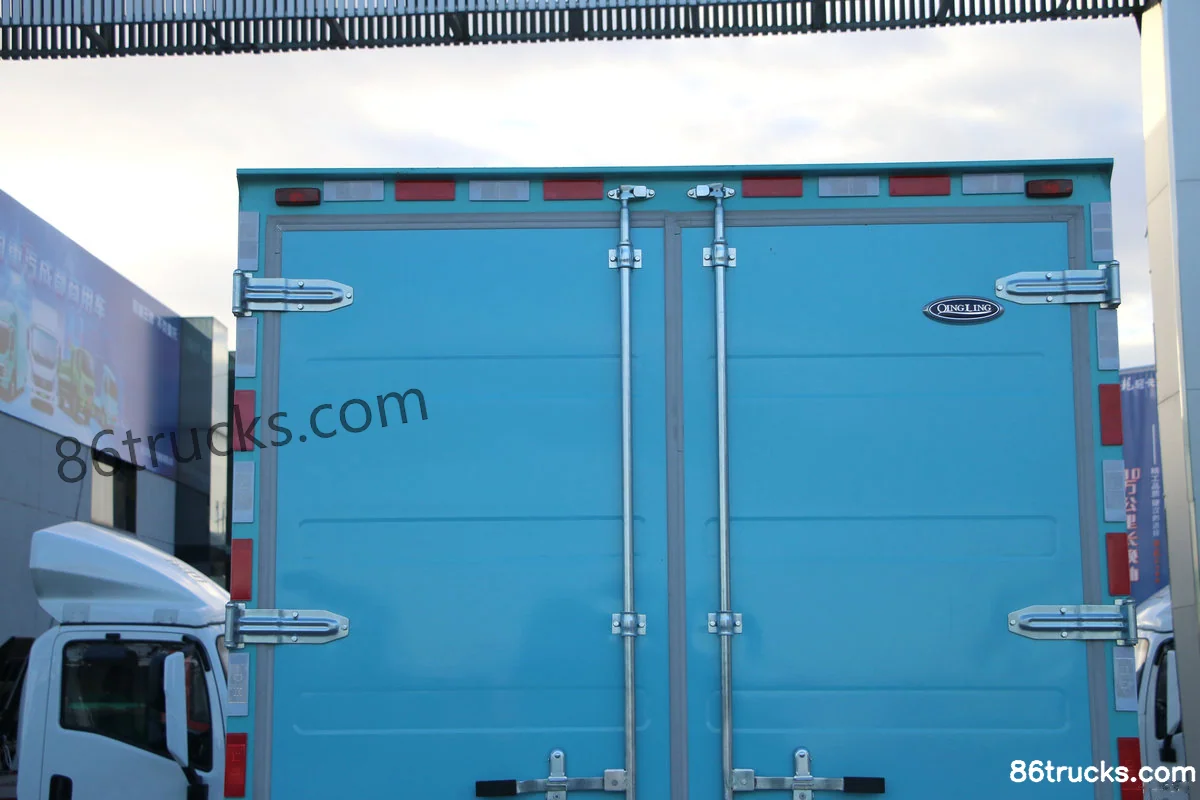

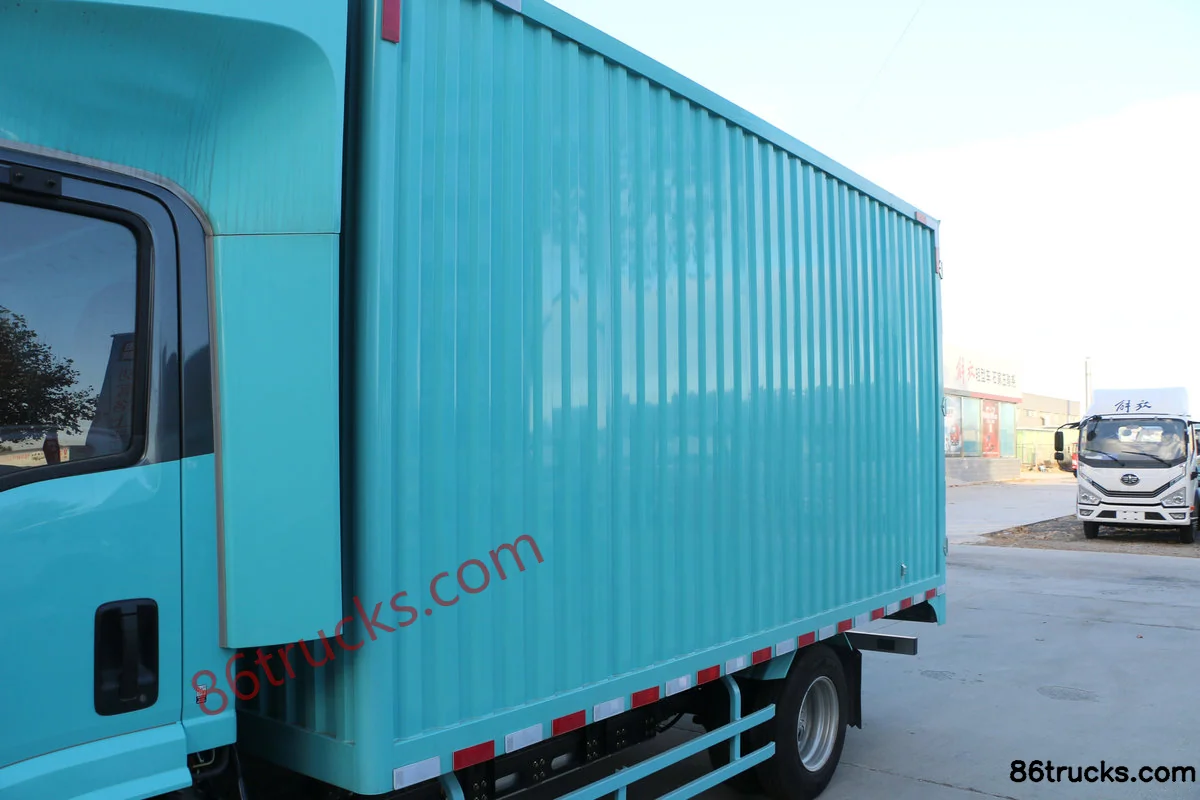

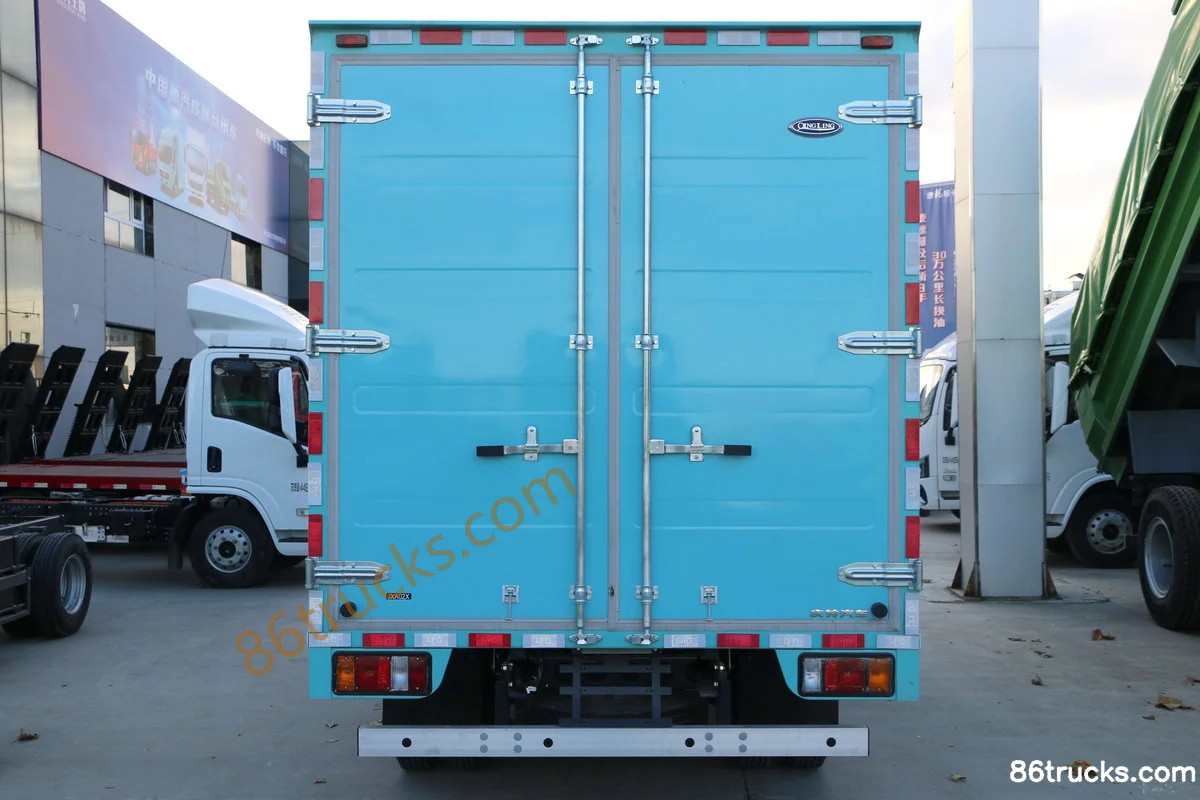

Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Body (1) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Body (2) | 86Trucks Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels)?

Key specs of Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) suited for?

Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) differ from other variants in the same series?

Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels) belongs to Qingling IsuzuEVM100 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Qingling EVM100 4.5T 4.13m Single Row Electric Van Light Truck 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
