Qingling Isuzu EVM100 Air Brake Bosch Motor 4.13m Single Row Pure Electric Box Light Truck EVE 103.47kWh 4X2(6 wheels)
EXW
Export quote
Qingling IsuzuEVM100 electric cargo truck

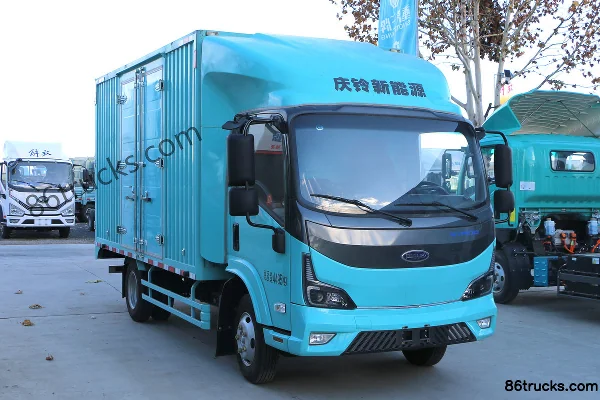

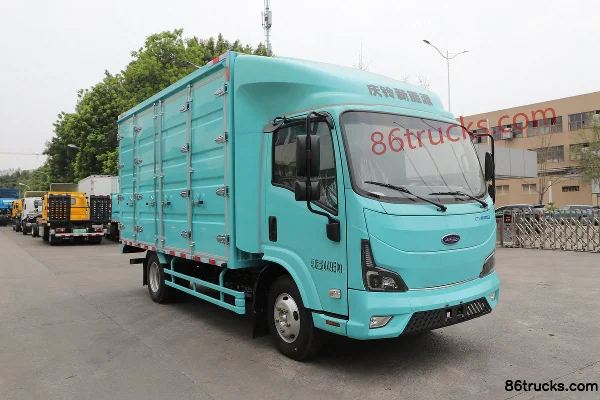

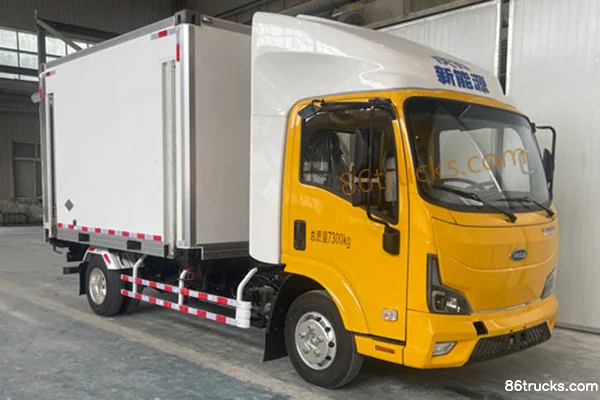

Main model photos
95 photos
Models
On sale
Qingling Isuzu EVM100 Hydraulic Brake Bosch Motor 4.13m Single Row Pure Electric Box Light Truck EVE 103.47kWh 4X2(6 wheels)
EXW
Export quote
Qingling Isuzu EVM100 Air Brake 4.13m Single Row Pure Electric Box Light Truck EVE 103.47kWh 4X2(6 wheels)
EXW
Export quote
Qingling Isuzu EVM100 Hydraulic Brake 4.13m Single Row Pure Electric Box Light Truck EVE 103.47kWh 4X2(6 wheels)
EXW
Export quote
Isuzu EVM100 Air Brake Jingjin Motor 4.13m Single Row Pure Electric Cargo Box Light Truck CATL 86.55kWh 4X2(6 wheels)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): QL5040XXYBEVBNHA2 / QL5040CCYBEVBNHA1 / QL5070XXYBEVBNHA1 / QL5040XXYBEVBNHA / QL5040CCYBEVBNHA / QL1040BEVBNHA / QL5070ZKXBEVBNHAJ / QL5040XXYBEVBNHA1 / QL5040TPBBEVBNHA
Type: enclosed cargo truck / stake truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.18 / 2.195 / 2.05 / 2.15 / 1995 / 1880m
Cab height: 3.21 / 3.02 / 3.14 / 3.08 / 2.37 / 3.04 / 3.01 / 2.81 / 2.39m
CLTC range: 300km
Curb Weight: 3.085 / 3.01 / 3.34 / 2.99 / 3.055 / 2.71 / 2.655ton
Rated payload: 1.1 / 1.29 / 3.765 / 1.31 / 1.245 / 1.59 / 4.02 / 1.645ton
GVWR: 4.495 / 7.3ton
Max. speed: 100km/h
Origin: Chongqing
tonnage class: Light Truck
Version: Tech Edition / YouXiang Edition
electric motor
Motor 1 Brand: Bosch / Jingjin
Motor 1 Model: TZ230XS001 / TZ220XSA10
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 90 / 65kW
Peak power: 167 / 140kW
Battery/Charging
Battery Brand: EVE / CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 103.47 / 86.55 / 140.41 / 120.27 / 100.07 / 100.46kWh
Battery rated voltage: 502.32V
Energy Density: 159.56
Cargo box parameters
Cargo box volume: 18.2m³
Cargo box type: Van body / Stake type / stake body / Chassis
Cargo box length: 4.13 / 4.175m
Cargo box width: 2.1 / 2.05m
Cargo box height: 2.1 / 0.4 / 2.3m
Cab parameters
Cab: Single Row
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 1805 / 2580kg
rear axle allowable load: 2690 / 4720kg
Aluminum wheels:
FAQ
What kind of truck is Qingling Isuzu Qingling IsuzuEVM100 electric cargo truck?
Qingling Isuzu Qingling IsuzuEVM100 is an export-oriented electric cargo truck lineup with about 35 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Qingling IsuzuEVM100 electric cargo truck?
Qingling IsuzuEVM100 electric cargo truck export reference is about $27,472 – $42,472. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Qingling IsuzuEVM100 electric cargo truck cover?
Qingling IsuzuEVM100 electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Qingling IsuzuEVM100 electric cargo truck?
For Qingling IsuzuEVM100 electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does Qingling IsuzuEVM100 electric cargo truck include?
Qingling IsuzuEVM100 electric cargo truck currently lists about 35 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Qingling IsuzuEVM100 electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
