Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck

Export reference
MSRP N/A
Curb Weight:: 6.455ton
Emission: China IV
Fuel: Natural gas (LNG/CNG)
Wheelbase:: 4500mm
Cab dimensions:: 8.6×2.5×3.095m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 4X2.042x2.476m
Rated payload: 9.735ton
Drive 4X2 (6 wheels)
Horsepower 190

Overview

The Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck is a water sprinkler truck featuring 4X2.042x2.476m tank capacity, 9.735t payload, 12m³ volume and 6.455ton GVW. On the powertrain side, it comes with 190 hp, 4X2 (6 wheels) drive, China IV emissions and Natural gas (LNG/CNG) fuel.

China IV 190 Natural gas (LNG/CNG) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.6×2.5×3.095m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 4500mm
Front track width: 1907mm
rear track: 1810mm
Curb Weight: 6.455ton
Rated payload: 9.735ton
Max. speed: 90km/h
Front/rear suspension: 1.35/2.398m
Energy Type: Natural gas (LNG/CNG)
Body Parameters
Tank Dimensions (L×W×H): 4X2.042x2.476m
Vehicle certification code: BJ1165VKPFK-4
Body Brand: Foton

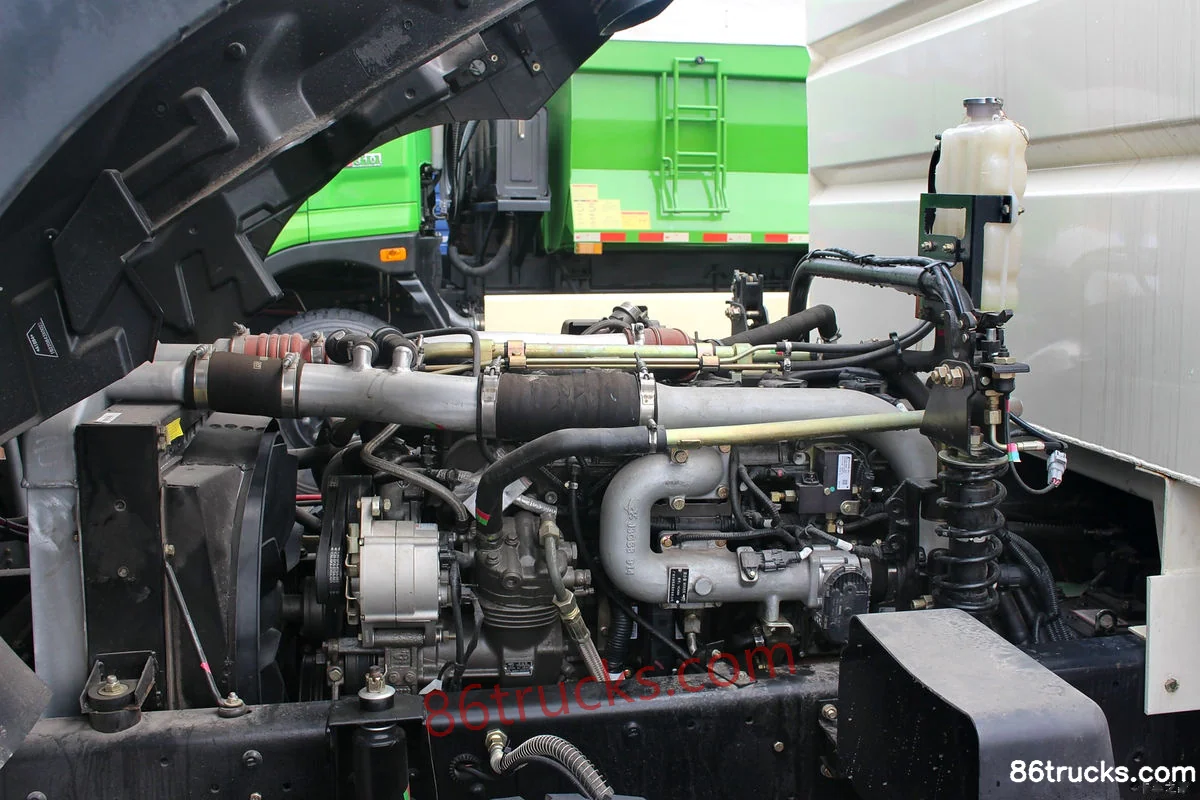

Engine parameters
Engine Model: YuchaiYC6J190N-52
Number of cylinders: 6cylinder
fuel type: Natural gas (LNG/CNG)
Displacement: 6.5L
Emission standard: China IV
Max output power: 140kW
Max hp: 190Horsepower
Rated speed: 2500rpm
Engine Type: BOSCH high-pressure common rail SCR
Cargo box parameters
Box volume: 12m³
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo Q5
Chassis Model: BJ1165VKPFK-4
Leaf spring count: 8/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS75TE
Tire
Tire Size: 10.00-20,10.00R20
Number of tires: 6pcs

Photos

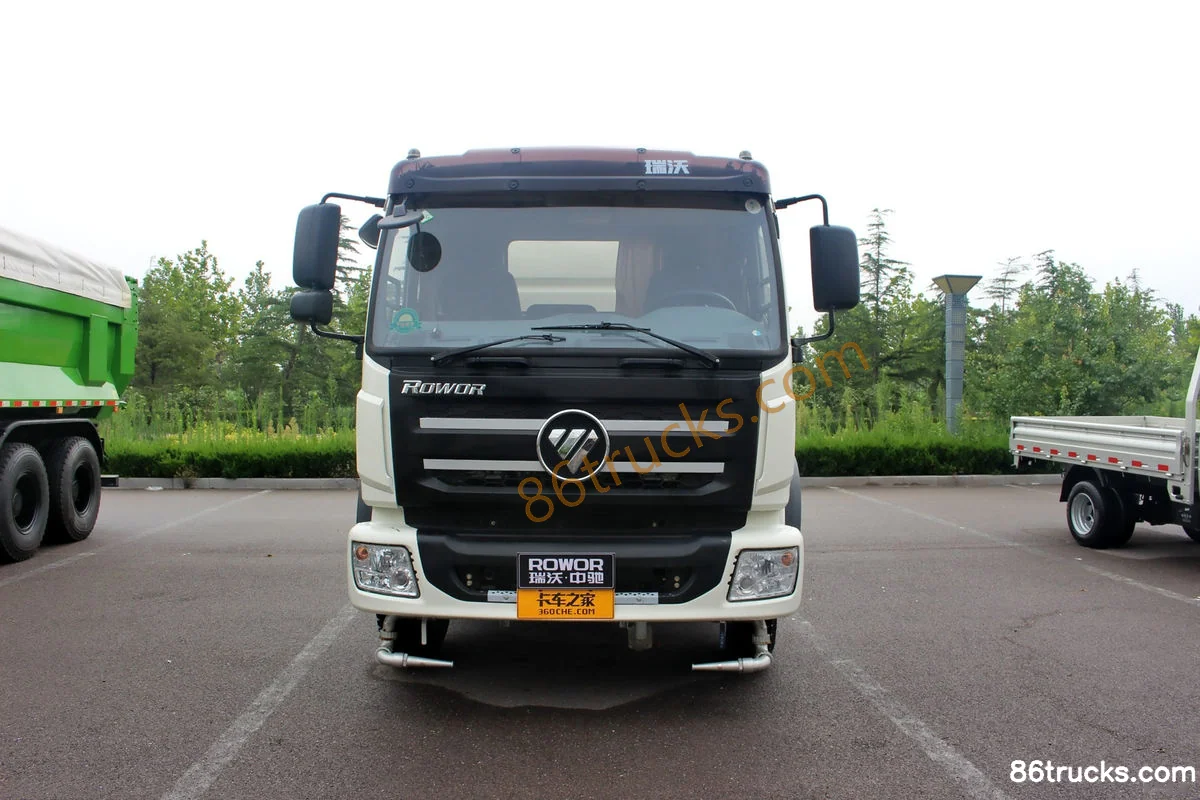

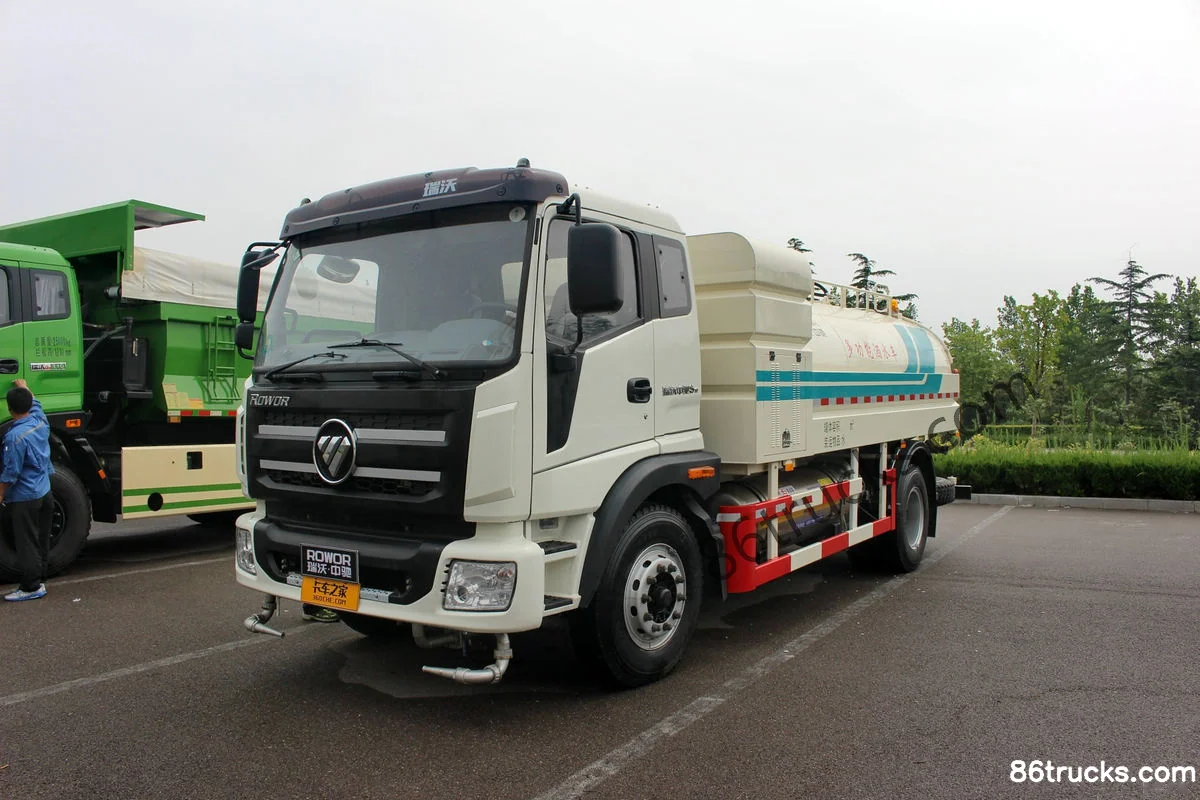

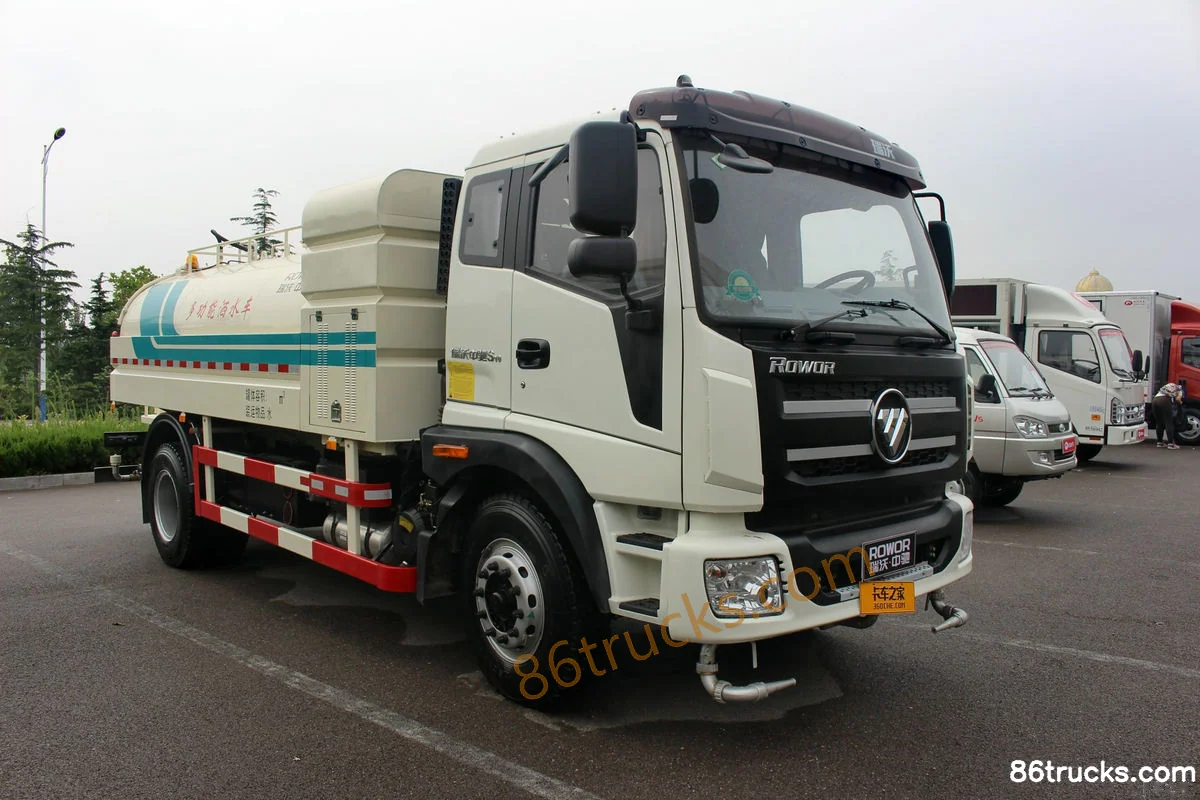

Exterior3

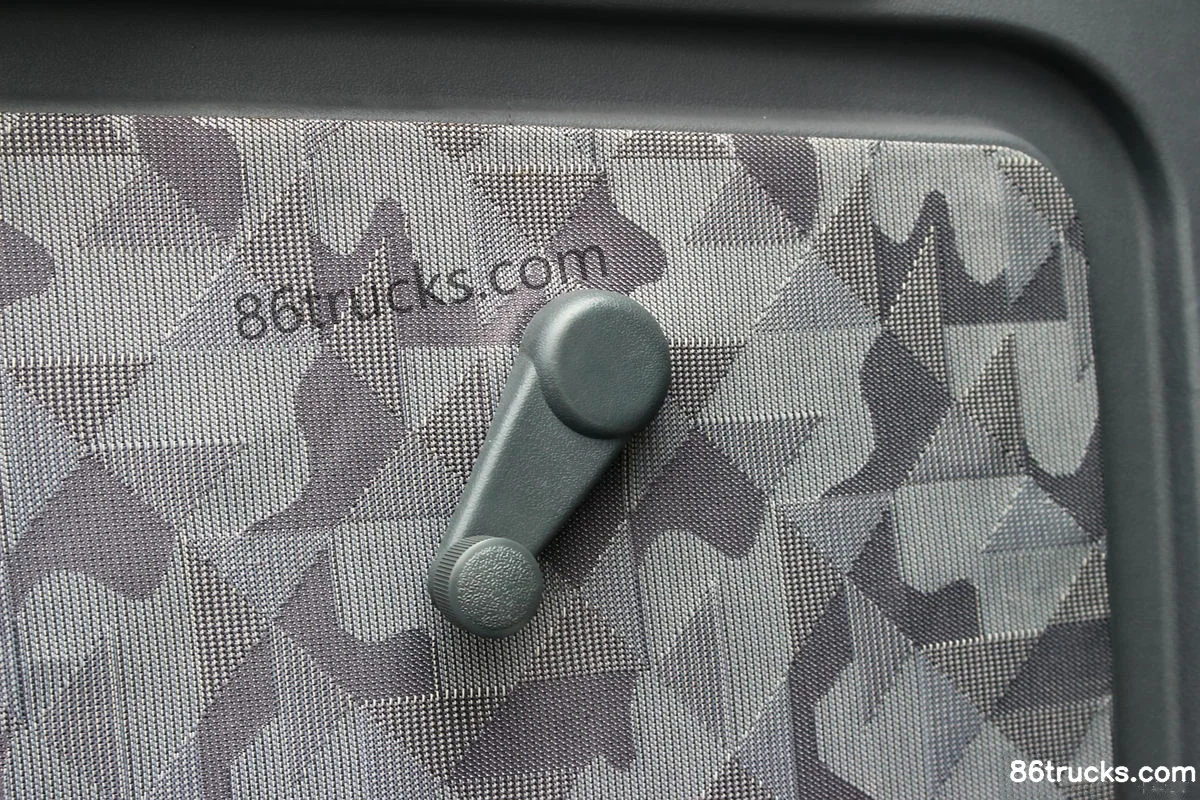

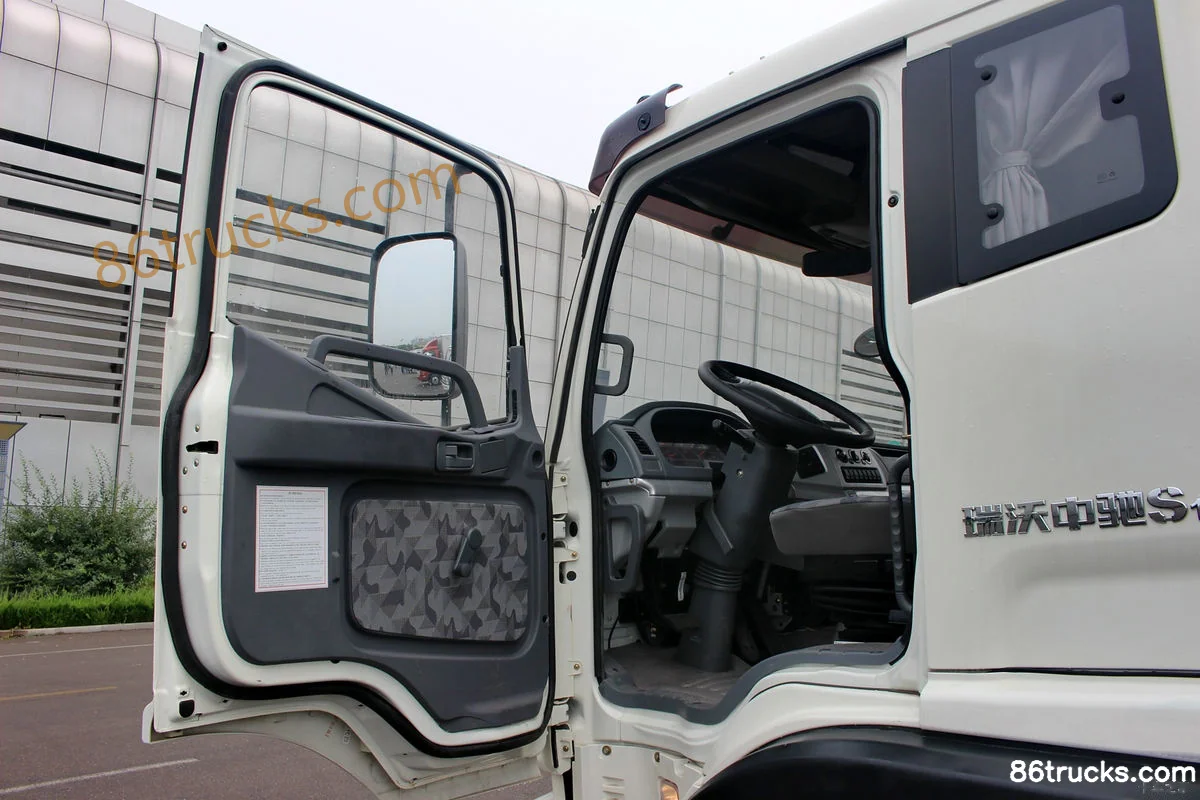

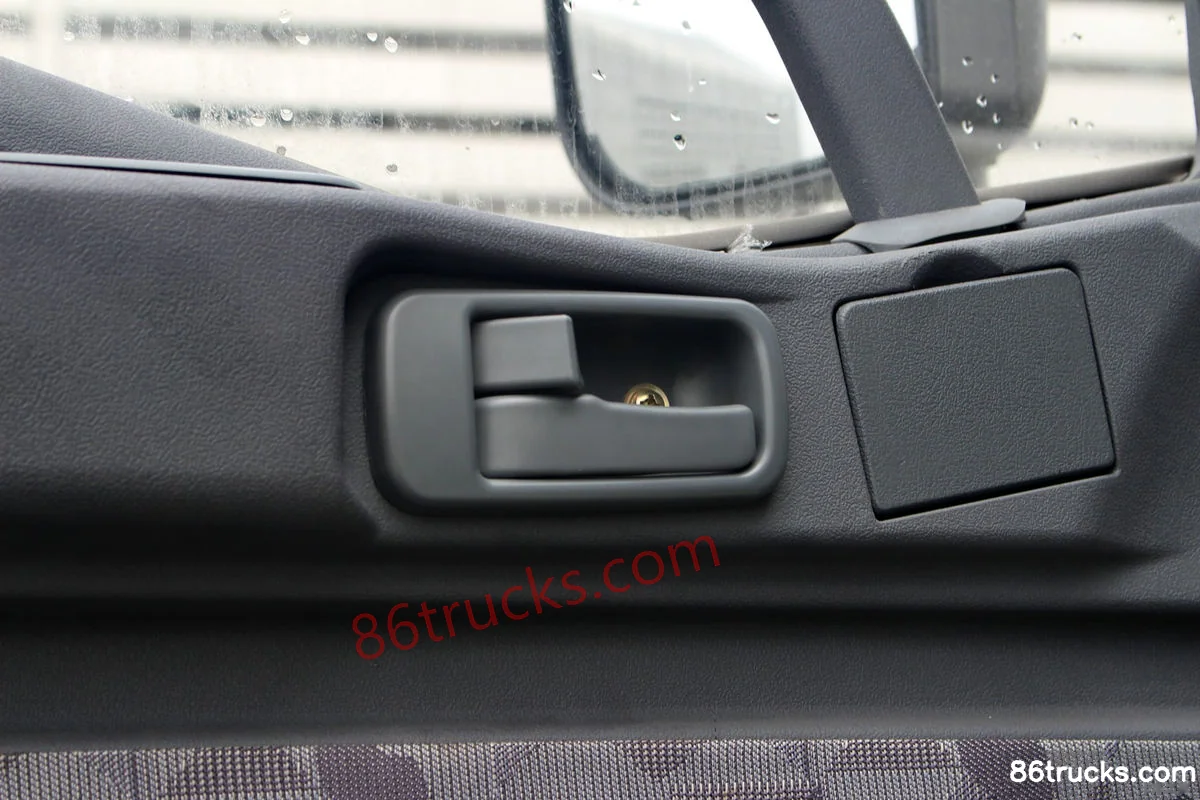

Cab3

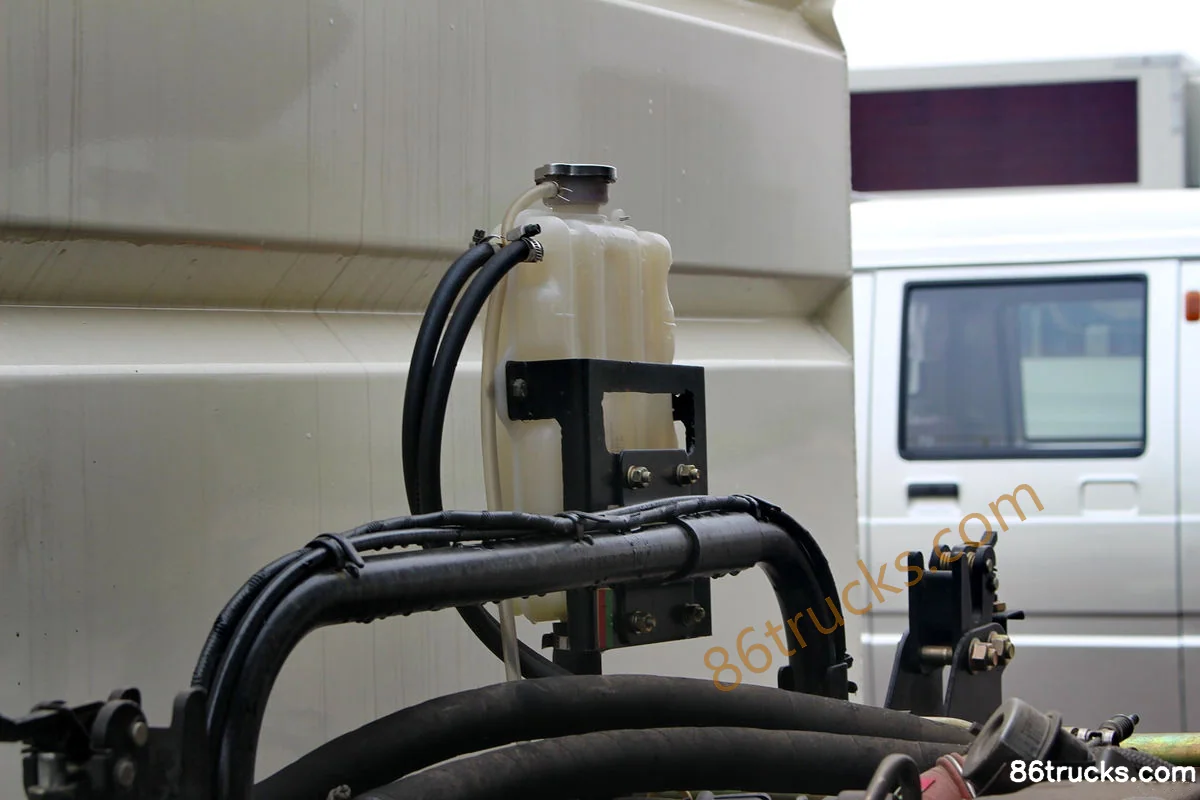

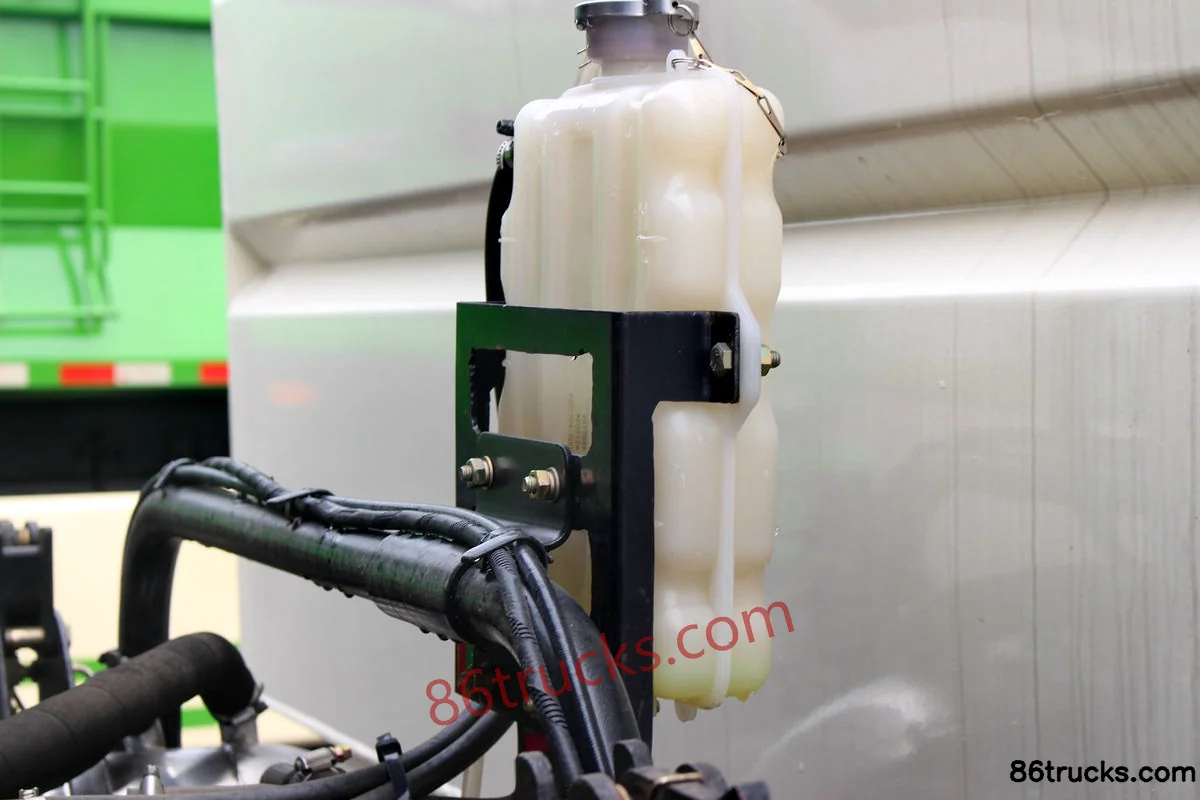

Chassis3

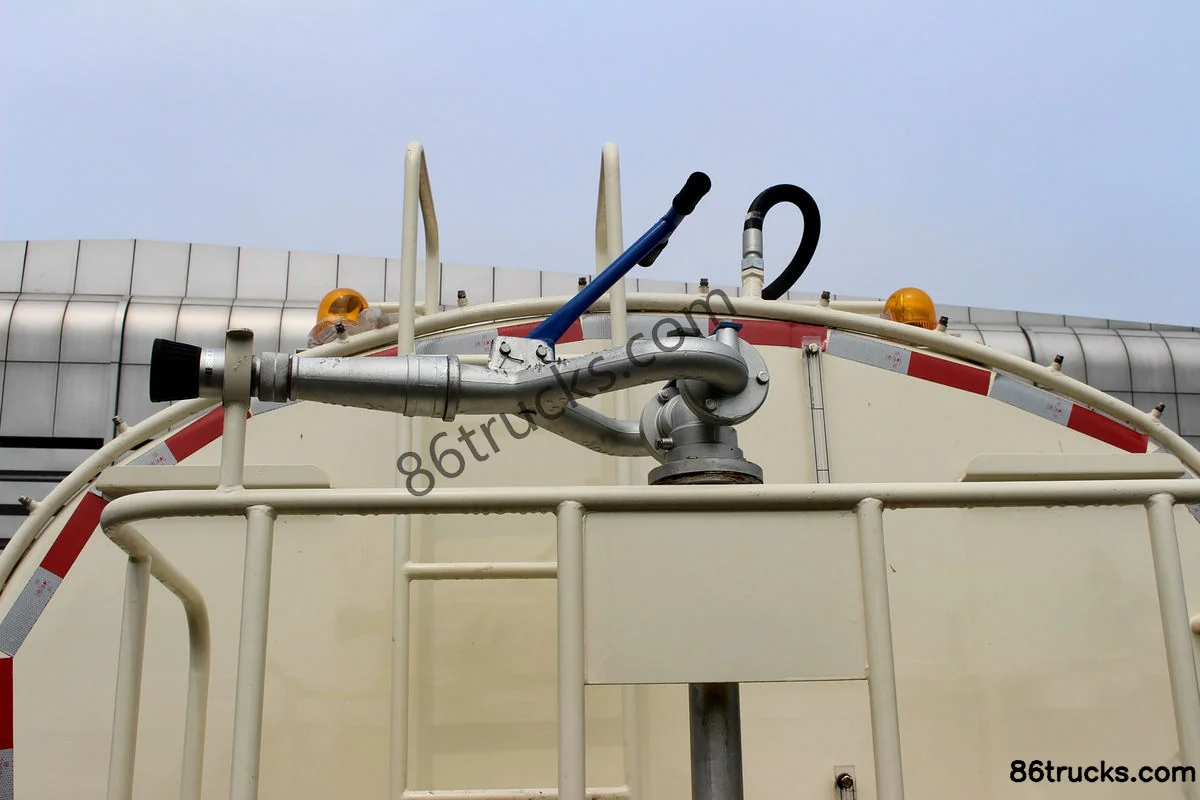

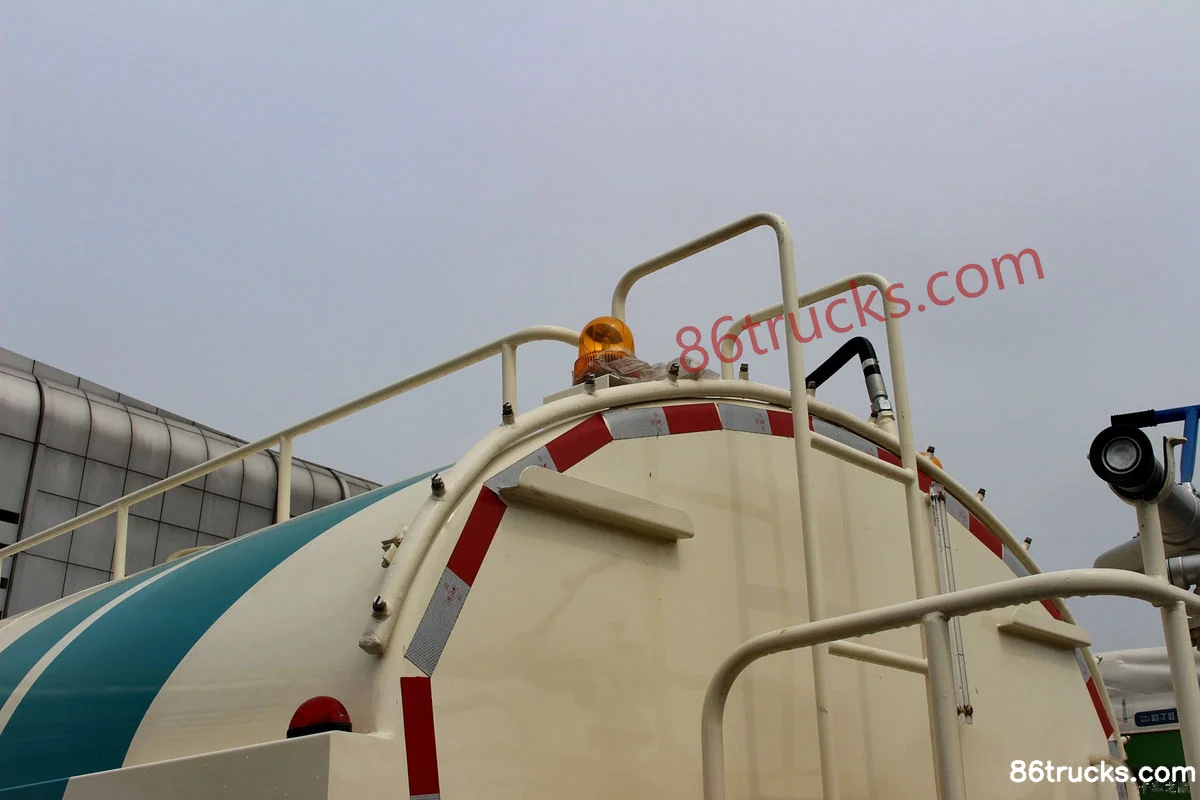

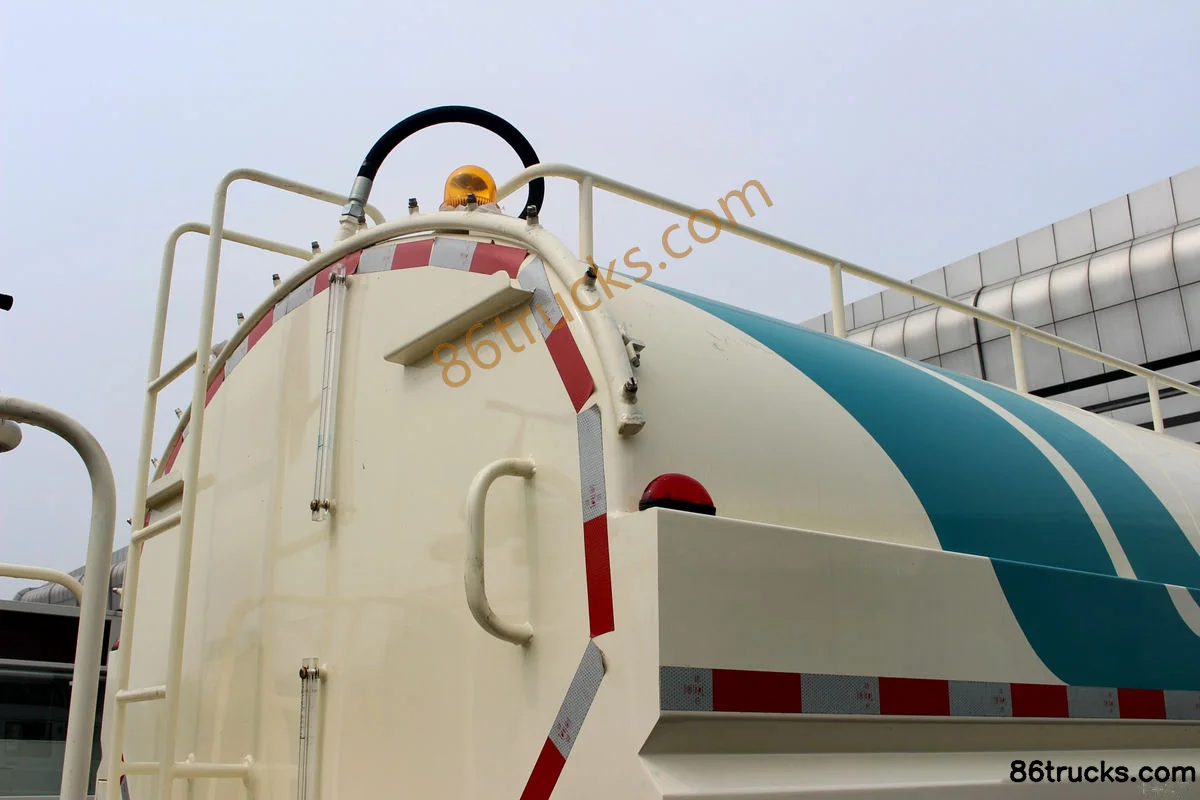

Body3

12 photos

FAQ

What emission standard does Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck?

Key specs of Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck: Drive: 4x2; Horsepower: 190 hp; Emission: China IV; Fuel: Natural gas (LNG/CNG). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck suited for?

Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck differ from other variants in the same series?

Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck belongs to FotonQ5 (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
