Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck
EXW
Export quote
FotonQ5 water sprinkler truck
Main model photos
491 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Ruiwo Q5 190hp 4X2(6 wheels) Dual Fuel Water Sprinkler Truck | 4x2 / 190hp / China IV | ||
| Foton Ruiwo Q5 141 hp 4X2(6 wheels) 10 cubic meter water sprinkler truck | 4x2 / 141hp / China IV |

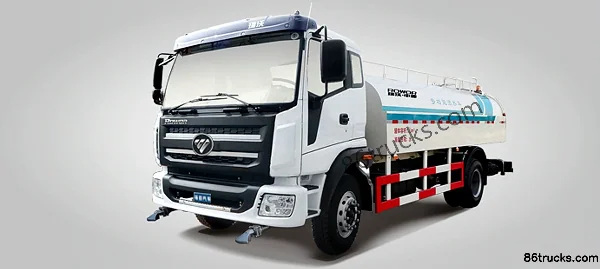

Foton Ruiwo Q5 141 hp 4X2(6 wheels) 10 cubic meter water sprinkler truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.6×2.5×3.095 / 8.64×2.38×2.87m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 4500mm
Front track width: 1907 / 1924mm
rear track: 1810mm
Curb Weight: 6.455 / 6.69ton
Rated payload: 9.735 / 8.23ton
Max. speed: 90 / 95km/h
Front/rear suspension: 1.35/2.398 / 1.43/2.61m
Energy Type: Natural gas (LNG/CNG) / Diesel
Body Parameters
Tank Dimensions (L×W×H): 4X2.042x2.476 / 5.35×1.93×1.195m
Sprinkling width: 16m
Vehicle certification code: BJ1165VKPFK-4 / BJ5155GSS-1
Body Brand: Foton
Engine parameters
Engine Model: YuchaiYC6J190N-52 / FotonISF3.8s4R168
Number of cylinders: 6 / 4cylinder
Displacement: 6.5 / 3.76L
Emission standard: China IV
Max output power: 140 / 105kW
Max hp: 190 / 141Horsepower
Rated speed: 2500 / 2600rpm
Engine Type: BOSCH high-pressure common rail SCR / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Cargo box parameters
Box volume: 12m³
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo Q5
Chassis Model: BJ1165VKPFK-4
Leaf spring count: 8/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS75TE / Fast Gear8JS75TB
Tire
Tire Size: 10.00-20,10.00R20 / 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Foton FotonQ5 water sprinkler truck?
Foton FotonQ5 is an export-oriented water sprinkler truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does FotonQ5 water sprinkler truck cover?
FotonQ5 water sprinkler truck mainly covers: Drive: 4x2; Horsepower: 141 hp / 190 hp; Emission: China IV; Fuel: Diesel / Natural gas (LNG/CNG). Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FotonQ5 water sprinkler truck?
For FotonQ5 water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does FotonQ5 water sprinkler truck include?
FotonQ5 water sprinkler truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FotonQ5 water sprinkler truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
