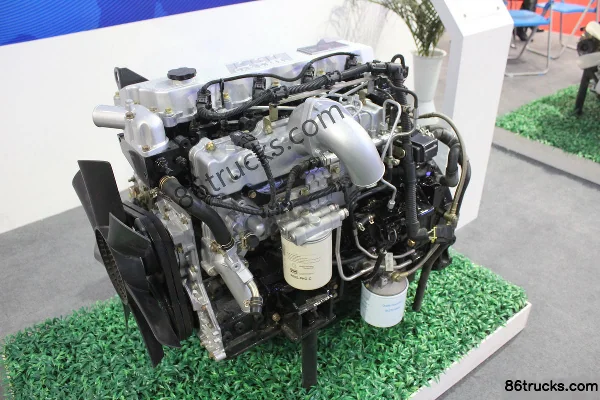

Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: 205g/kW.h
noise at 1m:: 115dB
Suitable Range: 3-5 ton cargo truck, construction machinery, high-end luxury tourist midibus, and generator sets, marine sets
Engine Model: CY4D120-C3
Engine Series: CYD Series

Overview

The Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine is a parts product with fit for 3-5 ton cargo truck, construction machinery, high-end luxury tourist midibus, and generator sets, marine sets and spec CY4D120-C3.

China III / Euro III 163 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: CYD Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: 3-5 ton cargo truck, construction machinery, high-end luxury tourist midibus, and generator sets, marine sets
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: 205g/kW.h
Engine net weight: 395kg
Engine Dimensions: 1181×699.8×833.3mm
noise at 1m: 115dB
Compression ratio: 18:1
Bore × Stroke: 110x125mm
Engine Brand: Chaochai
Engine Model: CY4D120-C3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.751L
Emission standard: China III / Euro III
Max output power: 120kW
Max hp: 163Horsepower
Max torque: 520N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical inline, water-cooled, four-stroke, turbocharged intercooled

Photos

0 photos

FAQ

What emission standard does Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine?

Key specs of Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine: Horsepower: 163 hp; Emission: China III / Euro III; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine suited for?

Match Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine differ from other variants in the same series?

Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine belongs to Chaochai CYD Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chaochai CY4D120-C3 163 hp 4.75L China III Diesel Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
