JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck

Export reference
From $14,722
MSRP ¥10.6M CNY
Horsepower: 109
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D20
Transmission: Lu'an
Curb Weight:: 2.165ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D20 engine, 109 hp, 4X2 (6 wheels) drive and China V emissions.

China V 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1041P93K3C2V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: Yunnei PowerD19TCIE11
transmission: Lu'an LC5T28B
Cab length: 5.995m
Cab width: 2m
Cab height: 2.35m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 2.165ton
Rated payload: 1.495ton
GVWR: 3.79ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Building materials, agricultural products
Remarks: Standard: five-ring instrument cluster, dual ashtrays, dual overhead storage bins, dual sun visors, crew cab side window that opens, framed rearview mirror; Optional: 75L plastic fuel tank, MP5, anti-slip floor plate, driving recorder.
Front/rear suspension: 1.09/1.597m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE11
Engine info: Yunnei Dewei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 285N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui LC5T28B
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab width: 1695mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 85L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1365kg
rear axle description: 3T
rear axle allowable load: 2465kg
Leaf spring count: 3/9+7,11/9+7
Tire
Tire Size: 7.00R16,6.50R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake

Photos

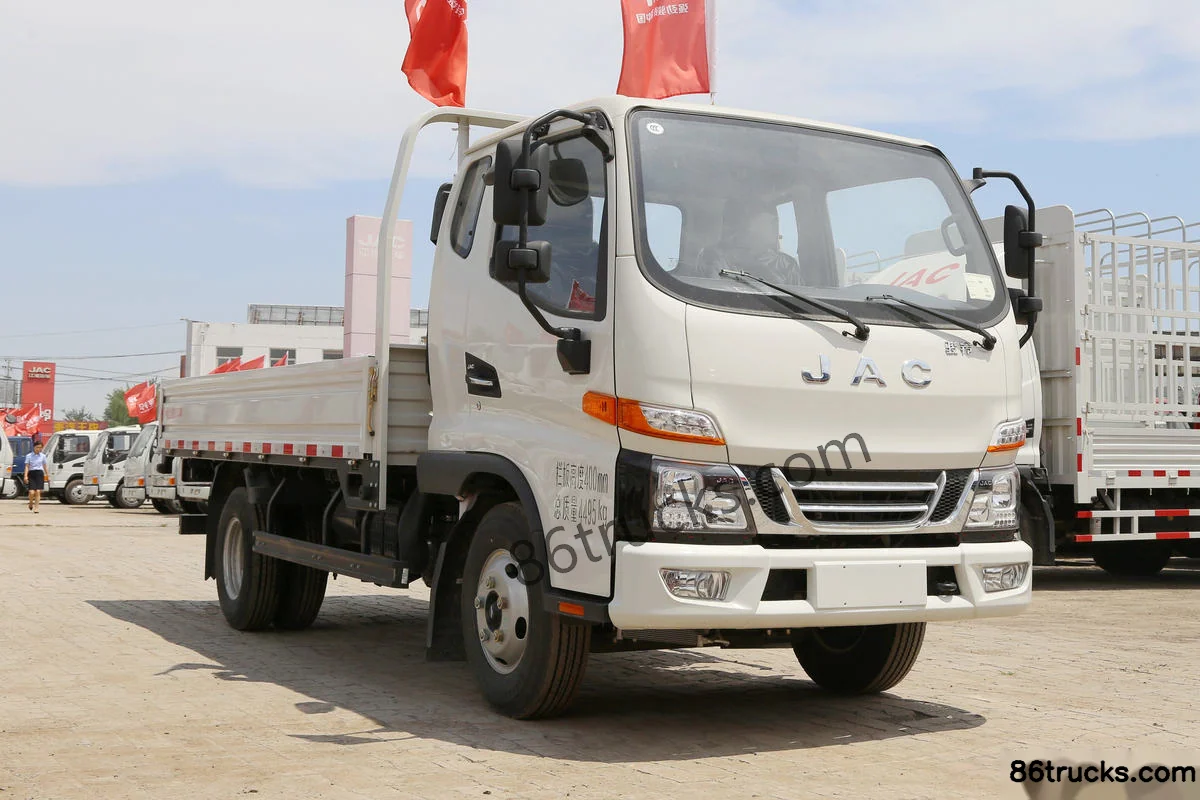

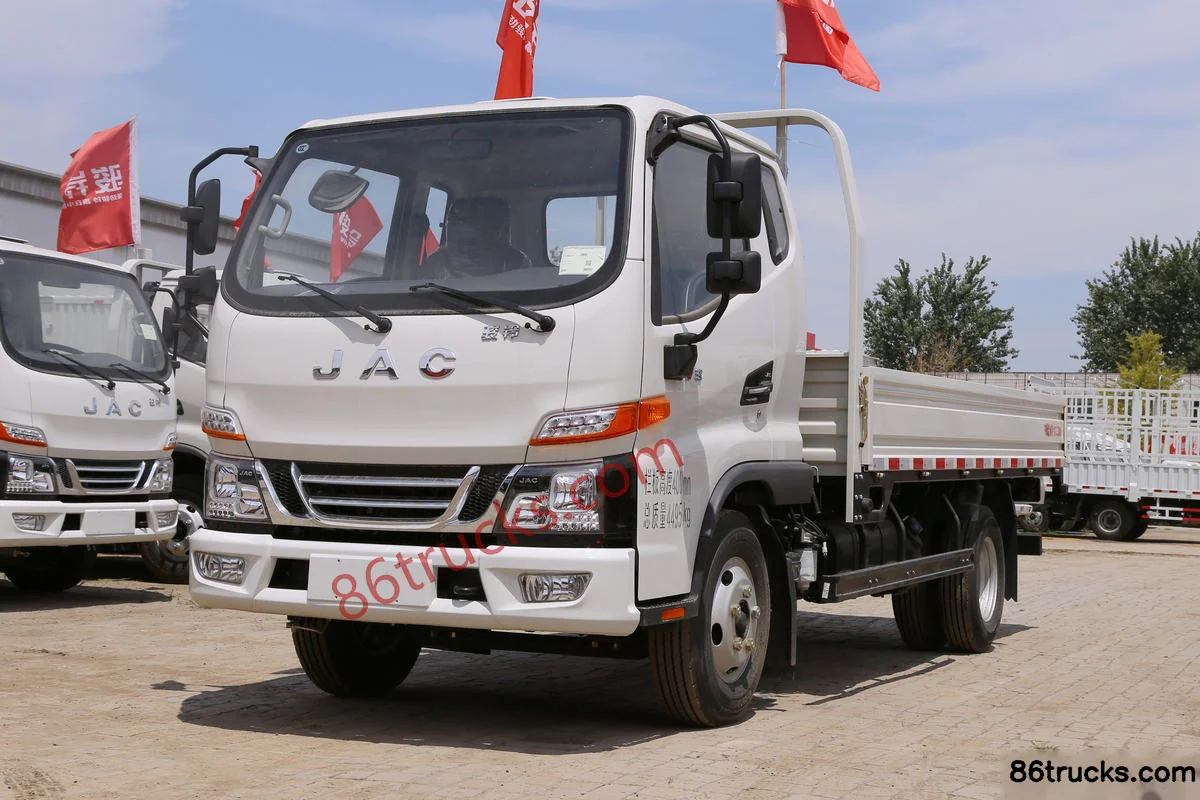

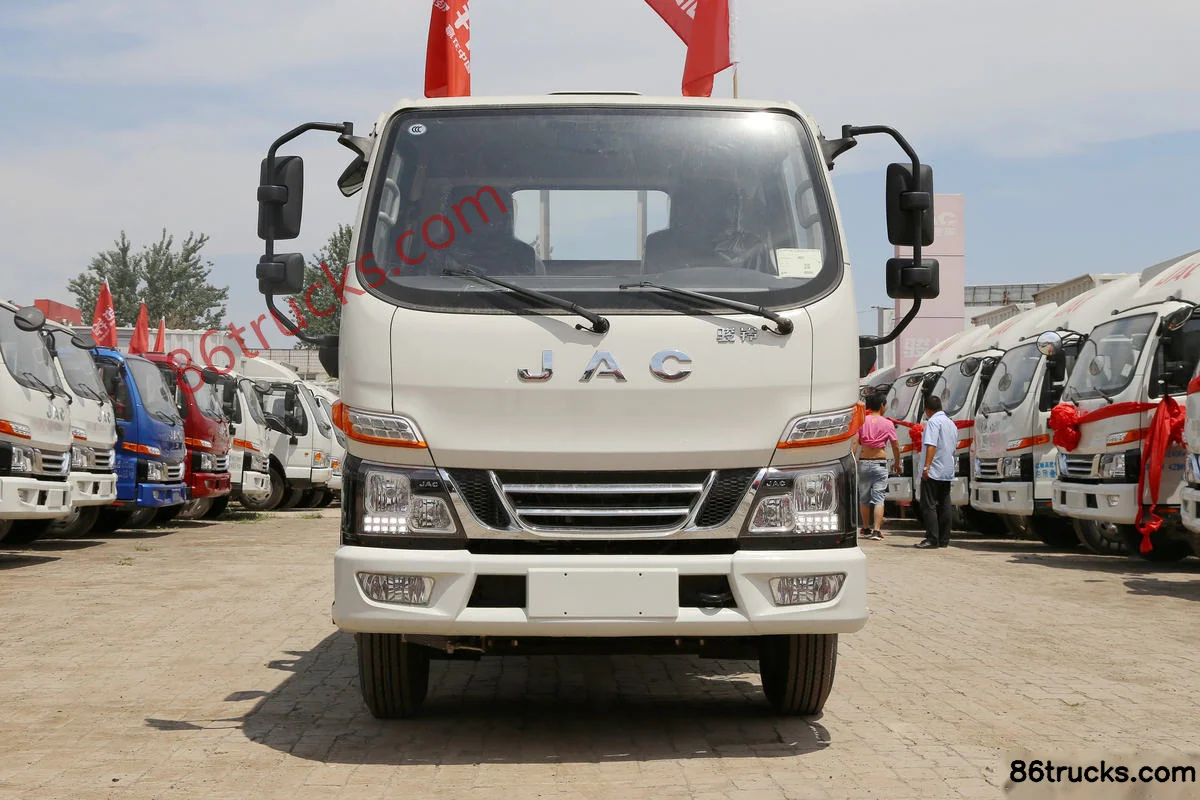

Exterior3

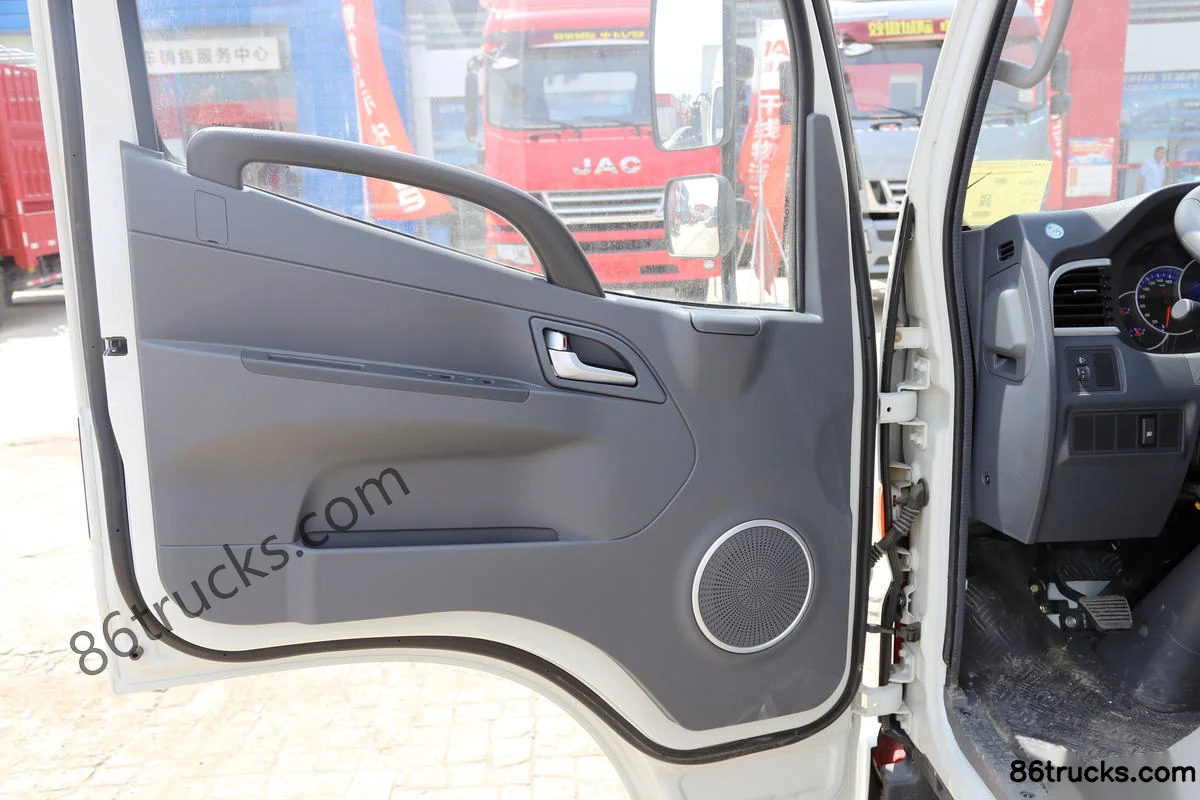

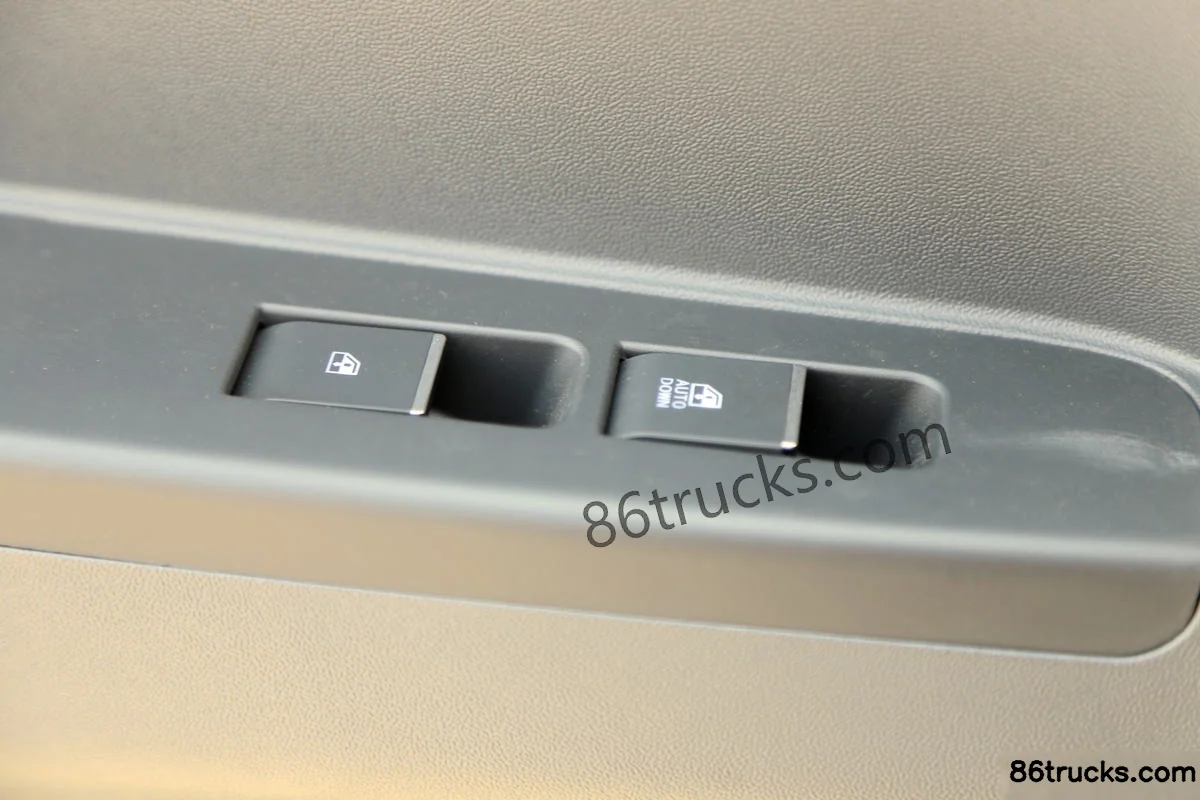

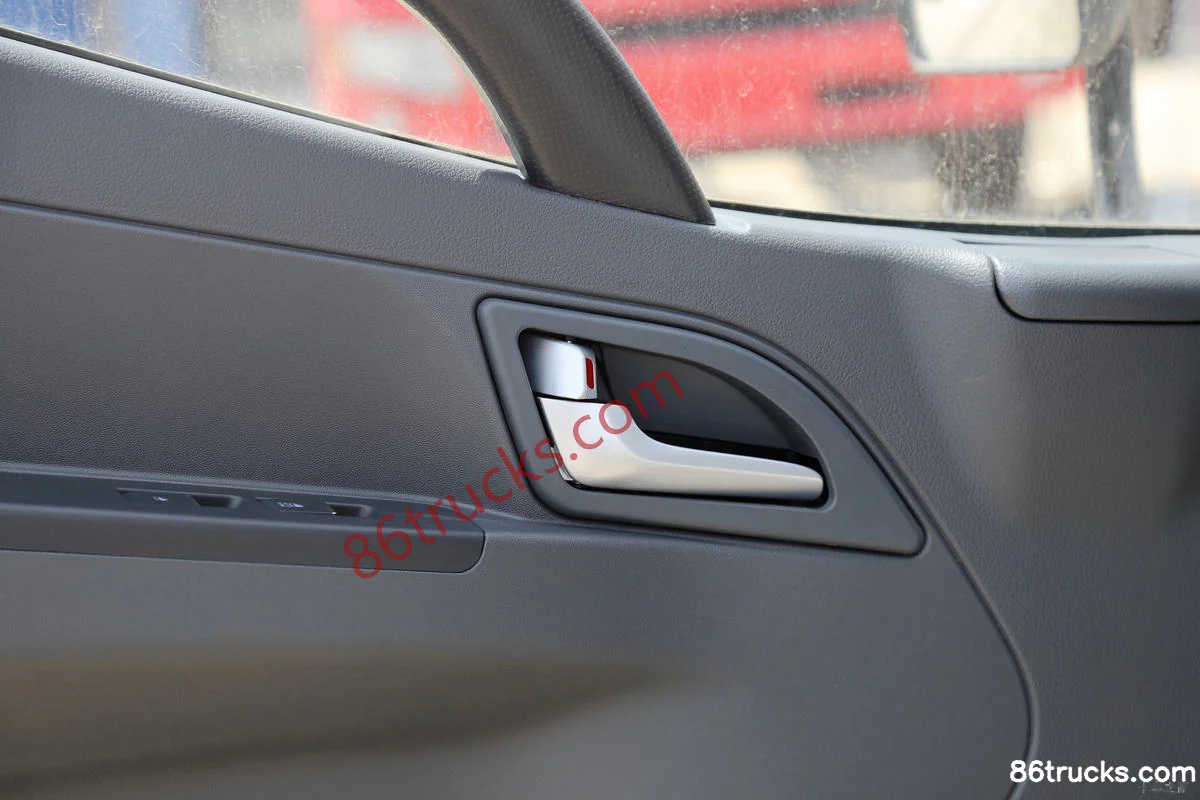

Cab3

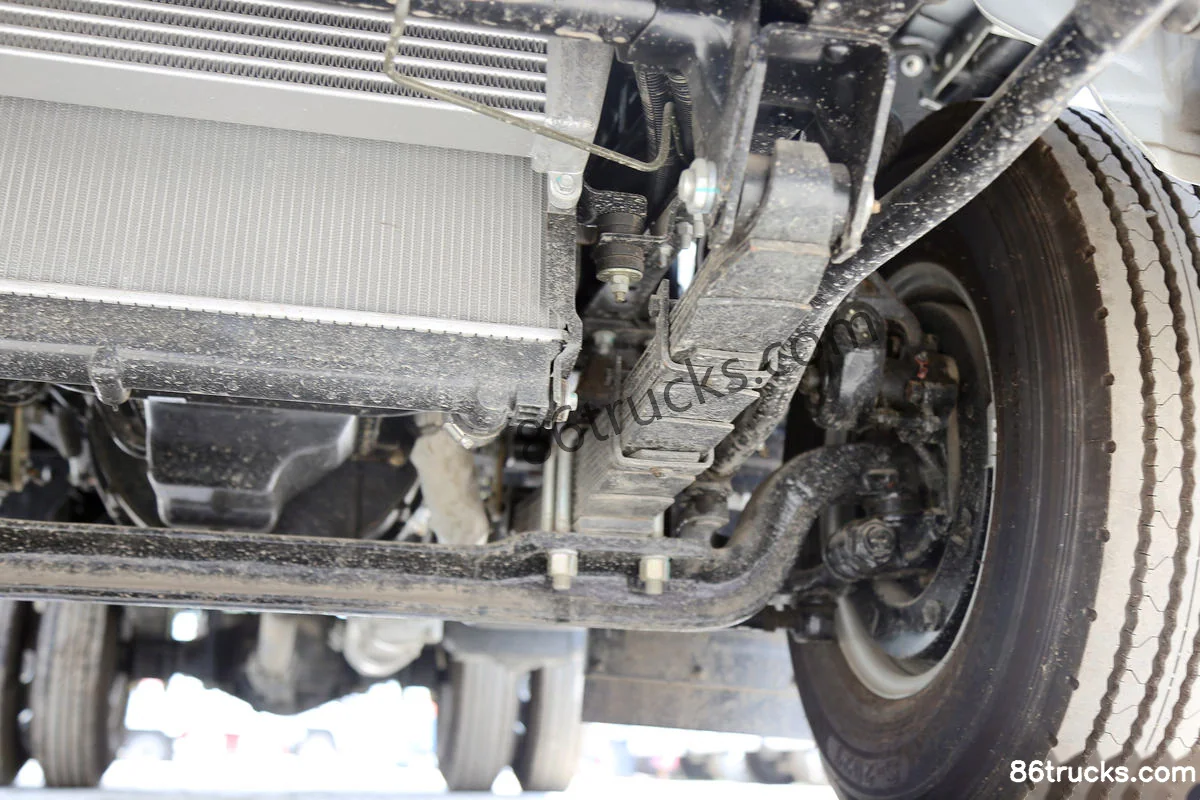

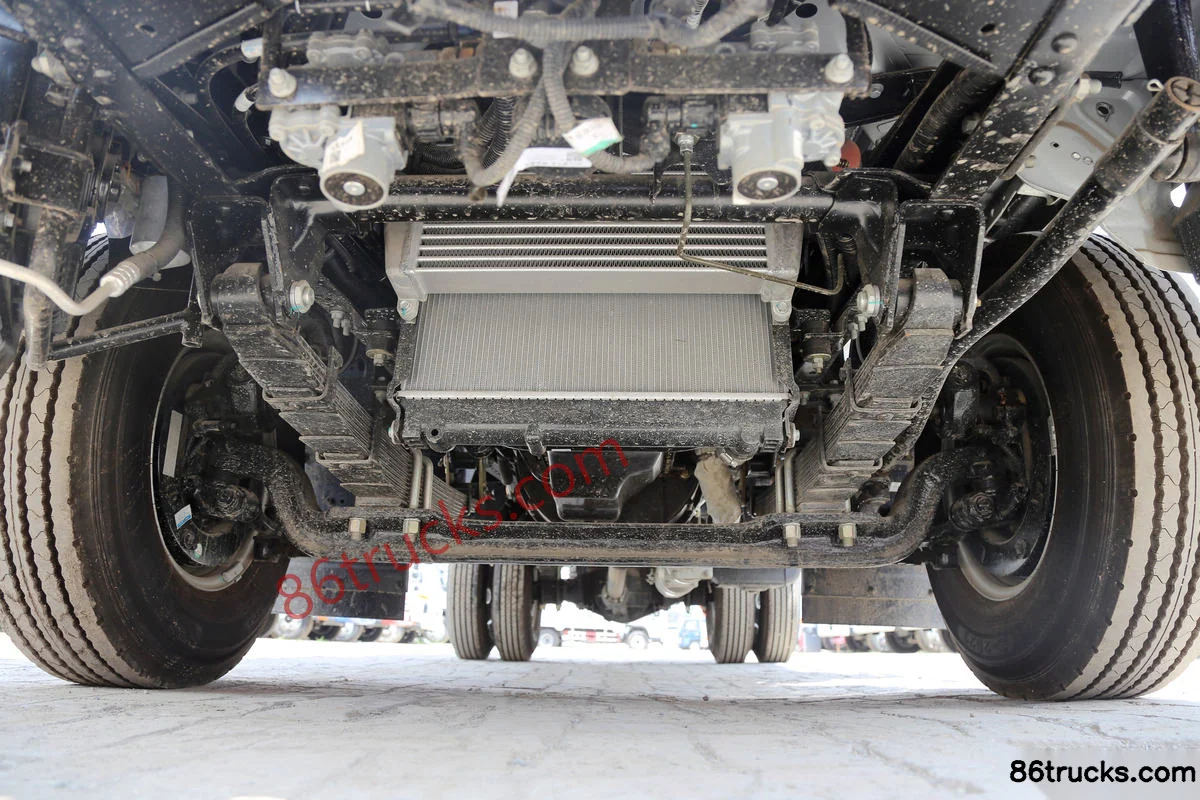

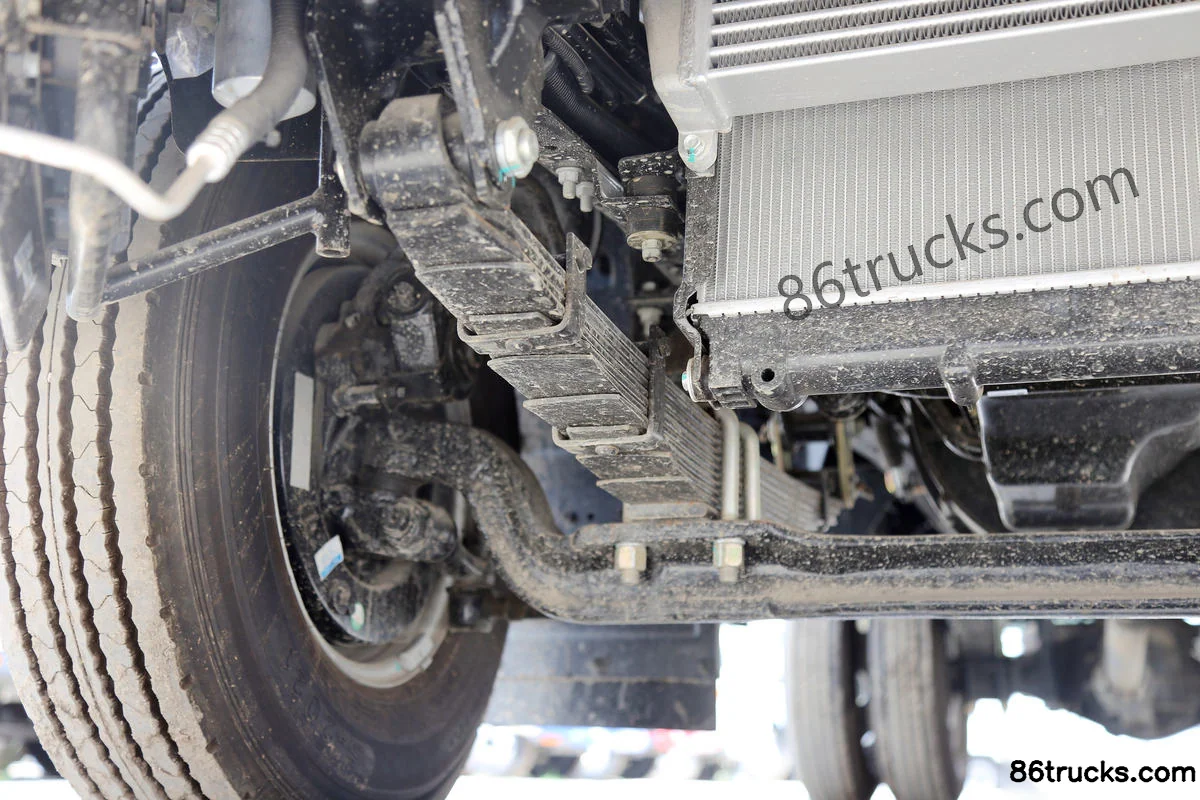

Chassis3

9 photos

FAQ

What is the export price of JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck, and what does it include?

JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck export reference is about From $14,722; MSRP is ¥10.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck?

Key specs of JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck: Drive: 4x2; Horsepower: 109 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D20; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck suited for?

JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck differ from other variants in the same series?

JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck belongs to JAC V3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V3 109hp 4X2(6 wheels) 3.85m semi-sleeper flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
