JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck

Export reference
From $16,069
MSRP ¥11.57M CNY
Horsepower: 124
Emission: China IV
Fuel: Diesel
Engine: Chaochai4102
Transmission: Lu'an
Curb Weight:: 3.32ton
seating capacity: 3Personnel
Rated payload: 1.98ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck is a Light Truck featuring 5.2m cargo length, Van body cargo body, 3Personnel volume and 1.98t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 124 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5056XXYP91K2C5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3815mm
Box length class: 5.2m
engine: ChaochaiCY4102-CE4C
transmission: Lu'an LC6T46
Cab length: 7.1m
Cab width: 2.24m
Cab height: 3.1m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 3.32ton
Rated payload: 1.98ton
GVWR: 5.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 24°
departure angle: 13°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Spring brake, metallic paint, anti-slip floor, exhaust brake, adjustable headlights, corrugated rear 2 sides 2 doors
Front/rear suspension: 1.085/2.2m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4102-CE4C
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China IV
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 345N·m
Max torque speed: 1300-1500rpm
Rated speed: 2800rpm
Engine Type: Vertical in-line, 4-stroke, turbocharged & intercooled, electronic high-pressure common rail
Technology route: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: Lu'an LC6T46
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.2m
Cargo box width: 2.11m
Cargo box height: 2m
*Cargo box interior width: 2.1099998950958
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1980kg
rear axle allowable load: 3515kg
Leaf spring count: 9/12
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

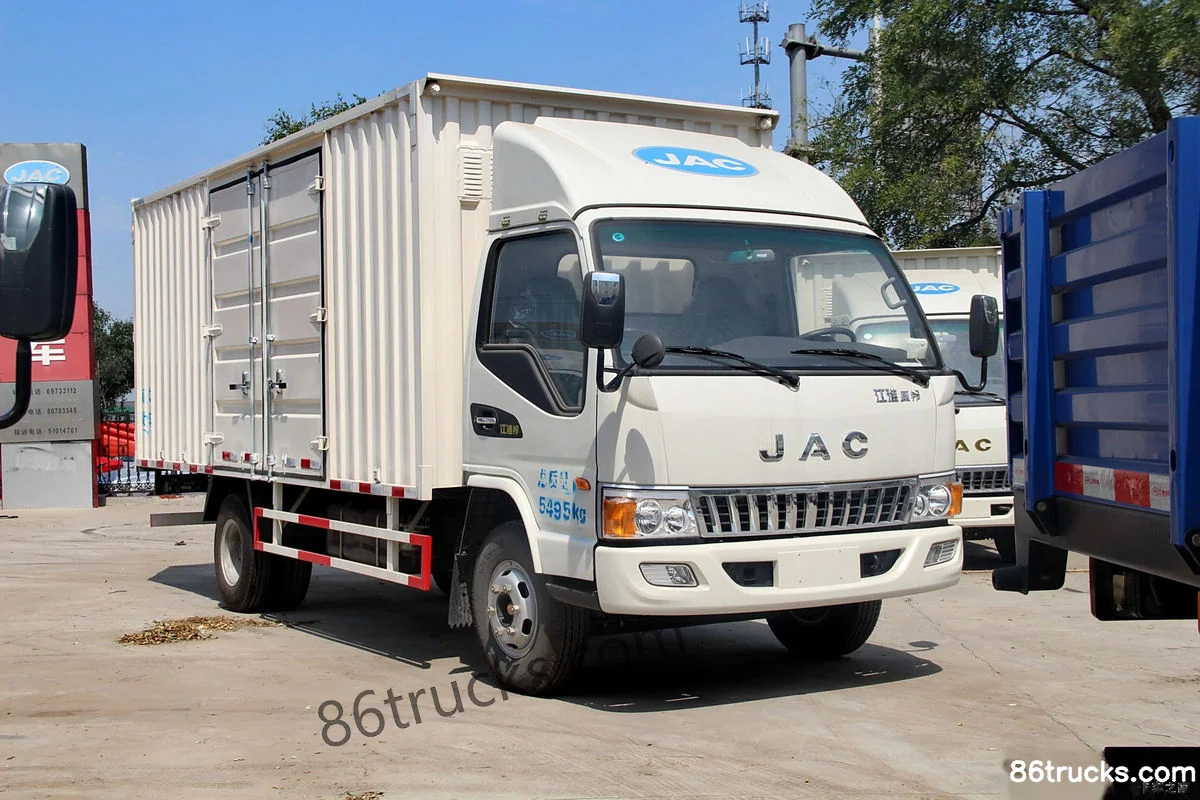

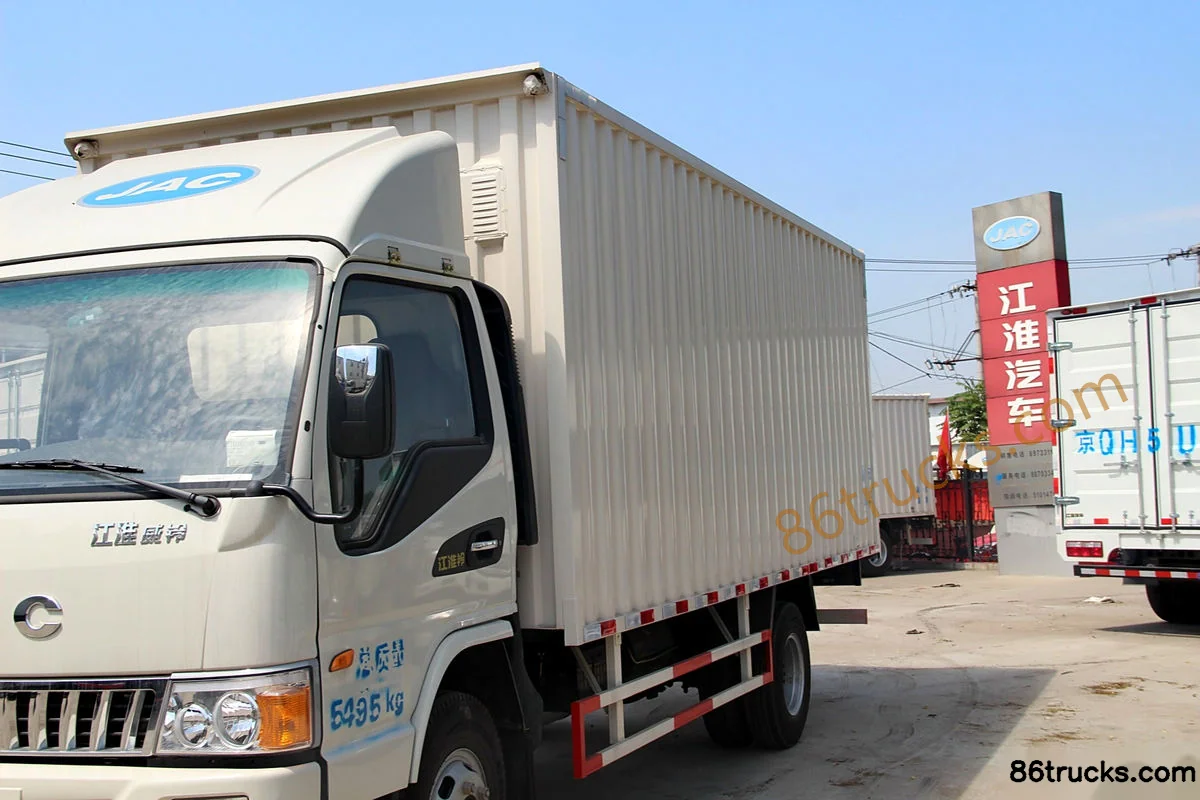

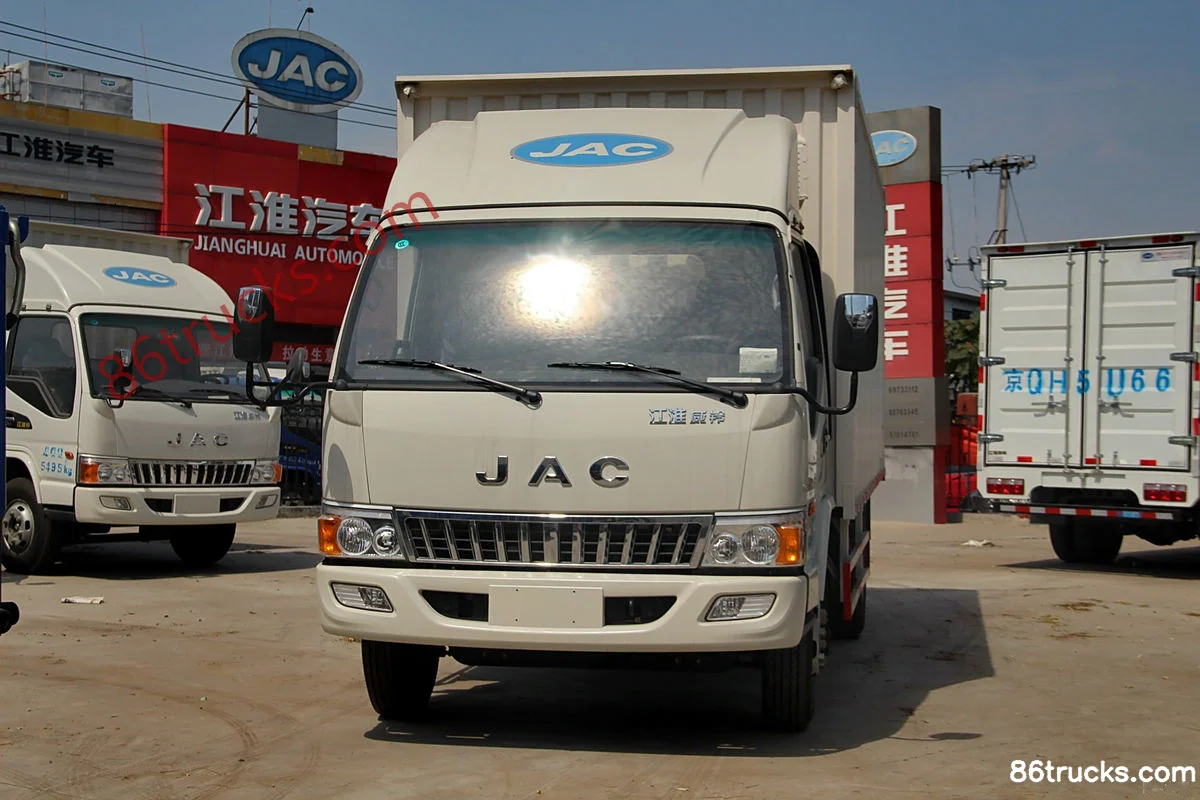

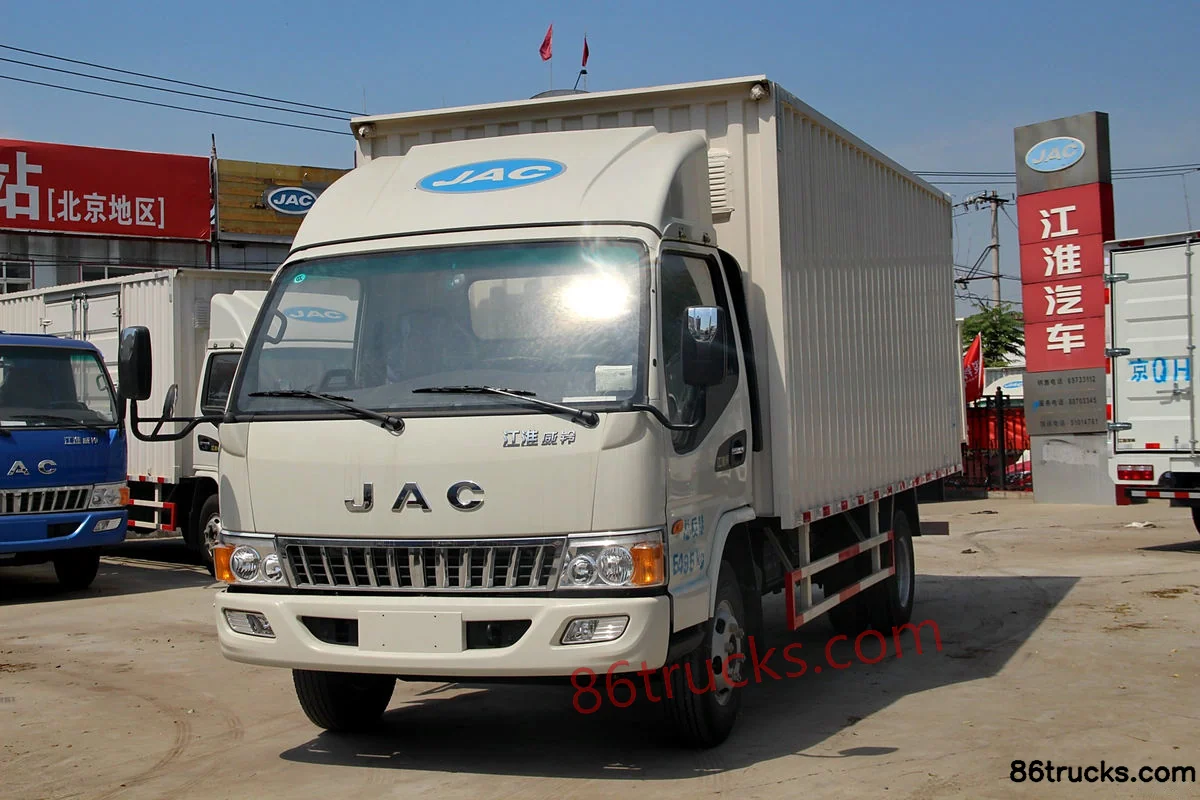

Exterior3

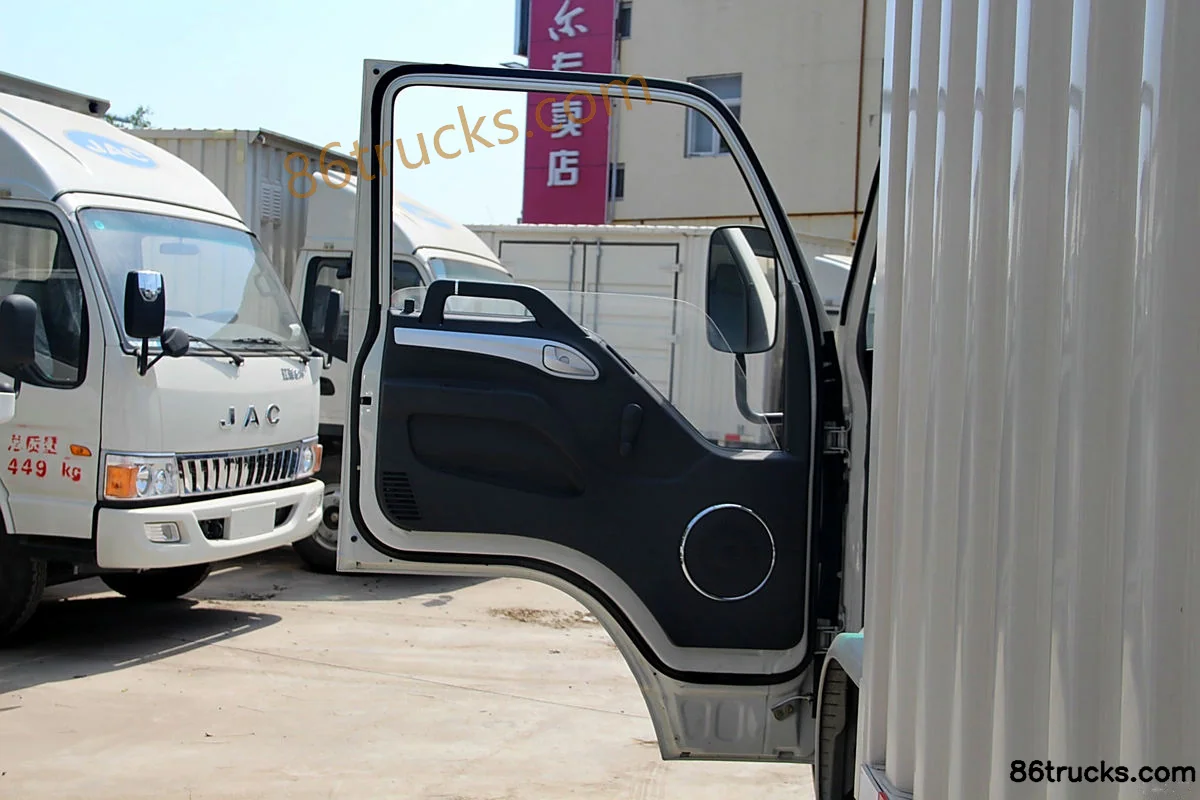

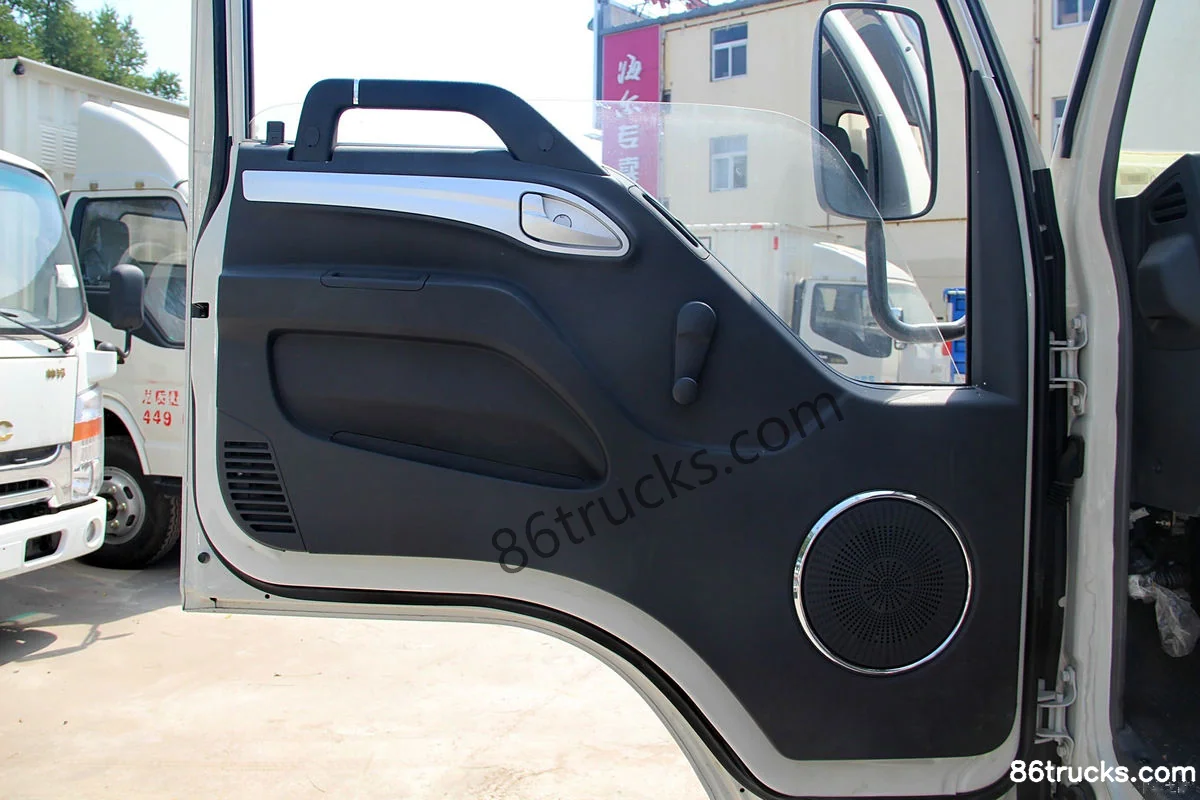

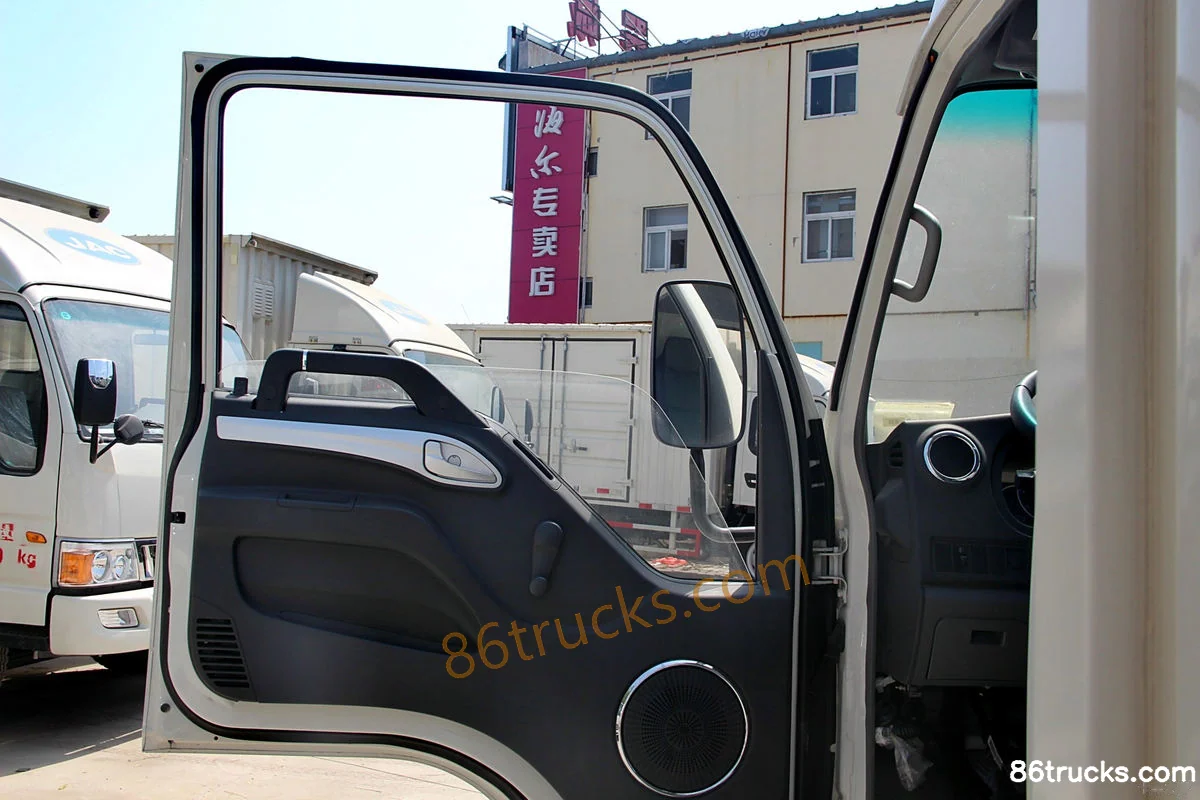

Cab3

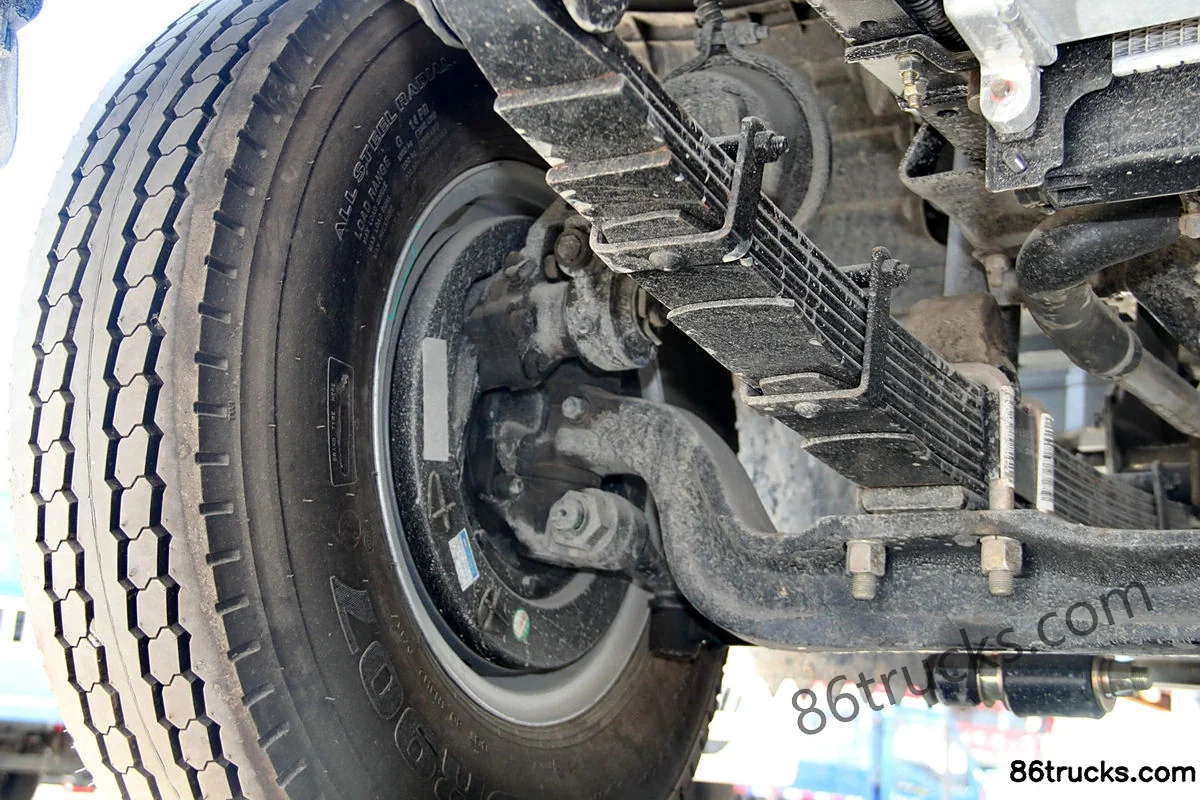

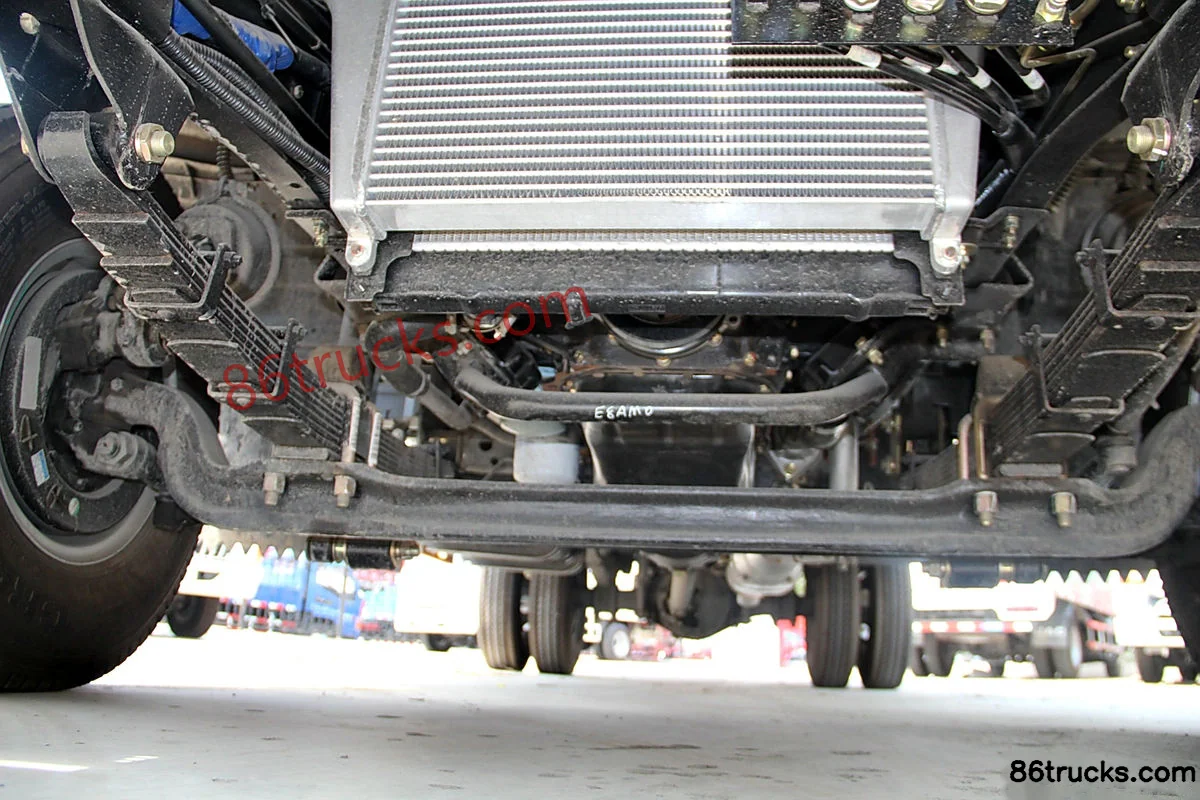

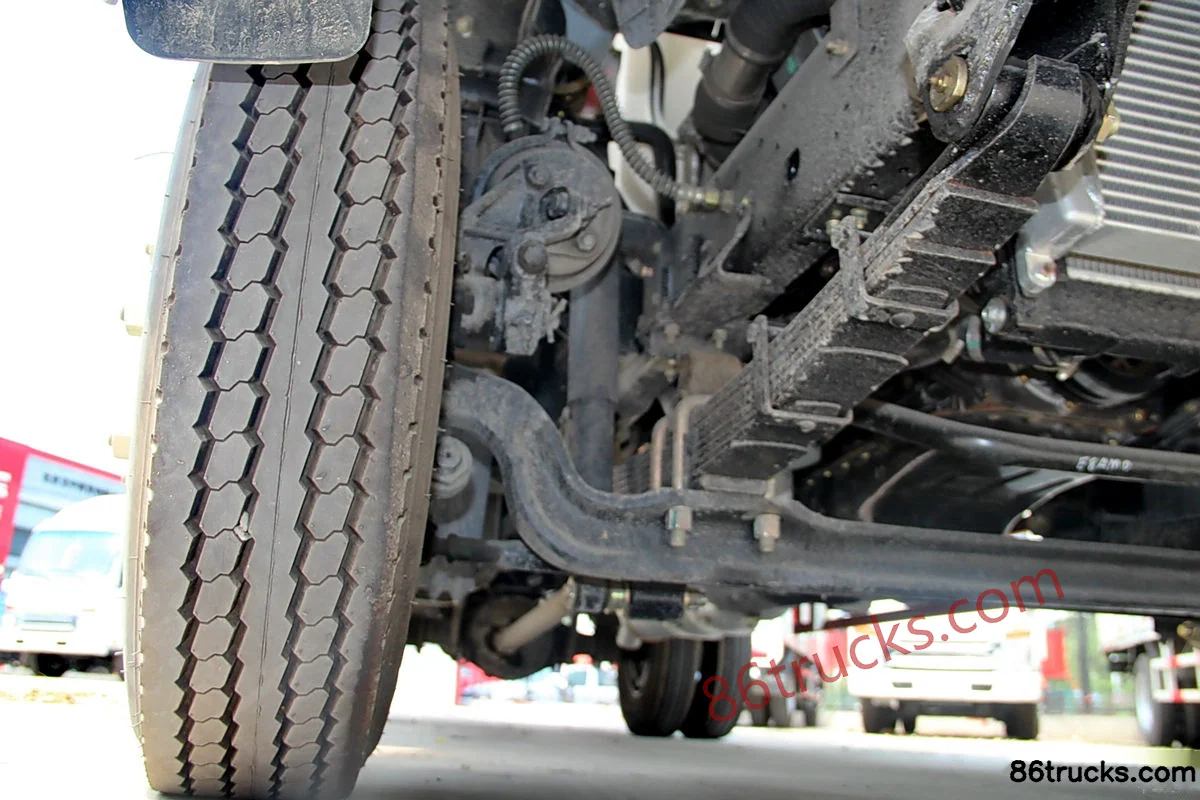

Chassis3

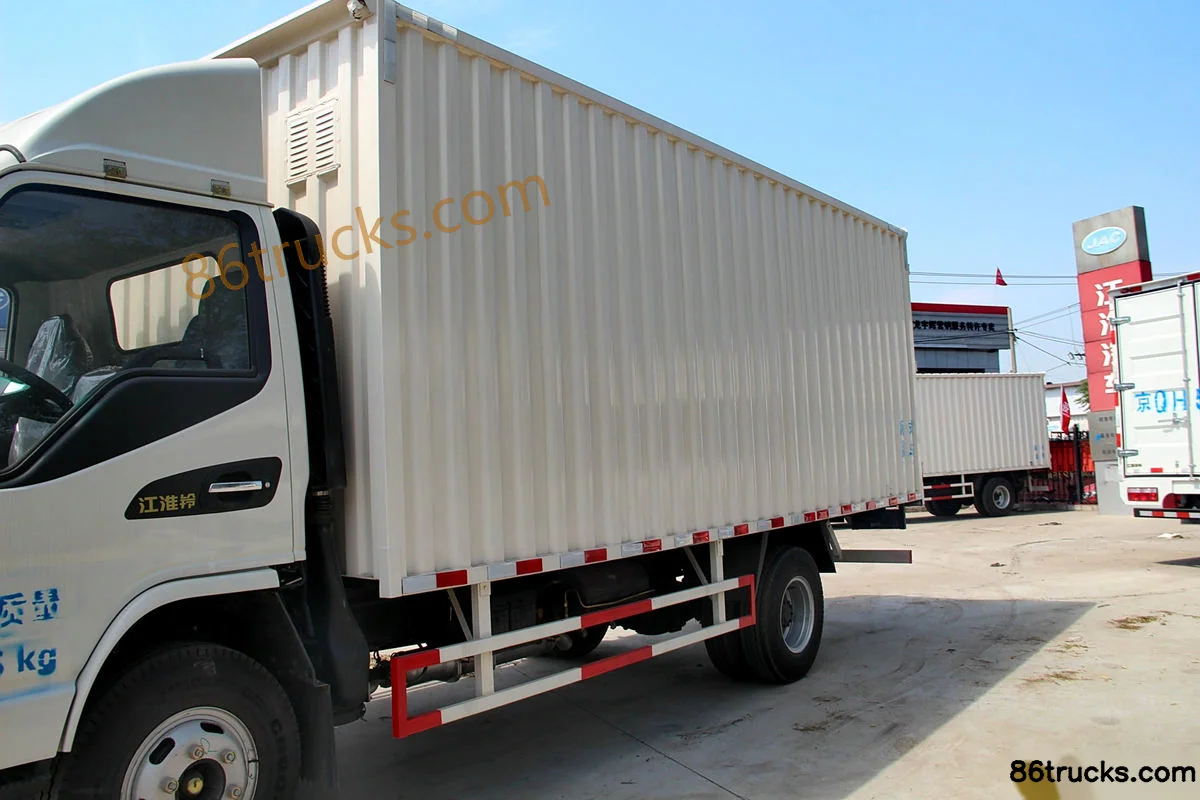

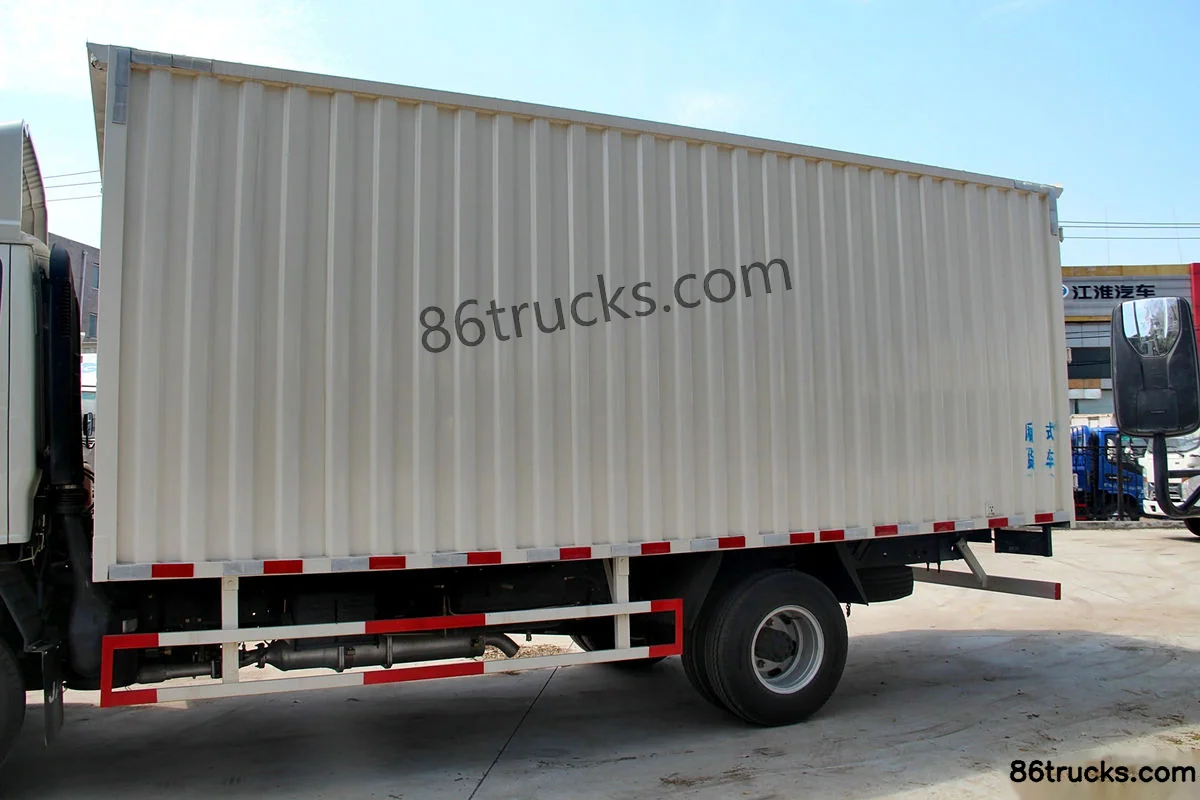

Body3

12 photos

FAQ

What is the export price of JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck, and what does it include?

JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck export reference is about From $16,069; MSRP is ¥11.57M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck?

Key specs of JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck: Drive: 4x2; Horsepower: 124 hp; Emission: China IV; Fuel: Diesel; Engine: Chaochai4102; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck suited for?

JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck differ from other variants in the same series?

JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck belongs to JAC W light-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling W380 124hp 4X2(6 wheels) 5.2m single-row van light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
