Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck
EXW
From $26,875
Export quote
Yuanwang JAC light truck chassis Cargo Trucks
Main model photos
12 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck | 4x2 / 152hp / China V | From $26,875 | |
| Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck | 4x2 / 120hp / China V | From $13,194 | |
| Yuanwang 120hp 4X2(6 wheels) JAC Chassis Stage Truck | 4x2 / 120hp / China V | From $20,556 |

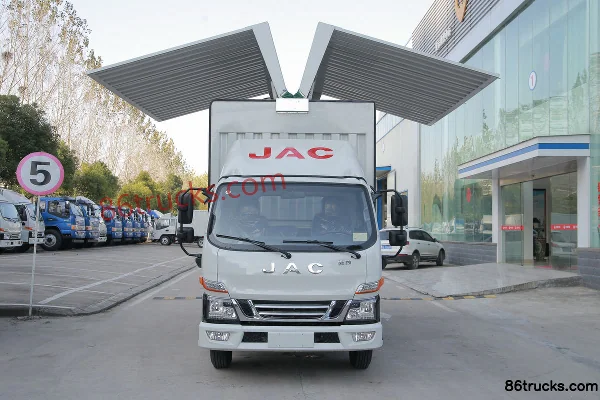

Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck
EXW
From $13,194
Export quote

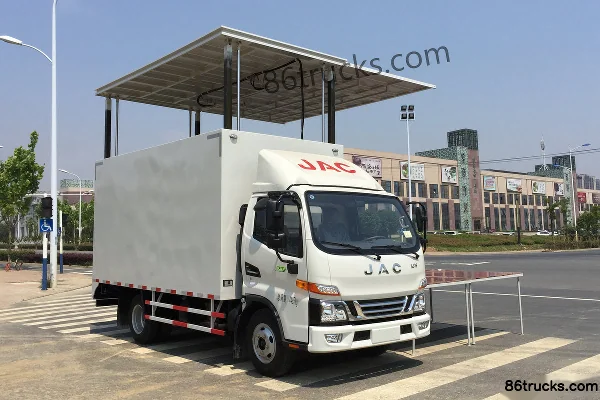

Yuanwang 120hp 4X2(6 wheels) JAC Chassis Stage Truck
EXW
From $20,556
Export quote
Series Specs
Basic Info
Model code (announced): HXW5040XXCLD / HXW5040XYK1 / HXW5040XWTJ2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.1m
Engine Model: JACHFC4DE1-1D / JACHFC4DA1-2D
Transmission Model: Lu'an LC6T46 / Xingrui LC5T28 / Lu'an LC5T28
Rear Axle Ratio: 4.875 / 5.571
Cab length: 5.995m
Cab width: 2.27 / 2.1 / 2.12m
Cab height: 3.17 / 3.27 / 3.06m
Front track width: 1720 / 1580mm
rear track: 1785 / 1395mm
Curb Weight: 4.095 / 3.835 / 4.3ton
Rated payload: 0.205 / 0.465ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22 / 21°
departure angle: 18 / 16°
market segment: Urban Distribution
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine info: Ruijete 493 / JAC493
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.746 / 2.771L
Emission standard: China V
Max output power: 112 / 88kW
Max hp: 152 / 120Horsepower
Max torque: 355 / 285N·m
Max torque speed: 1800-2600 / 1800-2200rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged, SCR aftertreatment
Transmission Parameters
Transmission Brand: Lu'an / Xingrui
shift method: Manual
Forward gears: 6 / 5Gear
Number of Reverse Gears:
FAQ
What kind of truck is Yuanwang Yuanwang JAC light truck chassis Cargo Trucks?
Yuanwang Yuanwang JAC light truck chassis is an export-oriented Cargo Trucks lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Yuanwang JAC light truck chassis Cargo Trucks?
Yuanwang JAC light truck chassis Cargo Trucks export reference is about $13,194 – $26,875. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Yuanwang JAC light truck chassis Cargo Trucks cover?
Yuanwang JAC light truck chassis Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 120 hp / 152 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yuanwang JAC light truck chassis Cargo Trucks?
For Yuanwang JAC light truck chassis Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Yuanwang JAC light truck chassis Cargo Trucks include?
Yuanwang JAC light truck chassis Cargo Trucks currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yuanwang JAC light truck chassis Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
