Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck

Export reference
From $13,194
MSRP ¥9.5M CNY
Horsepower: 120
Emission: China V
Fuel: Diesel
Engine: JAC493
Transmission: Xingrui
Curb Weight:: 3.835ton
seating capacity: 3Personnel
Rated payload: 0.465ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck is a Light Truck featuring 4.1m cargo length, Van body cargo body, 3Personnel volume and 0.465t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HXW5040XYK1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.1m
engine: JACHFC4DA1-2D
transmission: Xingrui LC5T28
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.1m
Cab height: 3.27m
Front track width: 1580mm
rear track: 1395mm
Curb Weight: 3.835ton
Rated payload: 0.465ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
market segment: Urban Distribution
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JAC HFC4DA1-2D
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.1m
Cargo box width: 2.21m
Cargo box height: 2.02m
*Cargo box interior width: 2.210000038147
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Axle ratio: 5.571
Leaf spring count: 3/9+7,5/9+7,3/3+3,5/5+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

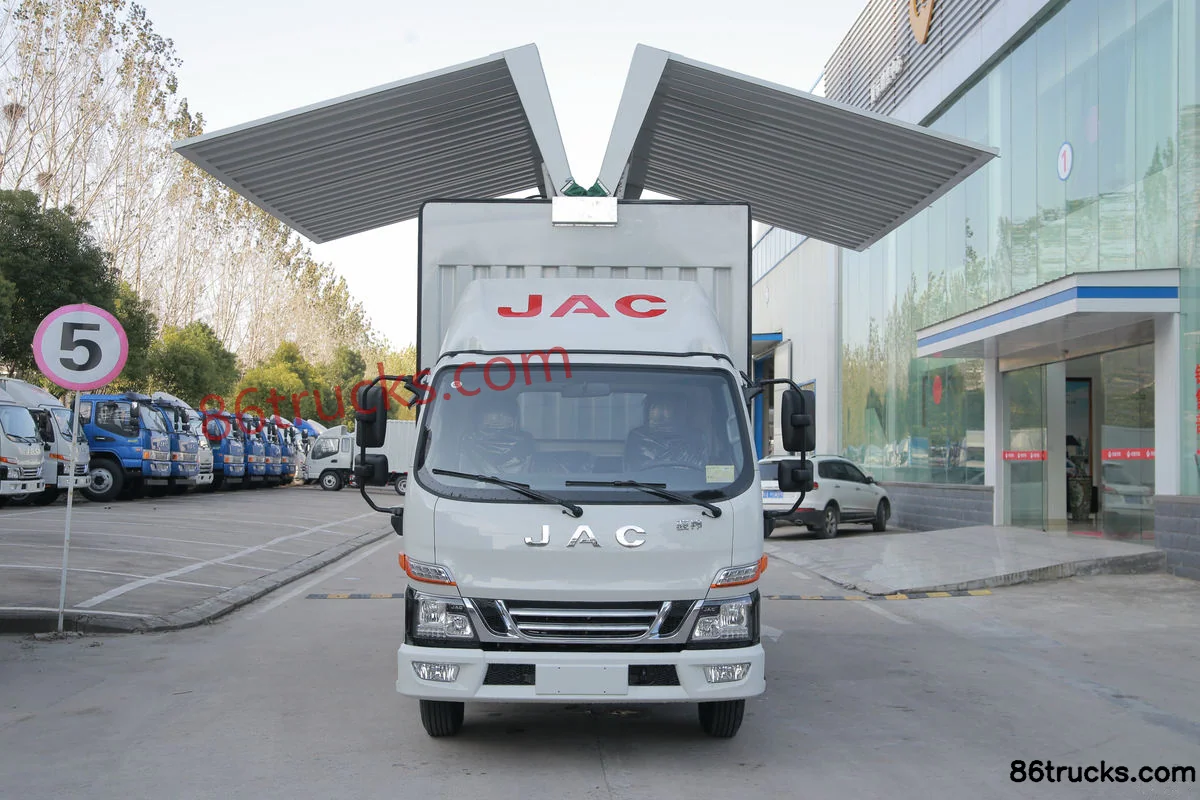

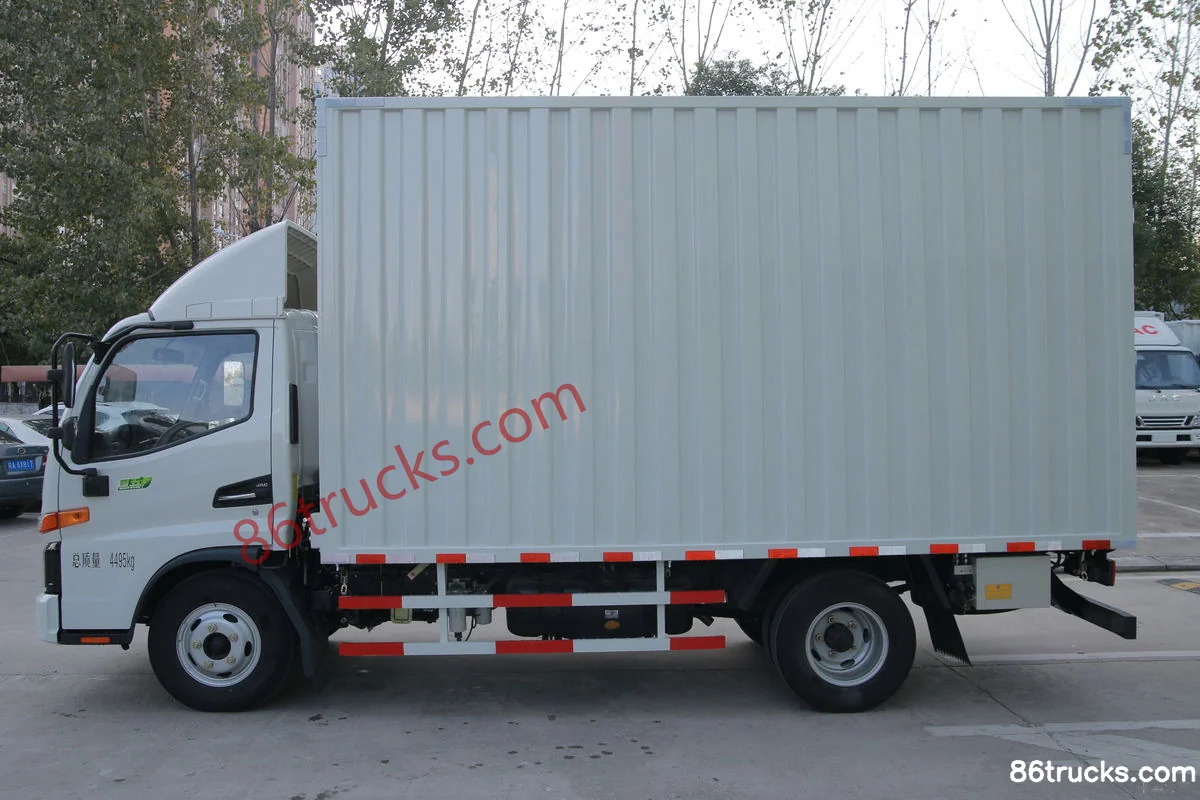

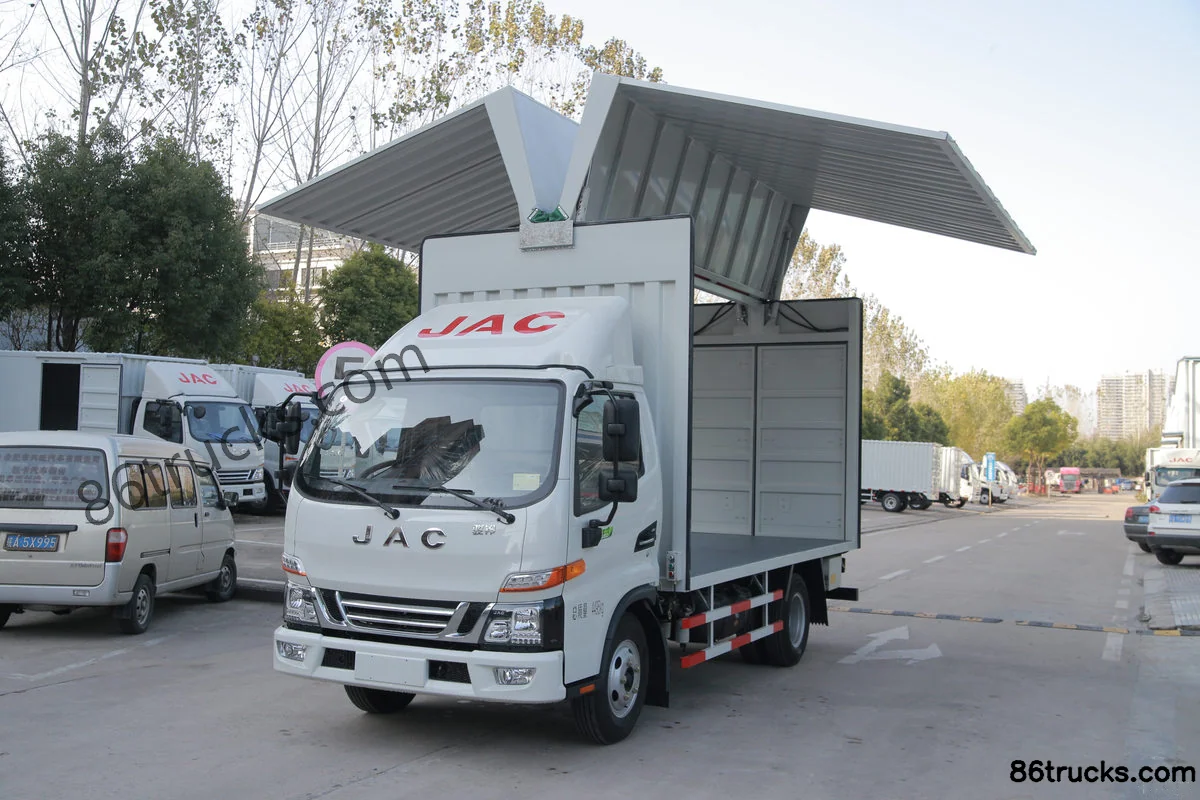

Photos

Exterior3

3 photos

FAQ

What is the export price of Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck, and what does it include?

Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck export reference is about From $13,194; MSRP is ¥9.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck?

Key specs of Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: JAC493; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck suited for?

Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck differ from other variants in the same series?

Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck belongs to Yuanwang JAC light truck chassis (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuanwang 120hp 4X2(6 wheels) 4.1m Single Row Wing Opening JAC Chassis Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
