Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck

Export reference
From $26,875
MSRP ¥19.35M CNY
Horsepower: 152
Emission: China V
Fuel: Diesel
Engine: Ruijete 493
Transmission: Lu'an
Curb Weight:: 4.095ton
seating capacity: 3Personnel
Rated payload: 0.205ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck is a Light Truck featuring 4.06m cargo length, Van body cargo body, 3Personnel volume and 0.205t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Ruijete 493 engine, 152 hp, 4X2 (6 wheels) drive and China V emissions.

China V 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HXW5040XXCLD
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.1m
engine: JACHFC4DE1-1D
transmission: Lu'an LC6T46
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.27m
Cab height: 3.17m
Front track width: 1720mm
rear track: 1785mm
Curb Weight: 4.095ton
Rated payload: 0.205ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 18°
market segment: Urban Distribution
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DE1-1D
Engine info: Ruijete 493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.746L
Emission standard: China V
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 355N·m
Max torque speed: 1800-2600rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, high-pressure common rail, turbocharged, SCR aftertreatment
Transmission Parameters
Transmission Model: Lu'an LC6T46
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.06m
Cargo box width: 1.8m
Cargo box height: 2.11m
*Cargo box interior width: 1.7999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Axle ratio: 4.875
Leaf spring count: 13/8+6,9/9+7,8/7+6,11/9+7,9/7+6,3/7+6,4/7+6,4/9+7,8/9+7
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

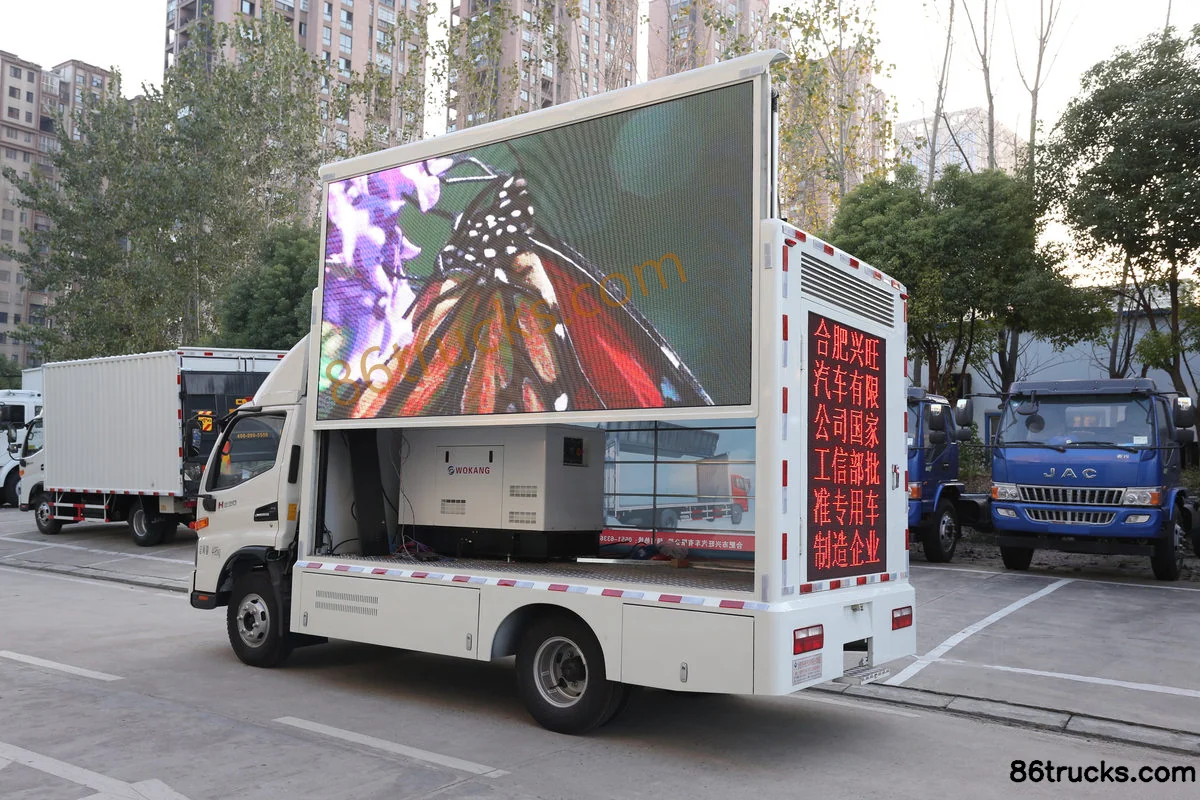

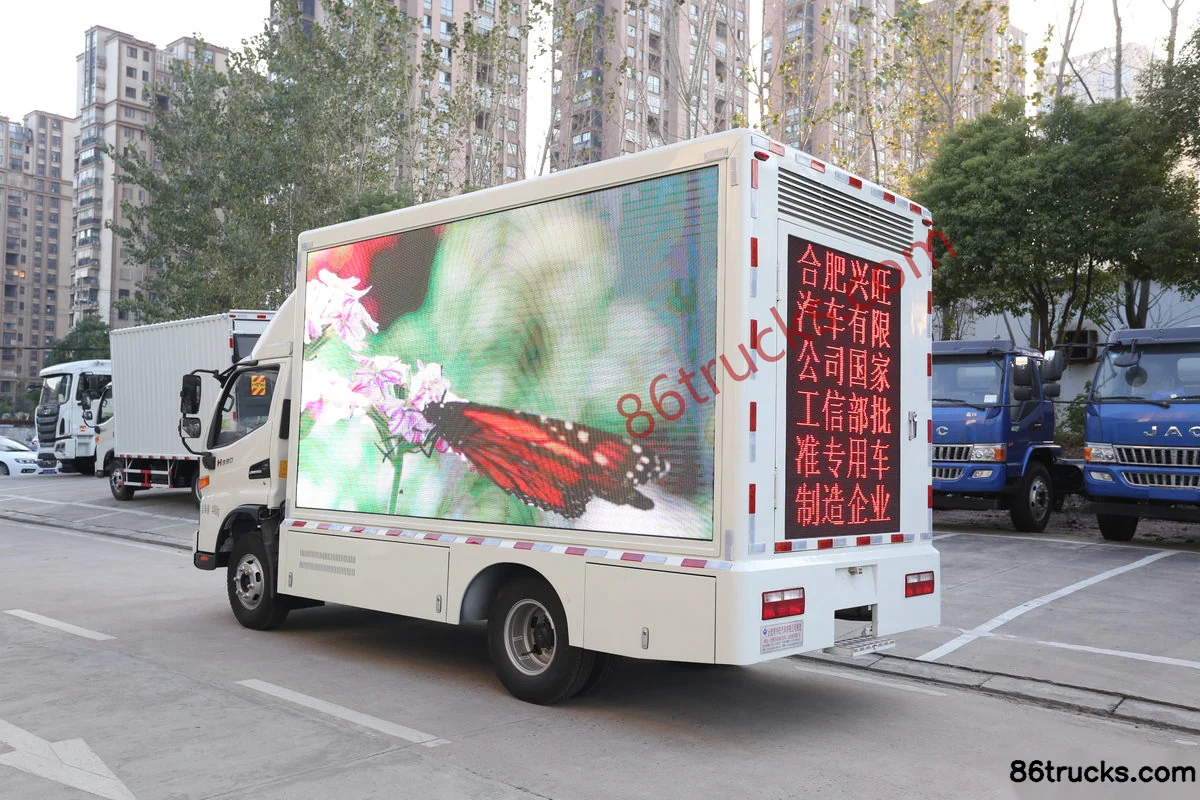

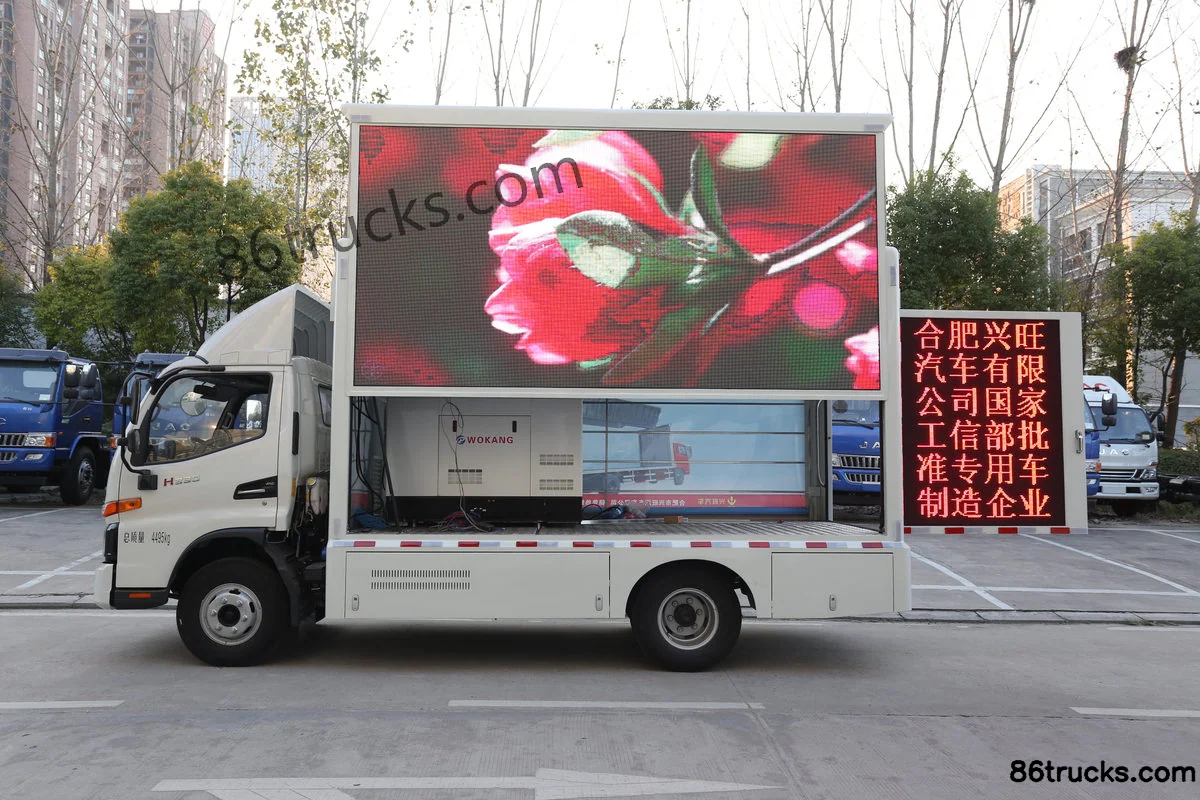

Photos

Exterior3

3 photos

FAQ

What is the export price of Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck, and what does it include?

Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck export reference is about From $26,875; MSRP is ¥19.35M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck?

Key specs of Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck: Drive: 4x2; Horsepower: 152 hp; Emission: China V; Fuel: Diesel; Engine: Ruijete 493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck suited for?

Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck differ from other variants in the same series?

Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck belongs to Yuanwang JAC light truck chassis (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuanwang 152hp 4X2(6 wheels) 4.06m Single Row JAC Chassis Promotion Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
