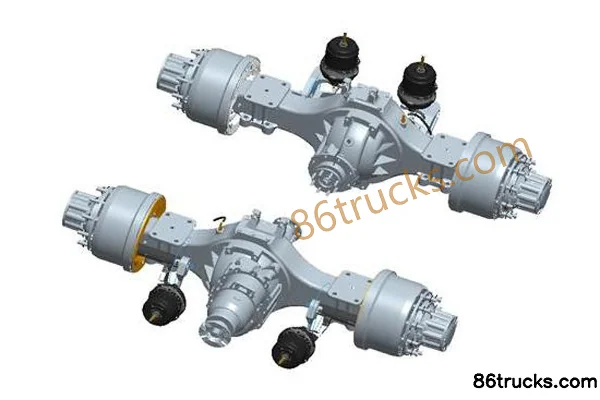

Sinotruk H457 cast single rear axle

Export reference
MSRP N/A
Application Scope:: Suitable for highway transport trucks and dump trucks.
Front/rear track width:: 1847mm
Brake:: Drum Type
Axle Model: H457
Brake size: Φ400×200/Φ410×220
Axle Type: Drive axle

Overview

The Sinotruk H457 cast single rear axle is a parts product with spec H457 and Φ400×200/Φ410×220 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: H457
Axle Type: Drive axle
Application Scope: Suitable for highway transport trucks and dump trucks.
Rated axle load: 13000ton
Front/rear track width: 1847mm
Brake: Drum Type
Transmission Ratio: 3.909,4.111,4.33,4.444,4.875,5.286,5.833,6.33,6.833
Brake size: Φ400×200/Φ410×220
curb weight: 840kg
Wheel Bolts: Φ335-10×M22×1.5mm
Remarks: Single reduction, cast axle housing; leaf spring seat center distance: 1010/1030mm

Photos

0 photos

FAQ

What transport jobs is Sinotruk H457 cast single rear axle suited for?

Match Sinotruk H457 cast single rear axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk H457 cast single rear axle differ from other variants in the same series?

Sinotruk H457 cast single rear axle belongs to Sinotruk Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk H457 cast single rear axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk H457 cast single rear axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
