FAW Jiefang CAR11T440 Drive Axle
EXW
Export quote
FAW Jiefang Drive Axle
Main model photos
56 photos
Models
On sale

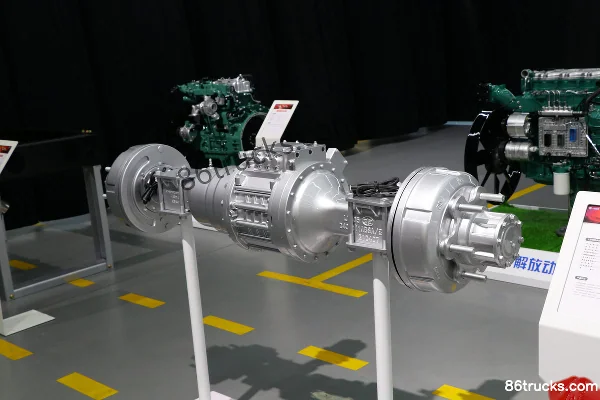

FAW Jiefang Lightweight Central Integrated High-Speed Electric Drive Axle
EXW
Export quote

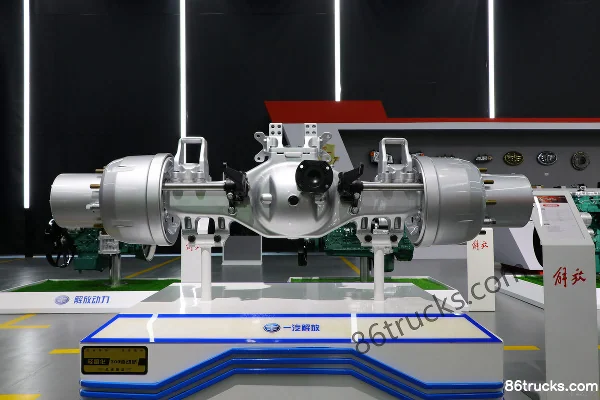

FAW Jiefang New 16T Lightweight 300 Drive Axle
EXW
Export quote
FAW Jiefang New 13T Lightweight 440 Drive Axle
EXW
Export quote
FAW Jiefang new 11T 435 stamped welded axle
EXW
Export quote
Series Specs
Basic Info
Axle Model: CAR11T440 / CAR4E060-01 / R16D300 / R13D498 / R13D465 / R10T378 / R9D378 / R8D344 / R6D325 / R5D295 / R4D295 / R3D265 / FAW Jiefang 13T465 / FAW Jiefang R11T435 / R13D290 / R13D457 stamped-welded axle / 435 stamped-welded axle / FAW Jiefang 290 rear axle (2400010-66R/B) / FAW Jiefang 435 Intermediate Axle / FAW Jiefang 457 Intermediate Axle / FAW Jiefang 435 / Heavy-duty 485 / Heavy-duty 420 / FAW Jiefang heavy-duty 457 / FAW Jiefang hub reduction / FAW Jiefang 457 / FAW Jiefang medium-duty / FAW Jiefang 390 Series / FAW Jiefang 3-ton / FAW Jiefang light-duty
Axle Type: Drive axle
Application Scope: FAW Jiefang J6P 6×4/8x4 dump truck; FAW Jiefang J6M 6×4/8x4 dump truck; FAW Jiefang J6P 8x4 cargo truck/heavy-duty tractor truck / High-hp engine cargo/tractor models / 11m bus, cargo truck, lightweight tractor truck, wide range of applications / Medium 8x4 cargo truck, 6x4 tractor truck / Medium 4x2 cargo truck, 6x2 cargo truck / Light/medium 4x2 cargo trucks, 6x2 cargo trucks / FAW Jiefang J6F 4×2 4-ton cargo truck / FAW Jiefang J6F 4×2 3-ton cargo truck / J6F New Energy Vehicle, FAW Jiefang J6F 4×2 2-Ton Cargo Truck / J6F New Energy Vehicle, FAW Jiefang J6F 4×2 1.5-Ton Cargo Truck / J7 standard drive axle / 8X4 and 4X2 cargo truck, 6X4 and 4X2 tractor truck models / Compact structure, strong load capacity, high fatigue resistance / After upgrade, suitable for 10-11m high-end buses / Widely used in heavy tractor trucks, dump trucks, and cargo trucks; equipped with ground gears, ABS, asbestos-free friction linings, automatic slack adjusters, etc., suitable for 11-12m luxury buses; assembly allows for both cast and welded axle housing types. / Strong load capacity, large ground clearance, the best choice for heavy-duty engineering vehicle users; this product can meet the most demanding requirements of users for cargo trucks in various harsh environments. / For medium-duty cargo trucks and 8–9m buses / Widely used in medium-duty cargo trucks and 8-9m mid-range buses. / Suitable for light and medium-duty trucks and 6-7m buses, featuring strong load capacity and highly flexible matching. It uses a stamped and welded axle housing with high load capacity and fatigue strength (fatigue test load 20% higher than international standard); single-stage reduction gearbox, compact and reasonable structure, high gear precision, and high output torque. / 1-2 ton series, suitable for pickup trucks, vans, light cargo trucks, off-road vehicles, etc. It uses a stamped welded axle housing, high load capacity, high fatigue strength (fatigue test load 20% higher than international standard); single-stage reducer, compact and reasonable structure, high gear precision, high output torque.
Applicable Tire: 10.00-20，11.00-20 / 11.00-20 ，12.00-20 / 8.25-20，9.00-20 / 10.00-20 / 7.50-16，8.25-16 / 8.25-14
Front/rear track width: 1878；1054 / 1830；1878 / 1878 / 1830/1852 / 1878/1830 / 1800 / 1760 / 1740 / 1620 / 1525 / 1440 / 1830/1878 / 1830 / 1847 / 1602 / 1390mm
Rated axle load: 4000 / 16000 / 13000 / 11000 / 10000 / 9000 / 8000 / 6000 / 5000 / 3500 / 11500 / 26000 / 21000 / 23000 / 6860 / 8250 / 5500 / 1000ton
Transmission Ratio: 2.688,3.545,3.727,4.111,4.875,5.143,5.571,6.166,6.5 / 2.688,2.867,3.077,3.417,3.727,4.1,4.444,4.875,5.571 / 3.896-6.733 / 2.688-4.1 / 2.688～5.571 / 3.636-6.5 / 3.727-5.714 / 3.25-5.125 / 4.3-5.125 / 4.875 / 2.688/2.867/3.077/3.417/3.727/4.1/4.444/4.875/5.571 / 3.545/3.727/4.111/4.444/4.875/5.143/5.571/6.166/6.5
Brake: Hydraulic disc / Wedge brake / Drum Type / Disc brake / drum brake / disc brake / drum air brake / drum hydraulic brake
Brake size: 22.5 inch / Φ410×220 / Φ400X200 (wedge type)/22.5 inch (disc brake) / Φ410X220/Φ400X200 / 19.5 inches / Φ400X150 / Φ310X160 / Φ320X130 / Φ320X100 / Φ320X85 / Φ420×185 / Φ400×200/Φ410×220 / Φ400×200 / Φ400X200，Φ410X220 / Φ420X125，Φ400X150 / Φ420X125 / Φ310X130 / Φ270X55
curb weight: 305 / 800kg
Max output torque: 50000 / 30000 / 38000 / 2×60000 / 47000 / 22000 / 25000 / 18000 / 13000 / 10000 / 7000 / 2×50000 / 45000 / 40000 / 27000 / 9600 / 6090N·m
Rim Used: 7.5-20，8.00-20 / 7.50-20?，8.00-20 / 7.50-20，8.00-20 / 8.00-20，8.50-20 / 6.50-20，7.00-20 / 7.5-20 / 6.50-16，7.00-16 / 6.5-14inch
Wheel Bolts: Φ335 / Φ335/Φ285.75 / Φ275 / Φ222.25 / Φ203.2 / 280.8 / Φ335/Φ275/Φ285.75mm
Remarks: FAW self-developed 13-ton single drive axle with 150W km long-life design and 20W km long oil change interval. Lightweight structure design with high transmission efficiency and low noise control. Overall parameters lead the industry. Optional inter-wheel differential lock, wedge brakes, and disc brakes. / FAW self-developed drive axle matched with the internationally leading intelligent high-end heavy truck FAW Jiefang J7. Features high transmission efficiency, low weight, wide ratio range, B10 life up to 1.5 million km, and 200,000 km extended oil change intervals, saving users maintenance costs and improving vehicle uptime. / FAW self-developed 10-ton lightweight drive axle. This axle features high transmission efficiency, low weight, strong load capacity, and low failure rate. The wheel end and brake structure are common with the new 435 axle. Optional inter-axle differential lock, disc brakes, and drum brakes. Suitable for medium-duty cargo trucks and tractor trucks. / FAW self-developed 9-ton lightweight drive axle, featuring high transmission efficiency, low weight, strong load capacity, high output torque, wide ratio range, and low failure rate. Standard extended oil change intervals, optional drum brakes or disc brakes. Suitable for medium-duty cargo trucks. / FAW self-developed 8-ton lightweight drive axle, featuring high transmission efficiency, low weight, wide ratio range, and high output torque. Suitable for medium-light duty crossover models. / FAW self-developed 6-ton drive axle, designed for heavy-duty light trucks. Mainly suitable for high-end urban distribution, composite cargo trucks, and heavy-duty cargo trucks. Can match 4x2 cargo trucks in the 180 hp range, with optional extended oil change intervals. / FAW self-developed 5-ton drive axle, a 295 reinforced product, mainstream for light-duty trucks. Mainly suitable for high-end city distribution and mixed-use cargo trucks. Can match 150 hp 4x2 cargo trucks. Optional long oil change. / FAW self-developed 4-ton drive axle, a mainstream light-duty truck product. Features high torque and lightweight. Mainly suitable for express city distribution and LTL cargo trucks. Can match high-power electric motor new energy vehicles and 130 hp 4x2 cargo trucks. Optional long oil change. / FAW self-developed 3-ton drive axle, upgraded from the FAW light-duty 250 axle. Developed for electric and new energy vehicles, addressing the instant high torque and variable output power of electric motors. / FAW self-developed new-generation 11.5-ton lightweight drive axle. This axle features high transmission efficiency, low weight, wide ratio range, easy maintenance, and high market recognition. It is suitable for China V and China VI models with 200–460 hp, meeting various operating conditions. / FAW self-developed 13-ton drive axle, a tandem drive axle for lightweight dump trucks. Features lightweight, high torque, and strong load capacity. The axle housing uses domestic first internal high-pressure forming technology, with the rear cover and housing body integrated, achieving strength equal to cast steel axles. Suitable for urban construction waste dump trucks and mixed-use dump trucks. / FAW self-developed 13-ton lightweight drive axle. This axle features high transmission efficiency, low weight, wide ratio range, large market share, and easy maintenance. Suitable for China V and China VI models with 200–550 hp. Optional grease lubrication, oil lubrication, long oil change, maintenance-free, disc brakes, and wedge brakes to meet different user and operating needs. / Housing type: stamped-welded; Spring seat spacing: 960mm; Section size: 145×158×16; Ratios: 3.545, 3.727, 4.111, 4.444, 4.875, 5.143, 5.571, 6.166, 6.5; Braking torque: total axle braking torque 38000 Nm, parking brake torque 22000 Nm / Axle housing type: integral expansion; Spring span: 1054mm; Section size: 150×160×16; Ratio: 4.805, 5.263, 5.921, 6.733; Braking torque: total axle braking torque 43000Nm, parking brake torque 21000Nm / Axle housing type: stamped-welded; Spring span: 960mm; Section size: 150×160×16; Ratio: 2.867, 3.417, 3.727, 4.1, 4.444, 4.875, 5.571; Braking torque: total axle braking torque 38000Nm, parking brake torque 22000Nm / Axle housing type: stamped-welded; Spring span: 960mm; Section size: 145×158×16; Ratio: 3.545, 3.727, 4.111, 4.444, 4.875, 5.143, 5.571, 6.166, 6.5; Braking torque: total axle braking torque 38000Nm, parking brake torque 22000Nm / Stamped-welded / Heavy-duty 457 drive axle, cast / Hub reduction series drive axle, stamped-welded / Heavy-duty 457 cast drive rear axle / Dual-stage reduction drive axle cast / Cast; dimensions can be customized per user requirements. / Dimensions can be customized per user requirements. 3-ton steering axle / Stamped-welded; light-duty series drive axle
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Drive Axle axle?
FAW Jiefang FAW Jiefang Drive Axle is an export-oriented axle lineup with about 35 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is axle typically used for?
For axle, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does FAW Jiefang Drive Axle include?
FAW Jiefang Drive Axle currently lists about 35 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Drive Axle?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
