FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis

Export reference
MSRP N/A
Cab dimensions:: 8.74x2.53x2.965m
Truck Type:: Fuel cell water sprinkler truck
Vehicle origin:: Guangzhou
CLTC range:: 580km
Max. speed:: 90km/h
Sprinkling width:: 15m
FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis exterior
View more photos (9)
Box volume: 9m³
Drive 4X2 (6 wheels)
Curb Weight: 9.23ton
Wheelbase: 5000mm

Overview

The FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis is a water sprinkler truck featuring 9m³ tank capacity, 9m³ volume, 9.23ton GVW and 4X2 (6 wheels) drive.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 8.74x2.53x2.965m
Drive type: 4X2
Truck Type: Fuel cell water sprinkler truck
Vehicle origin: Guangzhou
Wheelbase: 5000mm
CLTC range: 580km
Curb Weight: 9.23ton
Max. speed: 90km/h
Body Parameters
Sprinkling width: 15m
Vehicle certification code: GH5181GSSFCEV
Body Brand: FAW Jiefang
Others: Hydrogen storage system: Shanghai Shunhua Type III cylinders, volume 8×140L (1120L); refueling time only 15 min; independent AC, independent heater, leather ventilated heated air-suspension seat, power windows, power mirrors, battery heating system & efficient cooling system; high-pressure cleaning truck, water sprinkler truck, refuse compactor truck, hook-lift truck
Engine parameters
Engine Model: Shanghai Re-Fire Graphite Bipolar Plate Fuel Cell Engine
Cargo box parameters
Box volume: 9m³
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6L
Chassis Model: CA1180P62L4FCEV
Frame Dimensions: 237x75x(7+4)mm
rear axle description: R11D435
Axle ratio: 5.571
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Suzhou Green Control J6S95 6-speed AMT Gearbox with Booster
Cab parameters
Cab: New FAW Jiefang J6L Small Semi-sleeper Cab
Tire
Tire Size: 295/80R22.5
Number of tires: 6pcs

Photos

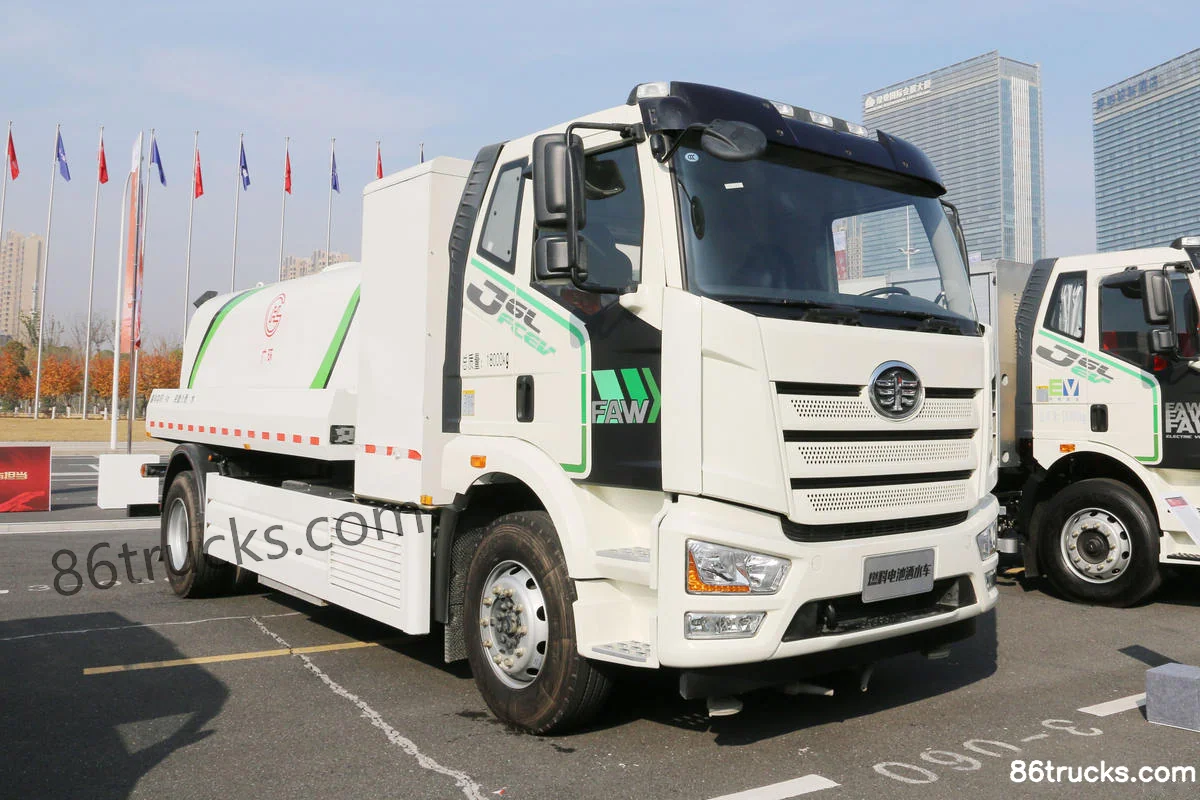

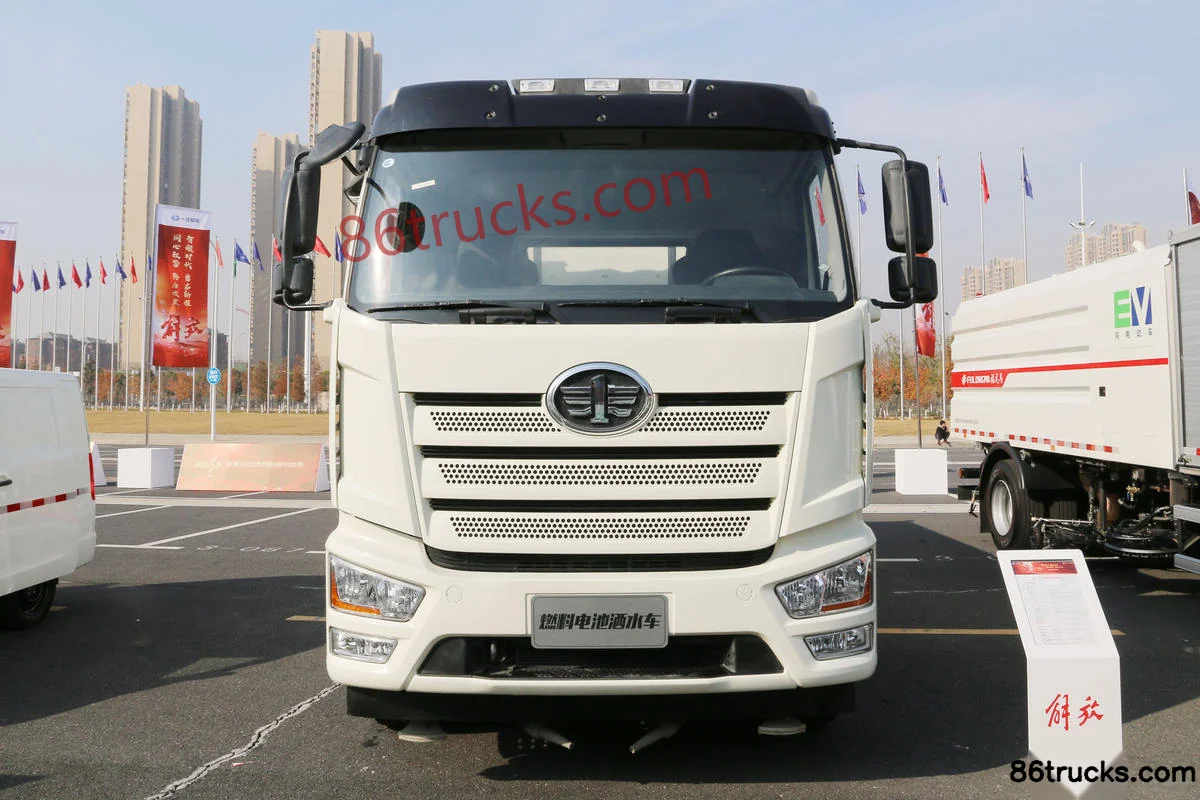

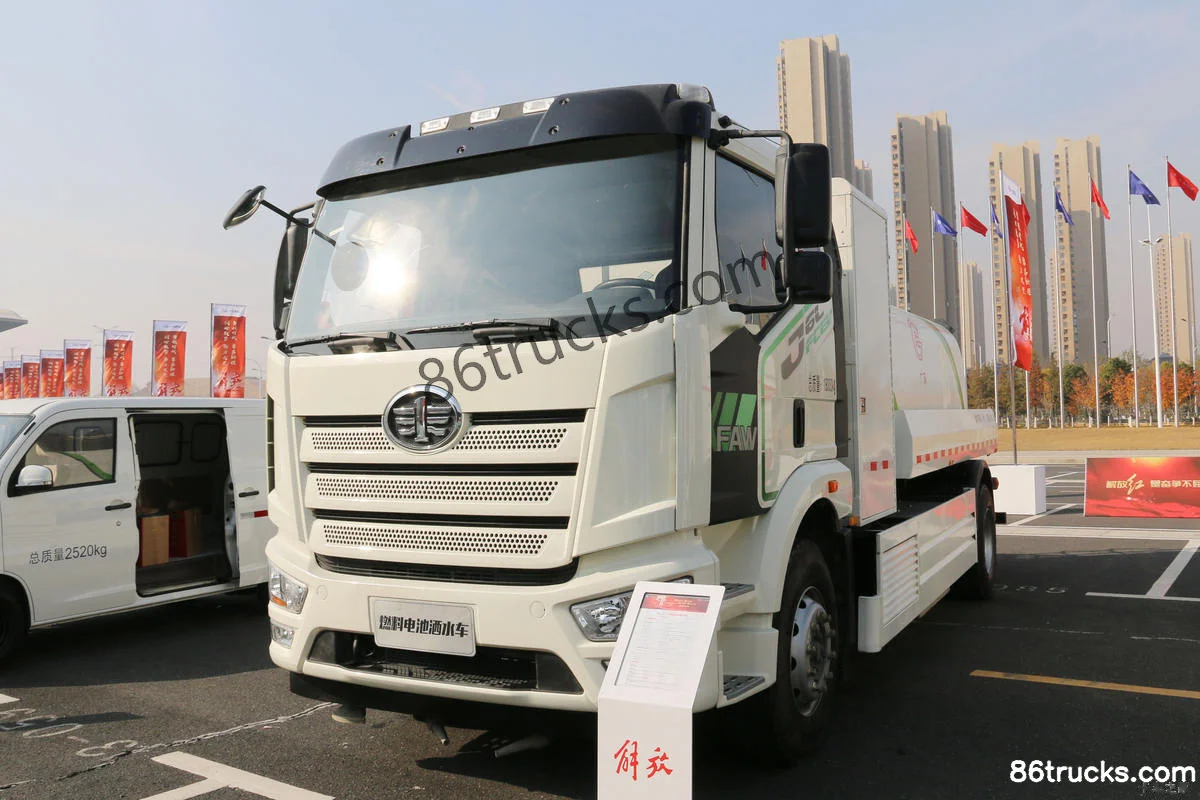

Exterior3

FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis Exterior (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis Exterior (2) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis Exterior (3) | 86Trucks

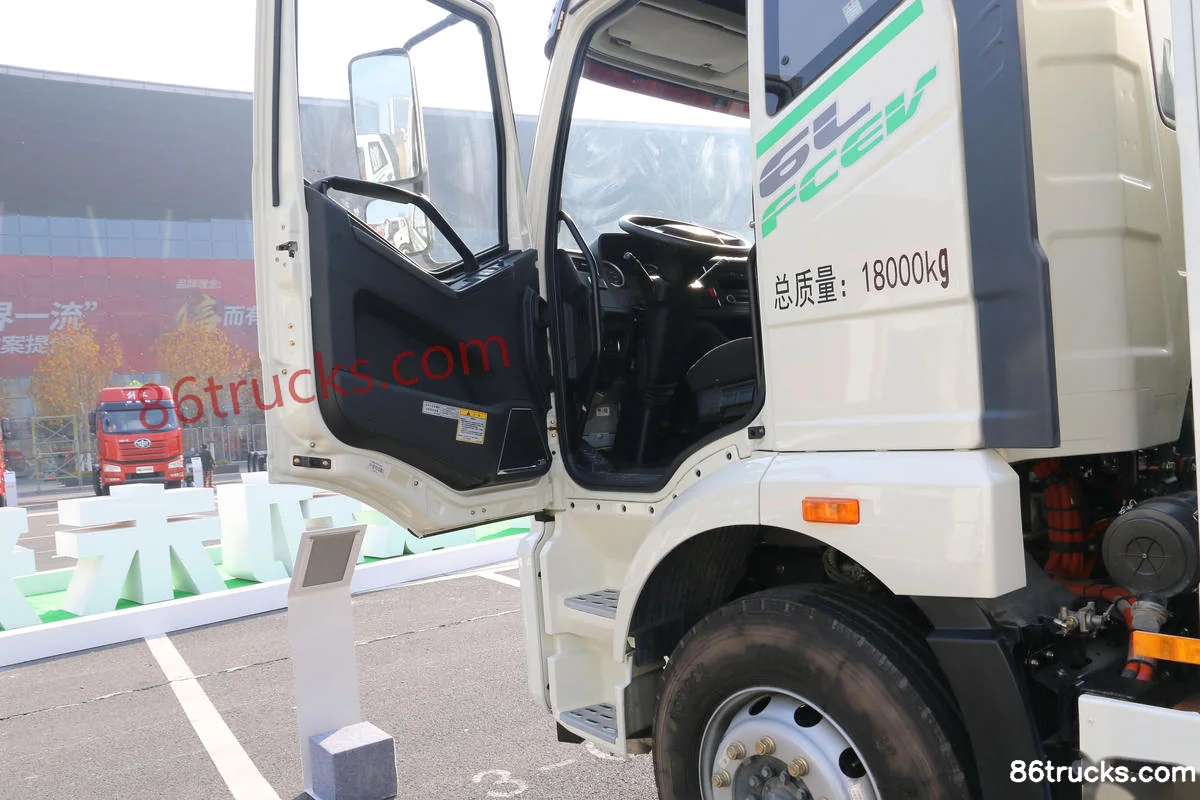

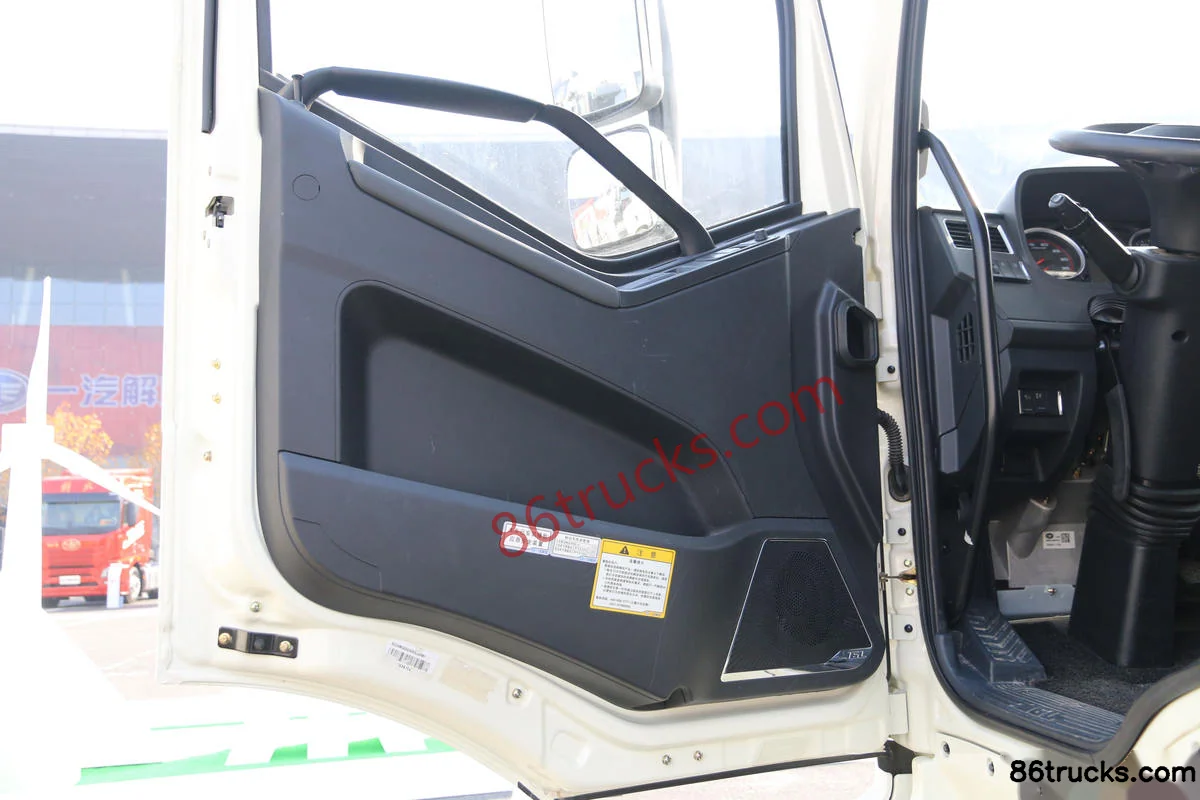

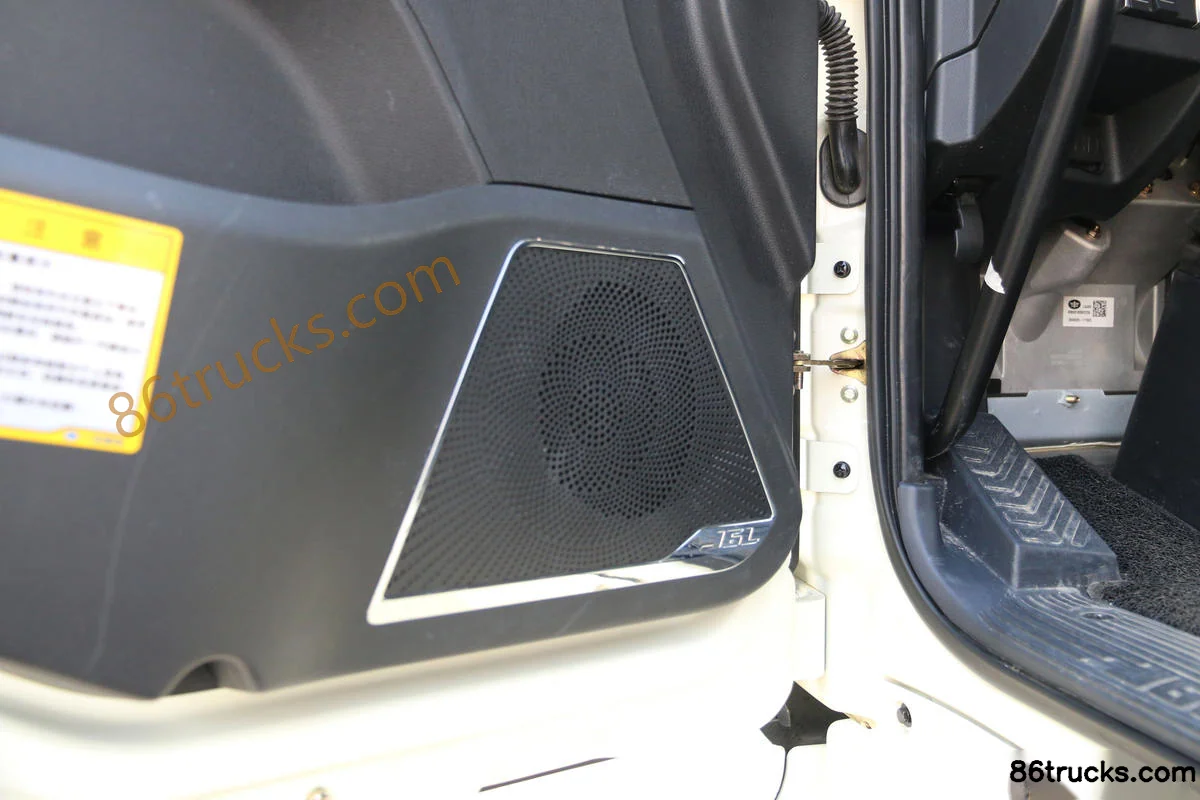

Cab3

FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis Cab (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis Cab (2) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis Cab (3) | 86Trucks

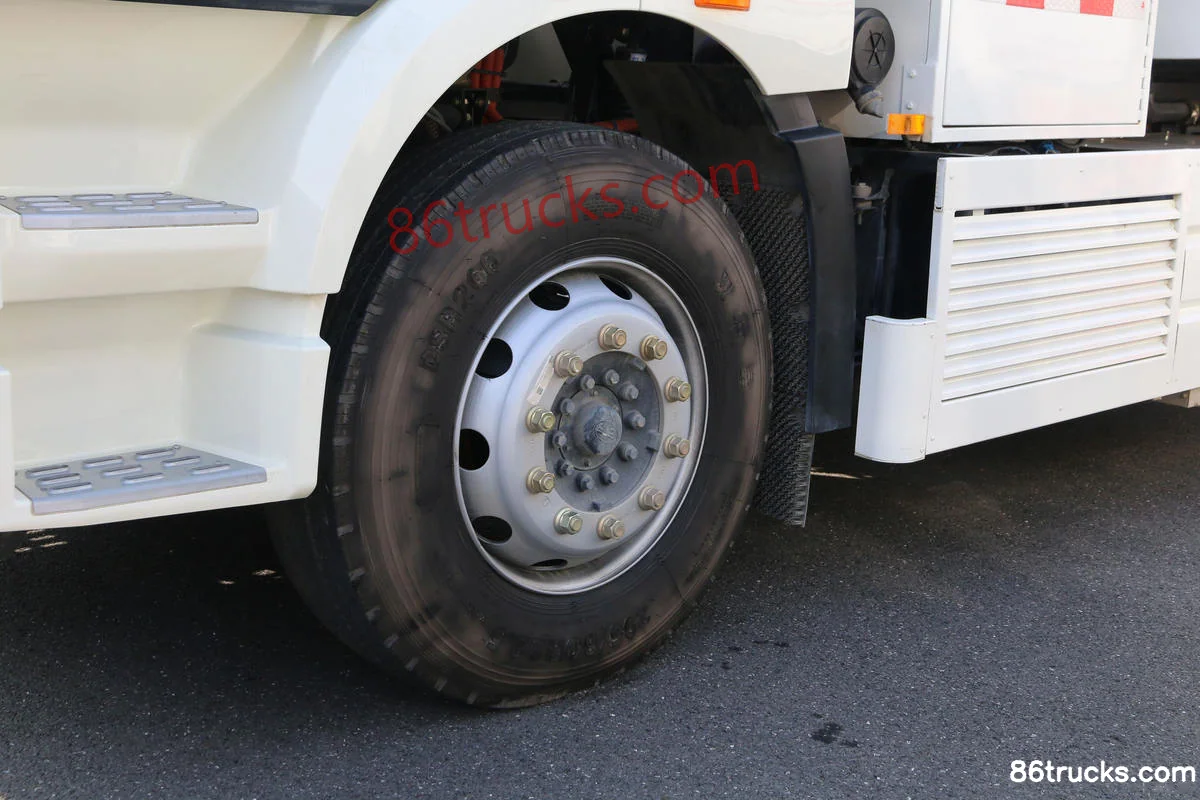

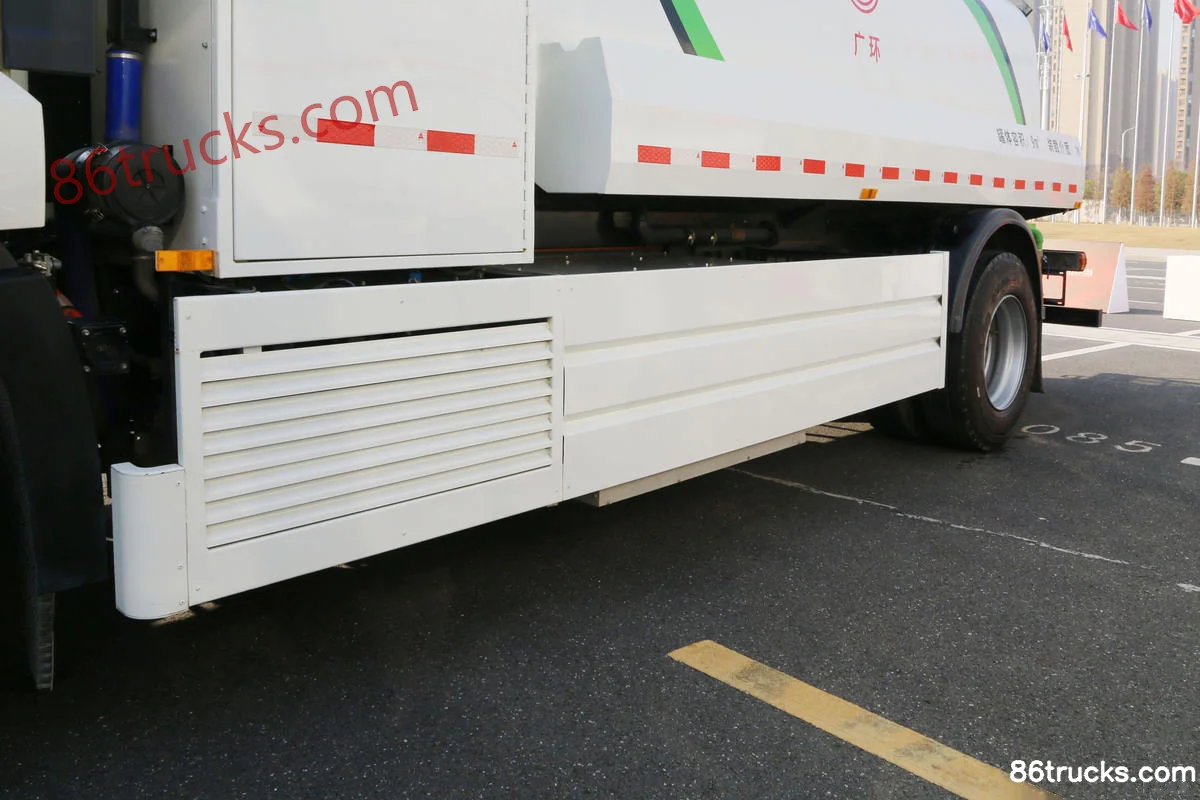

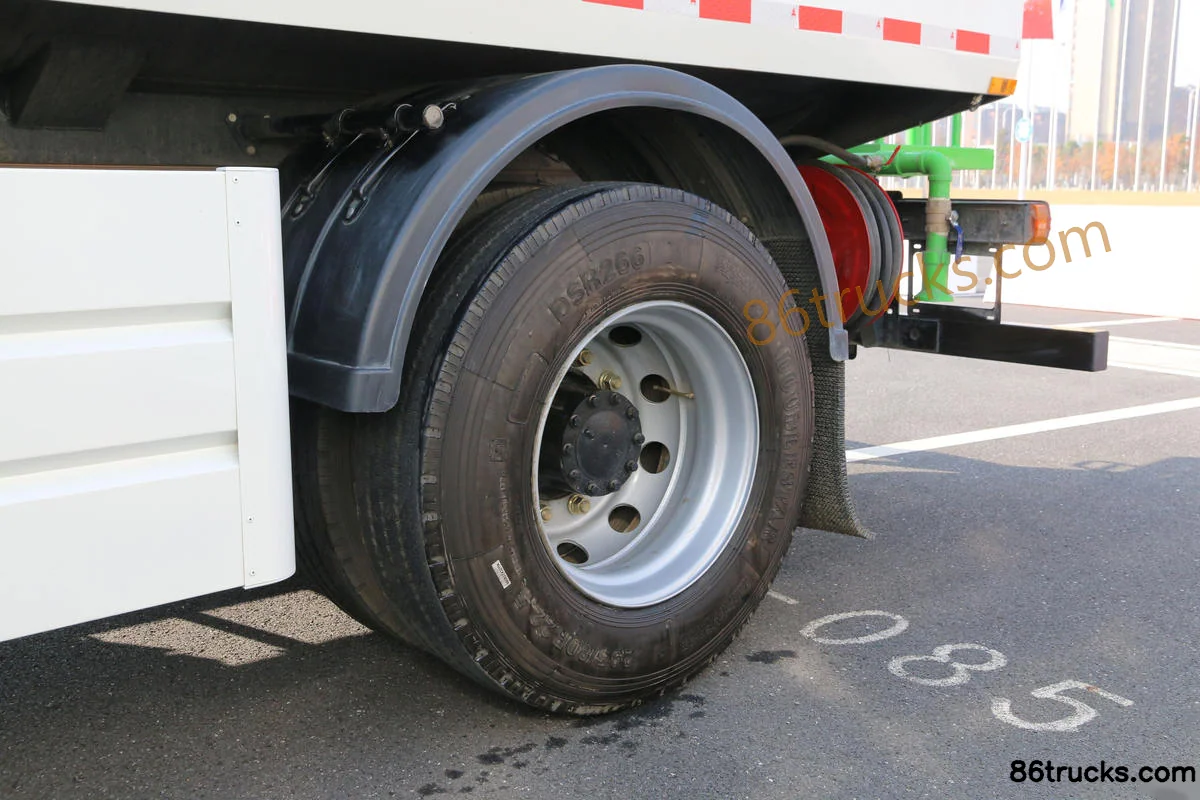

Chassis3

FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis (1) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis (2) | 86Trucks FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis?

Key specs of FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis suited for?

FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis differ from other variants in the same series?

FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis belongs to FAW Jiefang J6L Medium Truck (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
