FAW Jiefang J6L 180 hp 4X2(6 wheels) water sprinkler truck (Longhuan brand)
EXW
From $33,056
Export quote
FAW Jiefang J6L Medium Truck water sprinkler truck
Main model photos
1,675 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 180 hp 4X2(6 wheels) water sprinkler truck (Longhuan brand) | 4x2 / 180hp / China VI | From $33,056 | |
| FAW Jiefang J6L 220hp 4X2(6 wheels) Water Sprinkler Truck (Great Wall Brand) | 4x2 / 220hp / China VI | From $30,556 | |
| FAW Jiefang J6L 180 hp 4X2(6 wheels) Water Sprinkler Truck | 4x2 / 180hp / China V | From $22,083 |

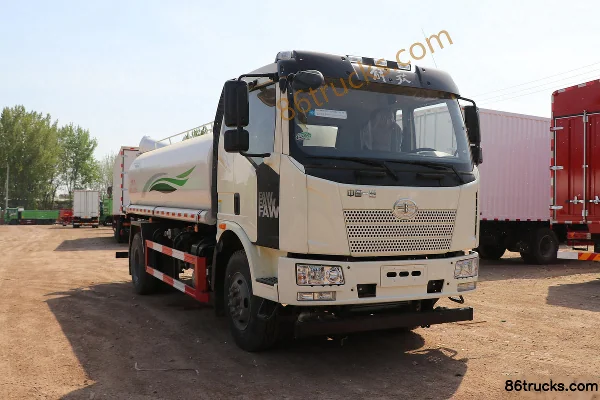

FAW Jiefang J6L 220hp 4X2(6 wheels) Water Sprinkler Truck (Great Wall Brand)
EXW
From $30,556
Export quote
FAW Jiefang J6L 180 hp 4X2(6 wheels) Water Sprinkler Truck
EXW
From $22,083
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 4X2(6 wheels) Semi-row Fuel Cell Water Sprinkler Truck Chassis | 4x2 |
Series Specs
Basic Info
Cab dimensions: 7.97×2.5×2.8 / 8.24×2.5×3.1 / 8.4×2.5×3.0 / 8.74x2.53x2.965m
Truck Type: Water Sprinkler Truck / Fuel cell water sprinkler truck
Drive type: 4X2
Vehicle origin: Longyan, Fujian / Beijing / Changchun, Qingdao, Chengdu / Guangzhou
Wheelbase: 4000 / 4500 / 5000mm
Front track width: 1800 / 1928mm
CLTC range: 580km
rear track: 1800 / 1878mm
Curb Weight: 6.51 / 7.42 / 7.06 / 9.23ton
Rated payload: 9.56 / 10.385 / 8.345ton
Max. speed: 89 / 102 / 90km/h
Front/rear suspension: 1.4/2.08 / 1.4/2.34 / 1.4/2.5m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 4.2×2.397×1.448 / 5×2.2×1.4 / 5.2×1.95×1.25m
Sprinkling width: 15m
Vehicle certification code: HTF5180GSSCA / CA5160GSSP62K1L2E5 / GH5181GSSFCEV
Body Brand: Longhuan Brand / Great Wall brand / FAW Jiefang
Others: Hydrogen storage system: Shanghai Shunhua Type III cylinders, volume 8×140L (1120L); refueling time only 15 min; independent AC, independent heater, leather ventilated heated air-suspension seat, power windows, power mirrors, battery heating system & efficient cooling system; high-pressure cleaning truck, water sprinkler truck, refuse compactor truck, hook-lift truck
Engine parameters
Engine Model: DachaiCA4DH1-18E6 / DachaiCA4DK1-22E6 / DachaiCA4DK1-18E51 / Shanghai Re-Fire Graphite Bipolar Plate Fuel Cell Engine
Number of cylinders: 4cylinder
Displacement: 3.8 / 4.8 / 4.764L
Emission standard: China VI / China V
Max output power: 129 / 162 / 139kW
Max hp: 180 / 220Horsepower
Rated speed: 2500 / 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Cargo box parameters
Box volume: 10.03 / 10.9 / 8.5 / 9m³
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6L
Chassis Model: CA1160P62K1L2A2E6Z / CA1180P62K1L2A1E6Z / CA1160P62K1L2E5Z / CA1180P62L4FCEV
Front axle description: 4T
Frame Dimensions: 237x75x(7+4)mm
rear axle description: 6.5T / 9T / R11D435
Axle ratio: 5.571
Leaf spring count: 10/7+6,7/7+6,10/12+8 / 7/7+6 / 7/10+3,10/12+8,7/7+6,12/12+8,12/10+9
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAWCA6T123 / FAW Jiefang 6-speed / FAW6-speed / Suzhou Green Control J6S95 6-speed AMT Gearbox with Booster
Cab parameters
Cab: New FAW Jiefang J6L Small Semi-sleeper Cab
Tire
Tire Size: 9.00R20,10.00R20,10R22.5 / 10.00R20 / 9.00R20 / 295/80R22.5
Number of tires: 6pcs
FAQ
What kind of truck is FAW Jiefang FAW Jiefang J6L Medium Truck water sprinkler truck?
FAW Jiefang FAW Jiefang J6L Medium Truck is an export-oriented water sprinkler truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang J6L Medium Truck water sprinkler truck?
FAW Jiefang J6L Medium Truck water sprinkler truck export reference is about $22,083 – $33,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang J6L Medium Truck water sprinkler truck cover?
FAW Jiefang J6L Medium Truck water sprinkler truck mainly covers: Drive: 4x2; Horsepower: 180 hp / 220 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang J6L Medium Truck water sprinkler truck?
For FAW Jiefang J6L Medium Truck water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does FAW Jiefang J6L Medium Truck water sprinkler truck include?
FAW Jiefang J6L Medium Truck water sprinkler truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang J6L Medium Truck water sprinkler truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
