JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)

Export reference
From $12,639
MSRP ¥9.1M CNY
Curb Weight:: 3.275ton
Emission: China V
Fuel: Diesel
Wheelbase:: 3308mm
Cab dimensions:: 5.99×1.9×2.3m
Truck Type:: Water Sprinkler Truck
Tank Dimensions (L×W×H): 3.4×1.6×1.1m
Rated payload: 3.955ton
Drive 4X2 (6 wheels)
Horsepower 117

Overview

The JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) is a water sprinkler truck featuring 3.4×1.6×1.1m tank capacity, 3.955t payload, 4.15m³ volume and 3.275ton GVW. On the powertrain side, it comes with 117 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 117 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.99×1.9×2.3m
Truck Type: Water Sprinkler Truck
Drive type: 4X2
Wheelbase: 3308mm
Vehicle origin: Suizhou, Hubei
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 3.275ton
Rated payload: 3.955ton
Max. speed: 90km/h
Front/rear suspension: 1.085/1.597m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 3.4×1.6×1.1m
Vehicle certification code: CSC5070GSSJHV
Body Brand: Chusheng Brand
Engine parameters
Engine Model: JACHFC4DF1-2D2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.544L
Emission standard: China V
Max output power: 86kW
Max hp: 117Horsepower
Rated speed: 3200rpm
Engine Type: SCR
Cargo box parameters
Box volume: 4.15m³
Chassis Specs
Chassis Brand: JAC
Chassis Series: Junling V6
Chassis Model: HFC1070P93K1C3ZV
Front axle description: 2T
rear axle description: 4T
Leaf spring count: 8/4+6,11/9+7,7/4+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed
Tire
Tire Size: 7.00R16LT 14PR,7.00-16LT 14PR
Number of tires: 6pcs

Photos

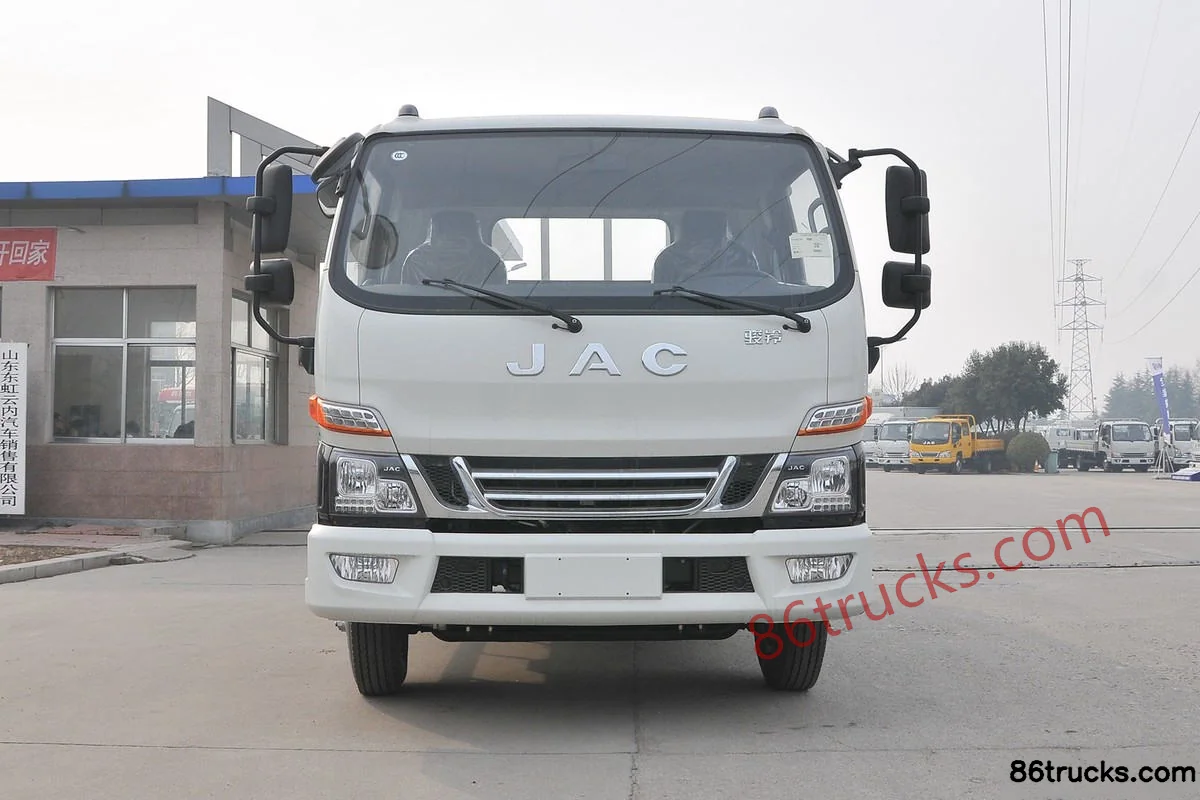

Exterior1

1 photos

FAQ

What is the export price of JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand), and what does it include?

JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) export reference is about From $12,639; MSRP is ¥9.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)?

Key specs of JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand): Drive: 4x2; Horsepower: 117 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) suited for?

JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) differ from other variants in the same series?

JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand) belongs to Chusheng JAC chassis (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V6 117 hp 4X2(6 wheels) Water Sprinkler Truck (Chusheng Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
