Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis

Export reference
From $45,972
MSRP ¥33.1M CNY
Horsepower: 320
Emission: China IV
Fuel: Diesel
Engine: DongfengRenault11L
Transmission: Fast Gear
Curb Weight:: 12.505ton
seating capacity: 2Personnel
Rated payload: 17.9ton
Drive 8X4 (12 wheels)
Cargo box type: Chassis

Overview

The Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 9.4m cargo length, Chassis cargo body, 2Personnel volume and 17.9t payload. On the powertrain side, it comes with a DongfengRenault11L engine, 320 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL1311A10
Type: Chassis
Drive type: 8X4
Wheelbase: 2050+4400+1350mm
engine: DongfengRenaultdCi320-40
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.44
Cab length: 11.98m
Cab width: 2.5m
Cab height: 3.2m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 12.505ton
Rated payload: 17.9ton
GVWR: 30.6ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 22°
departure angle:
Remarks: D310 cab, flat front, high roof, double bunk, 4-channel ABS (Dongfeng technology), full-floating front and rear mechanical shock-absorbing cab suspension (with lateral dampers), hydraulic electric tilt, colorless laminated windshield, electric window lifters, central locking front doors, air-suspension driver seat, walk-through dashboard, A/C, FARIZON throttle and PTO interface without device, hazard warning light, cruise control, BDS/GPS-compatible tachograph onboard terminal
Front/rear suspension: 1.46/2.64m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengRenaultdCi320-40
Engine info: DongfengRenault11L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.12L
Emission standard: China IV
Max output power: 236kW
Max hp: 320Horsepower
Max torque: 1500N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: 4-stroke, water-cooled, inline 6-cylinder, electronic common-rail fuel injection, turbocharged intercooled
Technology route: Electronic control common rail fuel injection
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 9.4m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 7T dual front axles
Front axle allowable load: 6400/6400kg
rear axle description: 10T single reduction dual rear axle (Dongfeng435)
rear axle allowable load: 17800 (tandem axle)kg
Axle ratio: 4.44
Leaf spring count: 9/9/10
Tire
Tire Size: 295/80R22.5
Number of tires: 12pcs
Control configuration
ABS:

Photos

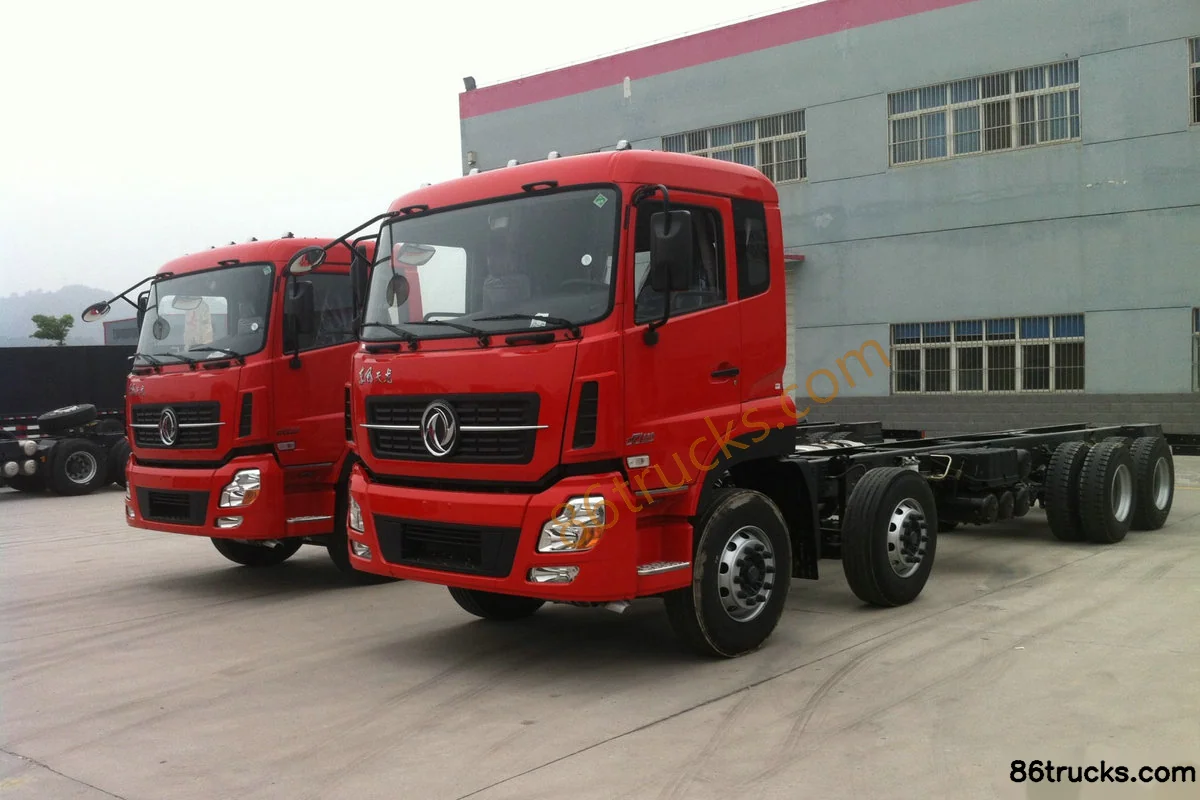

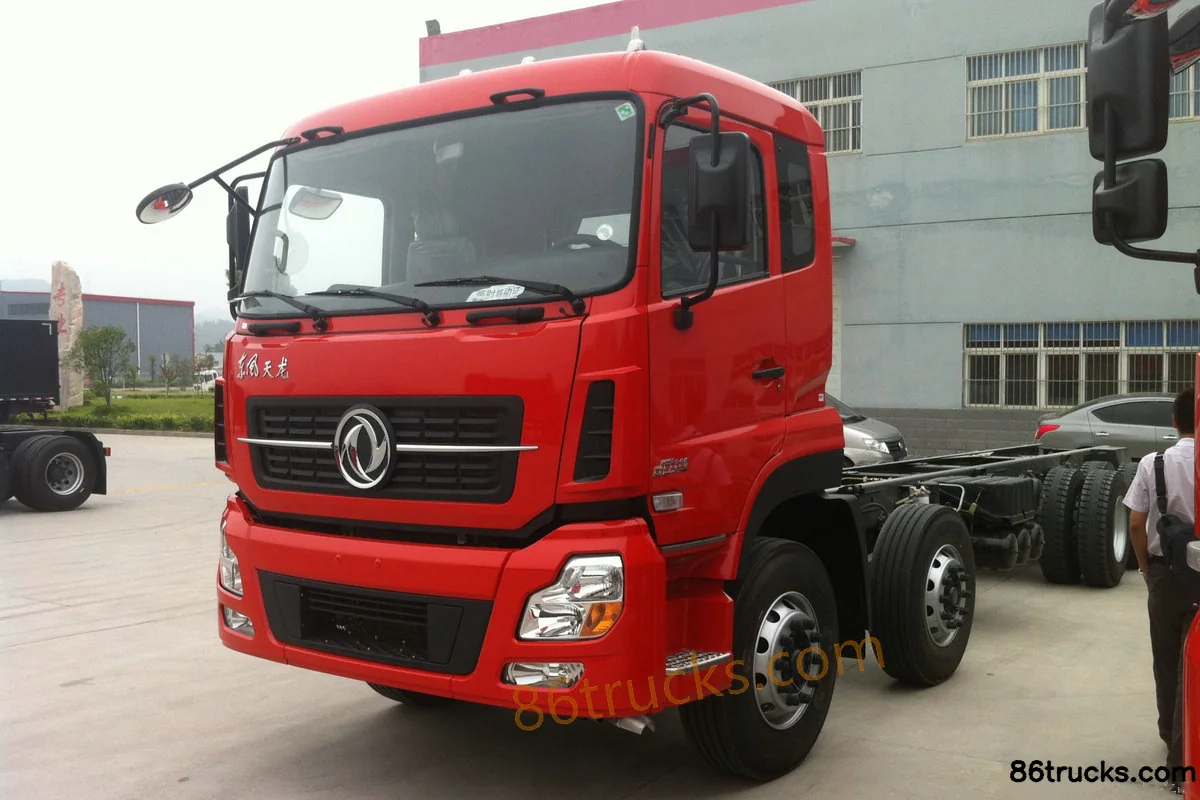

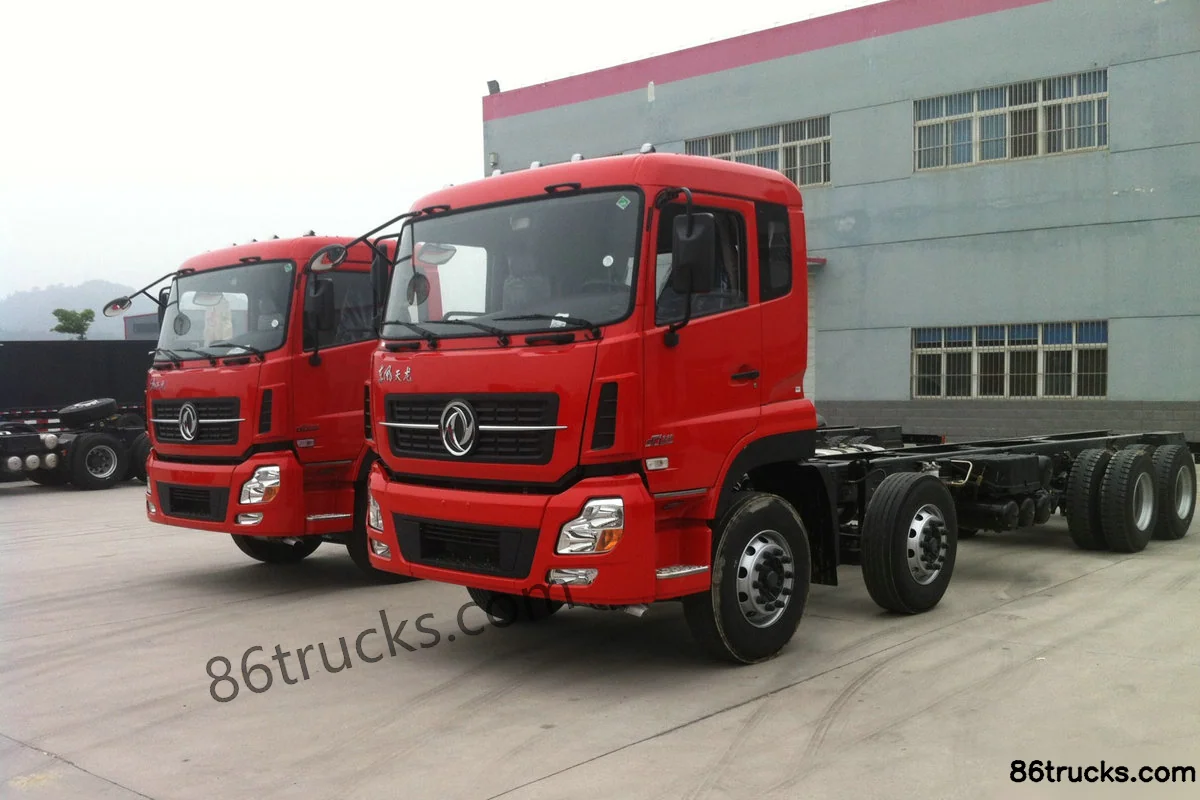

Exterior3

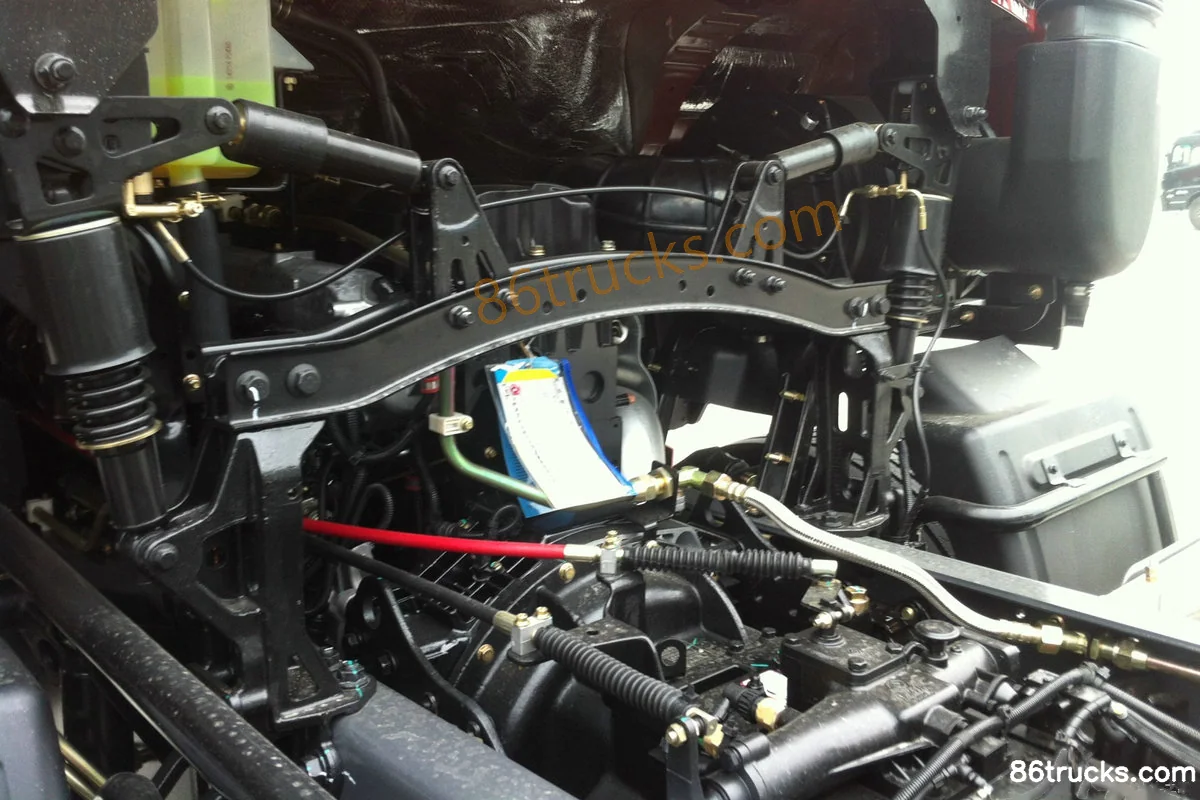

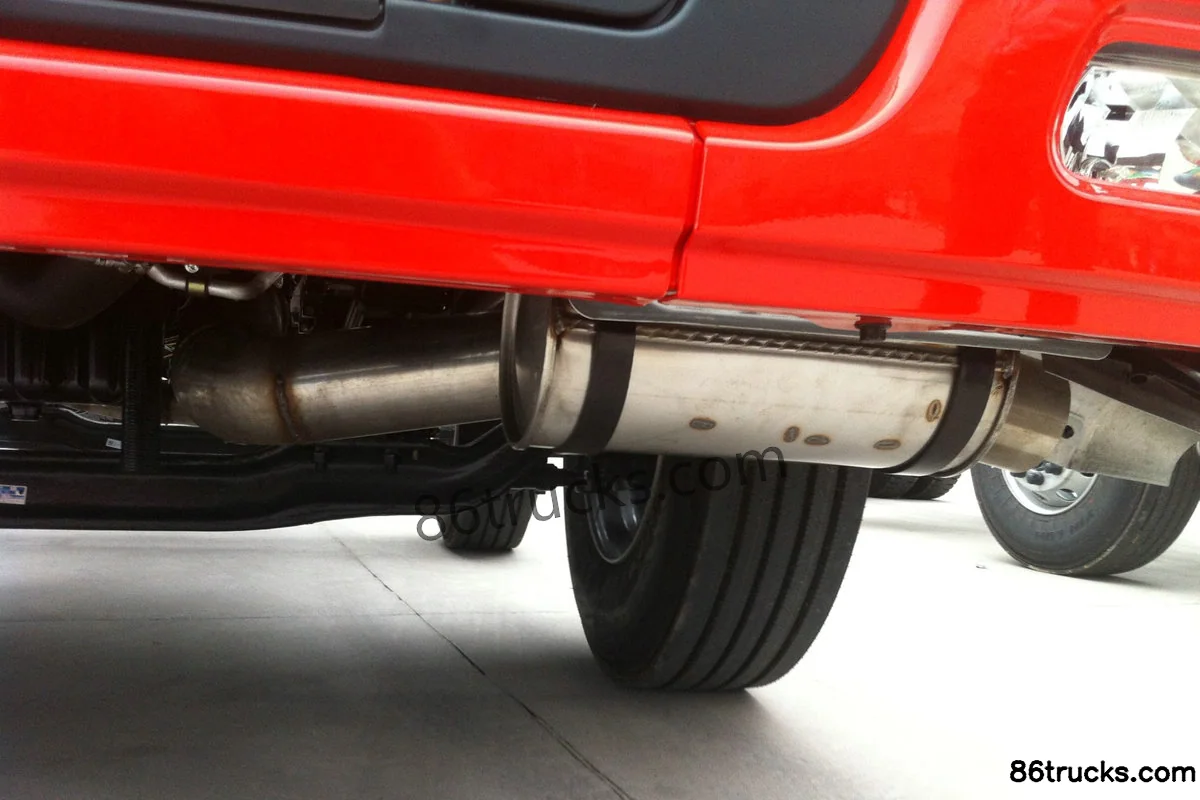

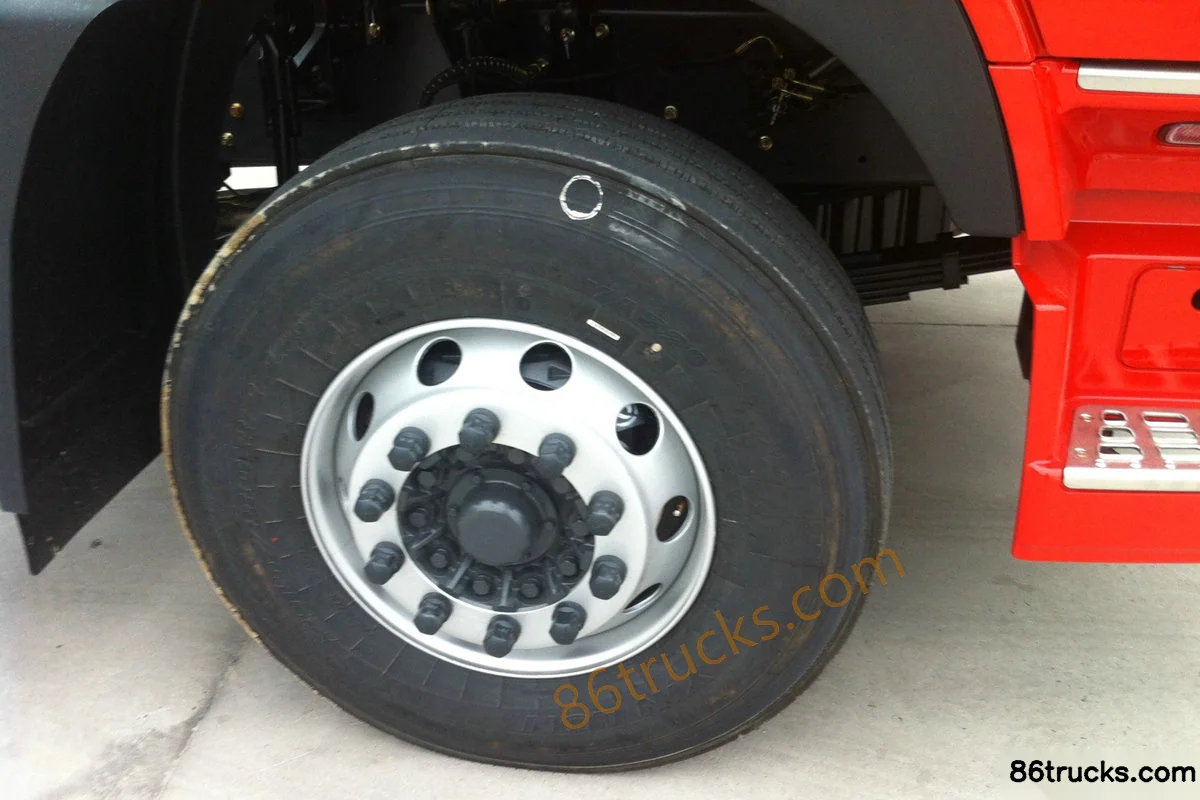

Chassis3

6 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis, and what does it include?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis export reference is about From $45,972; MSRP is ¥33.1M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis?

Key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis: Drive: 8x4; Horsepower: 320 hp; Emission: China IV; Fuel: Diesel; Engine: DongfengRenault11L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis suited for?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis belongs to Dongfeng Tianlong (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong Heavy Truck 320hp 8X4(12 wheels) Dangerous Goods Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
