Foton Shidai Ruiwo ES5 160 hp 4X2(6 wheels) stage truck (Shenhu brand)
EXW
From $25,694
Export quote
Foton ES5 Medium Truck Cargo Trucks
Main model photos
152 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Shidai Ruiwo ES5 160 hp 4X2(6 wheels) stage truck (Shenhu brand) | 4x2 / 160hp / China VI | From $25,694 | |
| Foton Times Ruowo ES5 170 hp 4X2(6 wheels) 5.4m Single Row with Half Sleeper Cargo Truck | 4x2 / 170hp / China V | From $33,056 | |
| Foton Ruowo ES5 245 hp 4X2(6 wheels) 6.8m half-row stake grid cargo truck (China VI) | 4x2 / 245hp / China VI | From $37,500 | |
| Foton Ruivo ES5 220 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (1153 Rear Axle) | 4x2 / 220hp / China V | From $23,889 | |
| Foton Ruiwo ES5 Medium Truck 170 hp 4X2(6 wheels) 6.8m Stake Cargo Truck | 4x2 / 170hp / China V | From $24,972 |
Foton Times Ruowo ES5 170 hp 4X2(6 wheels) 5.4m Single Row with Half Sleeper Cargo Truck
EXW
From $33,056
Export quote
Foton Ruowo ES5 245 hp 4X2(6 wheels) 6.8m half-row stake grid cargo truck (China VI)
EXW
From $37,500
Export quote

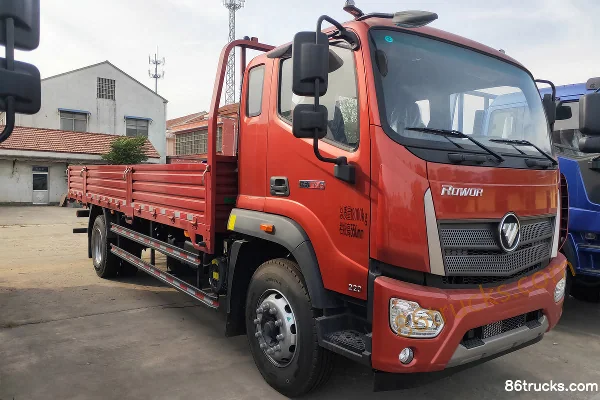

Foton Ruivo ES5 220 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck (1153 Rear Axle)
EXW
From $23,889
Export quote
Foton Ruiwo ES5 Medium Truck 170 hp 4X2(6 wheels) 6.8m Stake Cargo Truck
EXW
From $24,972
Export quote
Series Specs
Basic Info
Model code (announced): HLQ5120XWTB6 / BJ1183VKPED-FA / BJ5188CCYKPFK-AD1 / BJ1185VKPEK-FA / BJ5183CCY-FA / BJ5244CCYNPFB-01 / BJ5164CCYJPFN-01 / BJ5184CCYKPFN-01 / BJ1185VLPEN-FA / BJ5185CCY-FC / BJ5184XXYKPFN-01 / BJ1184VKPFN-01 / BJ5165CCY-FA / BJ1165VKPEK-FA / BJ5185XXY-FE / BJ5185XXY-FD / BJ5185XXY-FG / BJ5185CCY-FG / BJ1185VKPFK-FG
Type: enclosed cargo truck / Cargo Trucks / stake truck
Drive type: 4X2 / 6X2
Wheelbase: 4200 / 4300 / 5150 / 5250 / 1800+3600 / 5700 / 5200 / 4500 / 4800 / 7250mm
Box length class: 5.4 / 6.8 / 6.2 / 7.8 / 6.7 / 5.8 / 9.6 / 9.65m
Engine Model: WeichaiWP3NQ160E61 / YuchaiYC4S170-50 / YuchaiYCS06245-60A / YuchaiYC6J220-52 / WeichaiWP4.6NQ220E61 / FotonISF4.5S5185 / YuchaiYC6J170-52 / FotonISF3.8s5168 / WeichaiWP4.6NQ220E50 / YuchaiYC6J180-52
Transmission Model: Fast Gear8JS85F / Fast Gear8JS75TE / Fast Gear8JS95TE / Fast Gear8JS85TE / Fast Gear 8-speed / Fast Gear8JS85E / Fast Gear8JS85C / Fast Gear8JS85C8JS85TC / Fast Gear8JS87C / Fast Gear8JS85TC / Fast Gear8JS75C
Rear Axle Ratio: 4.33 / 4.875
Cab length: 8.16 / 7.595 / 9 / 8.998 / 8.995 / 9.055 / 8.4 / 10.3 / 10 / 8.498 / 8.098 / 8.45 / 8.05 / 8.465 / 8.065 / 11.998m
Cab width: 2.52 / 2.55 / 2.4 / 2.495 / 2200m
Cab height: 3.6 / 2.685 / 3.95 / 2.92 / 3.99 / 3.985 / 3.995 / 3.97 / 3.725 / 2.9 / 3.85 / 3.825 / 3.75m
Front track width: 1760 / 1800 / 1970 / 1953 / 1760/1760 / 1960 / 1904 / 1907mm
rear track: 1728 / 1810 / 1840 / 1860 / 1740 / 1861mm
Curb Weight: 11.5 / 7.81 / 7.875 / 7.88 / 7.45 / 5.55 / 6.3 / 5.95 / 8.45ton
Rated payload: 0.3 / 9.995 / 9.93 / 9.925 / 16.855 / 7.99 / 9.99 / 12.32 / 12.255 / 9.3 / 9.55 / 10.405 / 10.47 / 9.42ton
GVWR: 11.995 / 18 / 24.5 / 16 / 15.795 / 15.695ton
Max. speed: 80 / 90 / 95km/h
Origin: Shandong Zhucheng / Qingdao/Chengdu
tonnage class: Medium-duty truck / Heavy-duty cargo trucks
Approach angle: 20 / 18 / 19°
departure angle: 12 / 9 / 11°
market segment: LTL transport / Agricultural product transport, green channel / Building materials, agricultural products / Green Pass / Agricultural and sideline product transport / Daily industrial goods transport, agricultural and sideline products transport, green channel / Express delivery, agricultural by-product transport, cold chain transport, LTL transport / Agricultural product transport, logistics distribution, LTL transport / Express parcel, LTL
Remarks: Without synchronizer and PTO, MP5, knitted shock-absorbing seat
Front/rear suspension: 1.235/2.725 / 1.24/2.055 / 1.27/2.2 / 1.35/2.365 / 1.24/2.355 / 1.26/2.395 / 1.29/2.31 / 1.29/2.458 / 1.28/2.468 / 1.35/2.398 / 1.29/2.21 / 1.35/3.02 / 1.28/3.02 / 1.28/2.398 / 1.35/2.468 / 1.28/2.248 / 1.28/2.218 / 1.35/2.3 / 1.35/2.2 / 1.28/2.318 / 1.28/3.5m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai / Yuchai / Foton
Engine info: WeichaiWP3N / Yuchai4102 / Yuchai 6-cylinder / Yuchai6.5L / Yuchai 4-cylinder / WeichaiWP4.6 / Fukang 4.5 / Fukang 3.8
Number of cylinders: 4 / 6cylinder
Cylinder arrangement: Inline
Displacement: 2.97 / 3.767 / 6.23 / 6.494 / 4.58 / 4.46 / 3.76L
Emission standard: China VI / China V
Max output power: 118 / 125 / 180 / 162 / 136 / 132kW
Max hp: 160 / 170 / 245 / 220 / 185 / 180 / 168Horsepower
Max torque: 480 / 600 / 950 / 860 / 800 / 700 / 592N·m
Max torque speed: 1400-2300 / 1300-1800 / 1200-1700 / 1200-1800 / 1300-1700rpm
Rated speed: 3000 / 2600 / 2300rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail / Vertical, inline, water-cooled, four-stroke / High-pressure common rail + EGR + DOC + DPF + SCR + ASC / Vertical, inline 6-cylinder, water-cooled, 4-stroke / 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR / 4-valve, high-pressure common rail, turbocharged intercooled, EGR DPF DOC SCR / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection / 6-cylinder, inline, 4-stroke, 4-valve, common-rail direct injection, turbocharged intercooled / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR / Common Rail SCR
Transmission Parameters
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
FAQ
What kind of truck is Foton Foton ES5 Medium Truck Cargo Trucks?
Foton Foton ES5 Medium Truck is an export-oriented Cargo Trucks lineup with about 95 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton ES5 Medium Truck Cargo Trucks?
Foton ES5 Medium Truck Cargo Trucks export reference is about $18,861 – $37,500. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton ES5 Medium Truck Cargo Trucks cover?
Foton ES5 Medium Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 160 hp / 170 hp / 220 hp / 245 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton ES5 Medium Truck Cargo Trucks?
For Foton ES5 Medium Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton ES5 Medium Truck Cargo Trucks include?
Foton ES5 Medium Truck Cargo Trucks currently lists about 95 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton ES5 Medium Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
