Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI)

Export reference
From $28,472
MSRP ¥20.5M CNY
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP4.6
Transmission: Fast Gear
Curb Weight:: 7.45ton
seating capacity: 3Personnel
Rated payload: 16.855ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 16.855t payload. On the powertrain side, it comes with a WeichaiWP4.6 engine, 220 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5244CCYNPFB-01
Type: stake truck
Drive type: 6X2
Wheelbase: 1800+3600mm
Box length class: 6.8m
engine: WeichaiWP4.6NQ220E61
transmission: Fast Gear8JS85E
Rear Axle Ratio: 4.875
Cab length: 9.055m
Cab width: 2.4m
Cab height: 3.985m
Front track width: 1760/1760mm
rear track: 1740mm
Curb Weight: 7.45ton
Rated payload: 16.855ton
GVWR: 24.5ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
Front/rear suspension: 1.26/2.395m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61
Engine info: WeichaiWP4.6
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: 4-valve, high-pressure common rail, turbocharged intercooled, EGR+DPF+DOC+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab width: 2200mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 10/10/12+9,10/10/10+9
Tire
Tire Size: 11R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
smart configuration
Cruise control (CCS):

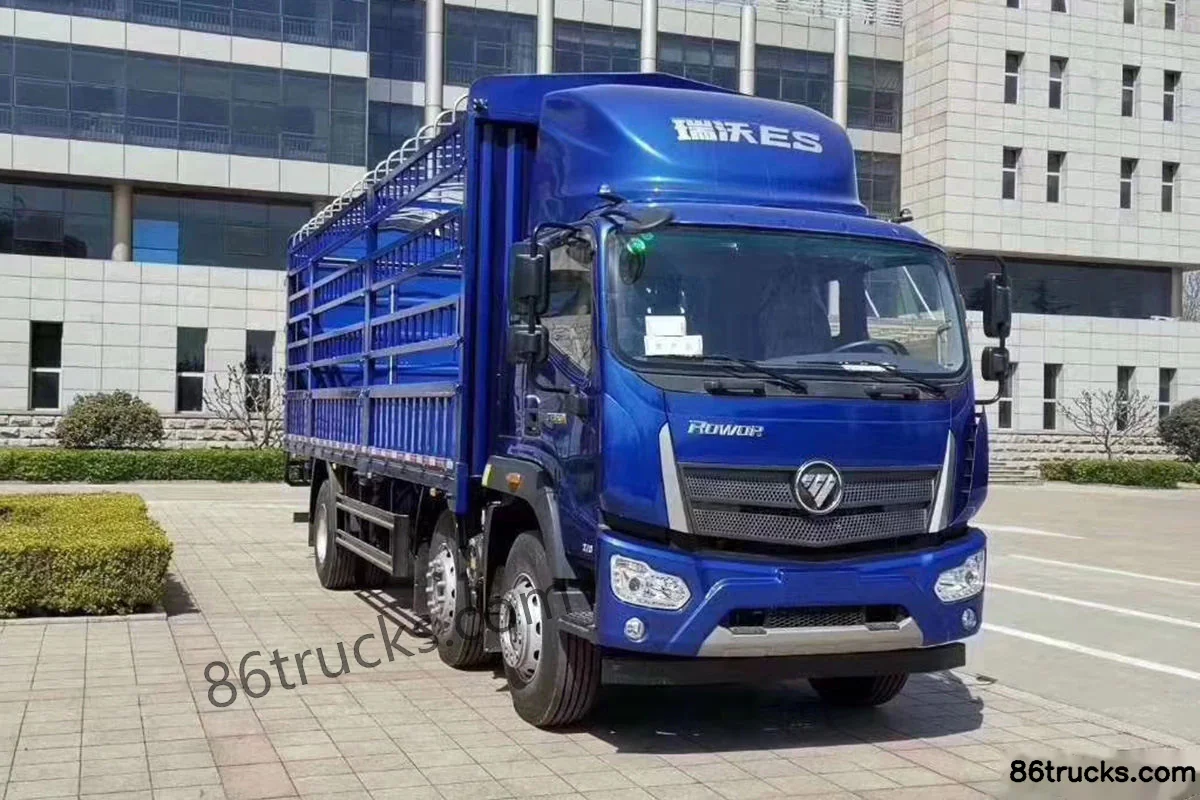

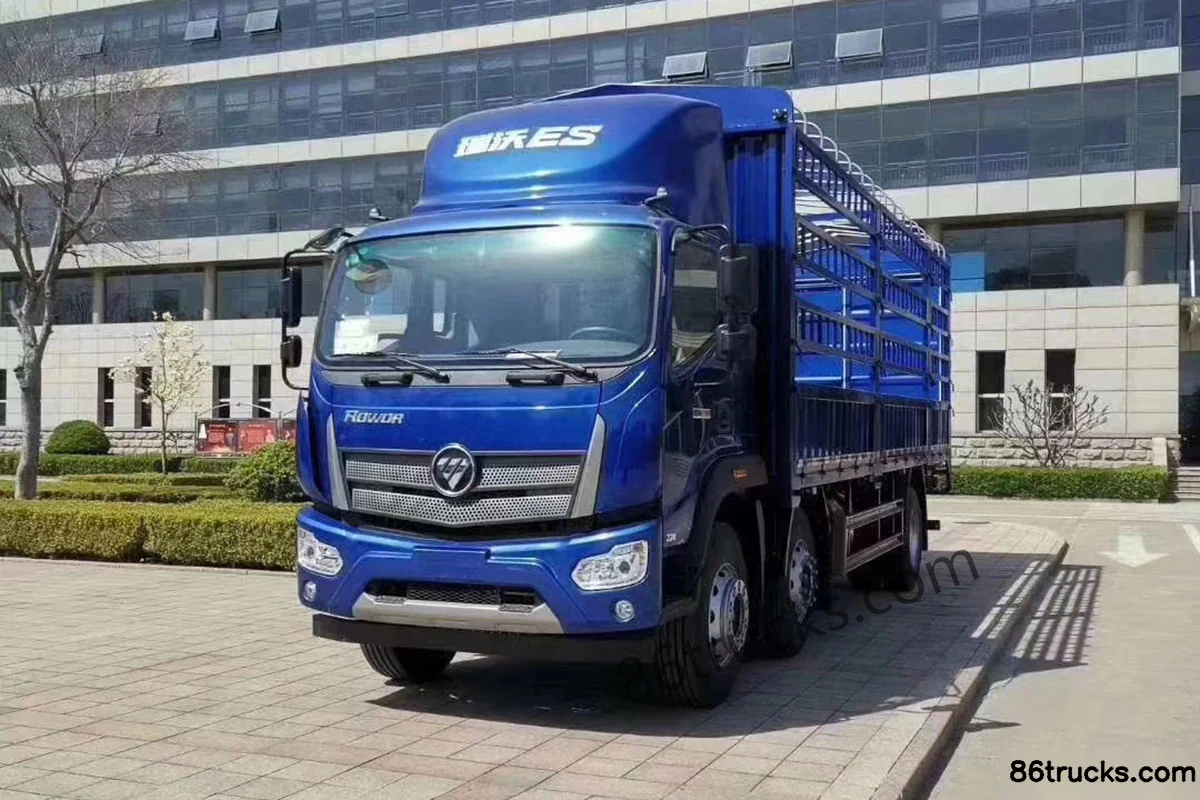

Photos

Exterior2

2 photos

FAQ

What is the export price of Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI), and what does it include?

Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) export reference is about From $28,472; MSRP is ¥20.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI)?

Key specs of Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI): Drive: 6x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP4.6; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) suited for?

Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) differ from other variants in the same series?

Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI) belongs to Foton ES5 Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruiwo ES5 220hp 6X2(8 wheels) 6.8m Half Row Cage Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
