JMC New Kaiyun Light Truck Cargo Trucks

Main model photos

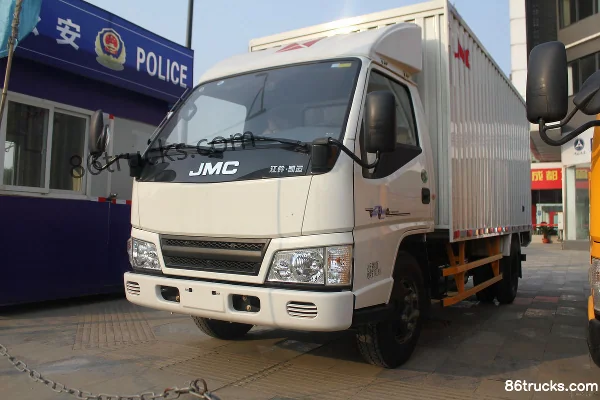

JMC New Kaiyun 116hp 4X2(6 wheels) 4.1m single-row van light truck Exterior JMC New Kaiyun 116 hp 4X2(6 wheels) 4.1m Single Row Flatbed Light Truck (Wide Body) Exterior JMC New Kaiyun 116hp 4X2(6 wheels) 4.21m single-row van light truck (enlarged cargo box) Exterior

162 photos

Models

Series Specs

Basic Info
Model code (announced): JX5042XXYXGA2 / JX1042TG25 / JX5044XXYXSGE2 / JX5044XXYXGR2 / JX1041TSG25 / JX1041TPG25 / JX5044XXYXPGB2 / JX5044XXYXSGC2 / JX5044XXYXSGD2 / JX5044XXYXPGC2 / JX1041TG25 / JX5044XXYXGJ2 / JX5044XXYXSCG2 / JX5055XXYXG2 / JX1041TSG24 / JX1041TSC25 / JX1041TPG24 / JX1041TG24 / JX5044XXYXPCG2 / JX5044XXYXSC2 / JX5044XXYXPC2 / JX5044XXYXC2 / JX1041TSCA24 / JX1041TPCA24 / JX1041TCA24 / JX5035XXYXSAA / JX5035XXYXAA / JX1031TSAA4 / JX1041TPCB25 / JX5044XXYXCG2 / JX1041TC25 / JX1031TA4 / JX5048XXYXPGC2 / JX5048XXYXPG2 / JX1042TPG24 / JX5048XXYXGA2 / JX1042TPG25 / JX5048XXYXGC2 / JX1062TG25 / JX5044XXYXSG2 / JX1041TGA24 / JX5044XXYXSAB2 / JX5044XXYXAA2 / JX1041TA24
Type: enclosed cargo truck / Cargo Trucks
Drive type: 4X2
Wheelbase: 3360 / 2800 / 2490mm
Box length class: 4.1 / 3.3 / 4.2 / 3.2 / 3.8 / 2.8 / 3.7 / 2.1 / 3.1 / 2.2 / 3.6 / 4m
Engine Model: Nanchang JMC JX493ZLQ5 / Nanchang JMC JX493ZLQ4 / Nanchang JMC JX493ZLQ4B / JMCJX493ZLQ5 / JMCJX493ZLQ4 / JMCJX493ZLQ4B
Transmission Model: JMCJC528T8 / JMCJC528 / JMCJC520T9DB
Rear Axle Ratio: 6.142 / 4.875
Cab length: 5.995 / 5.955 / 5.51 / 5.4 / 4.82 / 4.735 / 4.81m
Cab width: 2.16 / 2.15 / 2.018 / 1.95 / 1.88 / 1.93 / 1.72 / 1.69 / 2.07 / 2.04 / 1995 / 1700m
Cab height: 3.1 / 2.28 / 2.83 / 2.99 / 2.14 / 2.75 / 2.95 / 2.125 / 2.97 / 2.57 / 2.04 / 2.09 / 2.98 / 2.62m
Front track width: 1680 / 1385 / 1400 / 1395mm
rear track: 1570 / 1425 / 1375mm
Curb Weight: 2.805 / 2.55 / 2.77 / 2.685 / 2.42 / 2.35 / 2.56 / 2.665 / 2.615 / 2.315 / 2.63 / 2.47 / 2.46 / 2.39 / 2.37 / 2.485 / 2.48 / 2.23 / 2.165 / 2.15 / 1.99 / 1.885 / 1.785 / 2.25 / 1.865 / 2.54 / 2.795 / 2.565 / 2.31 / 2.225 / 2.12ton
Rated payload: 1.495 / 1.75 / 1.4 / 1.995 / 1.245 / 1.735 / 2.19 / 1.71 / 1.855 / 1.975 / 0.995 / 1.335 / 0.86 / 1.45 / 1.76 / 3.24 / 1.865ton
GVWR: 4.495 / 4.31 / 4.475 / 4.185 / 4.485 / 4.44 / 4.37 / 4.79 / 4.11 / 4.12 / 4.095 / 4.105 / 4.05 / 3.79 / 3.775 / 3.31 / 3.35 / 2.97 / 4.29 / 4.375 / 3.445 / 5.995 / 4.13 / 3.85 / 4.115ton
Max. speed: 100 / 95km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 20 / 18.3 / 27 / 21 / 25°
departure angle: 17 / 21 / 15.3 / 17.5 / 14 / 15 / 14.5 / 17.6 / 22 / 16 / 18.6°
market segment: Urban Distribution / Building materials, agricultural products
Remarks: CD, Titanium Silver Interior, Bamboo Plywood Side Panel Cargo Box / CD, Titanium Silver Interior, Integral Steel Side Panel Cargo Box / CD, Wood Grain Interior, Split Steel Side Panel Cargo Box, Optional Bamboo Plywood Side Panel Cargo Box
Front/rear suspension: 1.15/1.485 / 1.14/1.455 / 1.065/1.57 / 1.065/1.53 / 1.065/1.645 / 1.015/1.58 / 1.065/1.535 / 1.015/1.315 / 1.065/1.18 / 1.14/1.495 / 1.065/1.255m
Version: Standard version
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine info: JMC493
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V / China IV
Max output power: 85 / 80 / 75kW
Max hp: 116 / 109 / 102Horsepower
Max torque: 285 / 260 / 220N·m
Max torque speed: 1800-2200 / 1800-2000rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Brand: JMC
shift method: Manual

FAQ

What kind of truck is JMC JMC New Kaiyun Light Truck Cargo Trucks?

JMC JMC New Kaiyun Light Truck is an export-oriented Cargo Trucks lineup with about 79 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for JMC New Kaiyun Light Truck Cargo Trucks?

JMC New Kaiyun Light Truck Cargo Trucks export reference is about $9,861 – $15,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does JMC New Kaiyun Light Truck Cargo Trucks cover?

JMC New Kaiyun Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in JMC New Kaiyun Light Truck Cargo Trucks?

For JMC New Kaiyun Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.

What is Cargo Trucks typically used for?

Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.

How many models does JMC New Kaiyun Light Truck Cargo Trucks include?

JMC New Kaiyun Light Truck Cargo Trucks currently lists about 79 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for JMC New Kaiyun Light Truck Cargo Trucks?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
