JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 2.42ton
JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck exterior
View more photos (12)
seating capacity: 5Personnel
Rated payload: 1.75ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck is a Light Truck featuring 3.265m cargo length, stake body cargo body, 5Personnel volume and 1.75t payload. On the powertrain side, it comes with a JMC493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX1041TSG25
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Nanchang JMC JX493ZLQ5
transmission: JMCJC528T8
Cab length: 5.955m
Cab width: 1.95m
Cab height: 2.14m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.42ton
Rated payload: 1.75ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 27°
departure angle: 17.5°
Front/rear suspension: 1.065/1.53m
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ5
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Transmission Parameters
Transmission Model: JMCJC528T8
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.265m
Cargo box width: 1.85m
Cargo box height: 0.38m
*Cargo box interior width: 1.8500000238419
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 1720kg
rear axle allowable load: 2775kg
Leaf spring count: 7/4+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Service brake
Exhaust brake:

Photos

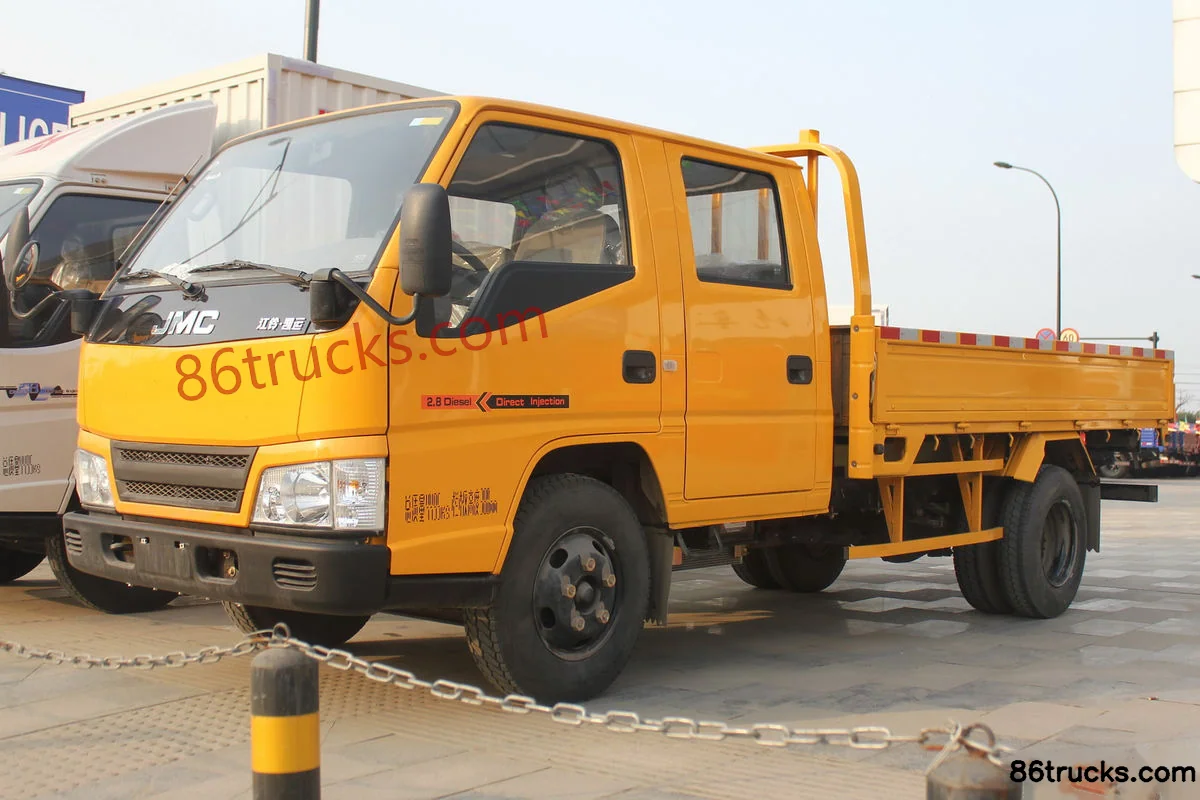

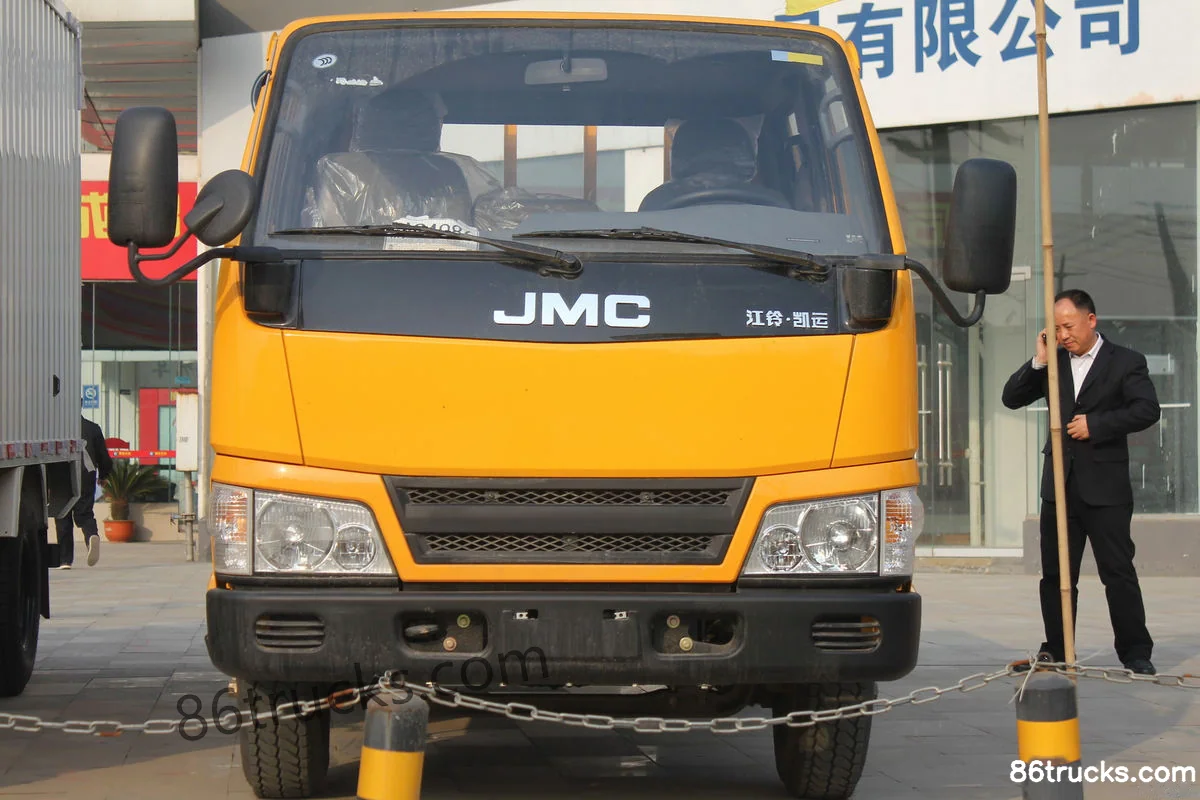

Exterior3

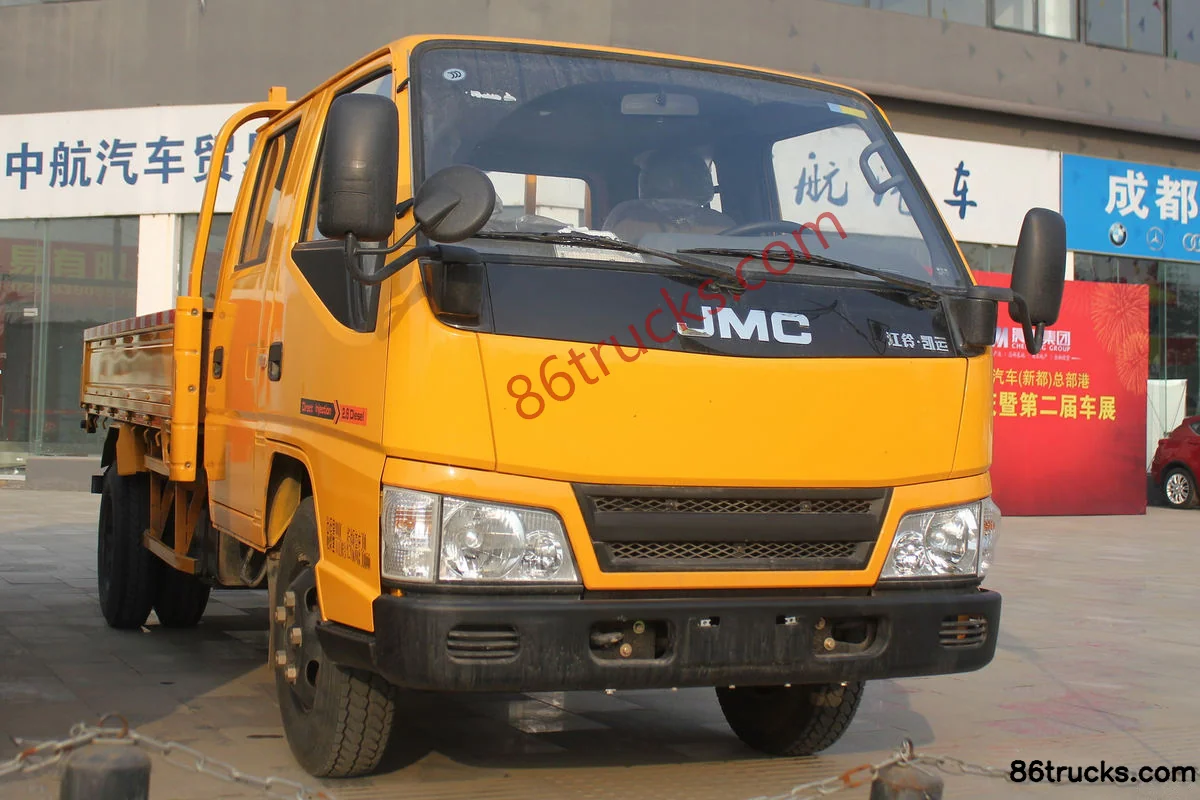

JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Exterior (1) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Exterior (2) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Exterior (3) | 86Trucks

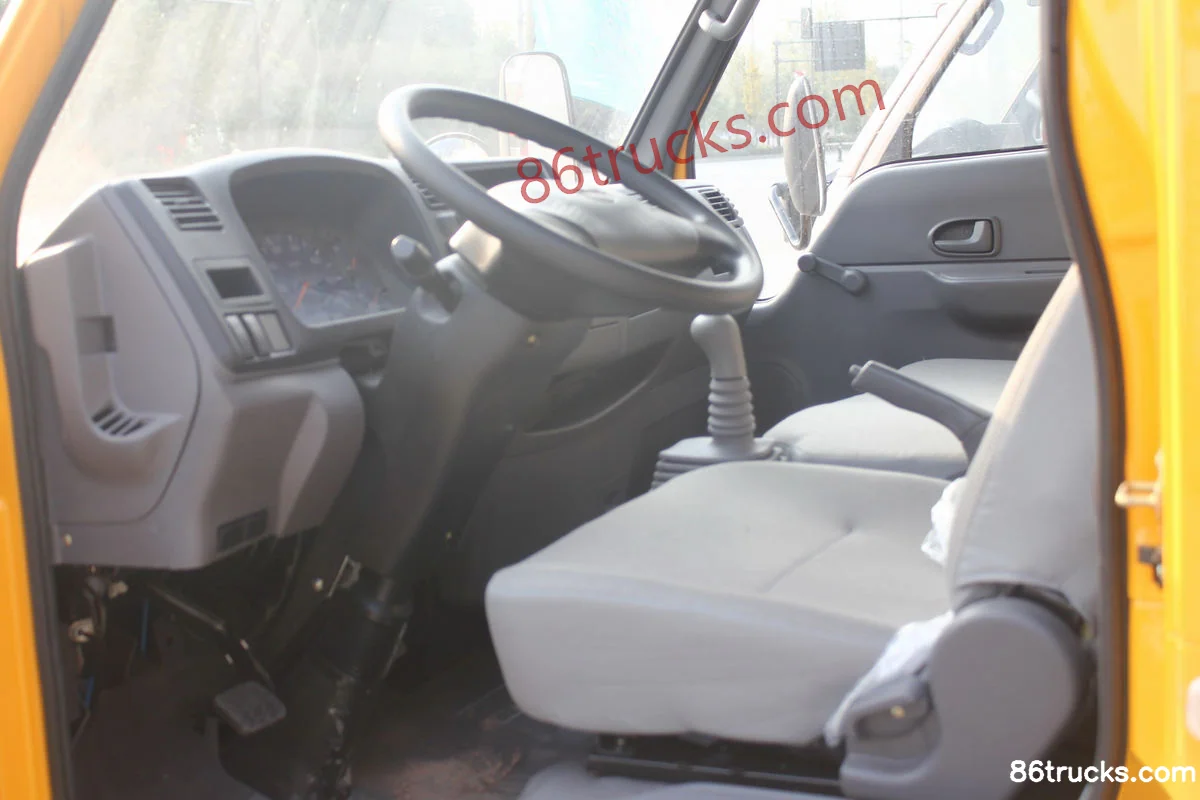

Cab3

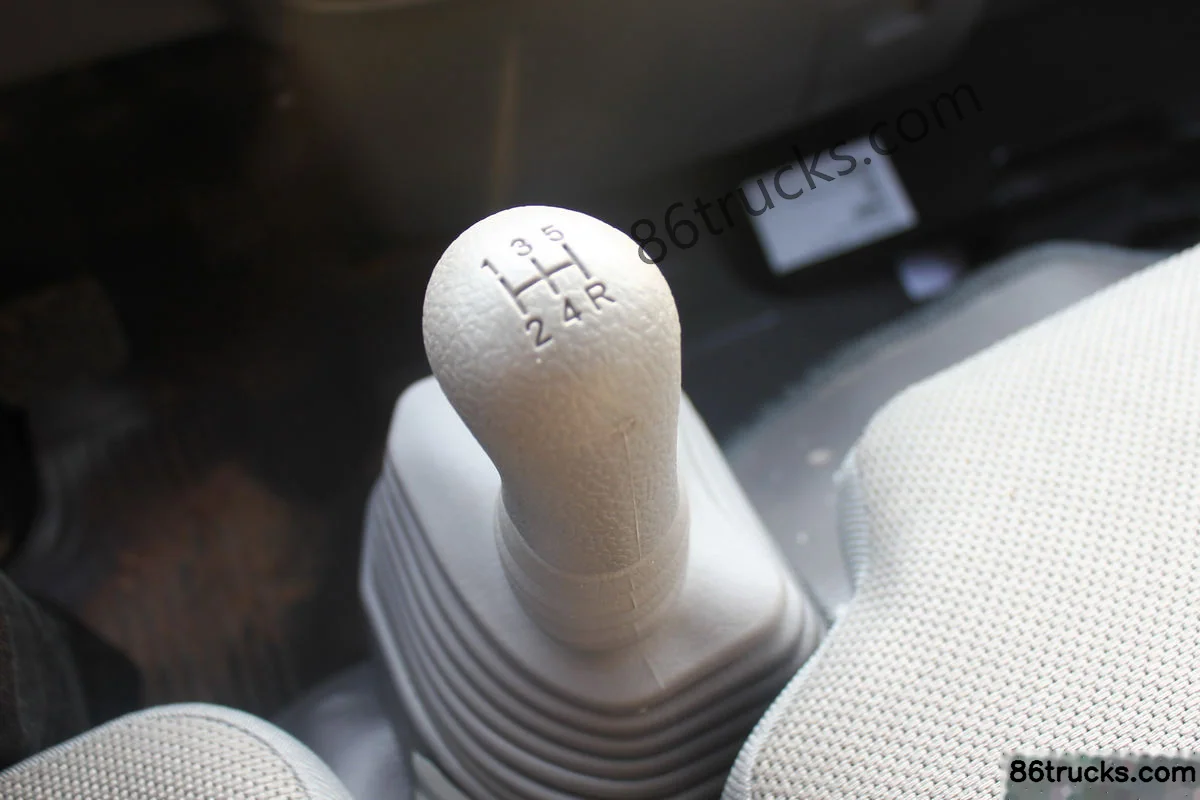

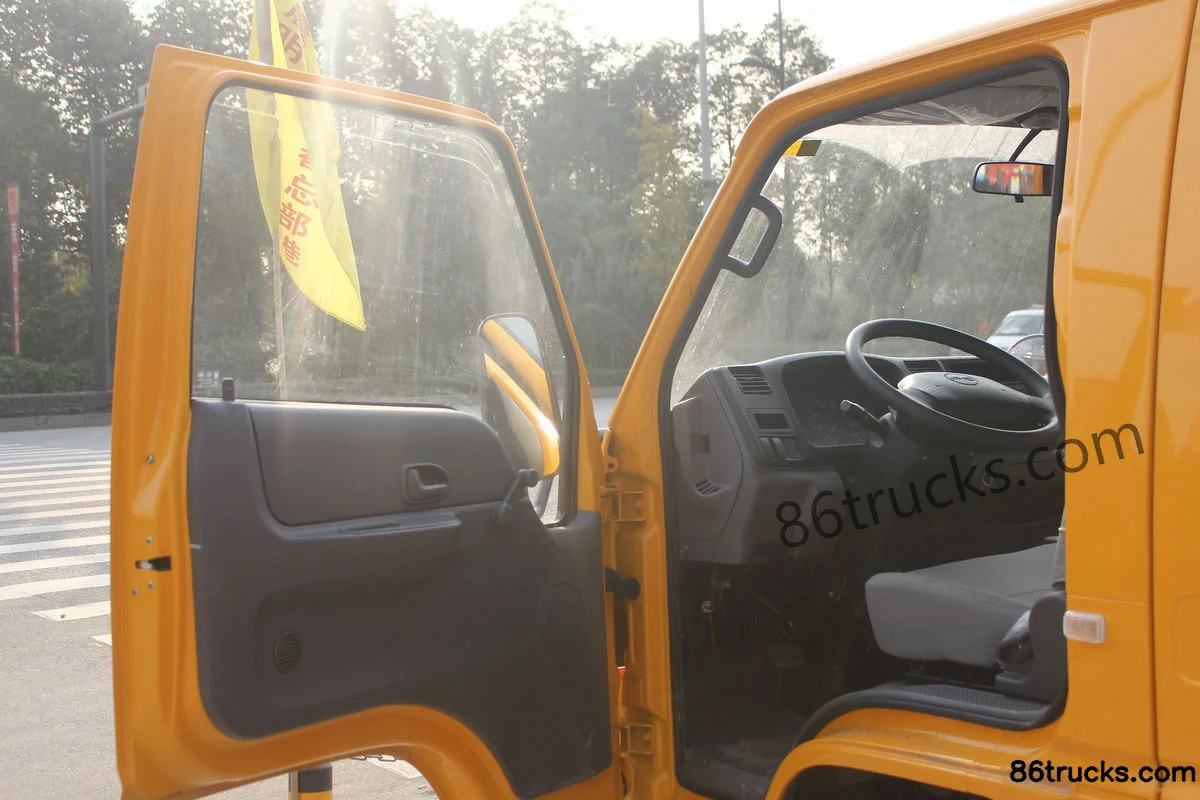

JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Cab (1) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Cab (2) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Cab (3) | 86Trucks

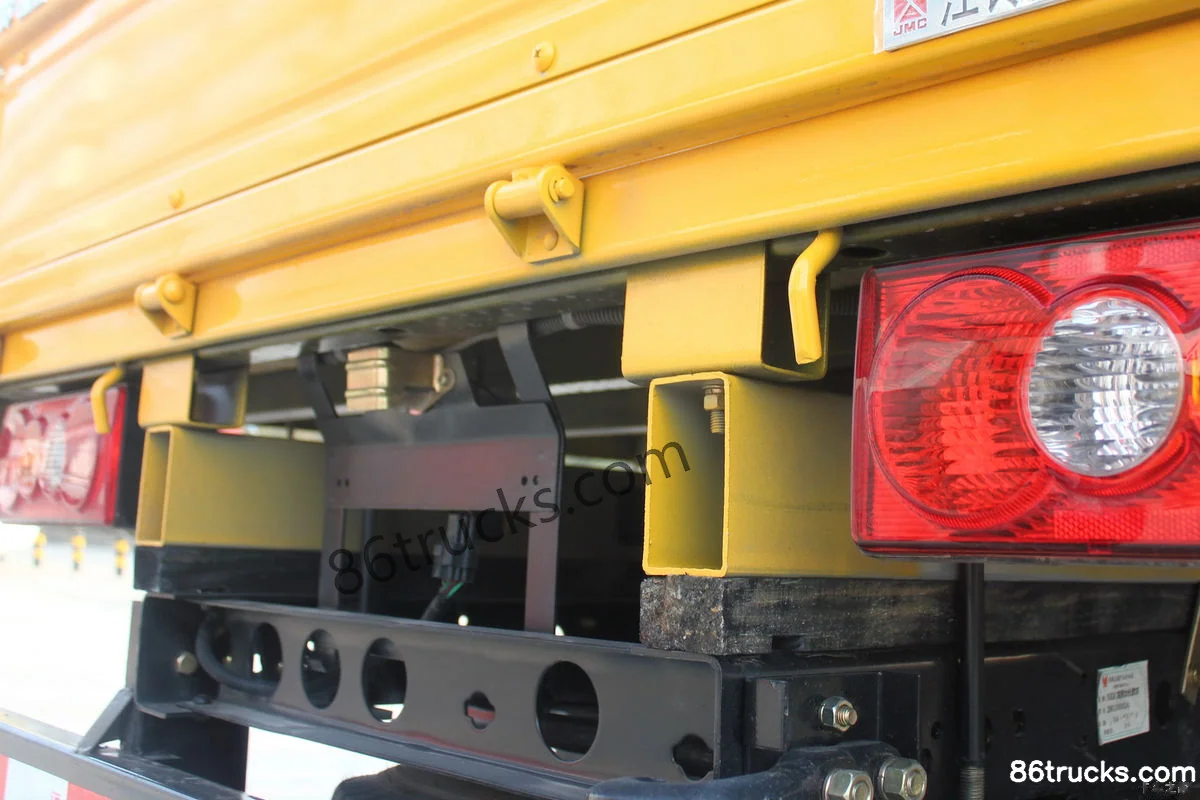

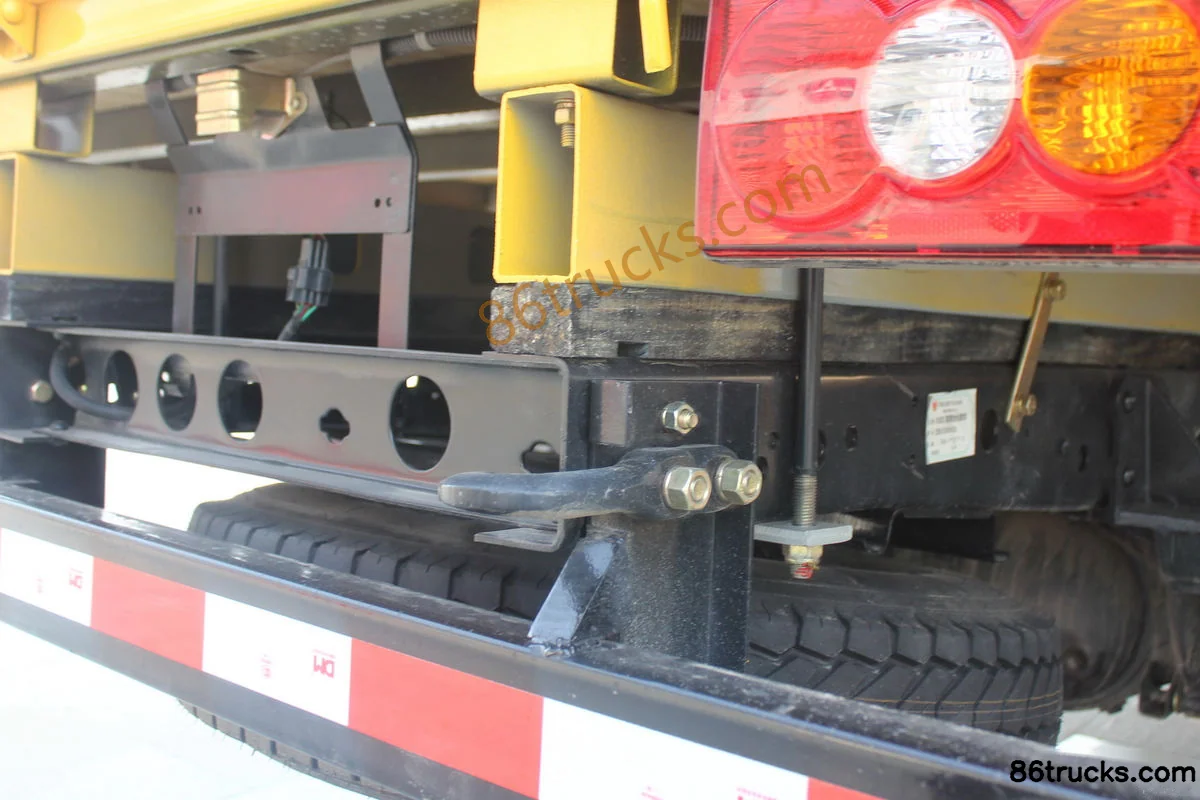

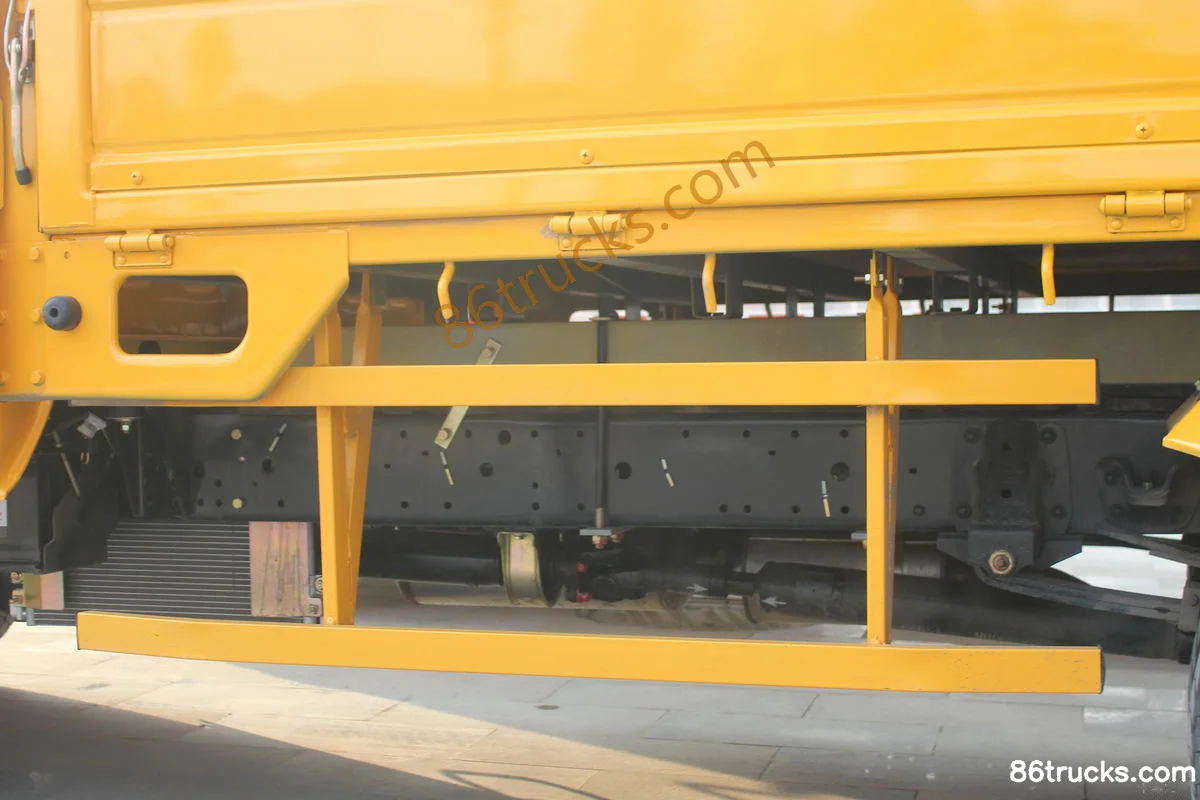

Chassis3

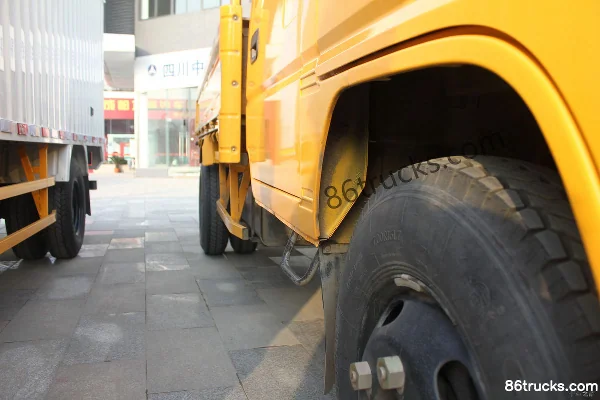

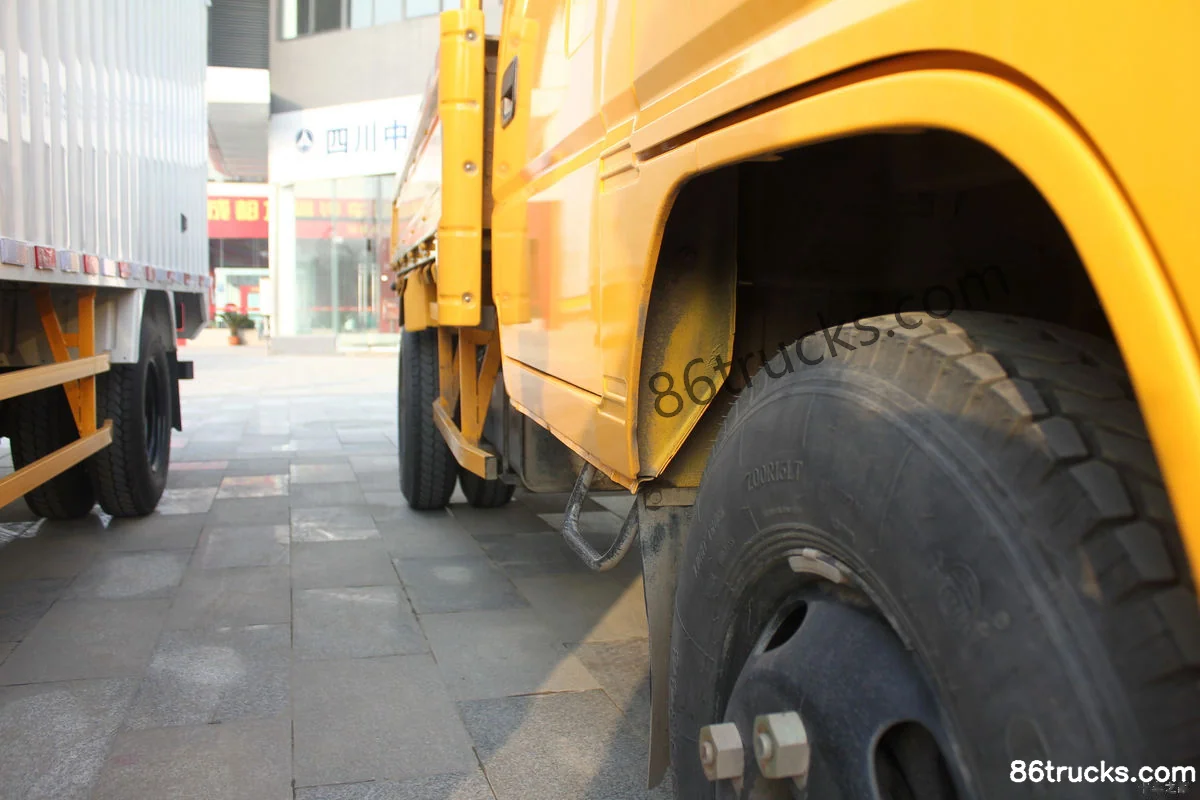

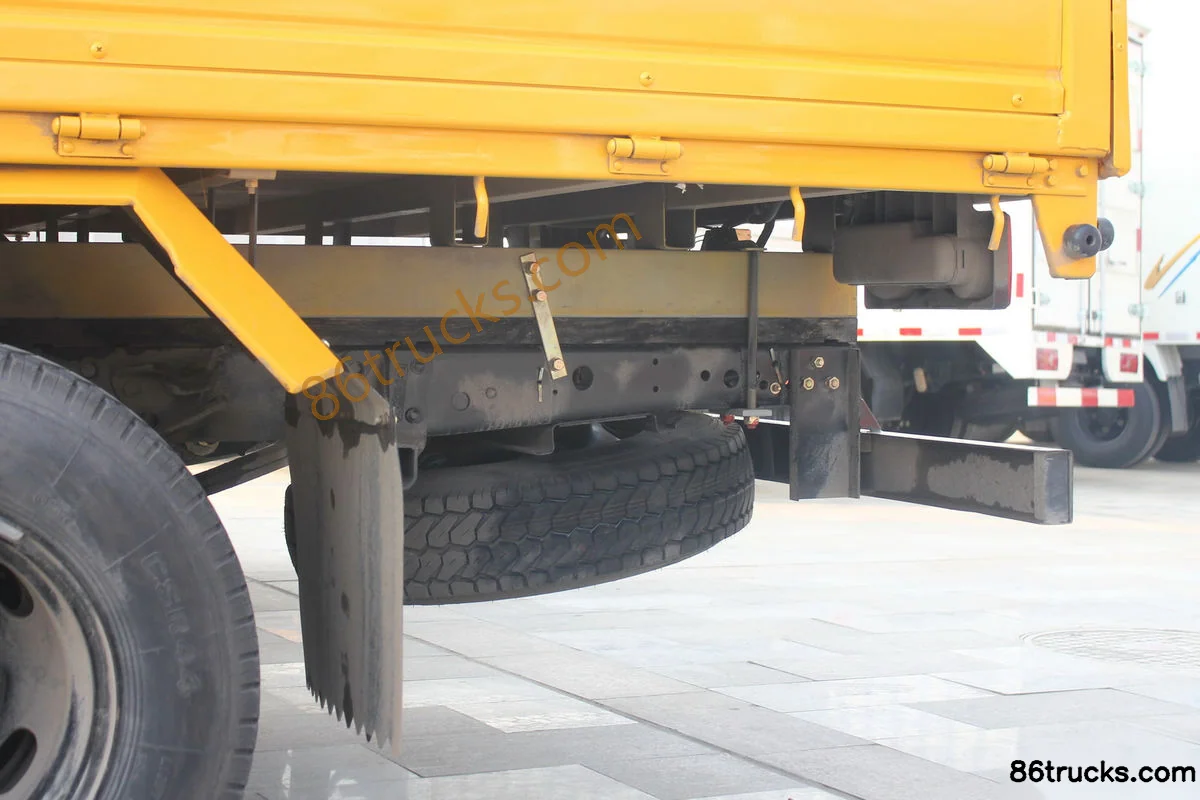

JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Chassis (1) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Chassis (2) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Chassis (3) | 86Trucks

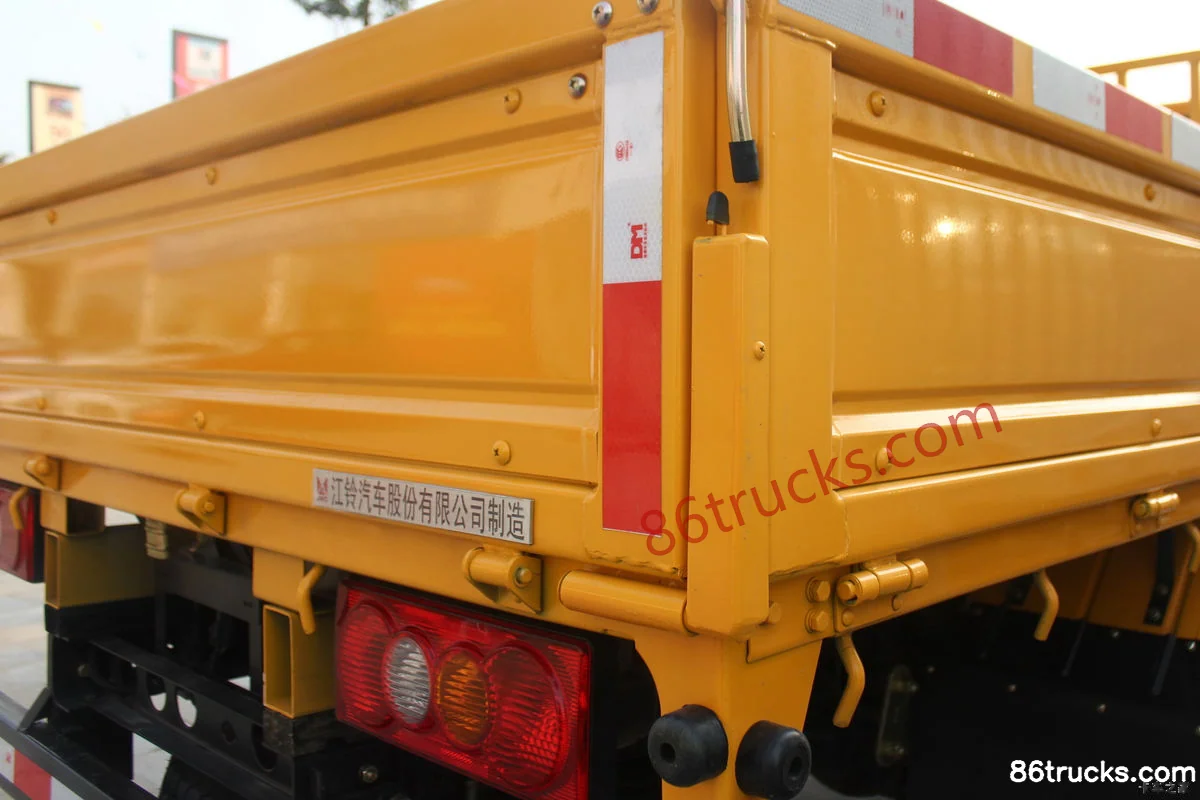

Body3

JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Body (1) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Body (2) | 86Trucks JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Key specs of JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck suited for?

JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck differ from other variants in the same series?

JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck belongs to JMC New Kaiyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Kaiyun 116hp 4X2(6 wheels) 3.2m double-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
