FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis
EXW
From $31,722
Export quote
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck
Main model photos
132 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis | 6x2 / 220hp / China IV | From $31,722 | |
| FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 190hp 6X2(8 wheels) Day Cab Cargo Truck (Chassis) | 6x2 / 190hp / China III / Euro III | ||
| FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) | 4x2 / 160hp / China III / Euro III | ||
| FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab | 8x4 / 260hp / China III / Euro III | ||
| FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 220 hp 6X2(8 wheels) 9.5m Van Cargo Truck | 6x2 / 220hp / China III / Euro III | From $26,667 |
FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 190hp 6X2(8 wheels) Day Cab Cargo Truck (Chassis)
EXW
Export quote

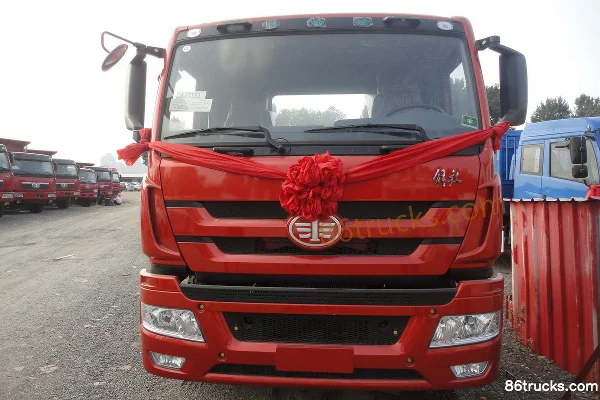

FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis)
EXW
Export quote

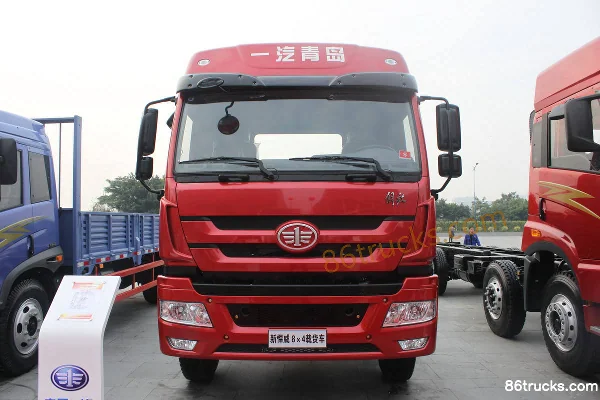

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab
EXW
Export quote
FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 220 hp 6X2(8 wheels) 9.5m Van Cargo Truck
EXW
From $26,667
Export quote
Series Specs
Basic Info
Model code (announced): CA1250P1K2L7T3E4A80 / CA1251P1K2L7T3EA80 / CA5167XXYP1K2L2EA80 / CA5312XXYP1K2L7T4EA80-1 / CA5251XXYP1K2L7T3EA80-3 / CA5310XXYP1K2L7T10EA80-1 / CA5311XXYP1K2L7T4EA80-1
Type: Chassis / stake truck / enclosed cargo truck / Cargo Trucks
Drive type: 6X2 / 4X2 / 8X4 / 8X2
Wheelbase: 1900+5650 / 5270 / 1900+4500+1350mm
Box length class: 9.5 / 6.8m
Engine Model: XichaiCA6DF4-22E4 / DachaiCA6DF3-19E3F / XichaiCA6DF3-16E3F / XichaiCA6DF3-26E3F / FAWCA6DE3-22E3F / FAWCA6DE3-24E3F / XichaiCA6DL1-26E3F / DachaiCA6DE3-22E3F / DachaiCA6DE3-24E3F
Transmission Model: Fast Gear7DS100 / FAW JiefangCA6TBX085M / Fast Gear8JS75E / Fast Gear9JS119 / Fast Gear8JS125 / FAW Jiefang CA10TAX130M overdrive
Rear Axle Ratio: 4.444 / 4.875 / 5.143 / 4.44
Cab length: 11.973 / 11.98 / 9 / 11.993 / 11.093m
Cab width: 2.49 / 2.499 / 2.55m
Cab height: 3.39 / 2.79 / 3.79 / 3.9 / 3.745 / 3.895m
Front track width: 1964/1964 / 1942/1942 / 1800 / 1914/1914mm
rear track: 1847 / 1800 / 1860/1860 / 1914/1847 / 1847/1847mm
Curb Weight: 9.615 / 10.08 / 5.89 / 10 / 10.24 / 11 / 11.7ton
Rated payload: 15.19 / 14.725 / 9.805 / 20.805 / 14.565 / 19.805 / 19.17ton
GVWR: 25 / 15.99 / 31ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks / Heavy truck
Approach angle: 21°
departure angle: 9°
market segment: Building materials, agricultural products / Agricultural product transport, logistics distribution, LTL transport, daily bulk cargo / Agricultural product transport, green channel, industrial product transport / Construction material transport, agricultural byproduct transport, energy minerals / Agricultural product transport, green channel
Remarks: Optional Xichai CA6DF3-18E3U / Optional engine Xichai CA6DL1-28E3F
Front/rear suspension: 1.375/3.048m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai / Dachai
Engine info: Xichai 6-cylinder / Dachai6.6L / Xichai8L
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 6.74 / 7.12 / 6.618 / 7.7L
Emission standard: China IV / China III / Euro III
Max output power: 165 / 147 / 118 / 192 / 162 / 177kW
Max hp: 220 / 190 / 160 / 260 / 240Horsepower
Max torque: 860 / 720 / 570 / 930 / 770 / 890 / 1000N·m
Max torque speed: 1300-1700 / 1400 / 1300-1500rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail / 6-cylinder inline, direct injection, turbocharged intercooled, inline pump EGR
Transmission Parameters
Transmission Brand: Fast Gear / FAW Jiefang
shift method: Manual
Forward gears: 7 / 8 / 9 / 10Gear
FAQ
What kind of truck is FAW Jiefang Qingdao FAW Jiefang Qingdao New Hanwei J5M Heavy Truck Cargo Trucks?
FAW Jiefang Qingdao FAW Jiefang Qingdao New Hanwei J5M Heavy Truck is an export-oriented Cargo Trucks lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck?
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck export reference is about $26,667 – $31,722. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck cover?
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 160 hp / 190 hp / 220 hp / 260 hp; Emission: China III / Euro III / China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Qingdao New Hanwei J5M Heavy Truck?
For FAW Jiefang Qingdao New Hanwei J5M Heavy Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck include?
FAW Jiefang Qingdao New Hanwei J5M Heavy Truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
