FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab

Export reference
MSRP N/A
Horsepower: 260
Emission: China III / Euro III
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 10ton
seating capacity: 3Personnel
Rated payload: 20.805ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 20.805t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 260 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 260 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5312XXYP1K2L7T4EA80-1
Type: stake truck
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: XichaiCA6DF3-26E3F
transmission: Fast Gear9JS119
Rear Axle Ratio: 4.444
Cab length: 11.993m
Cab width: 2.499m
Cab height: 3.9m
Front track width: 1914/1914mm
rear track: 1860/1860mm
Curb Weight: 10ton
Rated payload: 20.805ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DF3-26E3F
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.12L
Emission standard: China III / Euro III
Max output power: 192kW
Max hp: 260Horsepower
Max torque: 930N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: A1H/G116/A5S
Front axle allowable load: 6500kg
rear axle description: 457 stamped-welded axle
rear axle allowable load: 18000kg
Axle ratio: 4.444
Leaf spring count: 12/12/10
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

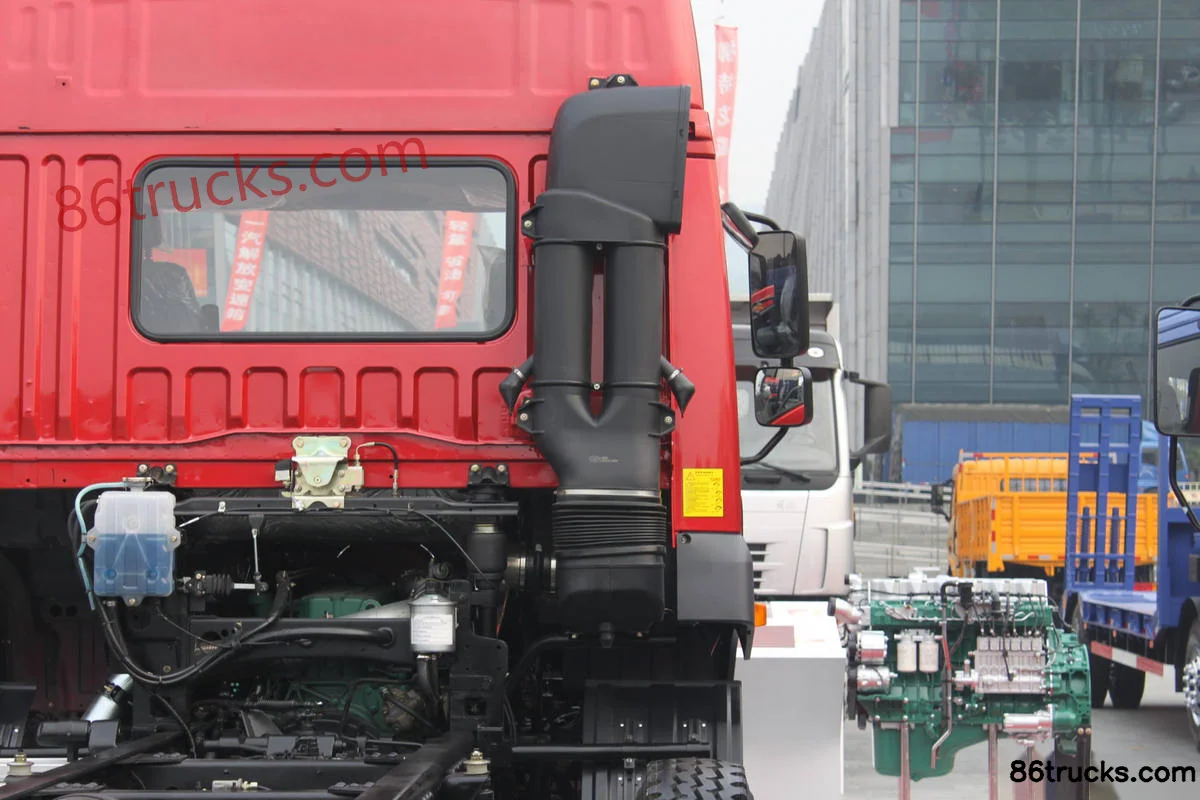

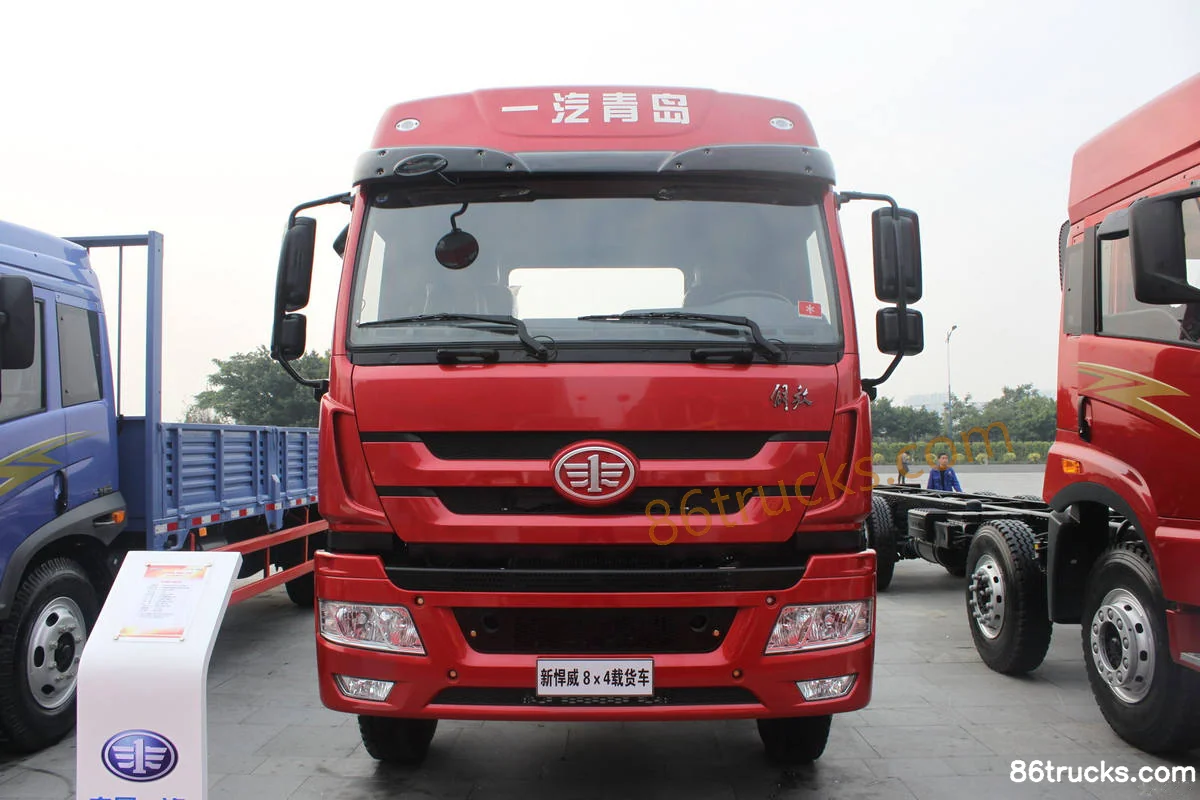

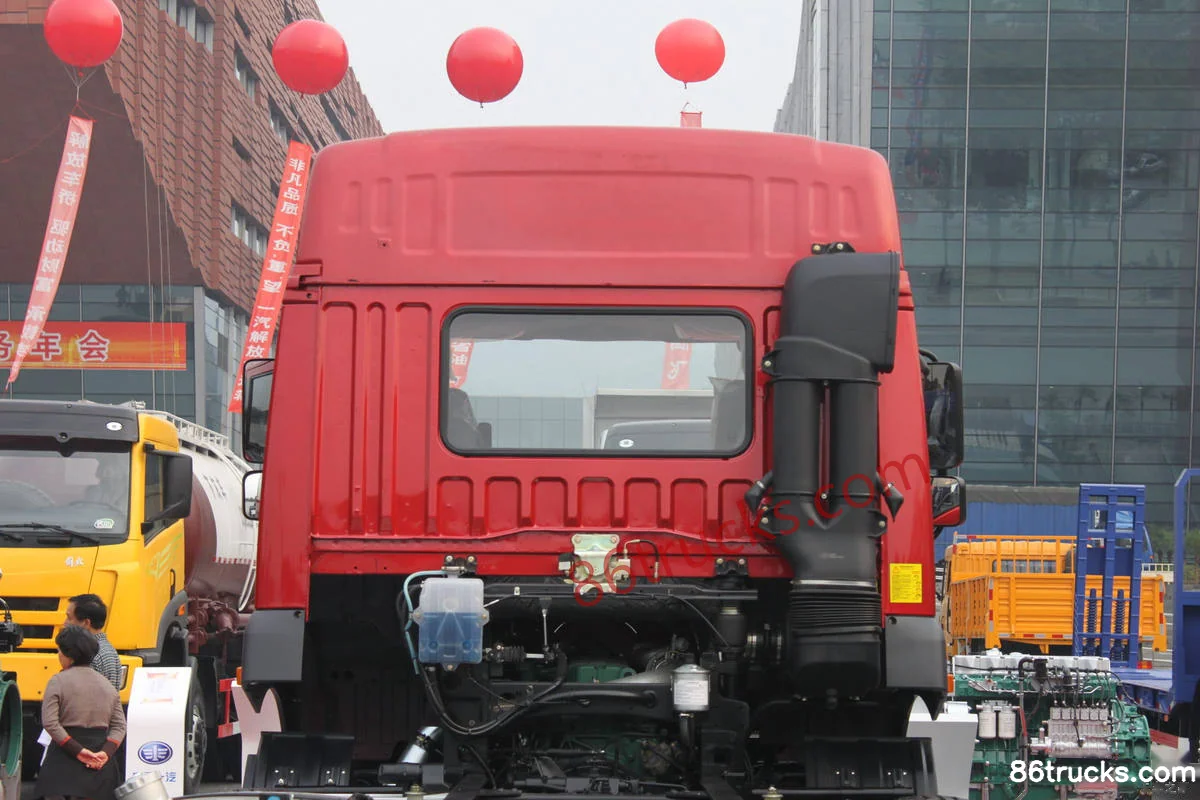

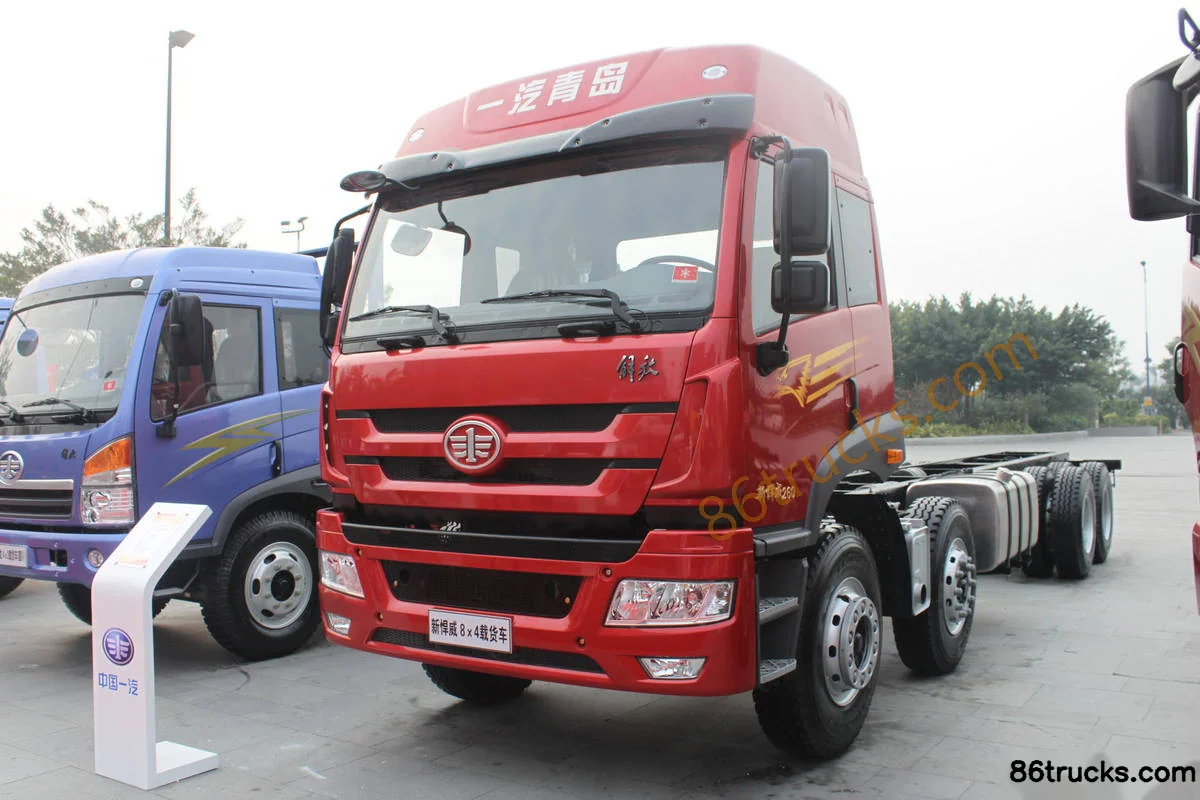

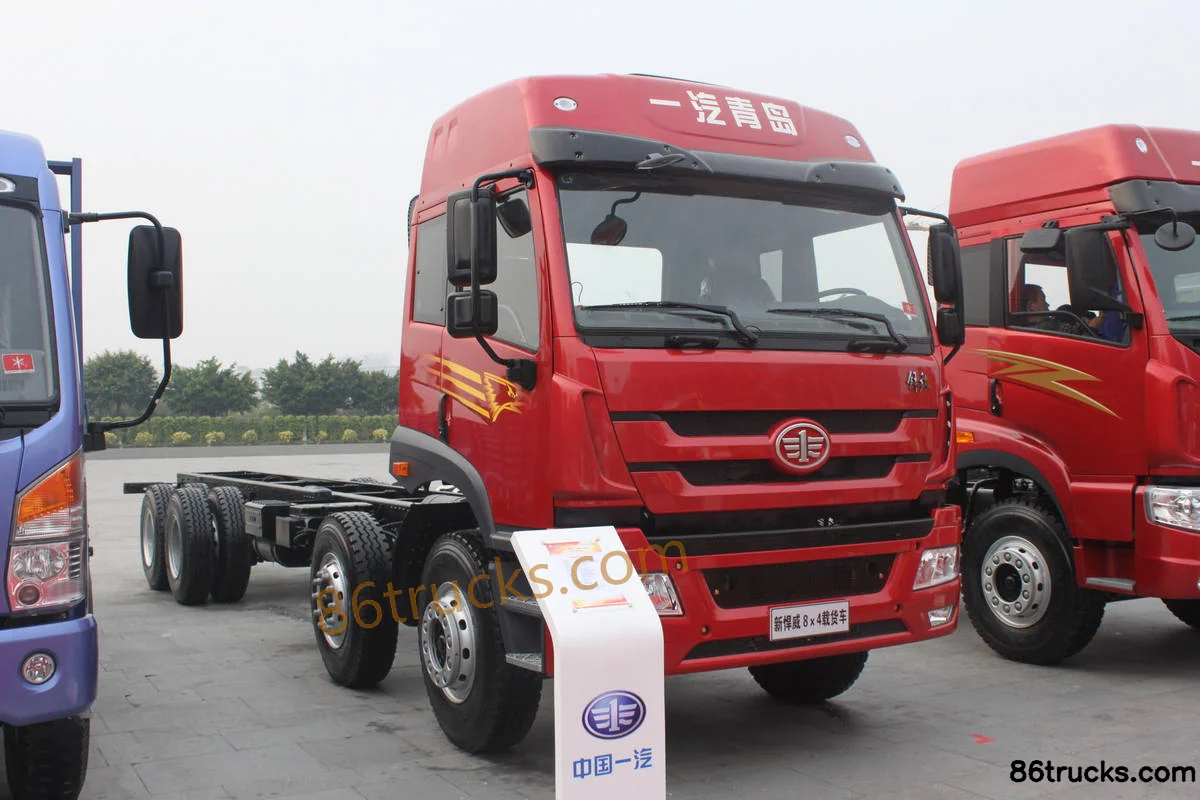

Photos

Exterior3

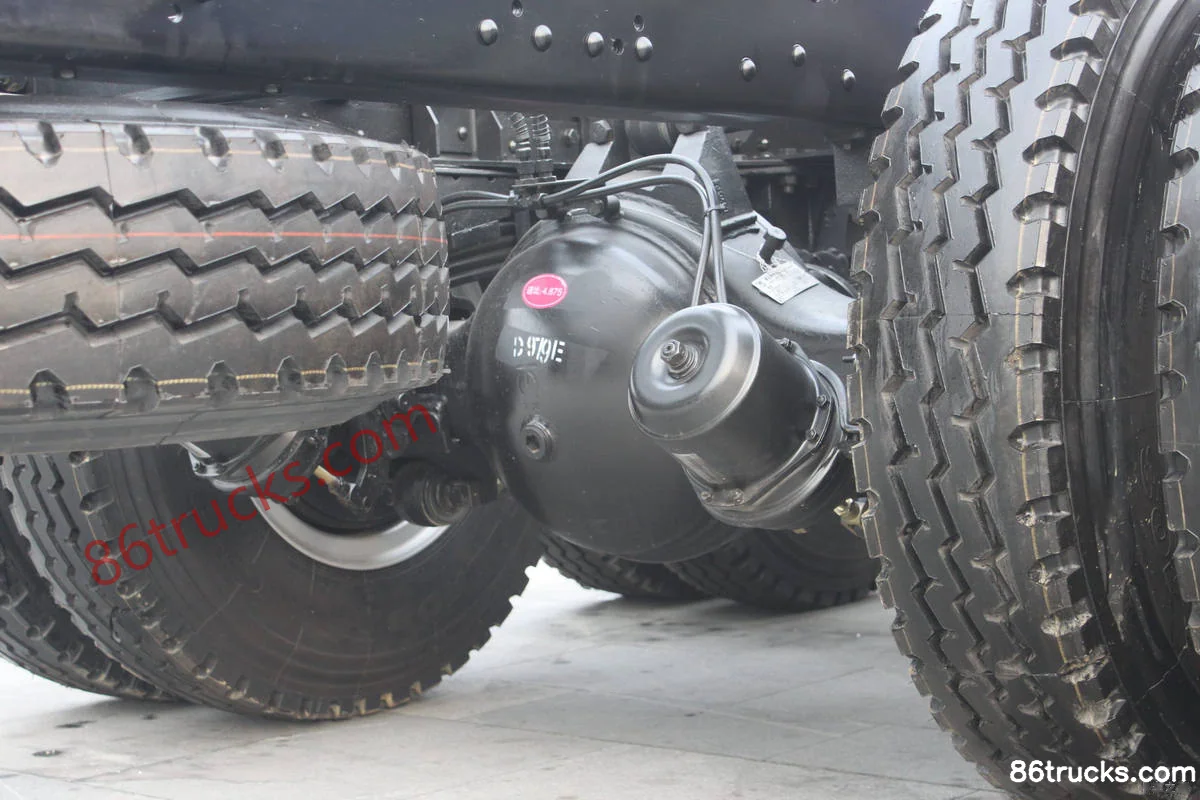

Chassis3

6 photos

FAQ

What emission standard does FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab?

Key specs of FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab: Drive: 8x4; Horsepower: 260 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab suited for?

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab differ from other variants in the same series?

FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab belongs to FAW Jiefang Qingdao New Hanwei J5M Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Hanwei (J5M) Heavy Truck 260 hp 8X4(12 wheels) 9.5m Stake Truck with Day Cab?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
