FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis

Export reference
From $31,722
MSRP ¥22.84M CNY
Horsepower: 220
Emission: China IV
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 9.615ton
seating capacity: 2Personnel
Rated payload: 15.19ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 2Personnel volume and 15.19t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 220 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P1K2L7T3E4A80
Type: Chassis
Drive type: 6X2
Wheelbase: 1900+5650mm
Box length class: 9.5m
engine: XichaiCA6DF4-22E4
transmission: Fast Gear7DS100
Rear Axle Ratio: 4.444
Cab length: 11.973m
Cab width: 2.49m
Cab height: 3.39m
Front track width: 1964/1964mm
rear track: 1847mm
Curb Weight: 9.615ton
Rated payload: 15.19ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle:
market segment: Building materials, agricultural products
Front/rear suspension: 1.375/3.048m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DF4-22E4
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.74L
Emission standard: China IV
Max output power: 165kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear7DS100
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6750/6750kg
rear axle description: 435 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 3/3/10+9
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

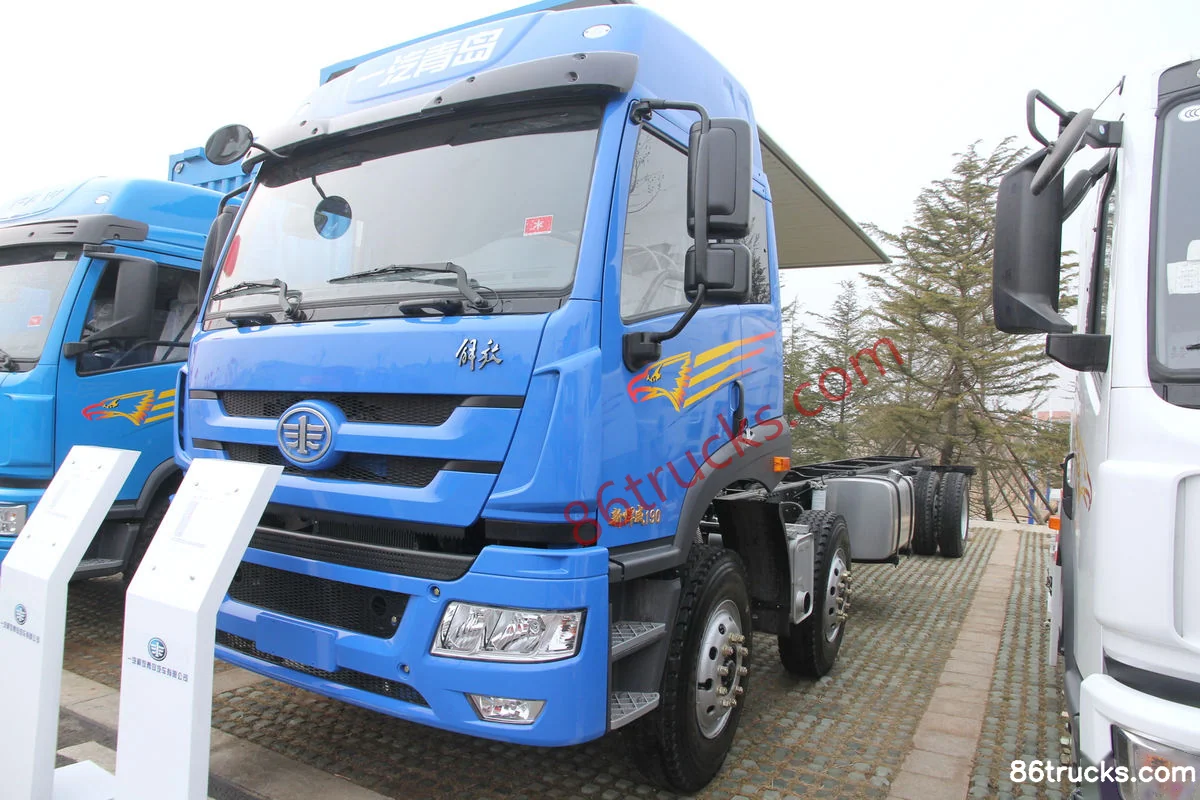

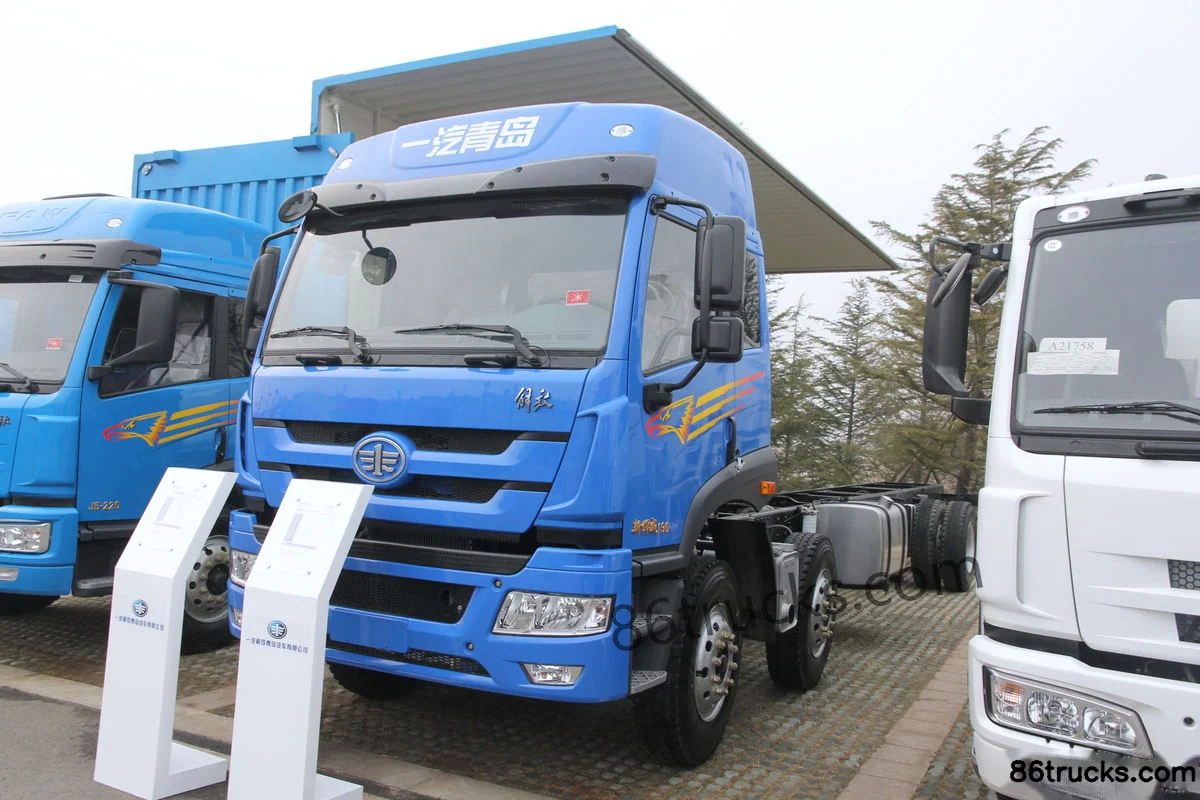

Exterior2

Chassis3

5 photos

FAQ

What is the export price of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis, and what does it include?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis export reference is about From $31,722; MSRP is ¥22.84M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis?

Key specs of FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis: Drive: 6x2; Horsepower: 220 hp; Emission: China IV; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis suited for?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis differ from other variants in the same series?

FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis belongs to FAW Jiefang Qingdao New Hanwei J5M Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Hanwei J5M Heavy Truck 220 hp 6X2(8 wheels) 9.5m Day Cab Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
