FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis)

Export reference
MSRP N/A
Horsepower: 160
Emission: China III / Euro III
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 5.89ton
seating capacity: 3Personnel
Rated payload: 9.805ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) is a Heavy truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.805t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5167XXYP1K2L2EA80
Type: Chassis
Drive type: 4X2
Wheelbase: 5270mm
Box length class: 6.8m
engine: XichaiCA6DF3-16E3F
transmission: Fast Gear8JS75E
Rear Axle Ratio: 5.143
Cab length: 9m
Cab width: 2.499m
Cab height: 3.79m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 5.89ton
Rated payload: 9.805ton
GVWR: 15.99ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Heavy truck
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Optional Xichai CA6DF3-18E3U
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DF3-16E3F
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.12L
Emission standard: China III / Euro III
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 570N·m
Max torque speed: 1300-1500rpm
Rated speed: 2300rpm
Engine Type: 6-cylinder inline, direct injection, turbocharged intercooled, electronic common rail
Transmission Parameters
Transmission Model: Fast Gear8JS75E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5990kg
rear axle description: Upgraded 435 stamped-welded axle
rear axle allowable load: 10000kg
Axle ratio: 5.143
Leaf spring count: 7/10+3,10/12+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

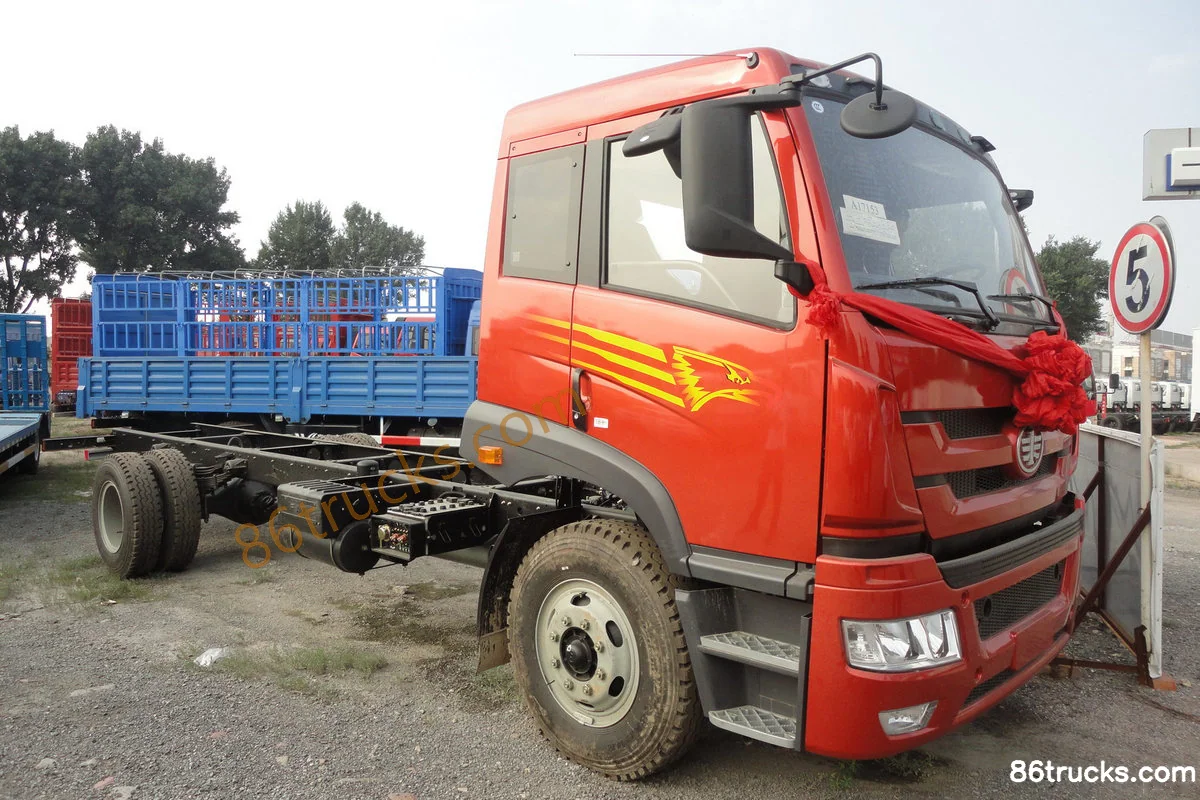

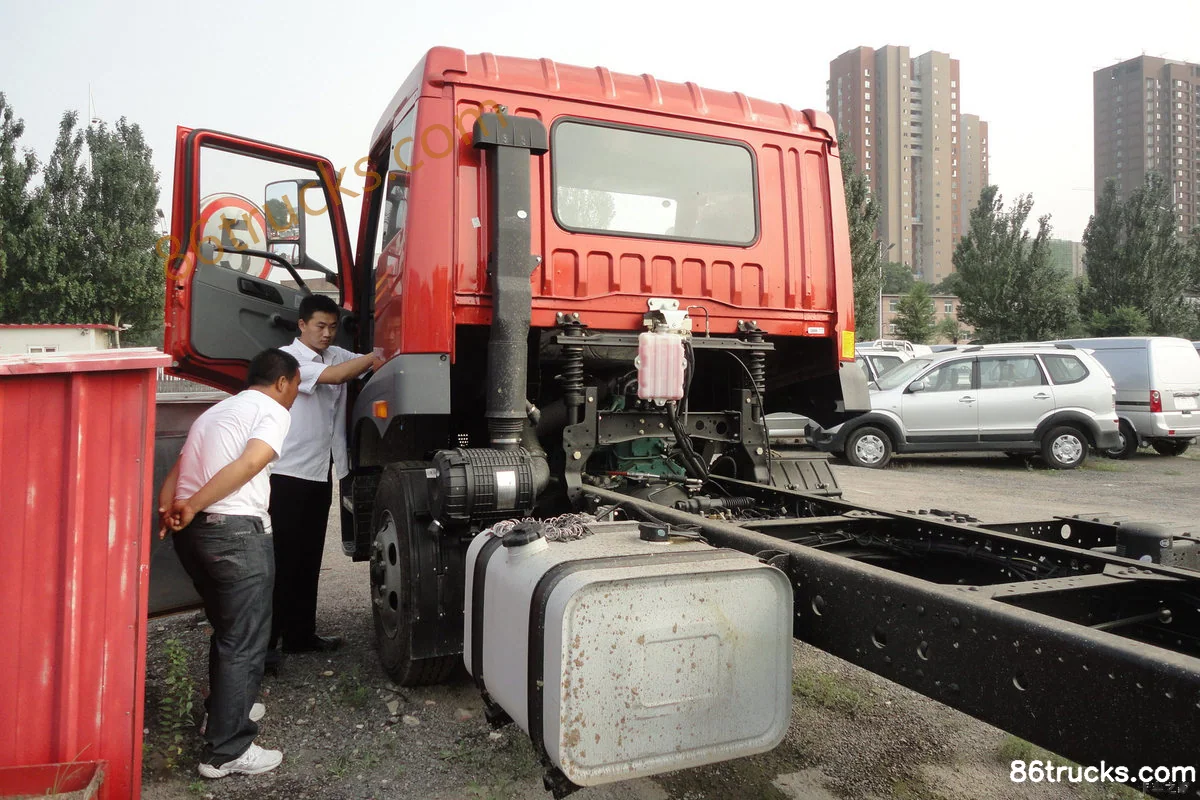

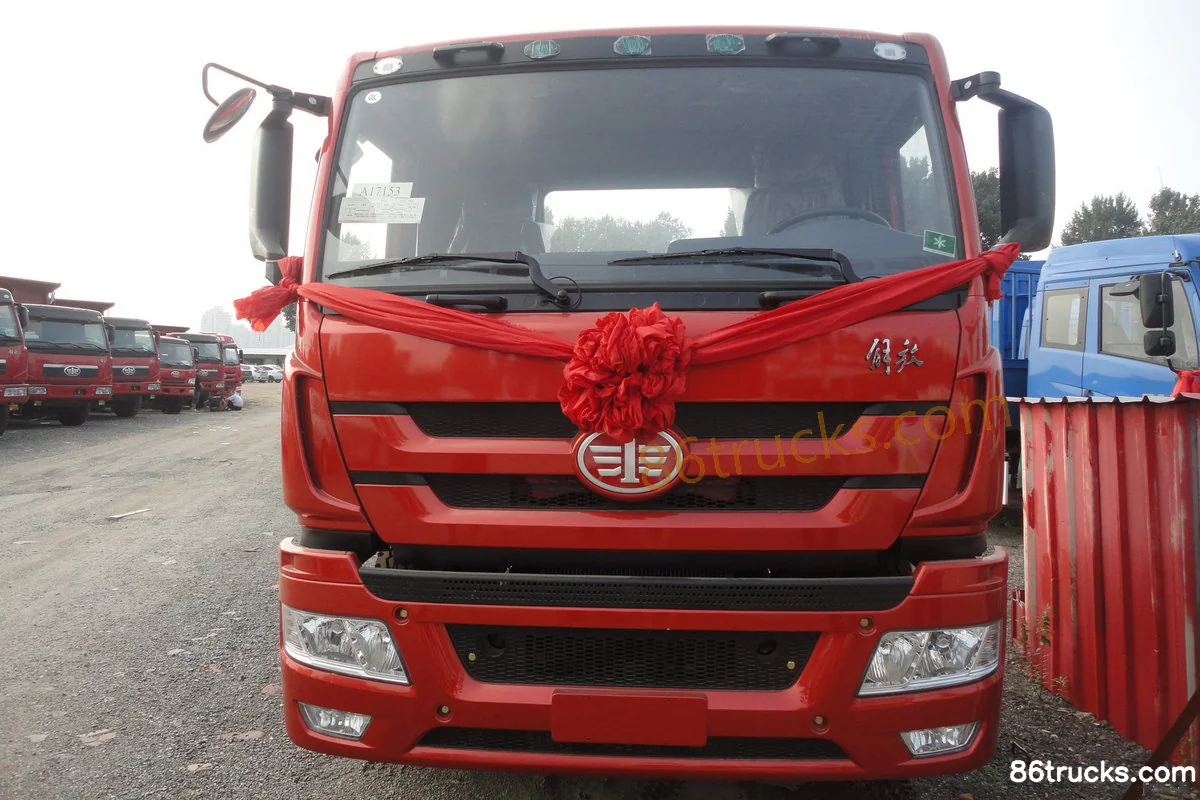

Photos

Exterior3

3 photos

FAQ

What emission standard does FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis)?

Key specs of FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis): Drive: 4x2; Horsepower: 160 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) suited for?

FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) differ from other variants in the same series?

FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis) belongs to FAW Jiefang Qingdao New Hanwei J5M Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Hanwei (J5M) Medium Truck 160 hp 4X2(6 wheels) 6.75m Grain Van Cargo Truck (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
