Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline)

Export reference
MSRP N/A
Horsepower: 103
Emission: China IV
Fuel: Gasoline-CNG Dual Fuel
Engine: Foton Eco 2.2L
Curb Weight:: 2.01ton
Wheelbase:: 2800mm
seating capacity: 2Personnel
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline) is a Light Truck featuring 3.655m cargo length, Van body cargo body, 2Personnel volume and 0.995t payload. On the powertrain side, it comes with a Foton Eco 2.2L engine, 103 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 103 Gasoline-CNG Dual Fuel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5031XXY-CB
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.7m
engine: FotonBJ491EQ4
transmission: 5-speed transmission
Cab length: 5.445m
Cab width: 1.96m
Cab height: 2.75m
Front track width: 1530mm
rear track: 1425mm
Curb Weight: 2.01ton
Rated payload: 0.995ton
GVWR: 3.135ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Front/rear suspension: 1.105/1.43m
Version: 2012 model
Energy Type: Gasoline-CNG Dual Fuel
Engine parameters
Engine Brand: Foton
Engine Model: FotonBJ491EQ4
Engine info: Foton Eco 2.2L
Number of cylinders: 4cylinder
fuel type: Gasoline-CNG Dual Fuel
Cylinder arrangement: Inline
Displacement: 2.237L
Emission standard: China IV
Max output power: 76kW
Max hp: 103Horsepower
Max torque: 193N·m
Max torque speed: 2000-2600rpm
Rated speed: 4600rpm
Engine Type: Inline 4-cylinder, dual oxygen sensors, high-efficiency three-way catalytic converter closed-loop control
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.655m
Cargo box width: 1.81m
Cargo box height: 1.8m
*Cargo box interior width: 1.81
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1255kg
rear axle description: 1880
rear axle allowable load: 1880kg
Leaf spring count: 7/7+5
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

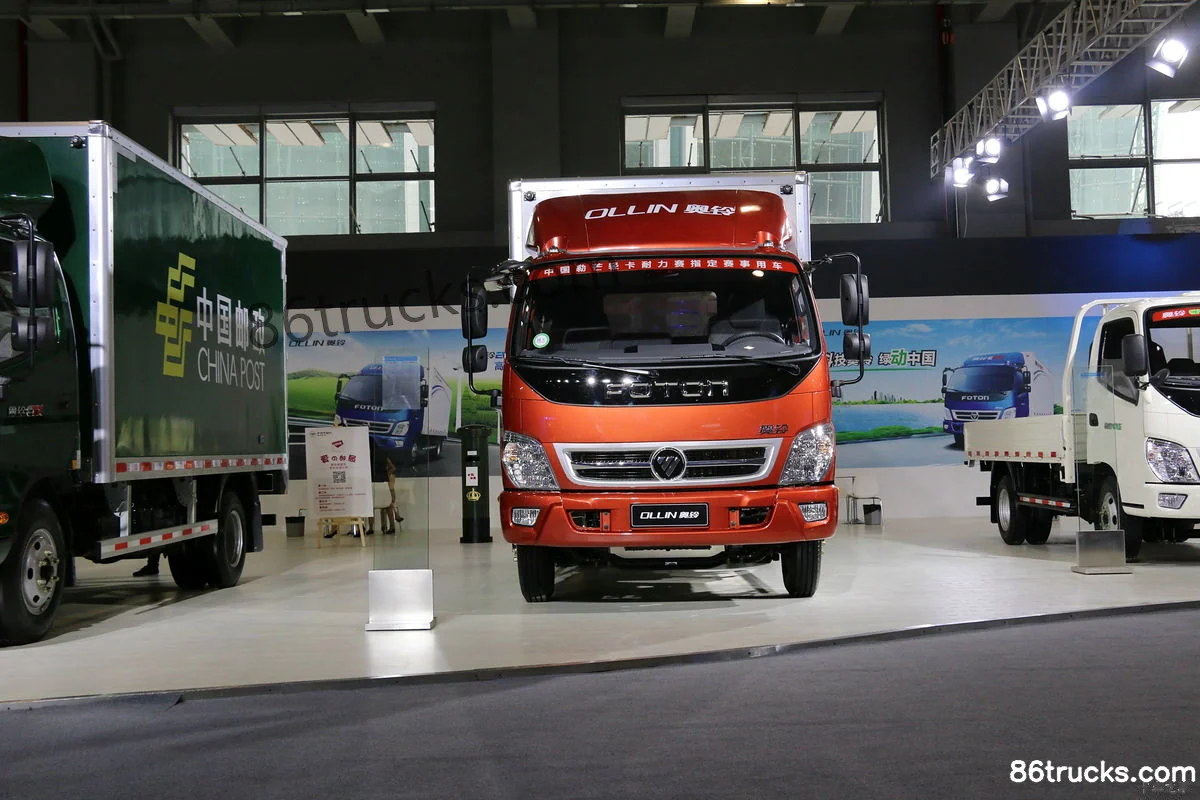

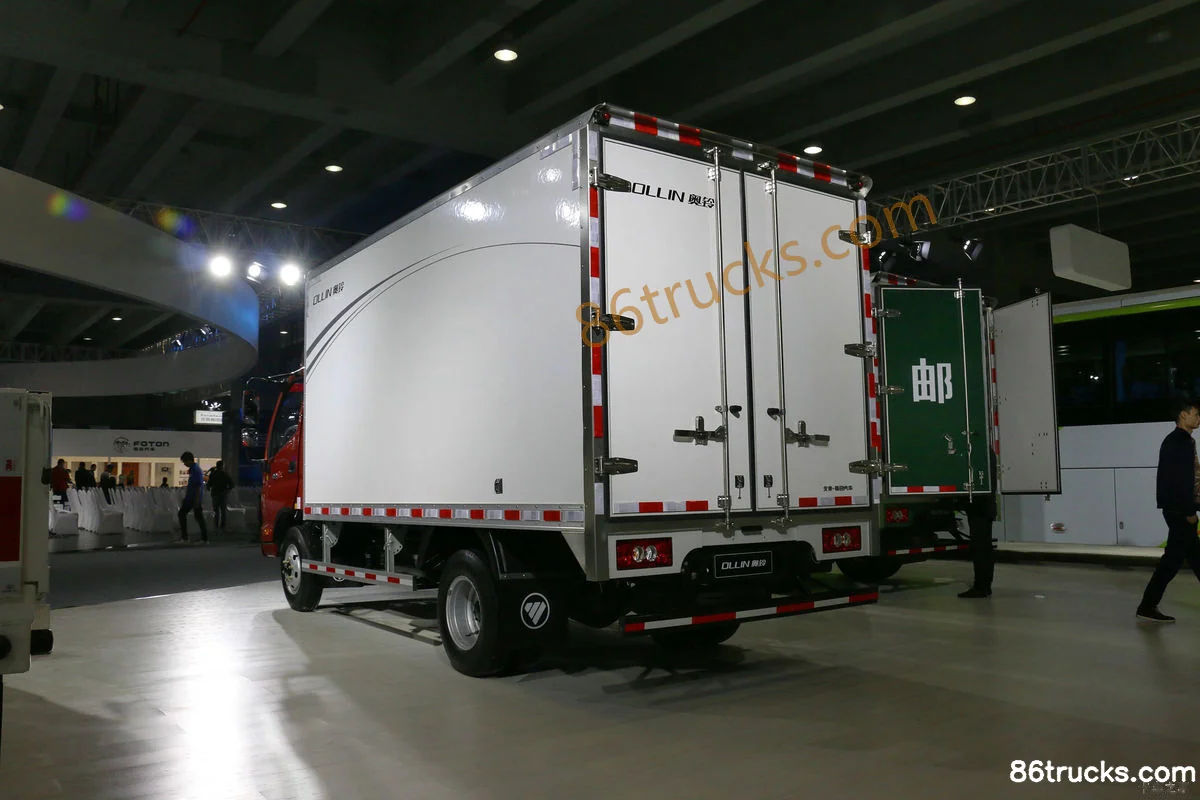

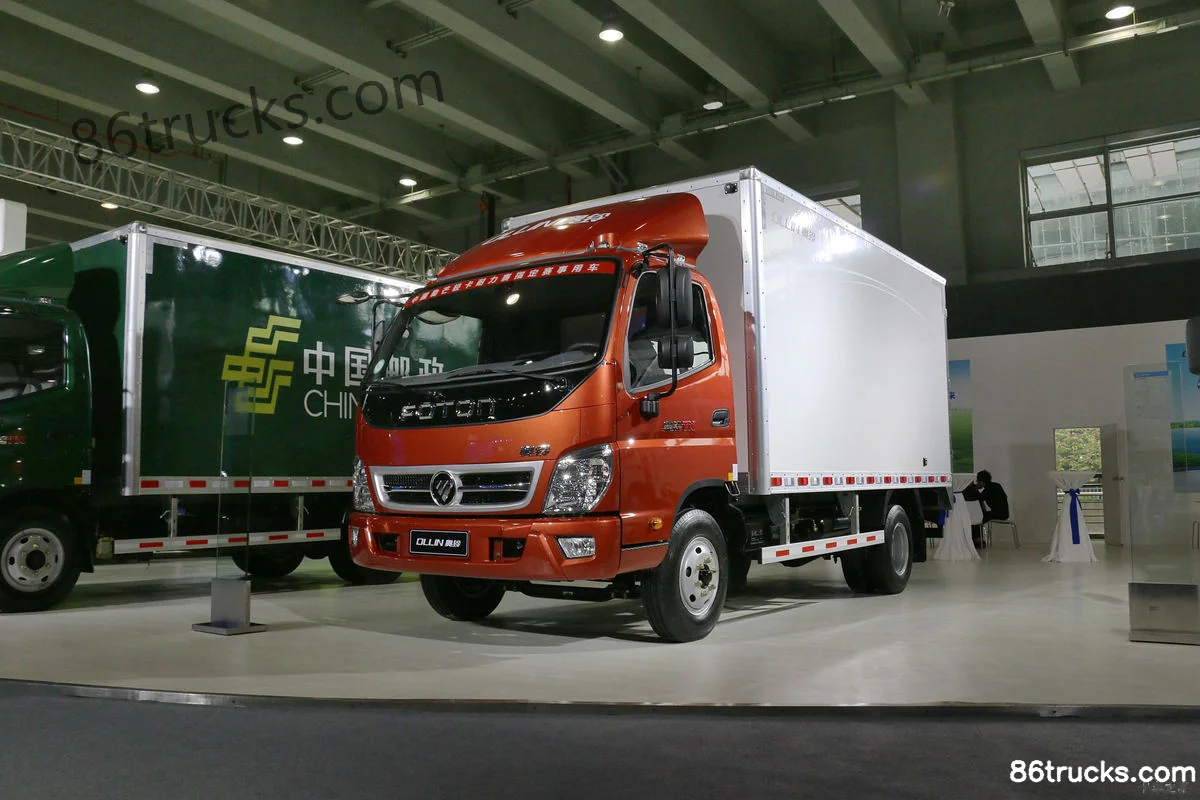

Exterior3

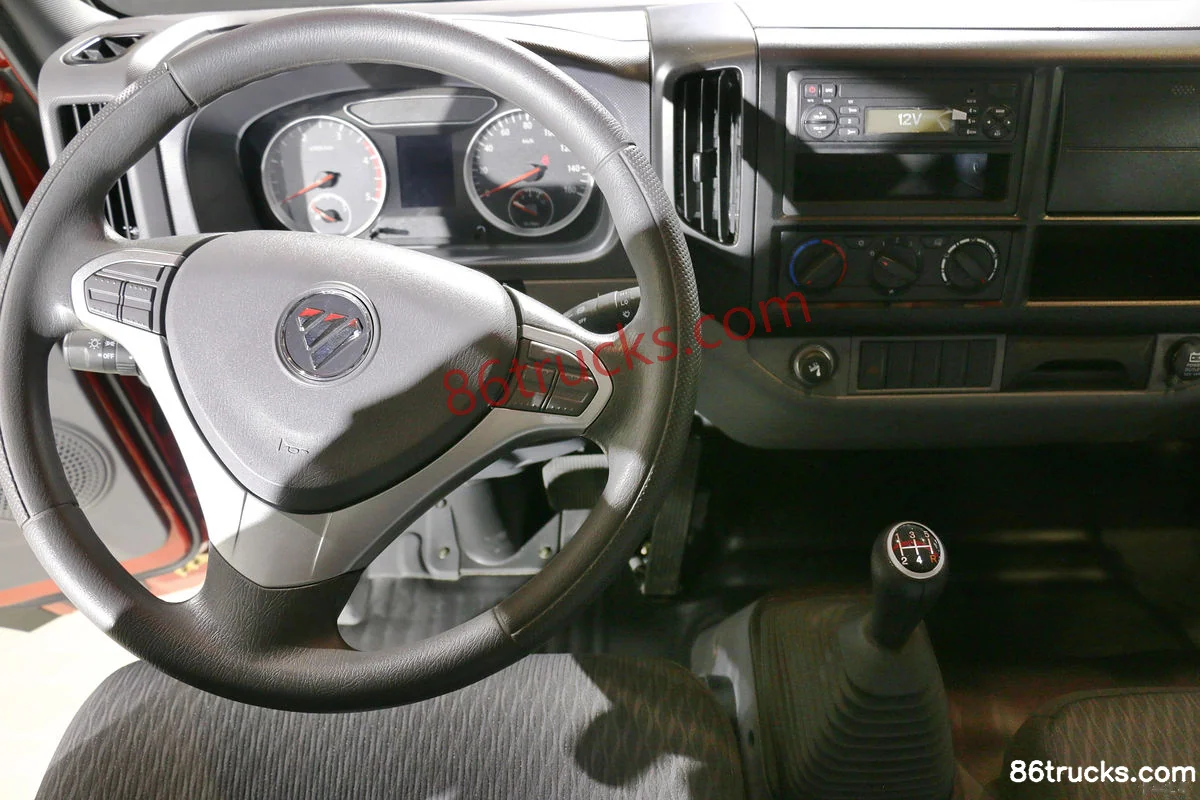

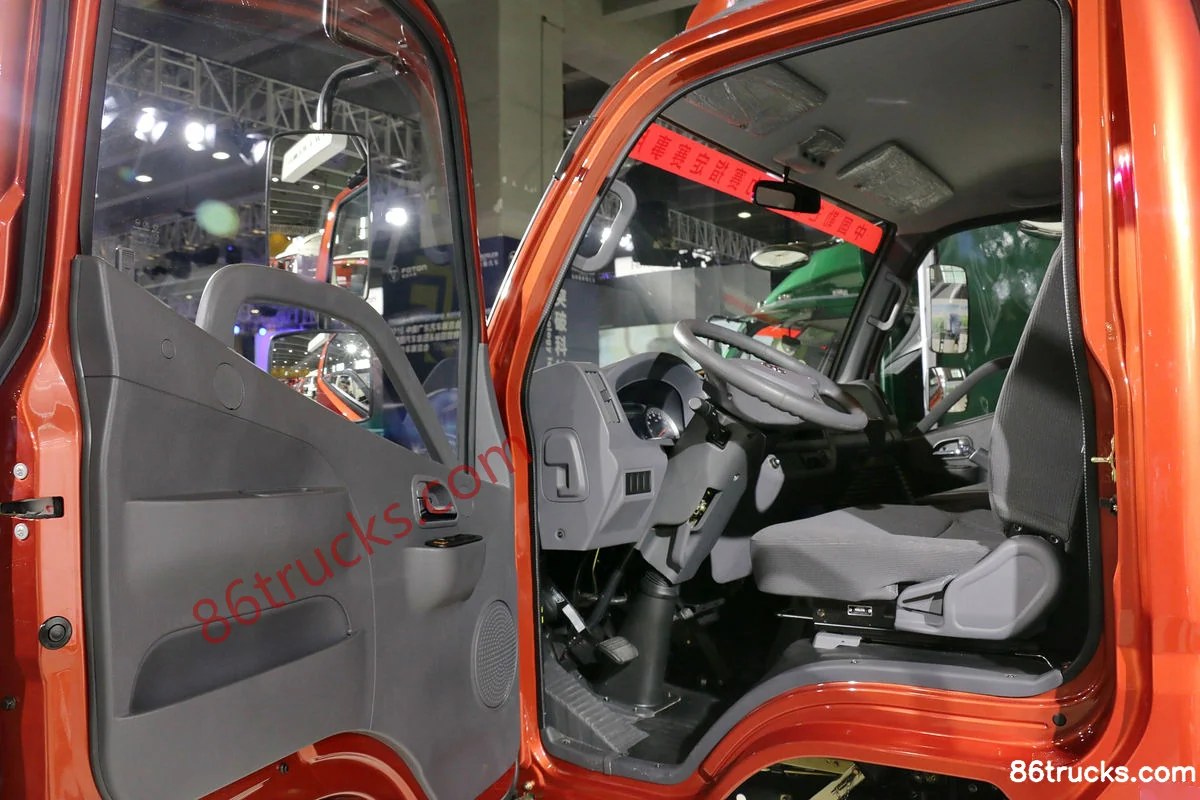

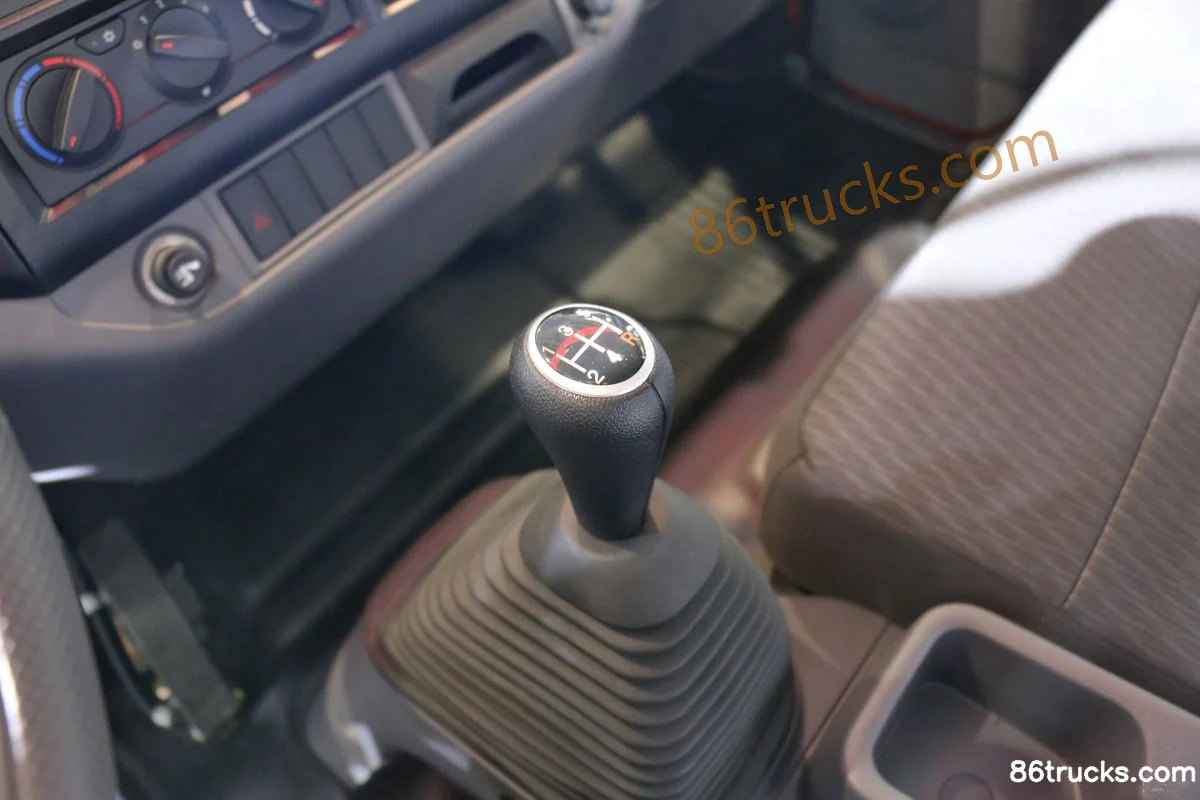

Cab3

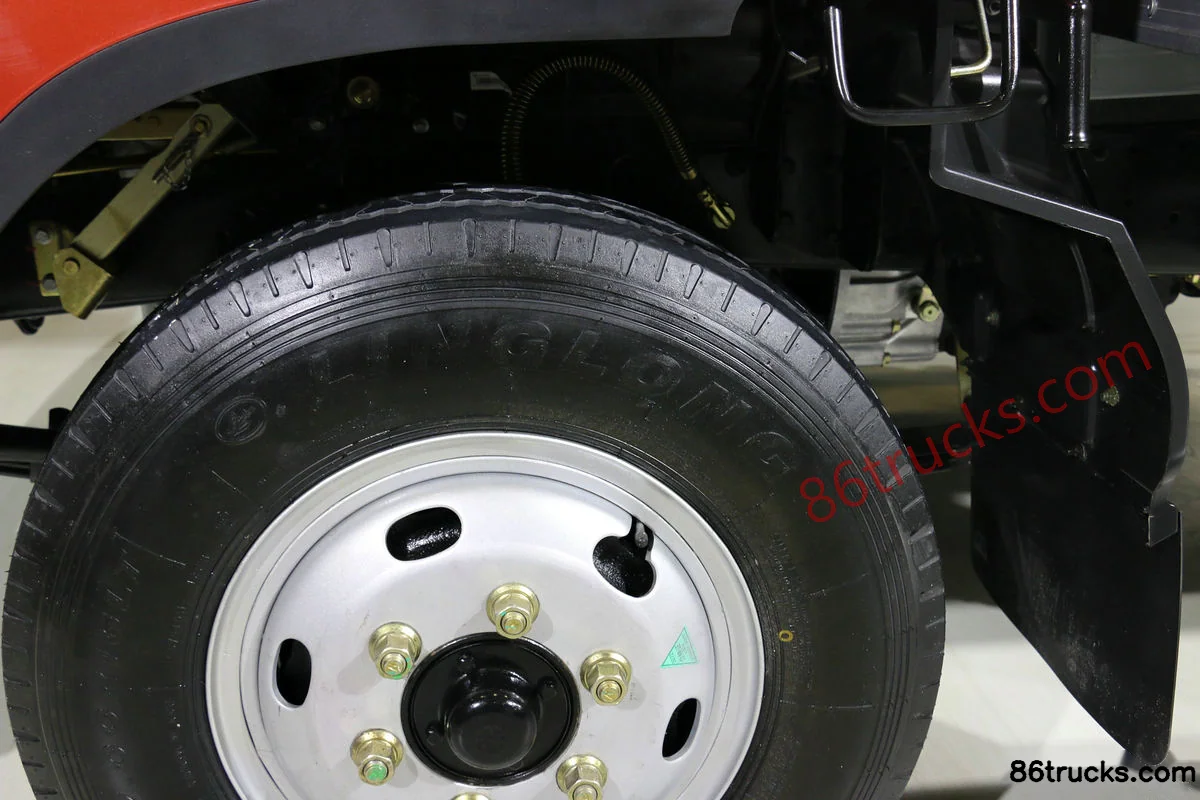

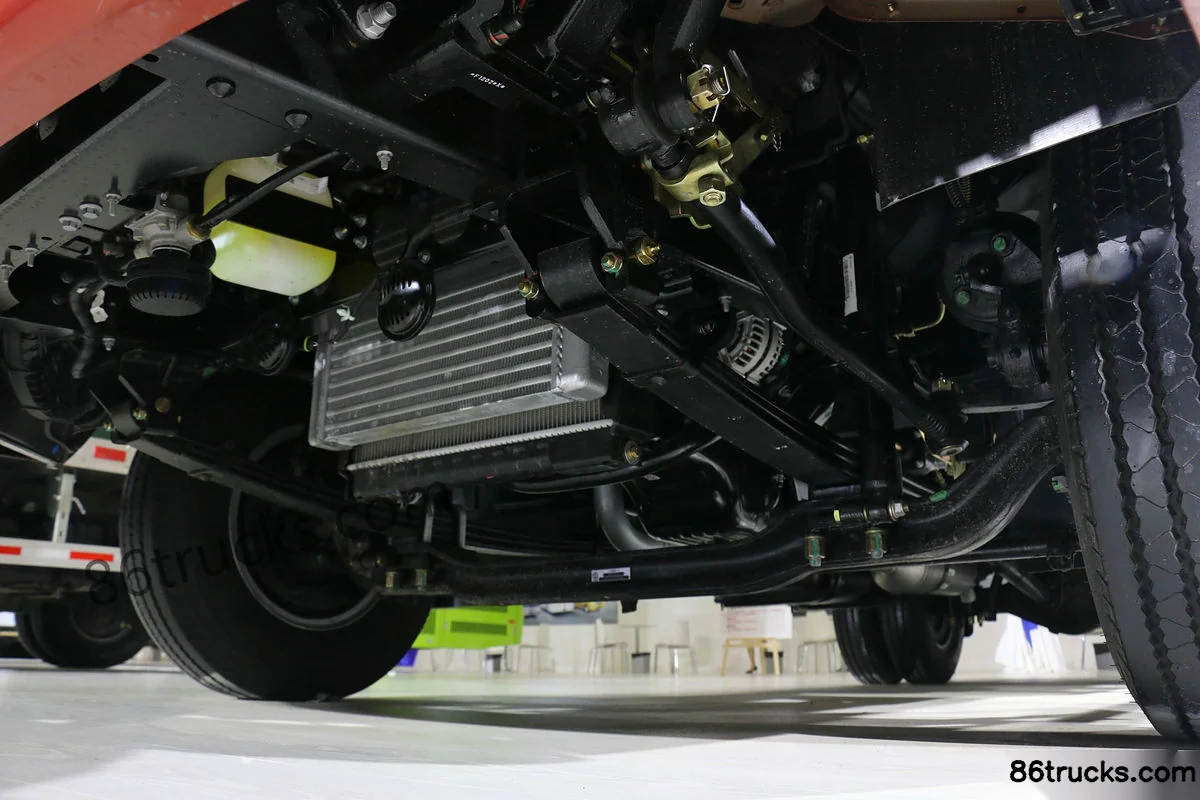

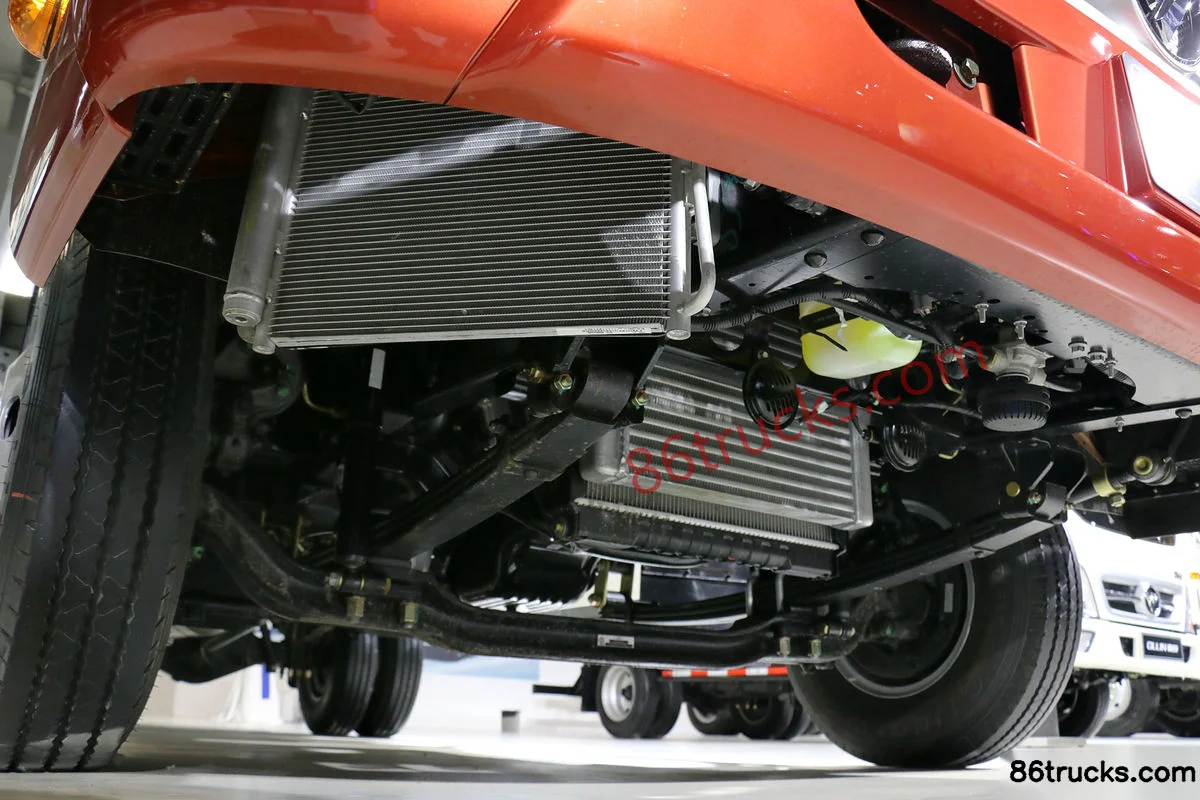

Chassis3

9 photos

FAQ

What emission standard does Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline)?

Key specs of Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline): Drive: 4x2; Horsepower: 103 hp; Emission: China IV; Fuel: Gasoline-CNG Dual Fuel; Engine: Foton Eco 2.2L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline) suited for?

Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline) differ from other variants in the same series?

Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline) belongs to Foton TX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling TX 103hp 4X2(6 wheels) 3.655m Single Row Van Light Truck (CNG/Gasoline)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
