JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck

Export reference
From $29,056
MSRP ¥20.92M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D45
Transmission: Fast Gear
Curb Weight:: 9ton
seating capacity: 3Personnel
Rated payload: 8.805ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck is a Heavy-duty cargo trucks featuring 9.61m cargo length, Van body cargo body, 3Personnel volume and 8.805t payload. Its segment focus covers Express dedicated, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D45 engine, 220 hp, 4X2 (6 wheels) drive and China V emissions.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5181XXYP3K2A70S5V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7050mm
Box length class: 9.6m
engine: Yunnei PowerD45TCIE1
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.875
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 1920mm
rear track: 1810mm
Curb Weight: 9ton
Rated payload: 8.805ton
GVWR: 18ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 23°
departure angle:
market segment: Express dedicated
Remarks: Rear axle ratio optional 5.125
Front/rear suspension: 1.545/3.405m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD45TCIE1
Engine info: Yunnei Dewei D45
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.46L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1200-2800rpm
Rated speed: 2400rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.61m
Cargo box width: 2.48m
Cargo box height: 2.69m
*Cargo box interior width: 2.4800000190735
Cab parameters
Cab: A5L Semi-High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500kg
Frame Dimensions: 245×75×7mm
rear axle description: 9T
rear axle allowable load: 11500kg
Axle ratio: 4.875
Suspension (front/rear): 3/9+7
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:

Photos

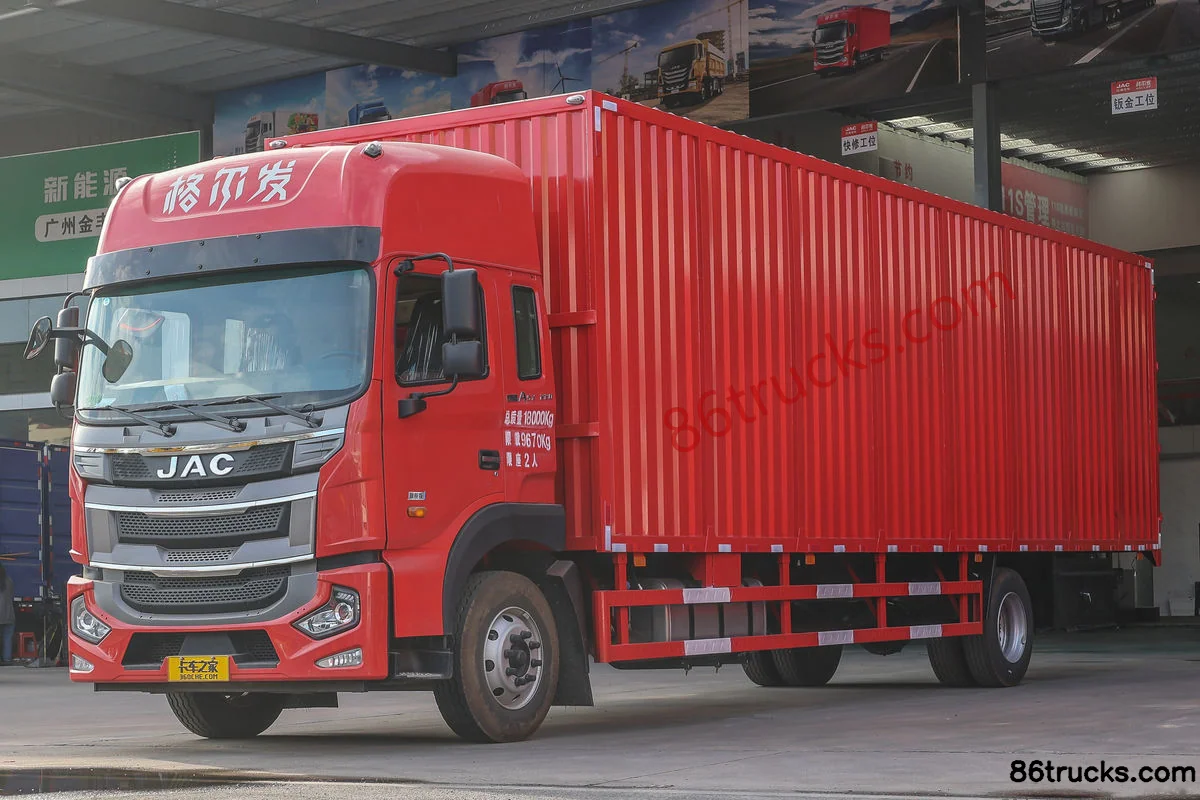

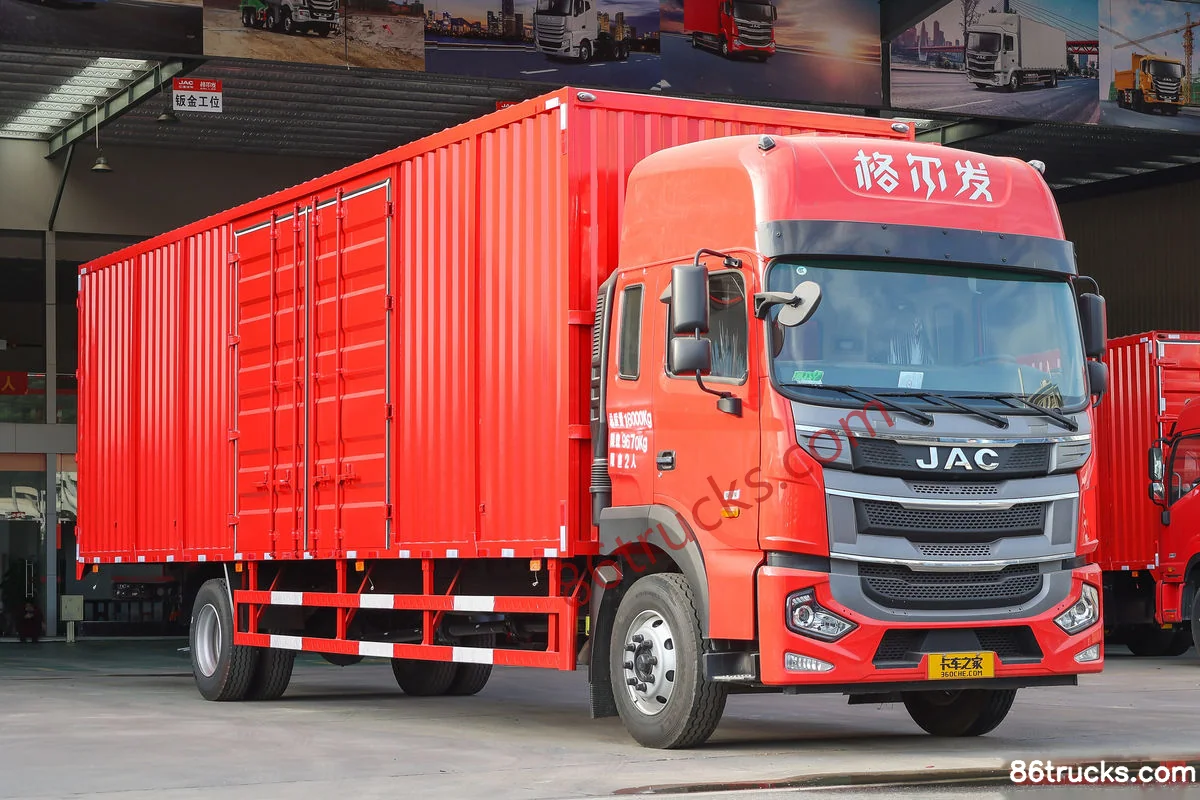

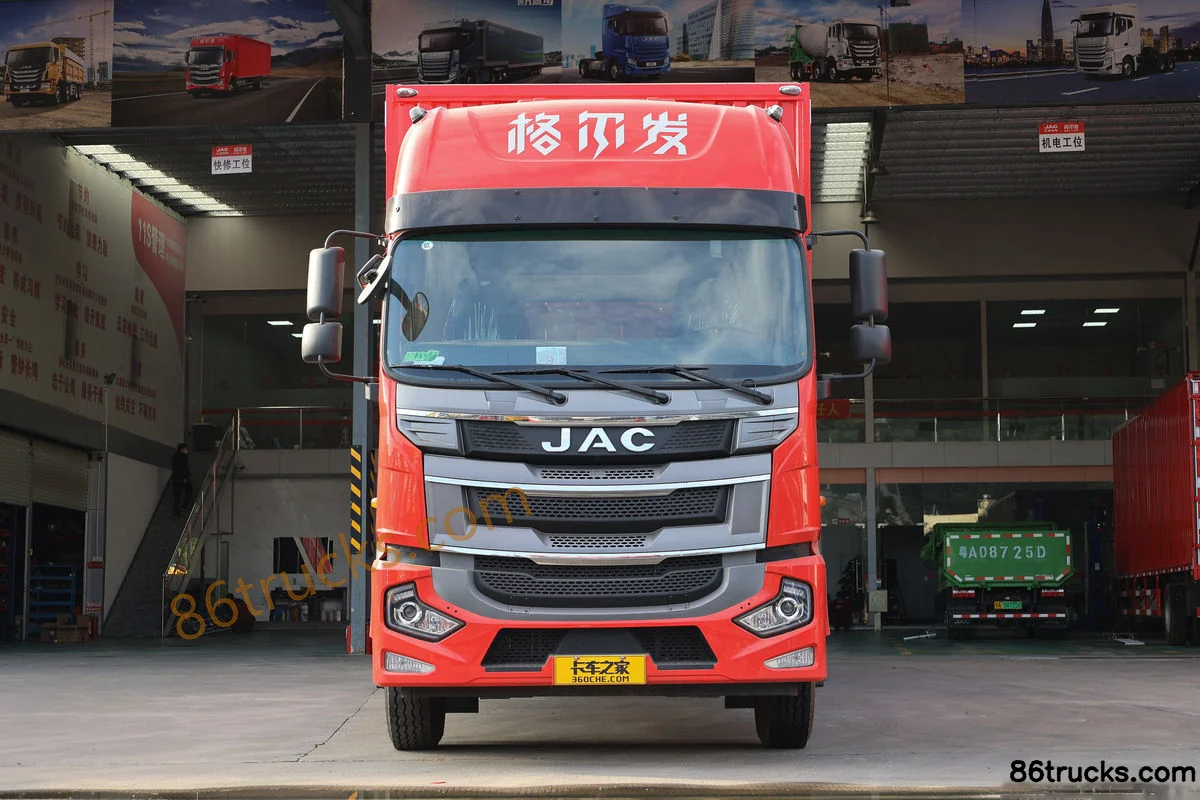

Exterior3

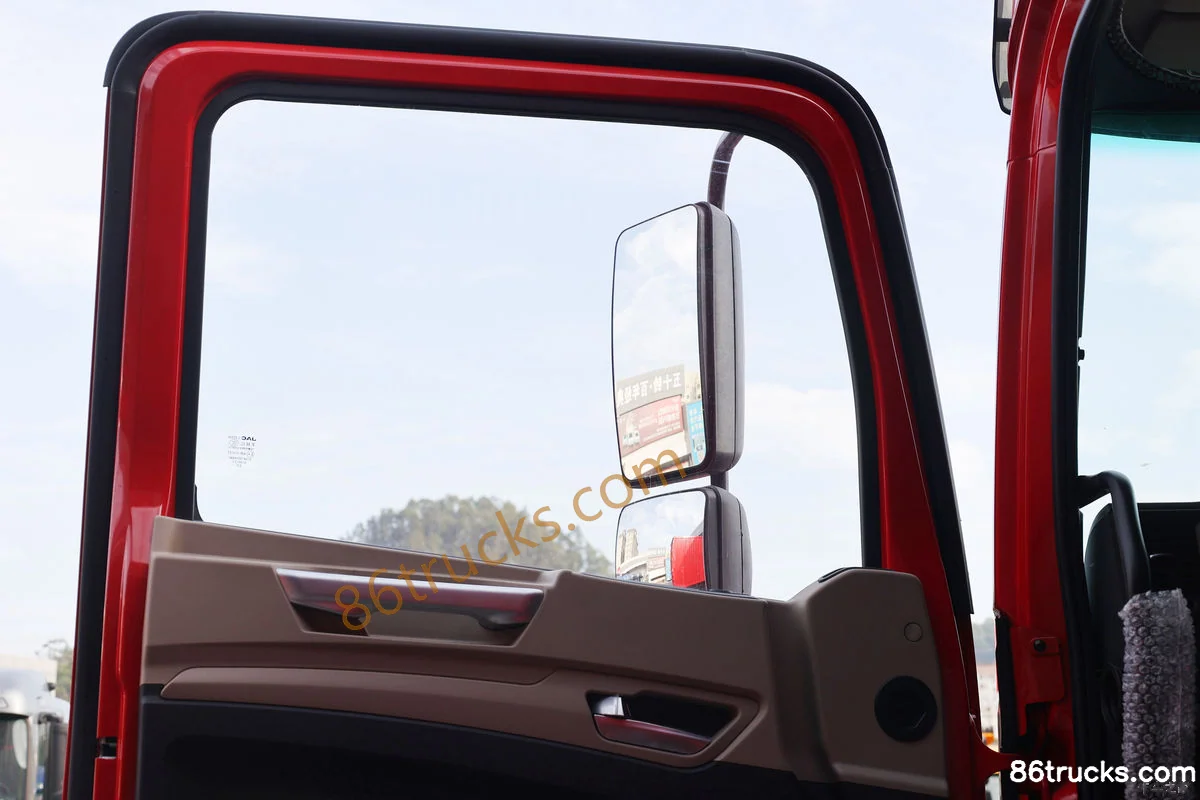

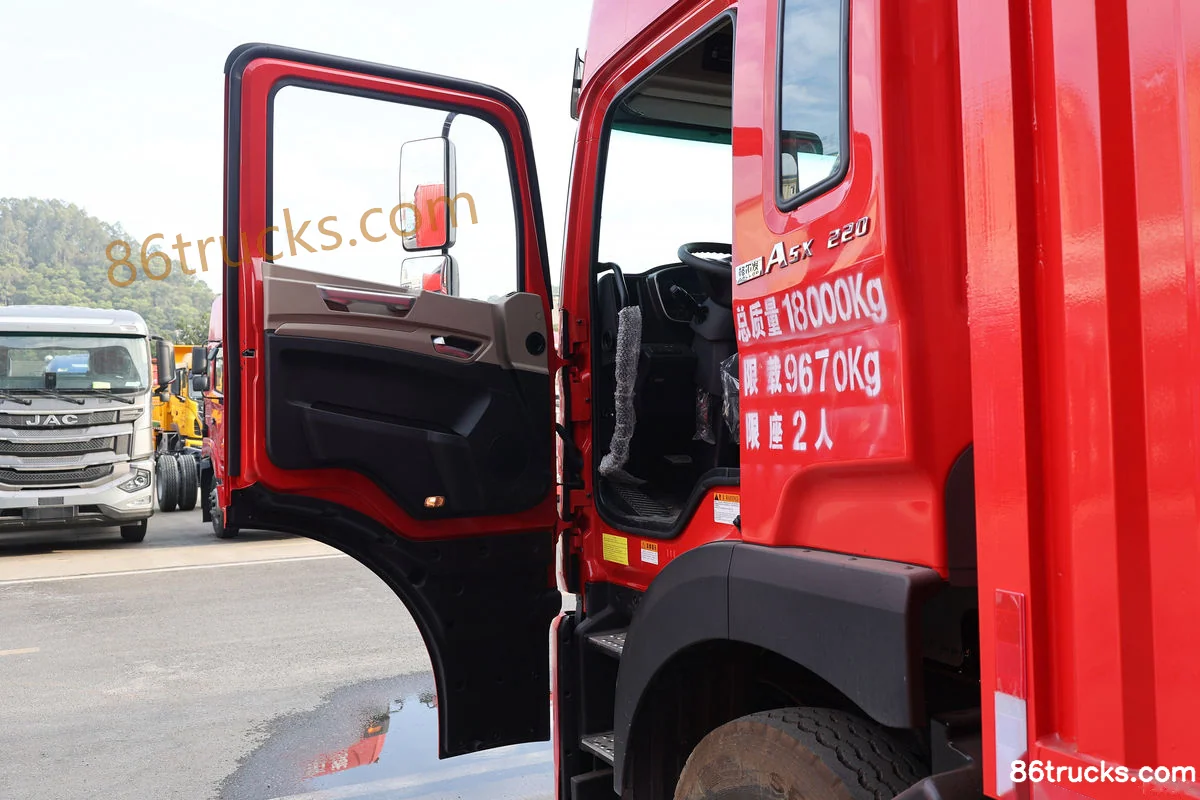

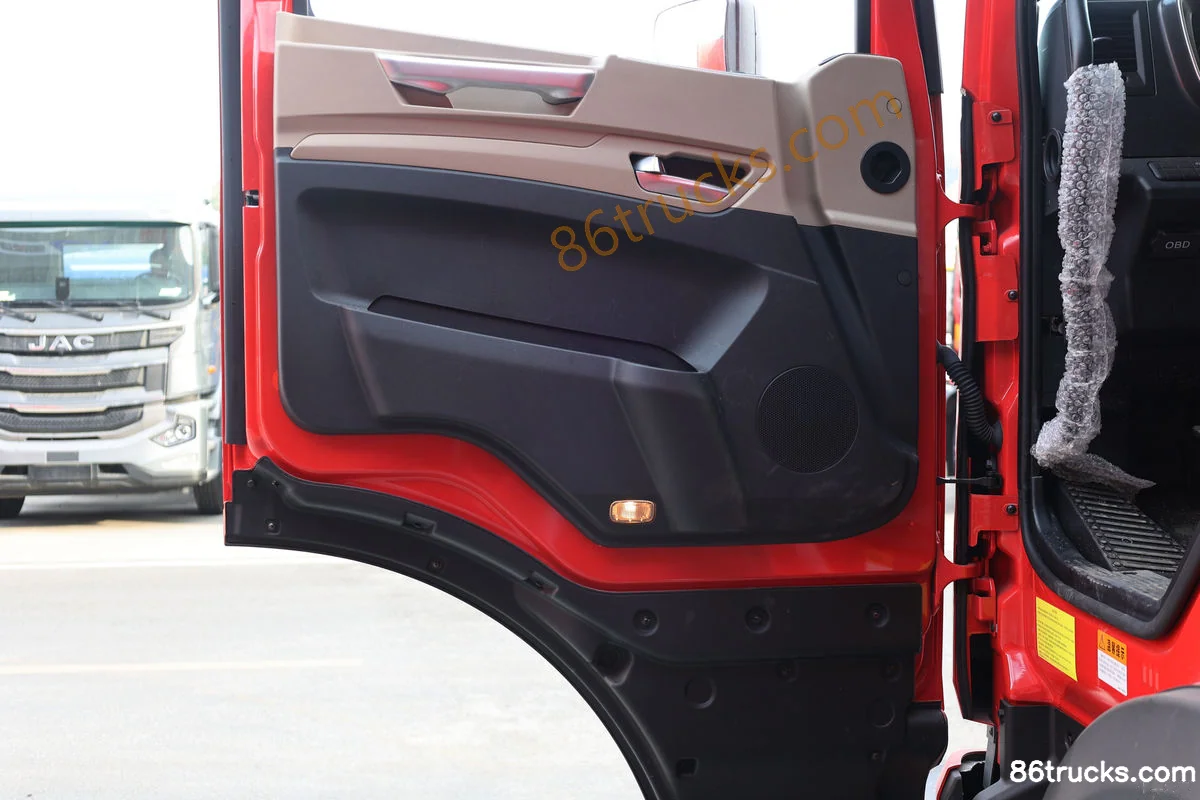

Cab3

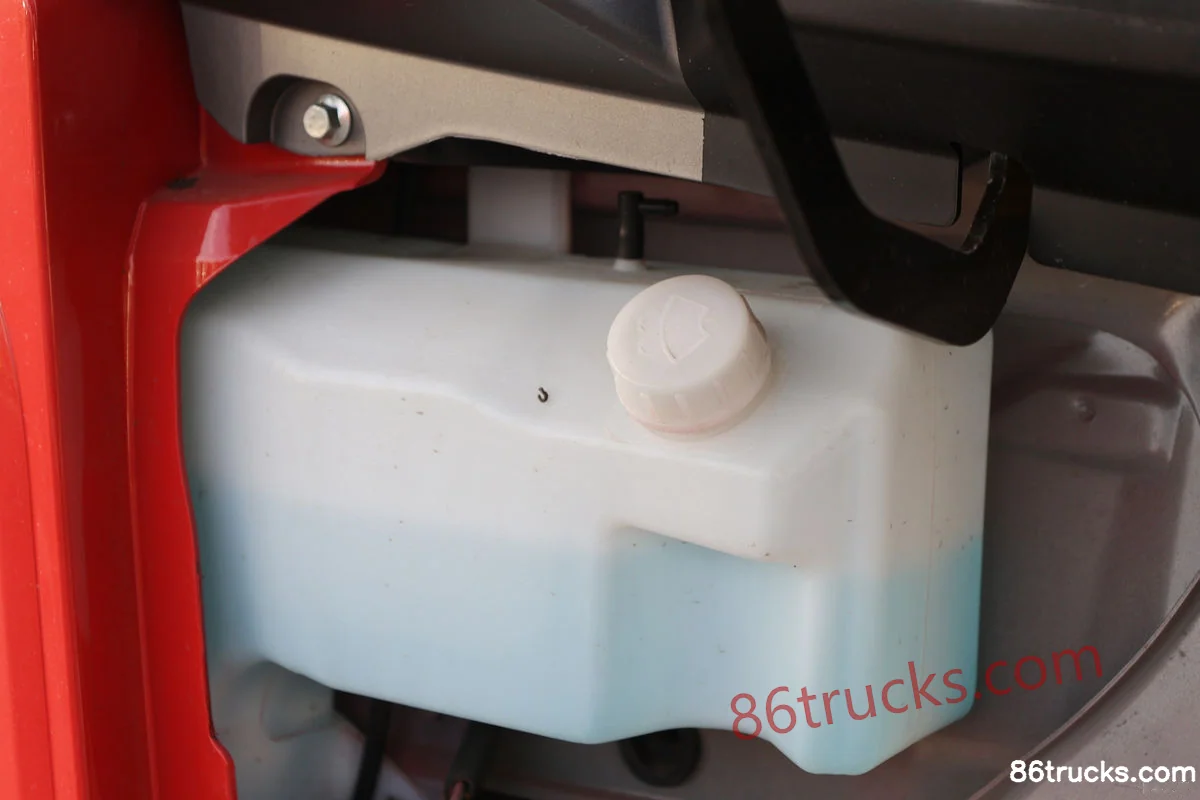

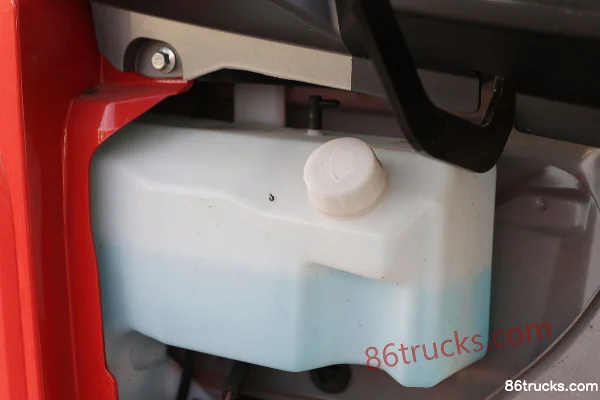

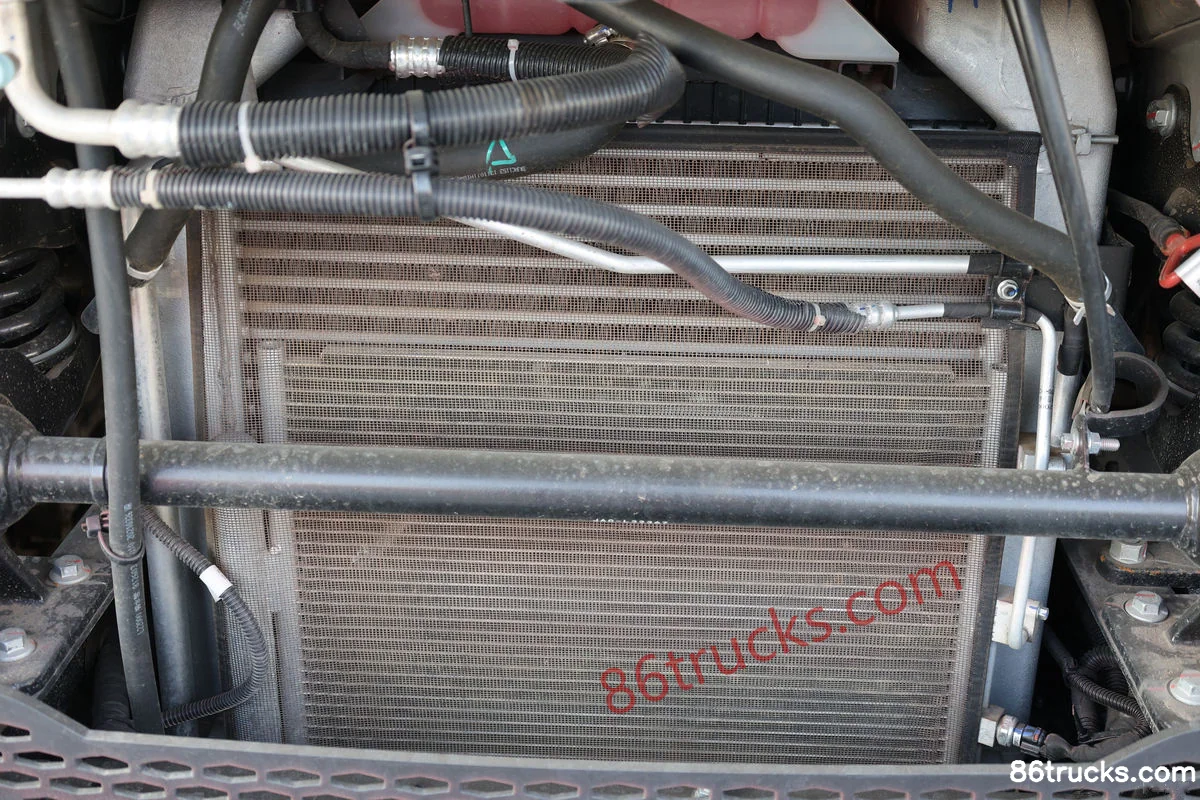

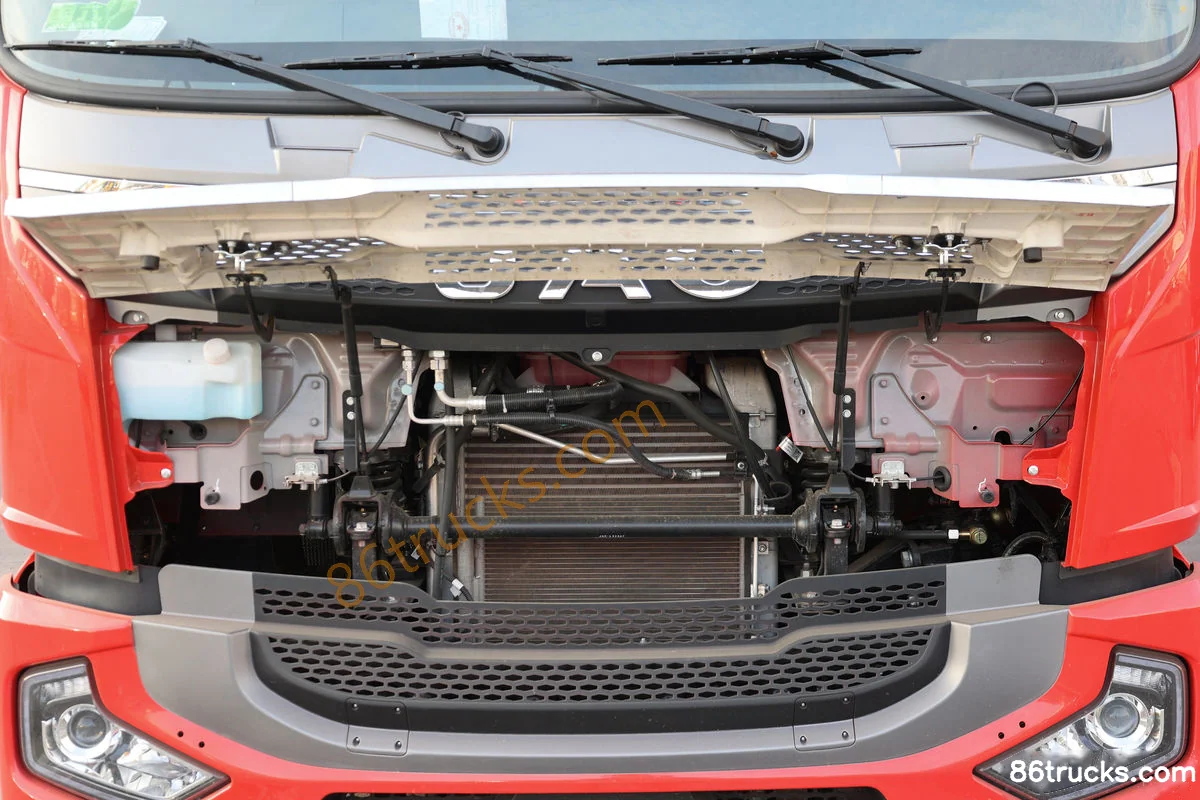

Chassis3

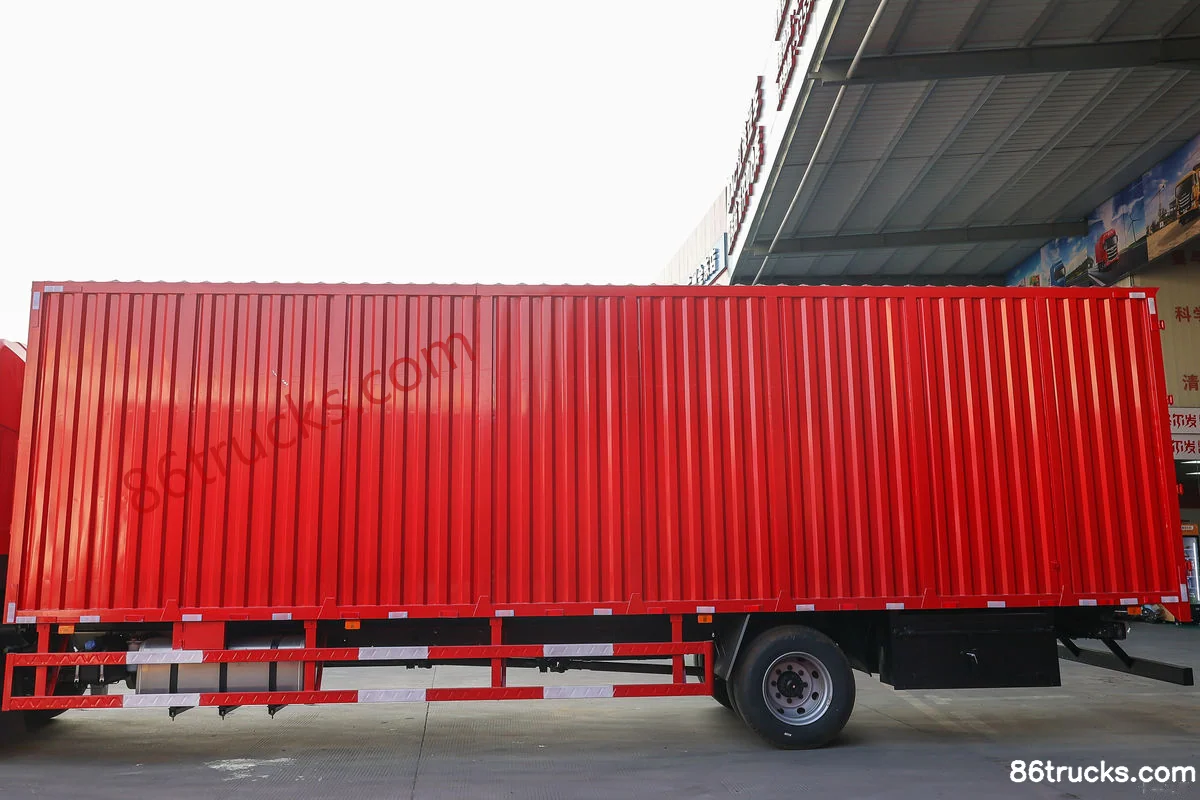

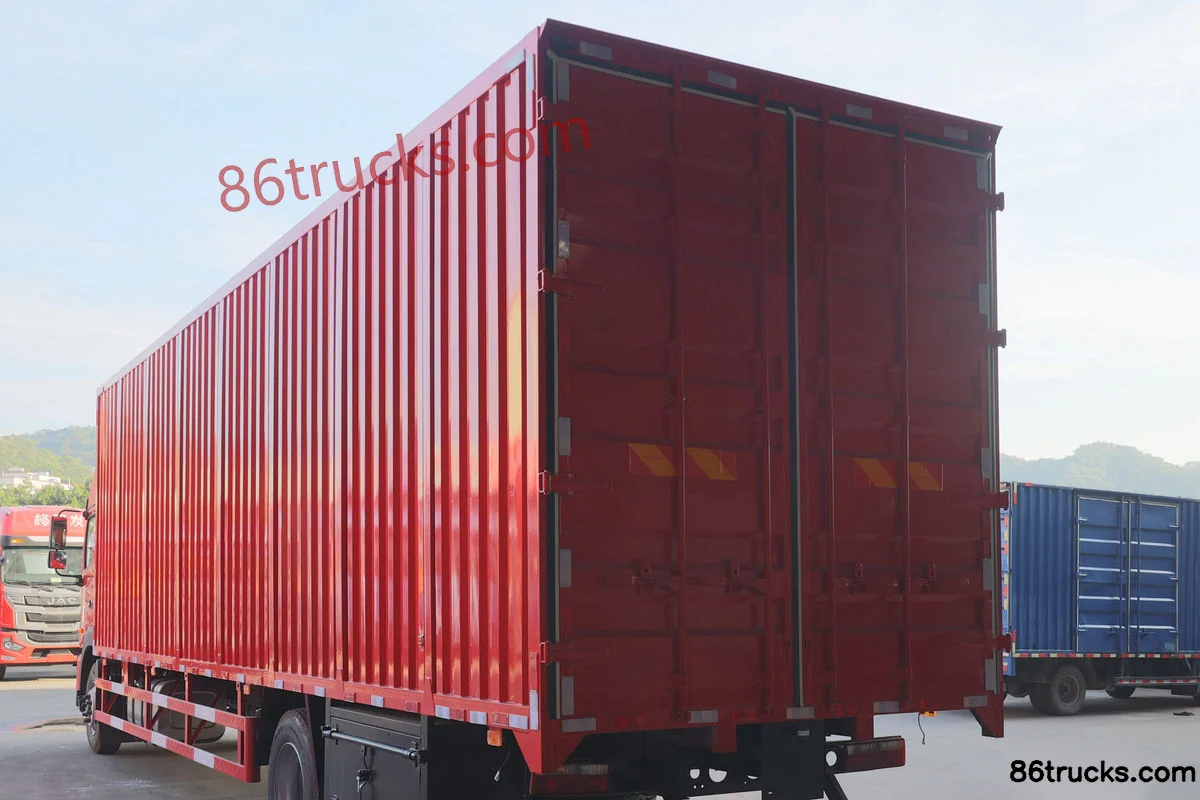

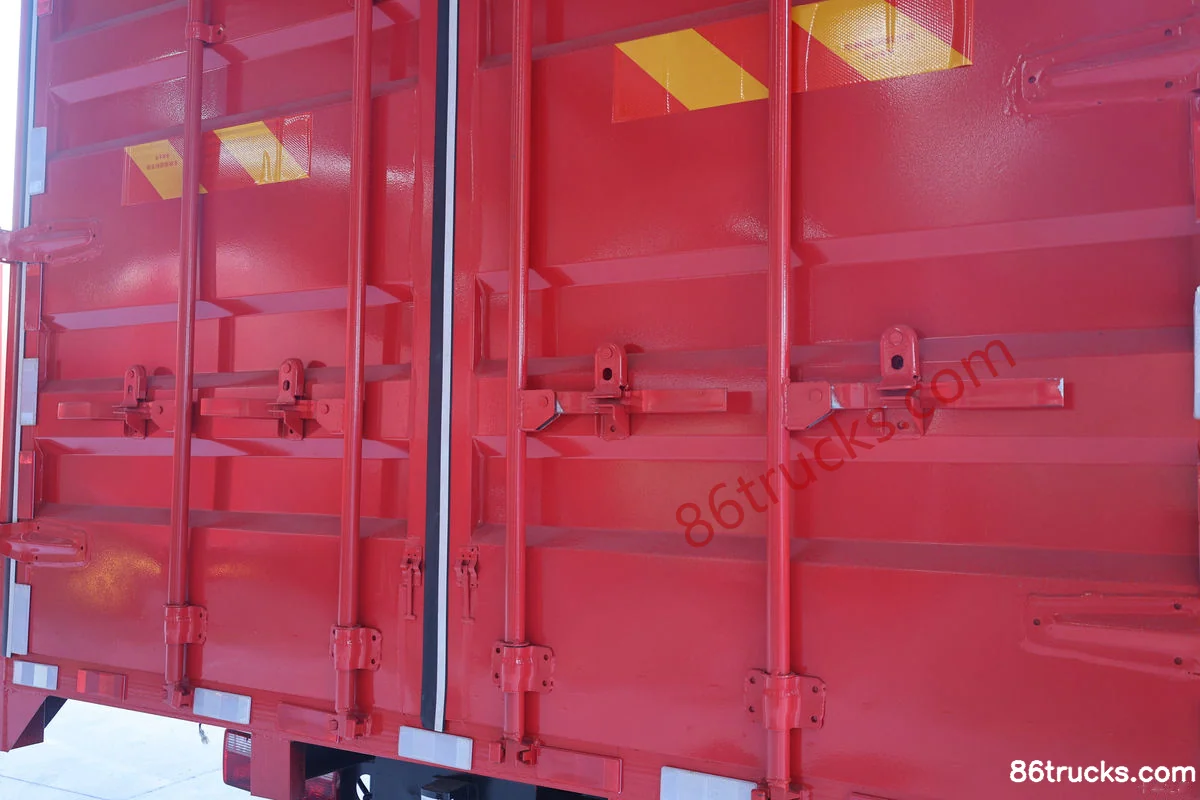

Body3

12 photos

FAQ

What is the export price of JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck, and what does it include?

JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck export reference is about From $29,056; MSRP is ¥20.92M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck?

Key specs of JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D45; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck suited for?

JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck differ from other variants in the same series?

JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5L Heavy Truck 220hp 4X2(6 wheels) 9.61m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
