FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai)

Export reference
From $29,167
MSRP ¥21M CNY
Horsepower: 240
Emission: China III / Euro III
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 10.19ton
seating capacity: 3Personnel
Rated payload: 10ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 10t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 6X2 (8 wheels) drive and China III / Euro III emissions.

China III / Euro III 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5203CLXYP7K2L11T3AE
Type: stake truck
Drive type: 6X2
Wheelbase: 1900+5650mm
engine: DachaiCA6DE3-24E3
transmission: FAW JiefangCA7T156
Cab length: 11.97m
Cab width: 2.5m
Cab height: 3.87m
Front track width: 1928/1928mm
rear track: 1847mm
Curb Weight: 10.19ton
Rated payload: 10ton
GVWR: 20.4ton
Max. speed: 93km/h
Origin: Changchun
tonnage class: Heavy-duty cargo trucks
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Optional flat roof cab, cargo floor to cage top height 2400mm, maximum trailer weight vs engine correspondence: 15030kg (BF6M1013-24E3, CA6DE3-24E3 engine), 12030kg (CA6DE3-22E3, CA6DF3-22E3, BF6M1013-22E3 engine). Dimensions (mm) L×W×H 11650×2455×2750,3150. Axle load (kg): 5485/5485/9400
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DE3-24E3
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.618L
Emission standard: China III / Euro III
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 890N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: FAW JiefangCA7T156
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 7Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 5485kg
rear axle allowable load: 9400kg
Leaf spring count: 10/9
Tire
Tire Size: 10.00-20 10.00R20 11.00-20 11.00R20
Number of tires: 8pcs

Photos

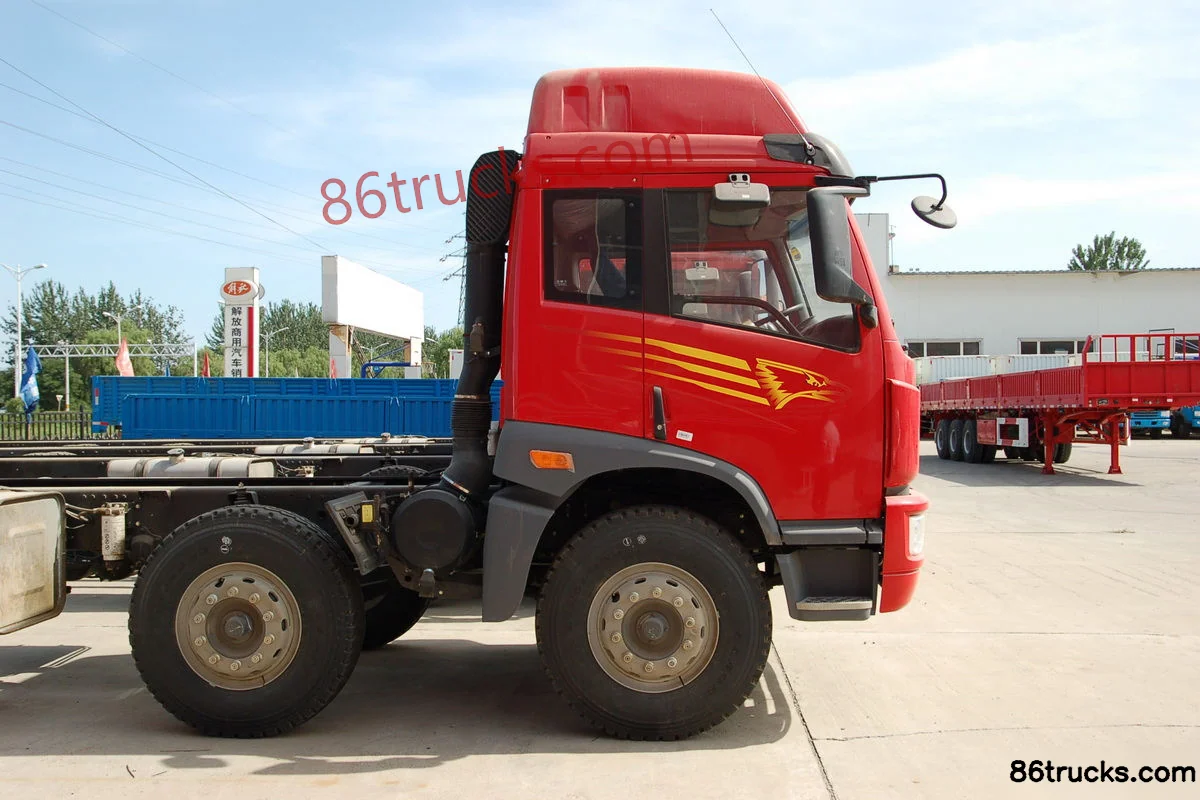

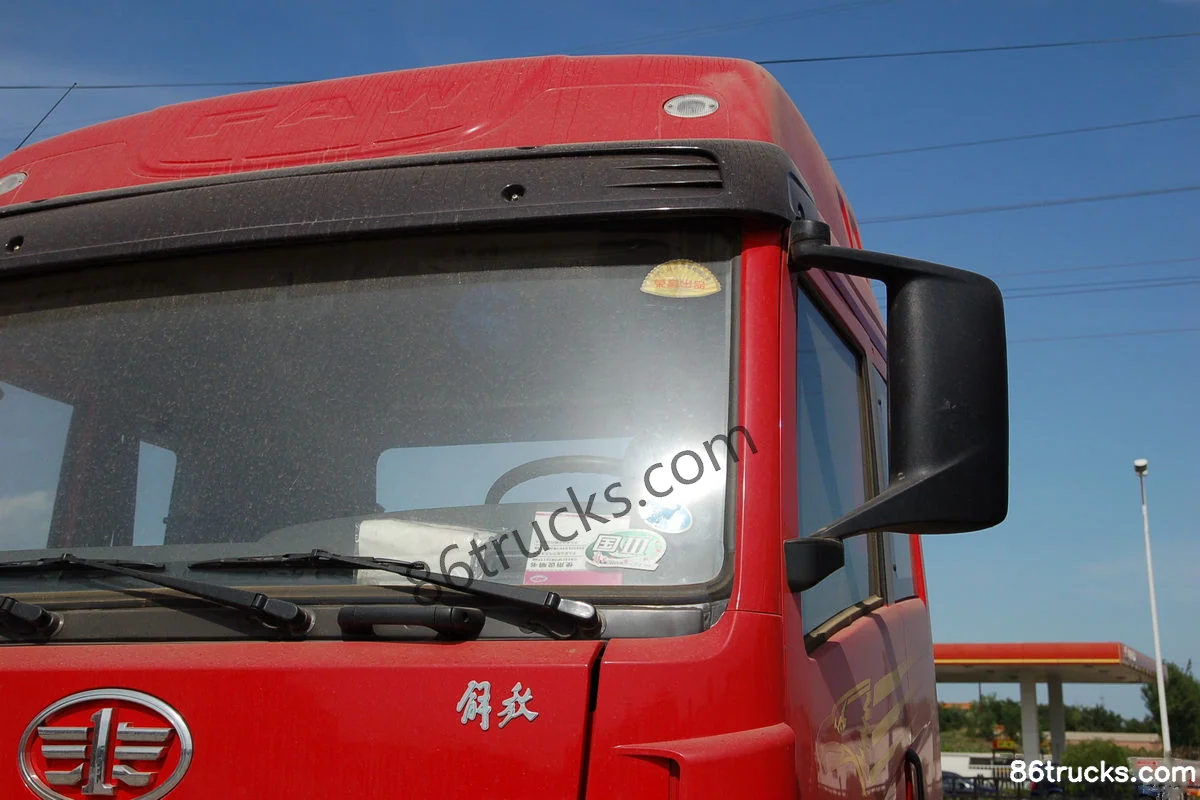

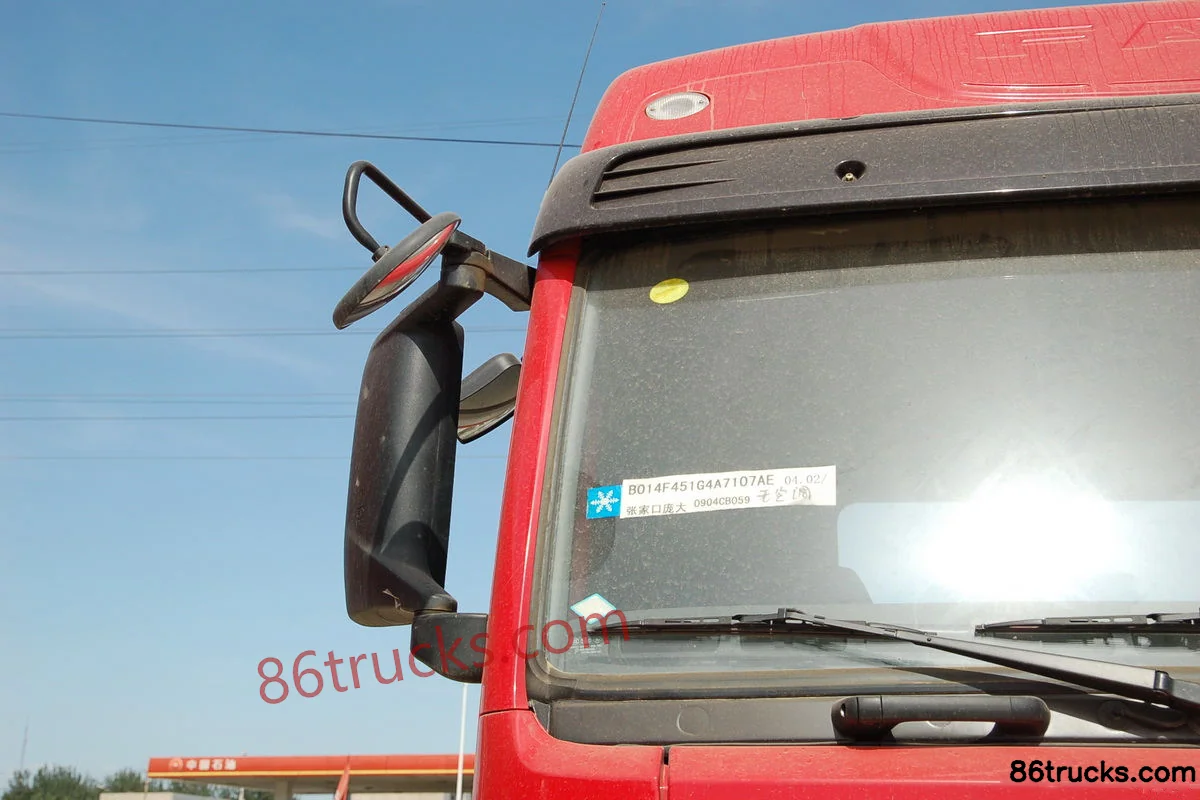

Exterior3

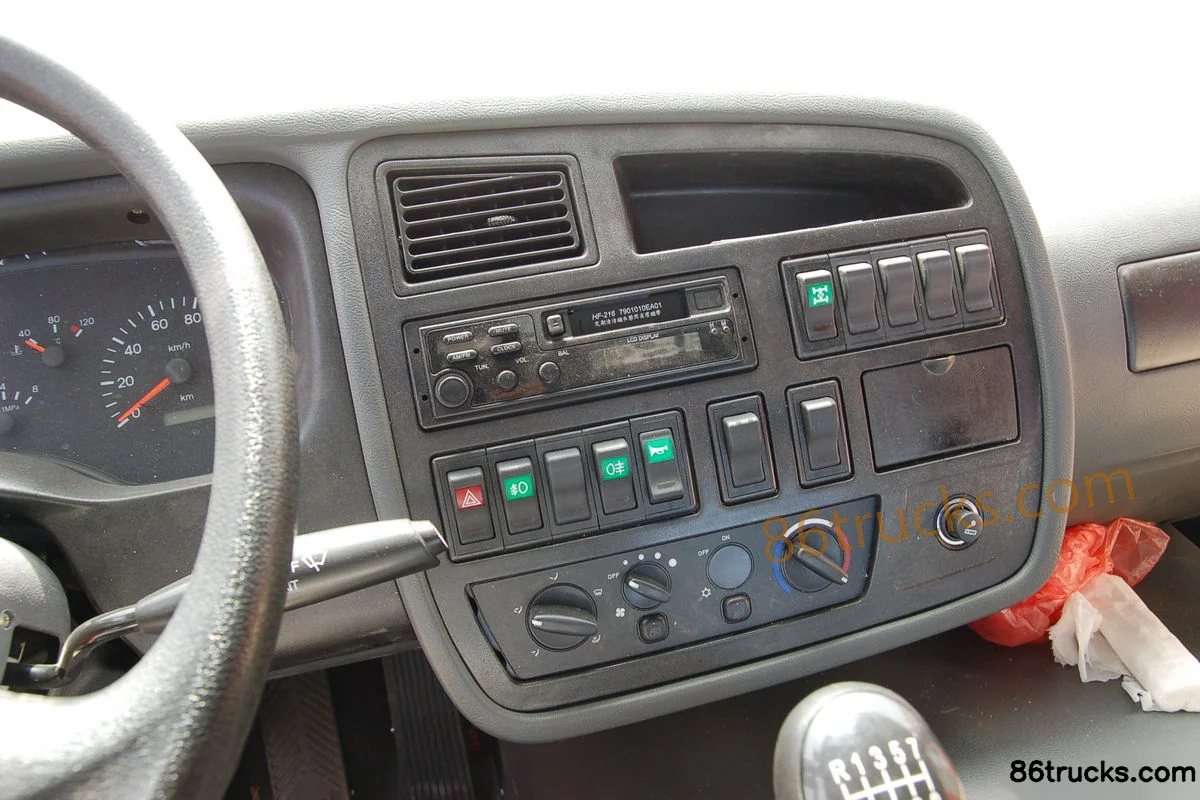

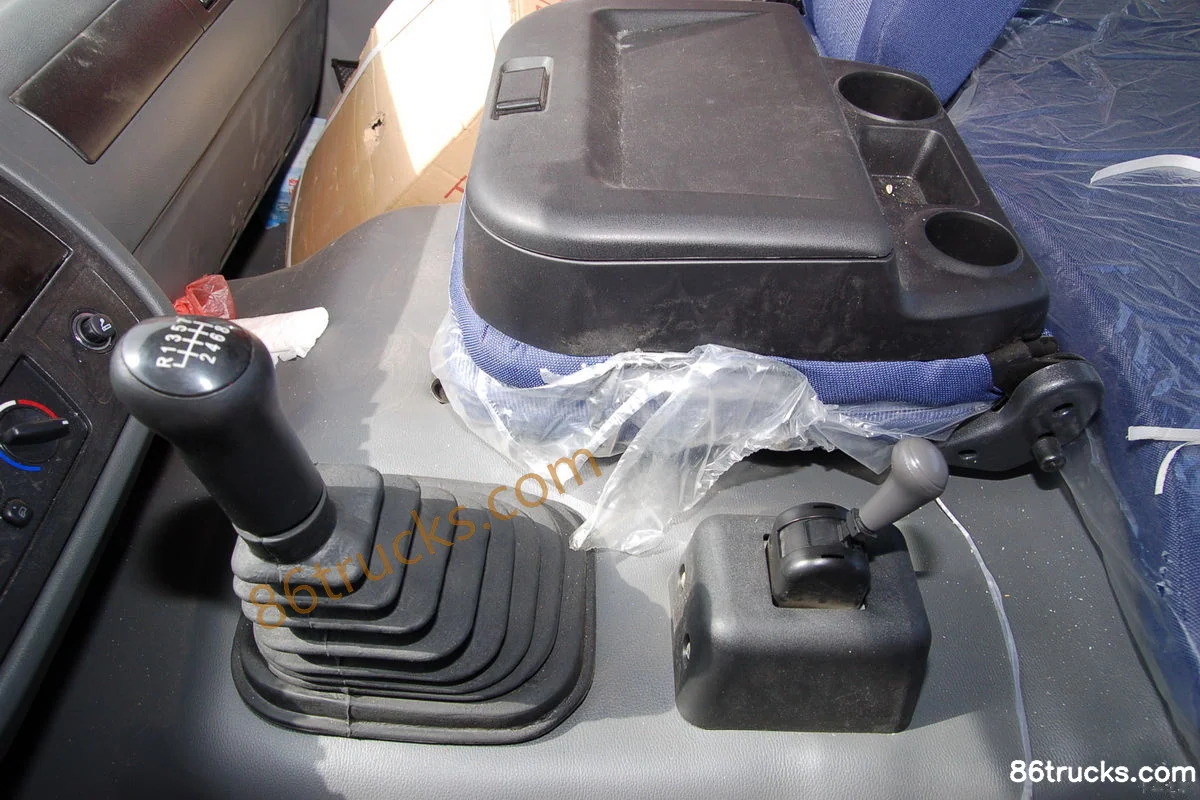

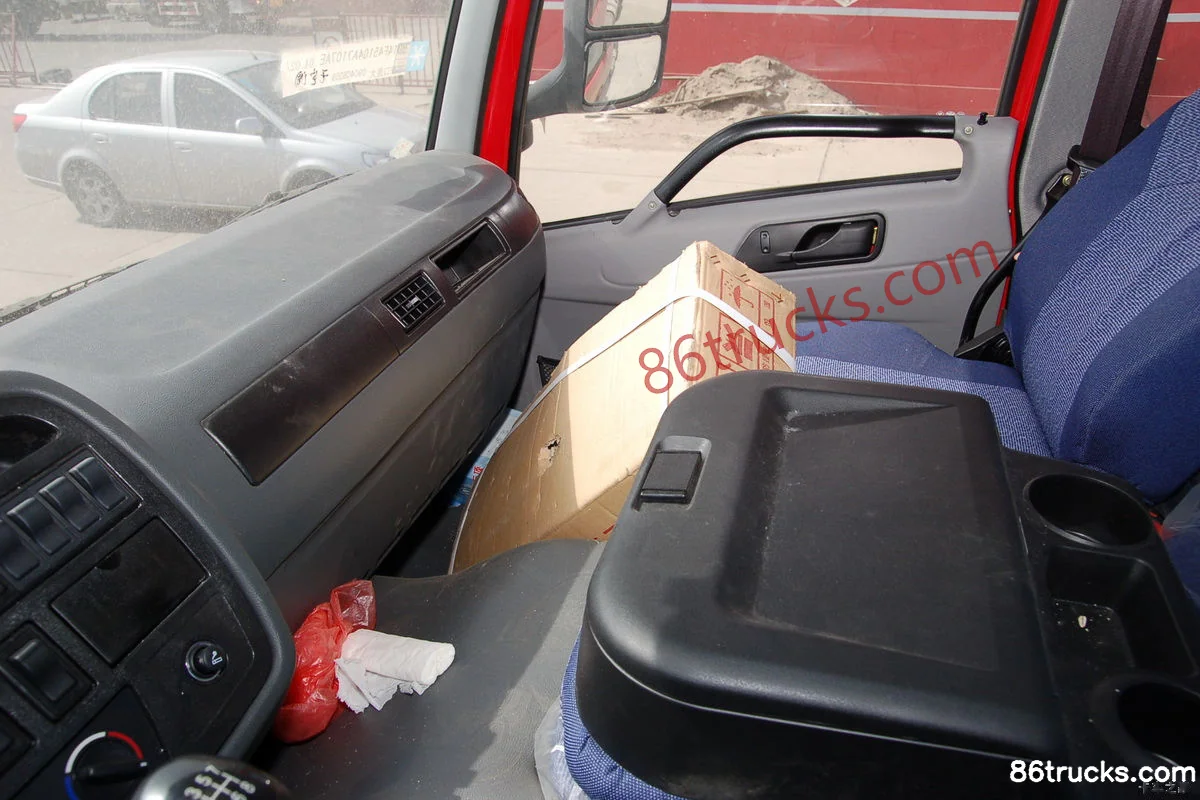

Cab3

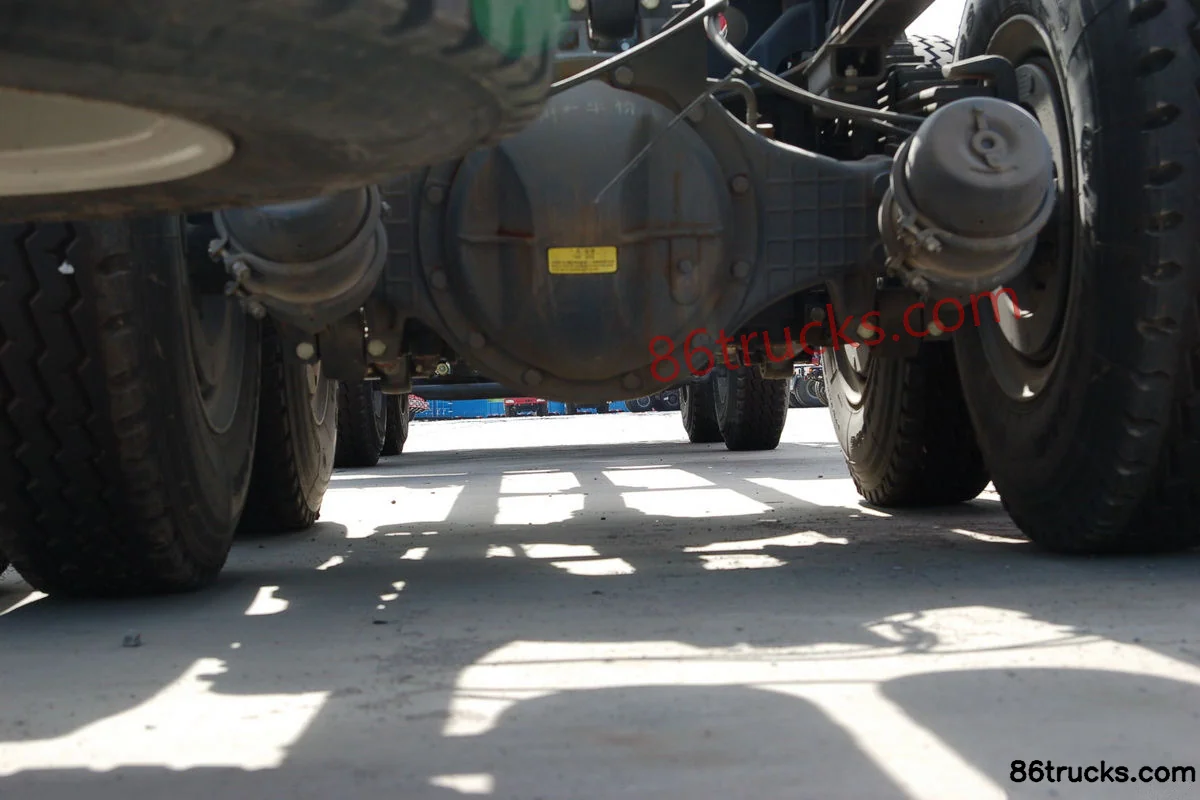

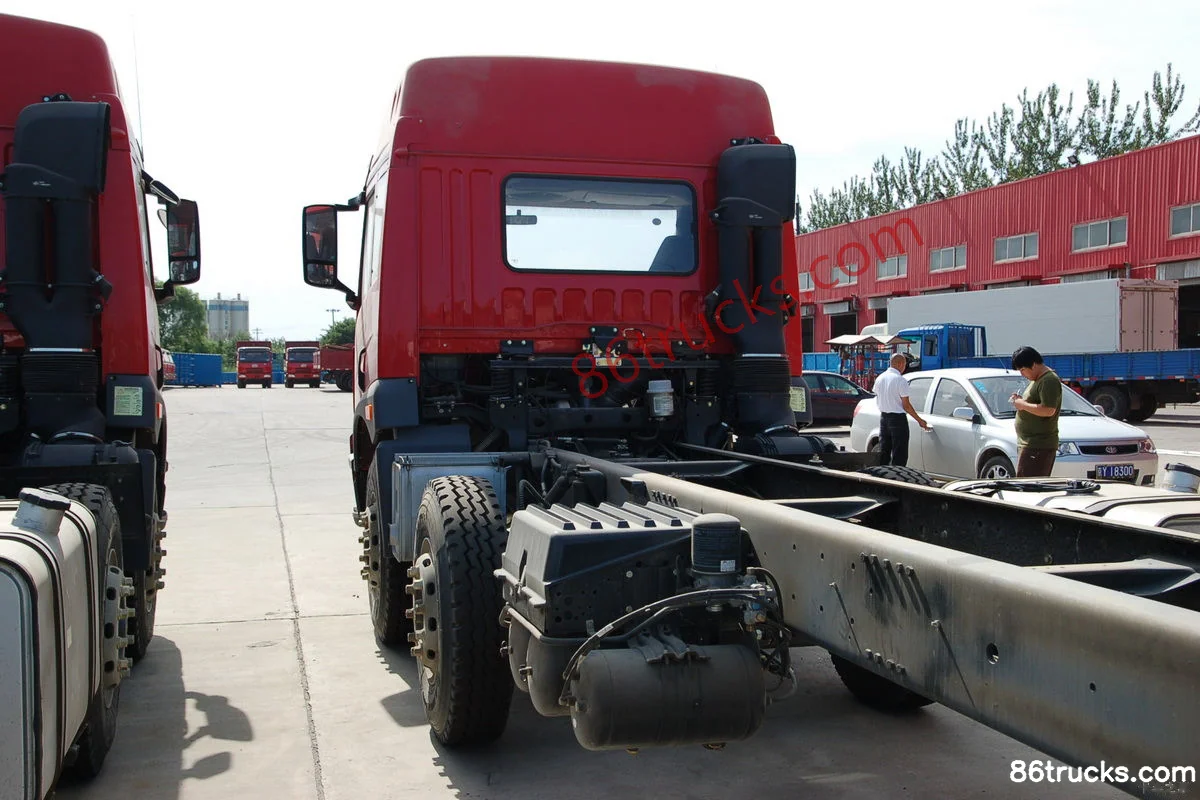

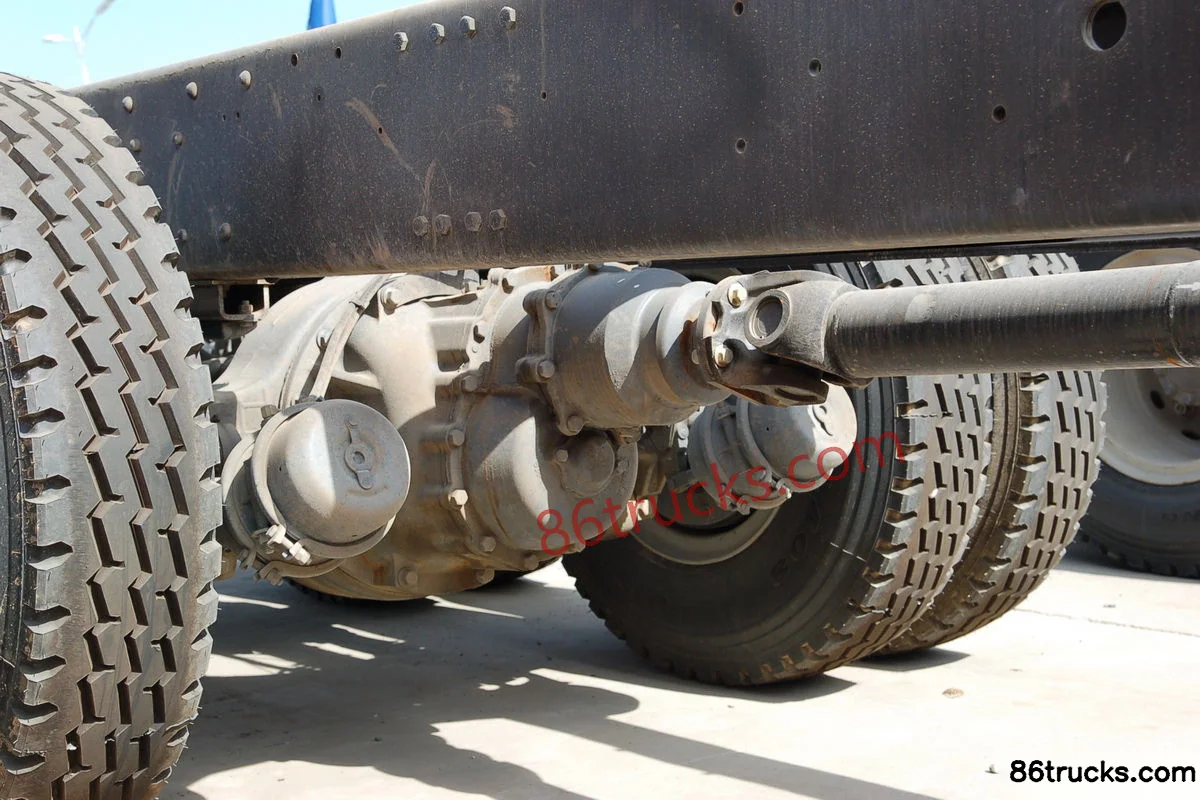

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai), and what does it include?

FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) export reference is about From $29,167; MSRP is ¥21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai)?

Key specs of FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai): Drive: 6x2; Horsepower: 240 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) suited for?

FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) differ from other variants in the same series?

FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai) belongs to FAW Jiefang Hanwei J5M Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 6X2(8 wheels) Cargo Truck with Cage (Xichai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
