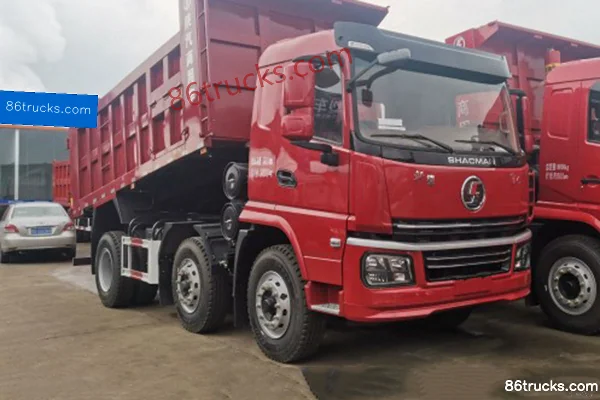

SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck

Export reference
From $30,347
MSRP ¥21.85M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 10.44ton
Wheelbase:: 1800+3150mm
Tire Size:: 10.00R20/18PR
Rated payload: 14.87ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Rear-dump body

Overview

The SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck is a Medium-duty truck featuring 14.87t payload, 24.5t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3255GP5329
Drive type: 6X2
Wheelbase: 1800+3150mm
engine: YuchaiYC6JA220-50
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.33
Cab length: 8.25m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1765/1765mm
rear track: 1750mm
Curb Weight: 10.44ton
Rated payload: 14.87ton
GVWR: 24.5ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 18°
Remarks: Optional: STR13TS/6.72 rear axle; STR13TS/5.73 rear axle
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA220-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.5m
Cargo box width: 2.2/2.35m
Cargo box height: 0.8/1.3/1.5m
Cab parameters
Cab: Yi6 semi-high roof
Cab suspension: Four-point air suspension
Cab width: 2220mm
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 280L
Chassis Specs
Front axle description: 5T+5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280/8+6 full doublemm
rear axle description: 13T/narrow
rear axle allowable load: 11500kg
Axle ratio: 6.33
Leaf spring count: 9/9/10+8
Tire
Tire Size: 10.00R20/18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:

Photos

0 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck, and what does it include?

SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck export reference is about From $30,347; MSRP is ¥21.85M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck belongs to SHACMAN Commercial Vehicle Xuande Yi 6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Yi6 Composite Edition 220hp 6X2(8 wheels) 5.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
