Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck

Export reference
MSRP N/A
Horsepower: 340
Emission: China V
Fuel: Diesel
Engine: Dongkang 9.5L
Transmission: Fast Gear
Curb Weight:: 11.815ton
seating capacity: 3Personnel
Rated payload: 18.99ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 3Personnel volume and 18.99t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Dongkang 9.5L engine, 340 hp, 8X4 (12 wheels) drive and China V emissions.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1310GZ5D
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1850+4600+1350mm
Box length class: 9.6m
engine: DongfengISL9.5-340E51A
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 3.909
Cab length: 12m
Cab width: 2.55m
Cab height: 3.82m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 11.815ton
Rated payload: 18.99ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 28°
departure angle: 19°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Front/rear suspension: 1.25/2.135m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISL9.5-340E51A
Engine info: Dongkang 9.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.46L
Emission standard: China V
Max output power: 251kW
Max hp: 340Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 10T dual rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.909
Leaf spring count: 9/9/9
Tire
Tire Size: 10.00-20 18PR,10.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

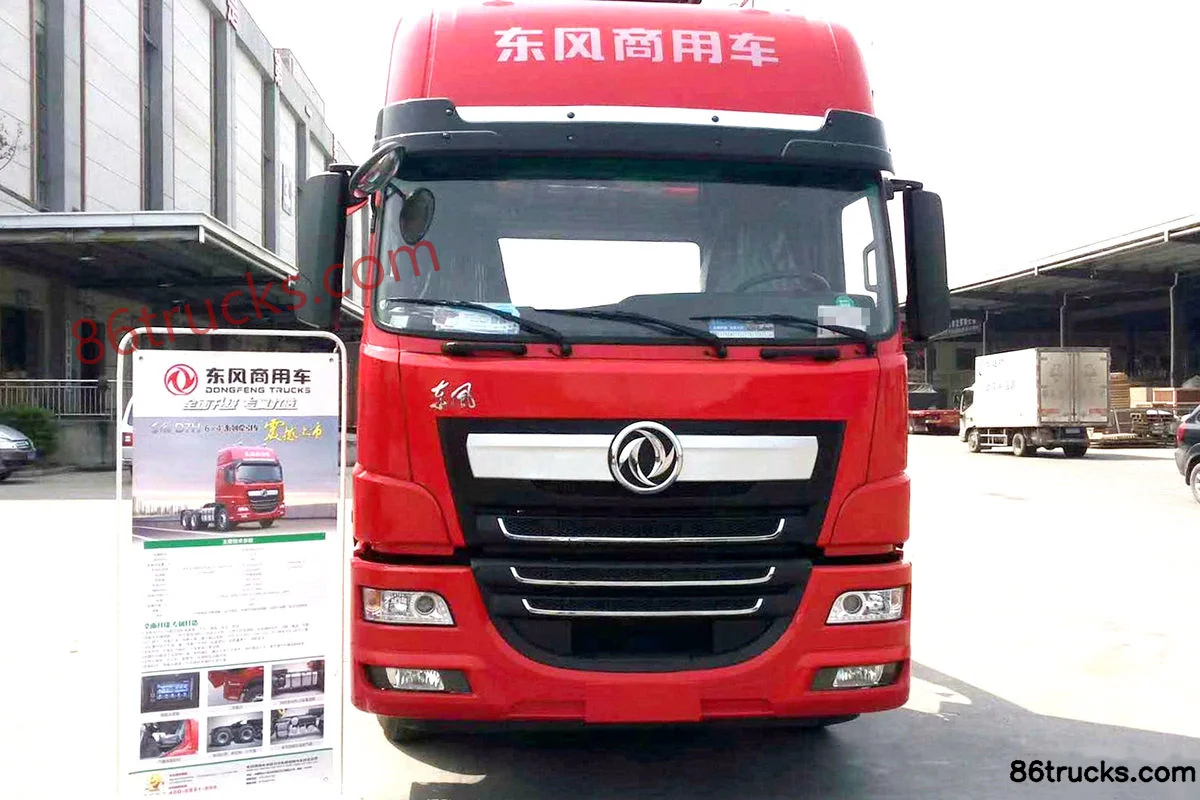

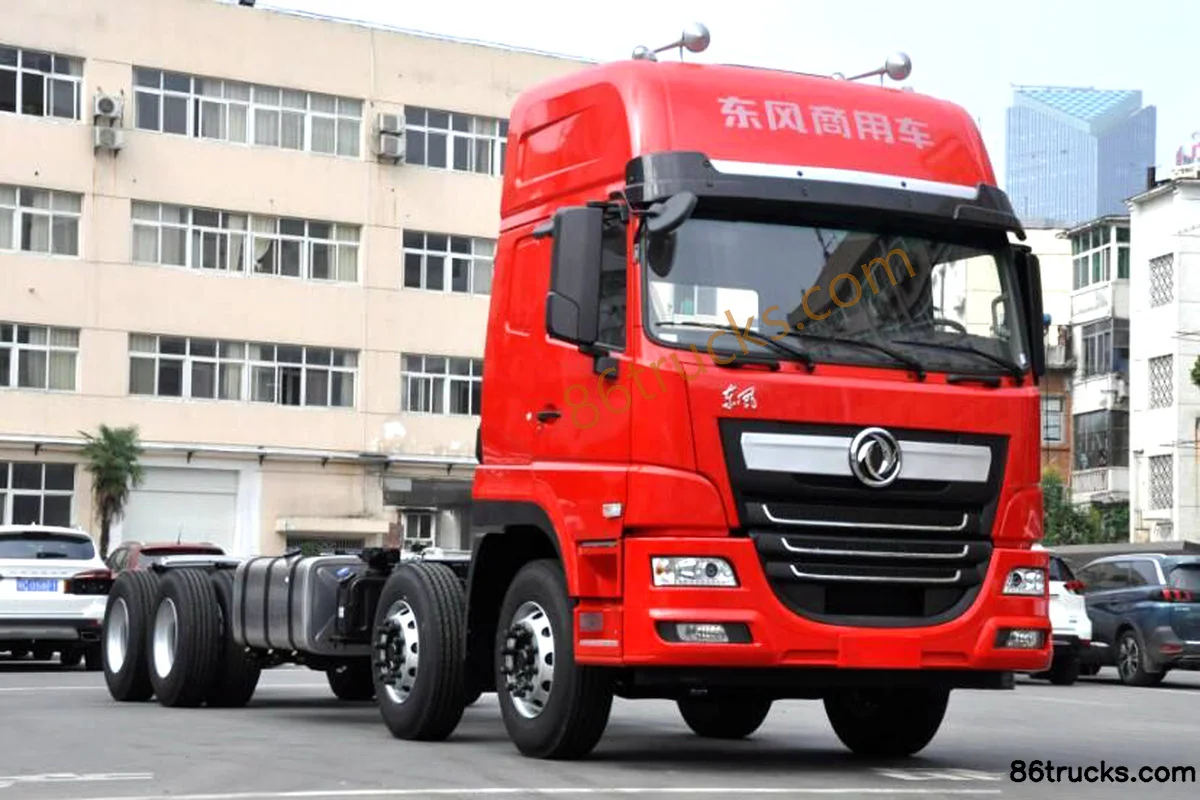

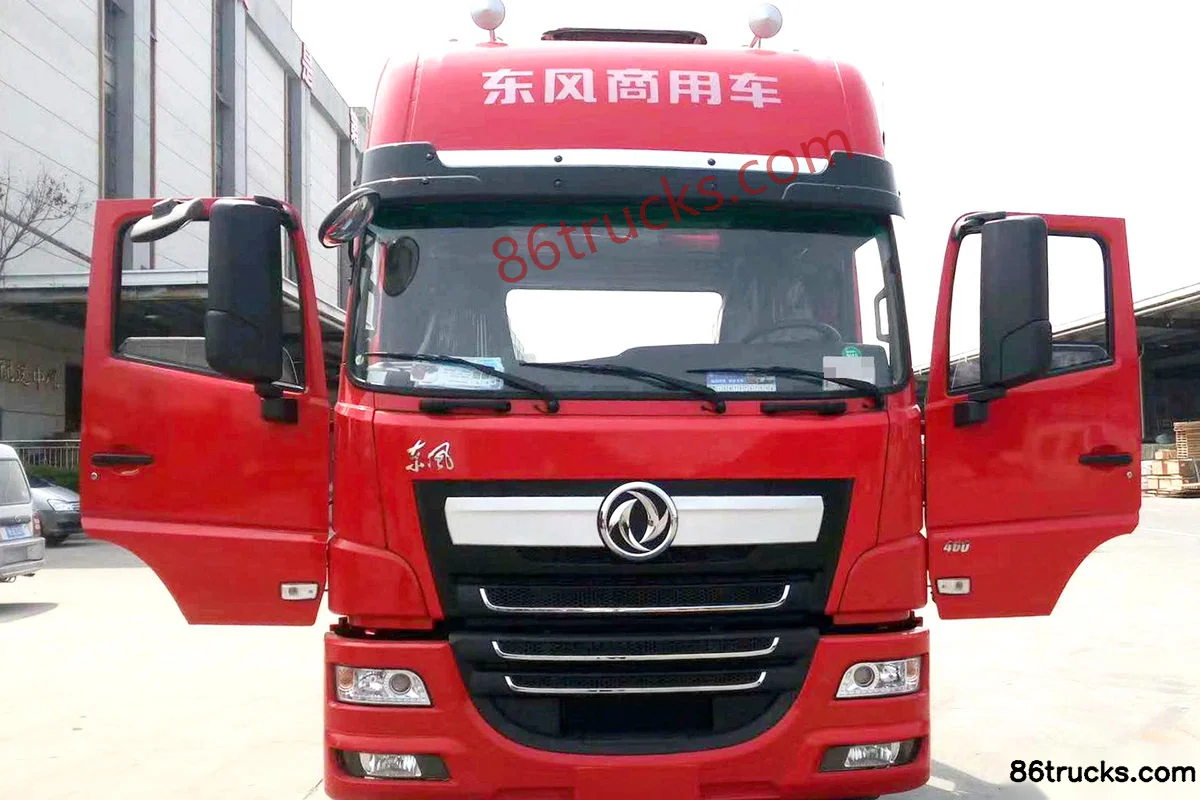

Exterior3

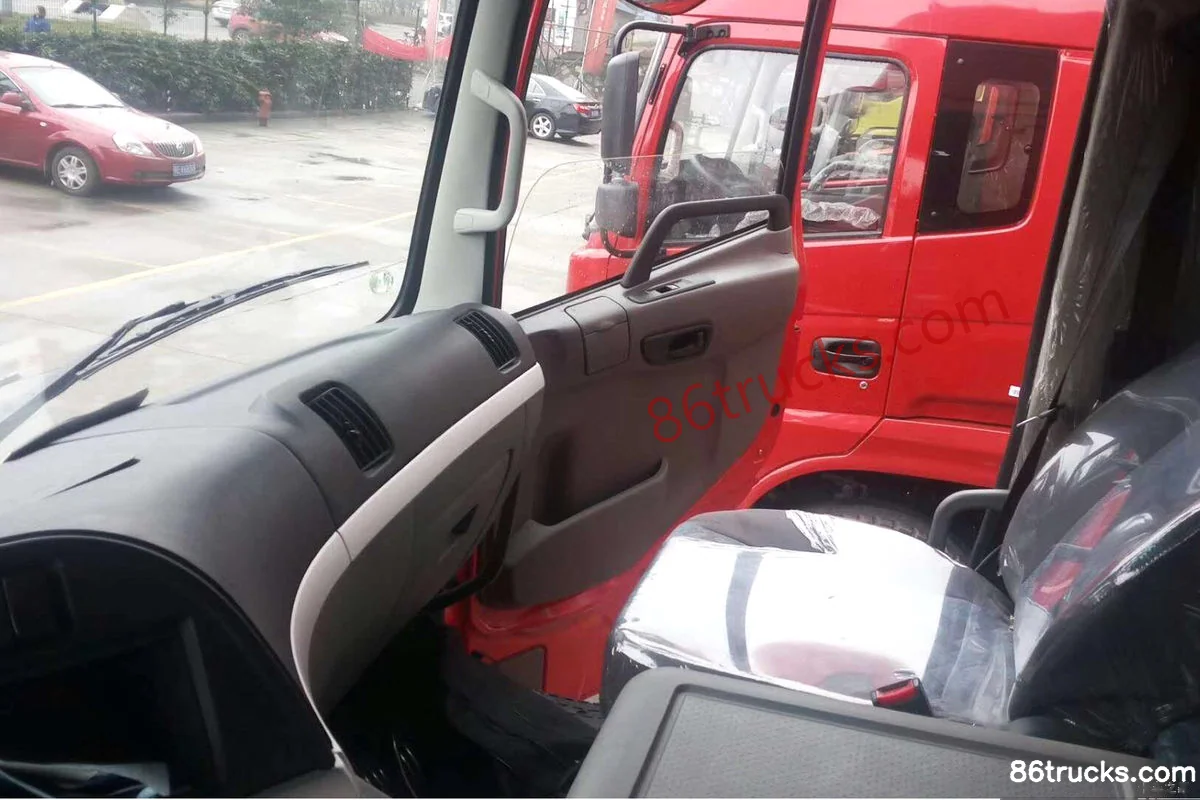

Cab1

4 photos

FAQ

What emission standard does Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck?

Key specs of Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 9.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck suited for?

Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck differ from other variants in the same series?

Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck belongs to Dongfeng Special Chassis (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Special Chassis Series 340 hp 8X4(12 wheels) 9.6m flatbed cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
