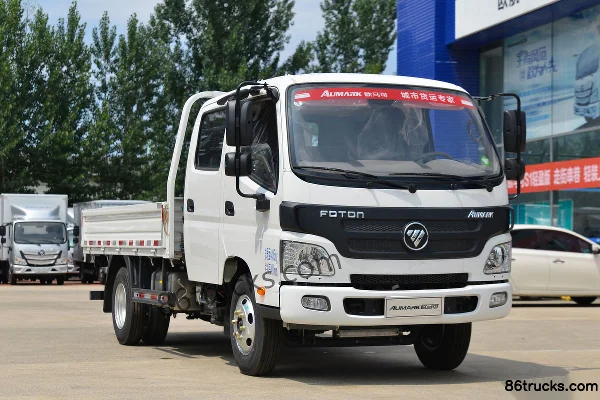

Foton Aumark 1 Series Engineering Edition 131hp 4X2(6 wheels) 3.22m Double Row Flatbed Light Truck (China VI)
EXW
From $18,750
Export quote
Foton 1 Series Light Truck Cargo Trucks
Main model photos
226 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aumark 1 Series Engineering Edition 131hp 4X2(6 wheels) 3.22m Double Row Flatbed Light Truck (China VI) | 4x2 / 131hp / China VI | From $18,750 | |
| Foton Aumark 1 Series Engineering Edition 131hp 4X2(6 wheels) 3.155m Double Row Van Light Truck (China VI) | 4x2 / 131hp / China VI | From $20,278 | |
| Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) | 4x2 / 127hp / China VI | From $13,986 | |
| Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) | 4x2 / 127hp / China VI | From $13,986 | |
| Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.22m double-row flatbed light truck (China VI) (WLY) | 4x2 / 127hp / China VI | From $13,986 |
Foton Aumark 1 Series Engineering Edition 131hp 4X2(6 wheels) 3.155m Double Row Van Light Truck (China VI)
EXW
From $20,278
Export quote
Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY)
EXW
From $13,986
Export quote

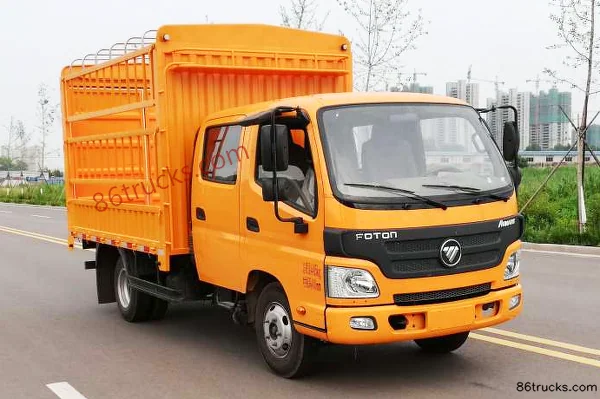

Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY)
EXW
From $13,986
Export quote
Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.22m double-row flatbed light truck (China VI) (WLY)
EXW
From $13,986
Export quote
Series Specs
Basic Info
Model code (announced): BJ1041V9AD6-FM / BJ5041XXY-FM / BJ5041CCY-FM / BJ5048XXY8JEA-AB3 / BJ1049V9AD6-A1 / BJ5049XXY-A3 / BJ1049V9JD6-A4 / BJ1049V9JD6-A2 / BJ5049XXY-A6 / BJ5049XXY-A9 / BJ5049XXY-C5 / BJ1041V9JD3-A1 / BJ1049V9AD6-A2 / BJ5049XXY-F3 / BJ5049XXY-A2 / BJ5049XXY-A1 / BJ1049V9JD6-A1 / BJ5049CCY-A2 / BJ5049CCY-A1 / BJ5049XXY-F8 / BJ1049V9JD6-F2 / BJ1049V8AD6-A2 / BJ1049V8JD6-A1
Type: Cargo Trucks / enclosed cargo truck / stake truck / Chassis
Drive type: 4X2
Wheelbase: 3360 / 2600mm
Box length class: 3.2 / 4.2 / 3.7 / 3.8m
Engine Model: FotonF2.5NS6B131 / Yunnei PowerD20TCIF1 / FotonF2.8NS6B156 / FotonF2.8NS6B131 / FotonISF2.8s5129T / FotonISF2.8s5F117 / FotonISF2.8s5R117 / FotonISF2.8s4117V / FotonISF2.8s5148T
Transmission Model: ZF5S328 / WLYWLY5G32 / ZFEcolite 5S408 / ZFZF6S458 / ZFZF5S328 / Fast Gear5J38T / JMCJC528 / JMC 5-speed
Rear Axle Ratio: 4.5 / 4.33 / 4.875 / 5.375 / 5.571
Cab length: 5.995 / 4.975m
Cab width: 1.91 / 2 / 1.9 / 1.91/2 / 1.95 / 2.44 / 2.2 / 2.15 / 1.84 / 2.05 / 1800 / 1995m
Cab height: 2.26 / 2.9 / 2.8 / 2.26/2.32 / 3.42 / 3.1 / 2.33 / 2.95 / 3.25 / 2.22m
Front track width: 1530 / 1730 / 1490mm
rear track: 1485 / 1800 / 1425mm
Curb Weight: 2.565 / 2.72 / 2.53 / 2.5 / 3.2 / 2.805 / 2.56 / 2.29 / 2.4 / 2.55 / 2.65 / 2.45 / 2.38 / 2.425 / 2.165ton
Rated payload: 1.605 / 1.45 / 1.495 / 1.67 / 1.1 / 1.74 / 1.865 / 1.245 / 1.715 / 1.8ton
GVWR: 4.495 / 4.35 / 3.665 / 3.84 / 4.48 / 4.275 / 4.43 / 4.075 / 4.31 / 4.245 / 3.79ton
Max. speed: 90 / 95 / 99 / 110 / 100km/h
Origin: Beijing Changping / Shandong Zhucheng / Beijing
tonnage class: Light Truck
Approach angle: 23 / 20 / 22°
departure angle: 13 / 16 / 20°
market segment: Agricultural product transport, green channel / Urban Distribution / Building materials, agricultural products
Remarks: Standard: Telematics Control Unit (T-BOX), MP3 / Standard: cruise control; manual windows and mirrors; onboard wireless service controller; no stabilizer bar; MP3; power steering; fabric standard seat. Optional: front disc rear drum basic ratio (self-adjusting arm), front disc rear drum large ratio (self-adjusting arm), front rear drum large ratio (self-adjusting arm), reversing image + cruise, central lock + power windows + remote. / Optional hydraulic brake / No airbag/No PTO/Manual tilt/No cargo body and no side guard/Manual windows and mirrors/No tachograph/No stabilizer bar/MP3/Standard fabric seat / No airbag, no PTO, hydraulic tilt, no cargo body, manual windows & mirrors, no stabilizer bars, MP3, fabric standard seat. / Manual tilt cab, manual windows and mirrors, MP3. / Standard ratio (self-adjusting arm) / manual tilt cab / no cargo box, no side guard / manual windows & mirrors / MP3 / fabric standard seat / Manual tilt cab, manual windows and mirrors, MP3, no cargo body, no side guard, knitted standard seat / Manual tilt cab, no cargo box or side guard, manual windows and mirrors, MP3, standard knit seat / Standard ratio (self-adjusting arm) / multimedia / Optional front disc / rear drum brakes / General Purpose
Front/rear suspension: 1.085/1.55 / 1.11/1.525 / 1.095/1.54 / 1.095/1.28m
Series: Series 1
Version: Construction version / Lightweight version / Luxury Edition / Value Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton / Yunnei Power
Engine info: Fukang F2.5 / De Wei D20 / Fukang F2.8 / Fukang 2.8
Number of cylinders: 4cylinder
Cylinder arrangement: Inline
Displacement: 2.498 / 2 / 2.78L
Emission standard: China VI / China V / China V (Beijing) / Special Beijing V / China IV
Max output power: 96 / 93 / 115 / 87 / 110kW
Max hp: 131 / 127 / 156 / 129 / 118 / 117 / 148Horsepower
Max torque: 350 / 440 / 310 / 300 / 280 / 260 / 360N·m
Max torque speed: 1400-2400 / 1500-2400 / 1100-2800 / 1500-2900 / 1200-2900 / 1200-3200 / 1300-3200 / 1600-2700rpm
Rated speed: 3200 / 2900rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR / HPCR CEGR DOC DPF / Turbocharged intercooled, Bosch high-pressure common rail, high-pressure direct injection, SCR / HPCR CEGR DPF
Technology route: DOC+DPF
FAQ
What kind of truck is Foton Foton 1 Series Light Truck Cargo Trucks?
Foton Foton 1 Series Light Truck is an export-oriented Cargo Trucks lineup with about 120 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton 1 Series Light Truck Cargo Trucks?
Foton 1 Series Light Truck Cargo Trucks export reference is about $11,792 – $22,028. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton 1 Series Light Truck Cargo Trucks cover?
Foton 1 Series Light Truck Cargo Trucks mainly covers: Drive: 4x2; Horsepower: 127 hp / 131 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton 1 Series Light Truck Cargo Trucks?
For Foton 1 Series Light Truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton 1 Series Light Truck Cargo Trucks include?
Foton 1 Series Light Truck Cargo Trucks currently lists about 120 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton 1 Series Light Truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
