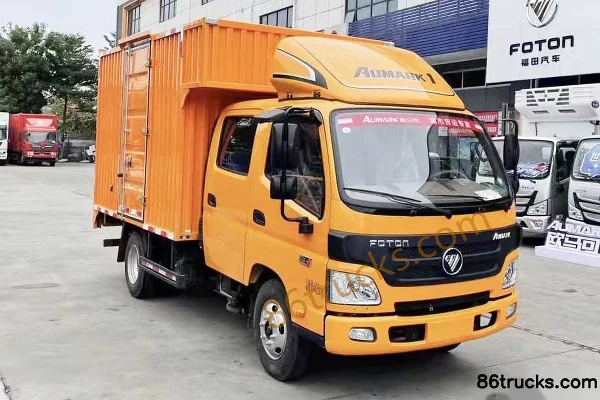

Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY)

Export reference
From $13,986
MSRP ¥10.07M CNY
Horsepower: 127
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 2.72ton
Wheelbase:: 3360mm
seating capacity: 5Personnel
Rated payload: 1.45ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) is a Light Truck featuring 3.155m cargo length, Van body cargo body, 5Personnel volume and 1.45t payload. On the powertrain side, it comes with 127 hp, 4X2 (6 wheels) drive, China VI emissions and WLY transmission.

China VI 127 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5041XXY-FM
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Yunnei PowerD20TCIF1
transmission: WLYWLY5G32
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 1.9m
Cab height: 2.8m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.72ton
Rated payload: 1.45ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Beijing Changping
tonnage class: Light Truck
Approach angle: 23°
departure angle: 13°
Remarks: Standard: cruise control; manual windows and mirrors; onboard wireless service controller; no stabilizer bar; MP3; power steering; fabric standard seat. Optional: front disc rear drum basic ratio (self-adjusting arm), front disc rear drum large ratio (self-adjusting arm), front rear drum large ratio (self-adjusting arm), reversing image + cruise, central lock + power windows + remote.
Front/rear suspension: 1.085/1.55m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Max torque: 350N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.155m
Cargo box width: 1.81m
Cargo box height: 1.8m
*Cargo box interior width: 1.8099999427795
Cab parameters
Cab width: 1800mm
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 80L
Chassis Specs
Front axle description: 2.4
Front axle allowable load: 1950kg
Frame Dimensions: 170×60×5mm
rear axle description: 4.5
rear axle allowable load: 2545kg
Axle ratio: 4.33
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

0 photos

FAQ

What is the export price of Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY), and what does it include?

Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) export reference is about From $13,986; MSRP is ¥10.07M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY)?

Key specs of Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY): Drive: 4x2; Horsepower: 127 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) suited for?

Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) differ from other variants in the same series?

Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY) belongs to Foton 1 Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark 1 Series 127 hp 4X2(6 wheels) 3.155m double-row van light truck (China VI) (WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
