Volvo New FMX Heavy Truck 540 hp 8X4(12 wheels) Construction Truck Chassis (China VI)
EXW
Export quote
Volvo FMX heavy truck Cargo Trucks
Main model photos
82 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Volvo New FMX Heavy Truck 540 hp 8X4(12 wheels) Construction Truck Chassis (China VI) | 8x4 / 540hp / China VI | ||
| Volvo FMX Heavy Truck 440 hp 6X4(10 wheels) Construction Chassis (FM440 66R B) | 6x4 / 440hp |

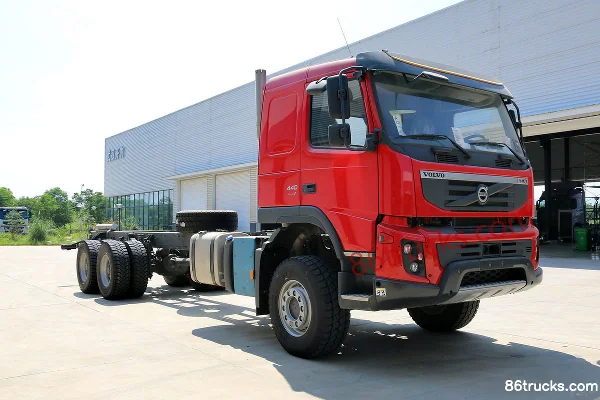

Volvo FMX Heavy Truck 440 hp 6X4(10 wheels) Construction Chassis (FM440 66R B)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) | 8x4 / 420hp / China IV | ||
| Volvo FMX heavy truck 400 hp 6X4(10 wheels) special vehicle (chassis) | 6x4 / 400hp / China IV | From $138,889 |
Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis)
EXW
Export quote
Volvo FMX heavy truck 400 hp 6X4(10 wheels) special vehicle (chassis)
EXW
From $138,889
Export quote
Series Specs
Basic Info
Type: Chassis
Drive type: 8X4 / 6X4
Wheelbase: 6000+1370 / 2000+3600+1350mm
Engine Model: VolvoDK13 540 EU6 / VolvoD13A440-EC06 / VolvoD13A420-EC06 / VolvoD13
Transmission Model: I-Shift Automatic / ZF12-speed / Volvo 14-speed / VolvoI-Shift
Curb Weight: 10.8 / 9.5ton
GVWR: 31 / 25ton
Origin: Sweden
tonnage class: Heavy-duty cargo trucks
Energy Type: Diesel
Engine parameters
Engine Brand: Volvo
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 12.8 / 13L
Emission standard: China VI / China IV
Max output power: 323 / 309 / 294kW
Max hp: 540 / 440 / 420 / 400Horsepower
Max torque: 2100N·m
Max torque speed: 1000-1400rpm
Engine Type: Inline 6-cylinder turbocharged intercooled electronically controlled diesel engine, enhanced cooling system with electronic fan
Transmission Parameters
Transmission Brand: Volvo / ZF
shift method: AMT manual/auto / Manual
Forward gears: 12 / 14Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Flat roof
seating capacity: 2 / 3Personnel
Seat rows: Single Row / Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Leaf spring count: 3/9 / 2/3/11
Tire
Tire brand: Michelin
Tire Size: 385/65R22.5 / Front: 385/65R22.5; Rear: 295/80R22.5; / 315/80R22.5
Number of tires: 12 / 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
FAQ
What kind of truck is Volvo Volvo FMX heavy truck Cargo Trucks?
Volvo Volvo FMX heavy truck is an export-oriented Cargo Trucks lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Volvo FMX heavy truck Cargo Trucks?
Volvo FMX heavy truck Cargo Trucks export reference is about From $138,889. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Volvo FMX heavy truck Cargo Trucks cover?
Volvo FMX heavy truck Cargo Trucks mainly covers: Drive: 6x4 / 8x4; Horsepower: 400 hp / 420 hp / 440 hp / 540 hp; Emission: China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Volvo FMX heavy truck Cargo Trucks?
For Volvo FMX heavy truck Cargo Trucks: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Cargo Trucks typically used for?
Cargo Trucks covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Volvo FMX heavy truck Cargo Trucks include?
Volvo FMX heavy truck Cargo Trucks currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Volvo FMX heavy truck Cargo Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
