Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Volvo
Curb Weight:: 10.8ton
Wheelbase:: 2000+3600+1350mm
Tire Size:: Front: 385/65R22.5; Rear: 295/80R22.5;

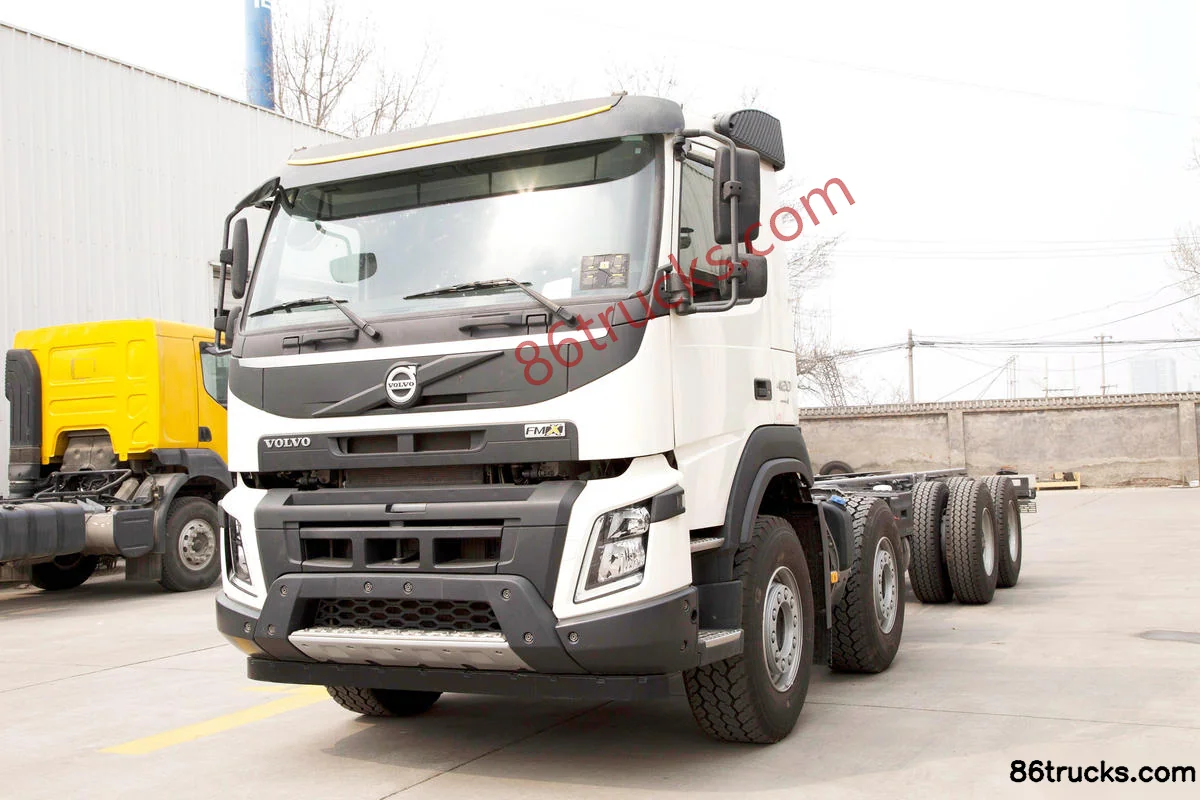

Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) exterior
View more photos (9)
seating capacity: 2Personnel
Drive 8X4 (12 wheels)
Cargo box type: Chassis
Horsepower 420

Overview

The Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) is a Heavy-duty cargo trucks featuring Chassis cargo body, 2Personnel volume, Flat roof cab and 2000+3600+1350mm wheelbase. On the powertrain side, it comes with a VolvoD13A420-EC06 engine, 420 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 420 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Type: Chassis
Drive type: 8X4
Wheelbase: 2000+3600+1350mm
engine: VolvoD13A420-EC06
transmission: Volvo 14-speed
Curb Weight: 10.8ton
GVWR: 31ton
Origin: Sweden
tonnage class: Heavy-duty cargo trucks
Energy Type: Diesel
Engine parameters
Engine Brand: Volvo
Engine Model: VolvoD13A420-EC06
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.8L
Emission standard: China IV
Max output power: 309kW
Max hp: 420Horsepower
Max torque: 2100N·m
Max torque speed: 1000-1400rpm
Engine Type: Inline 6-cylinder turbocharged intercooled electronically controlled diesel engine, enhanced cooling system with electronic fan
Transmission Parameters
Transmission Model: Volvo 14-speed
Transmission Brand: Volvo
shift method: Manual
Forward gears: 14Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Leaf spring count: 2/3/11
Tire
Tire Size: Front: 385/65R22.5; Rear: 295/80R22.5;
Number of tires: 12pcs

Photos

Exterior3

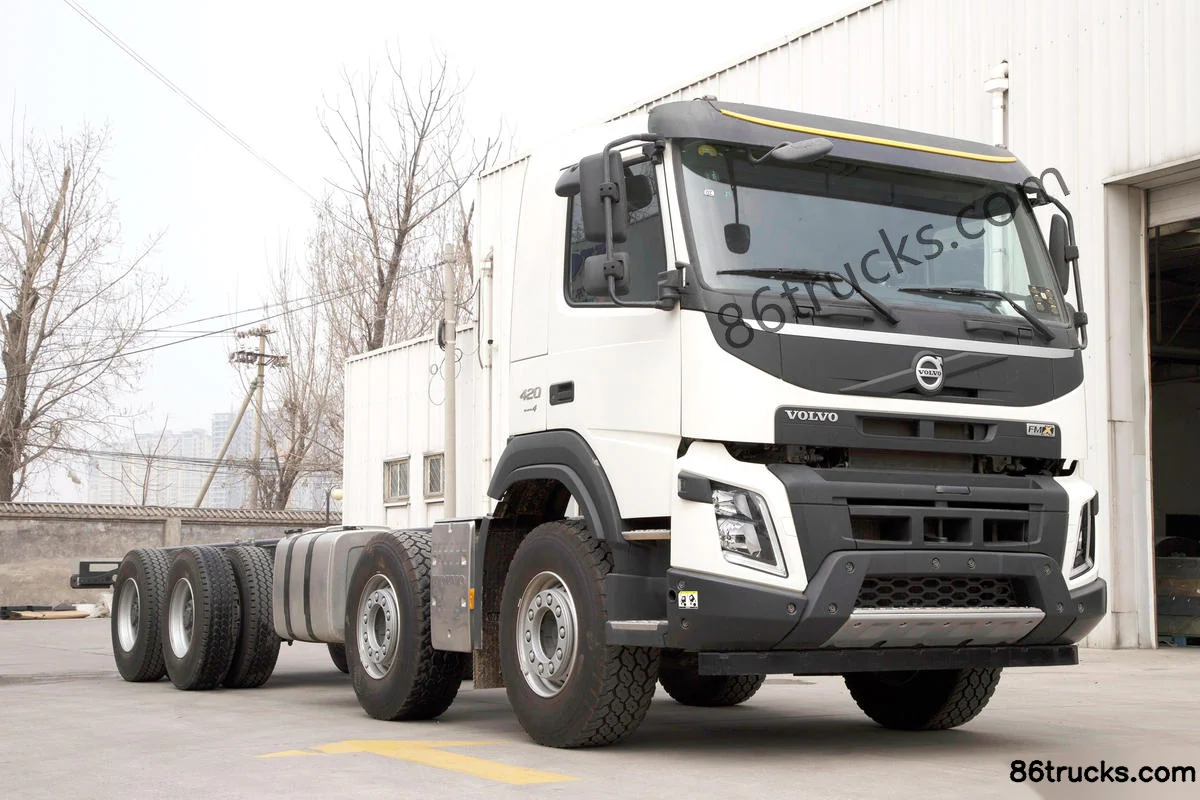

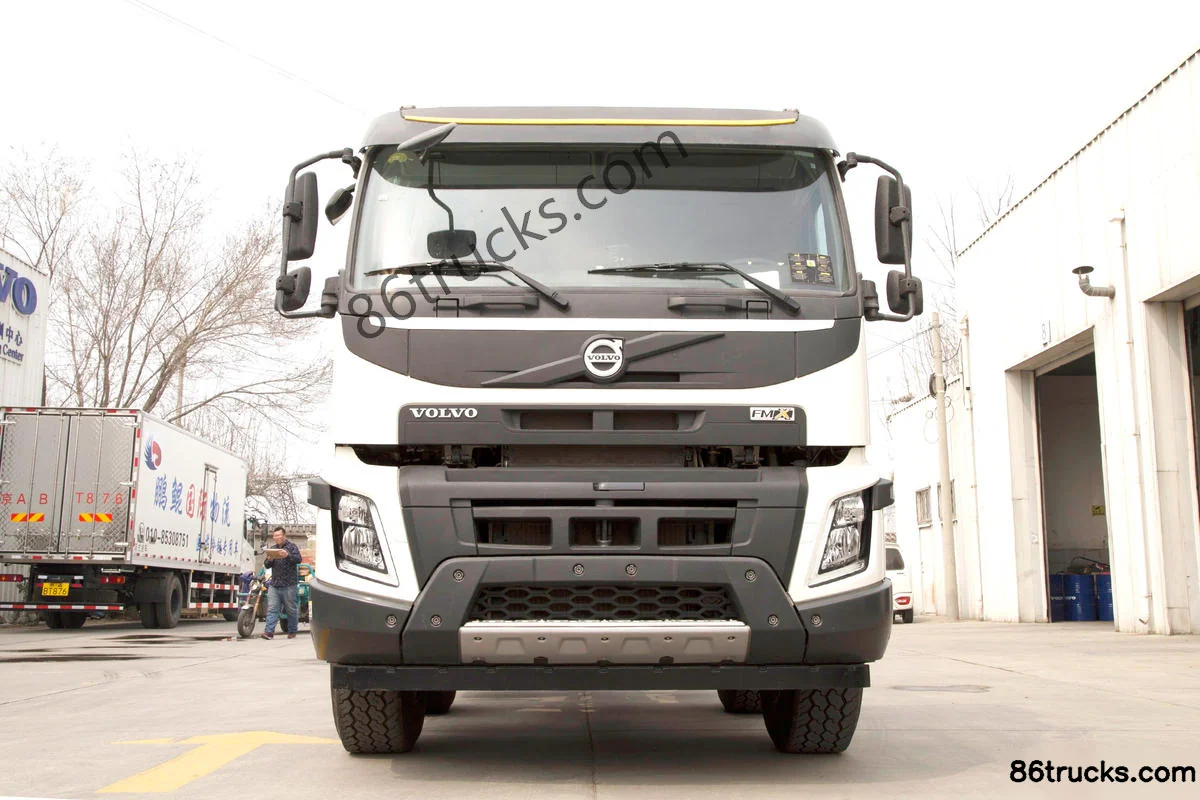

Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) Exterior (1) | 86Trucks Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) Exterior (2) | 86Trucks Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) Exterior (3) | 86Trucks

Cab3

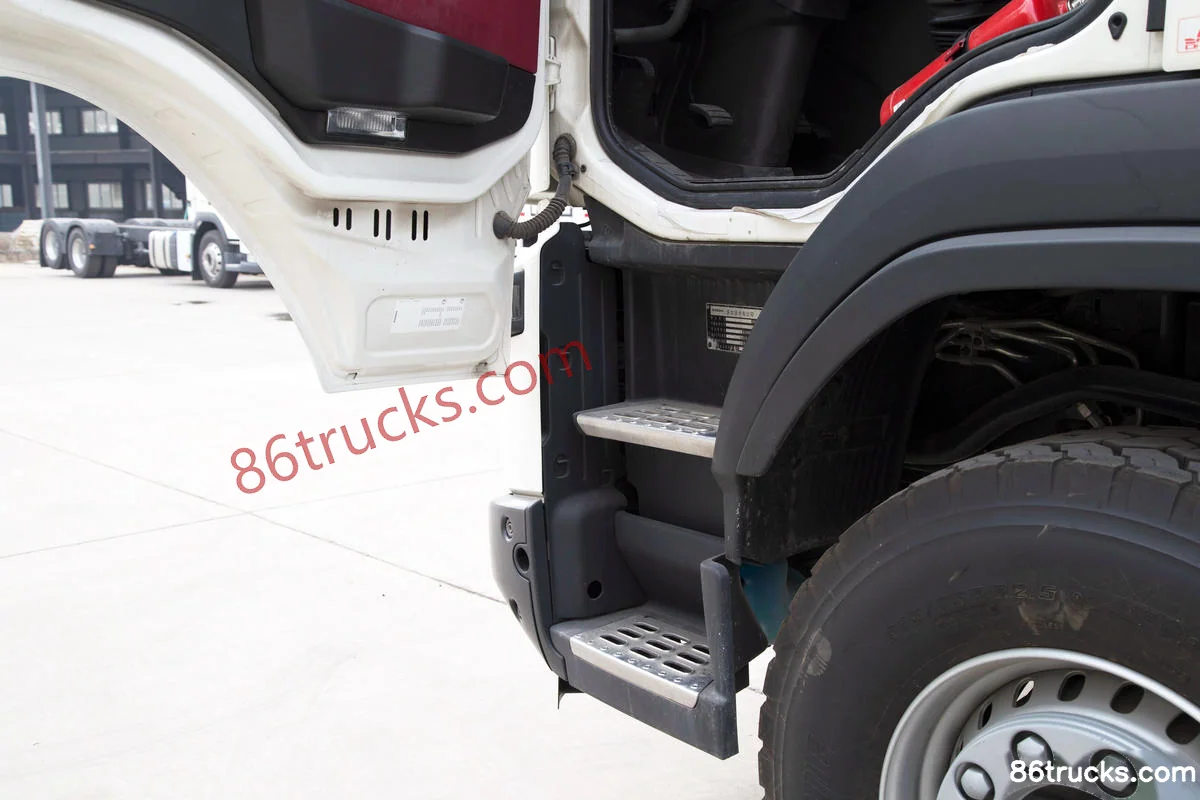

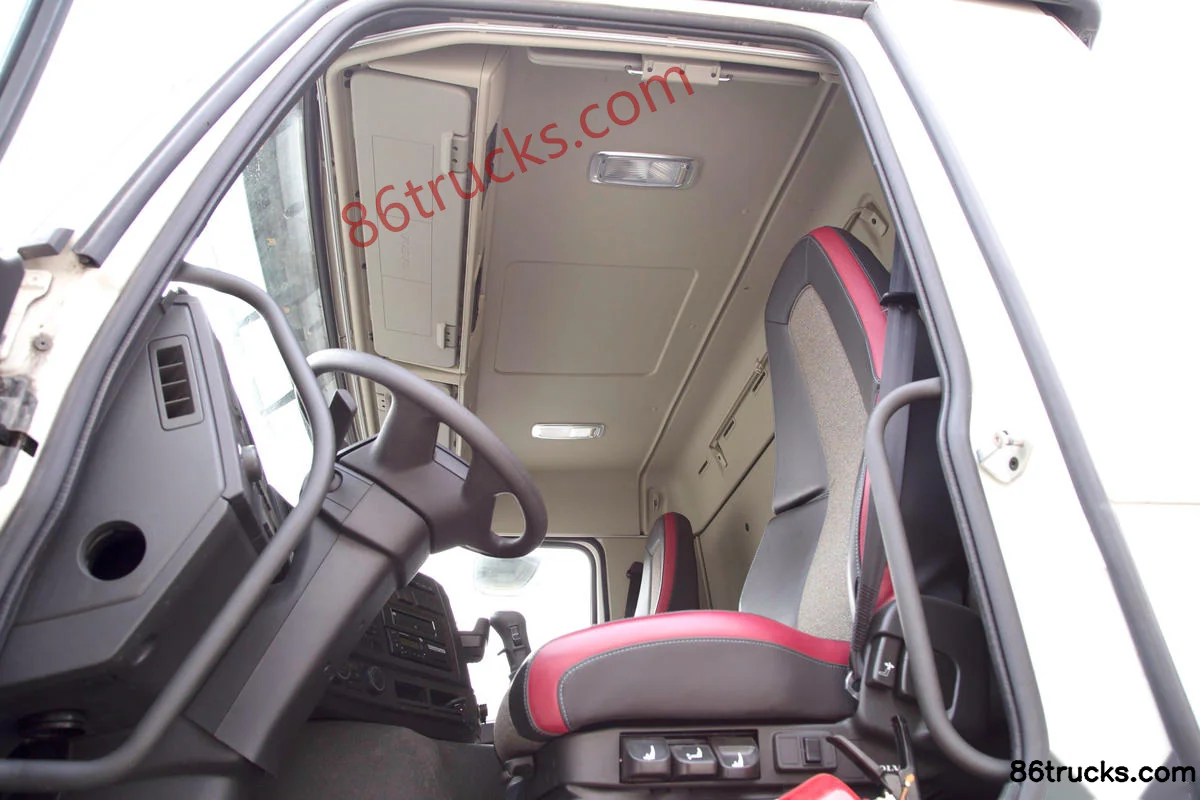

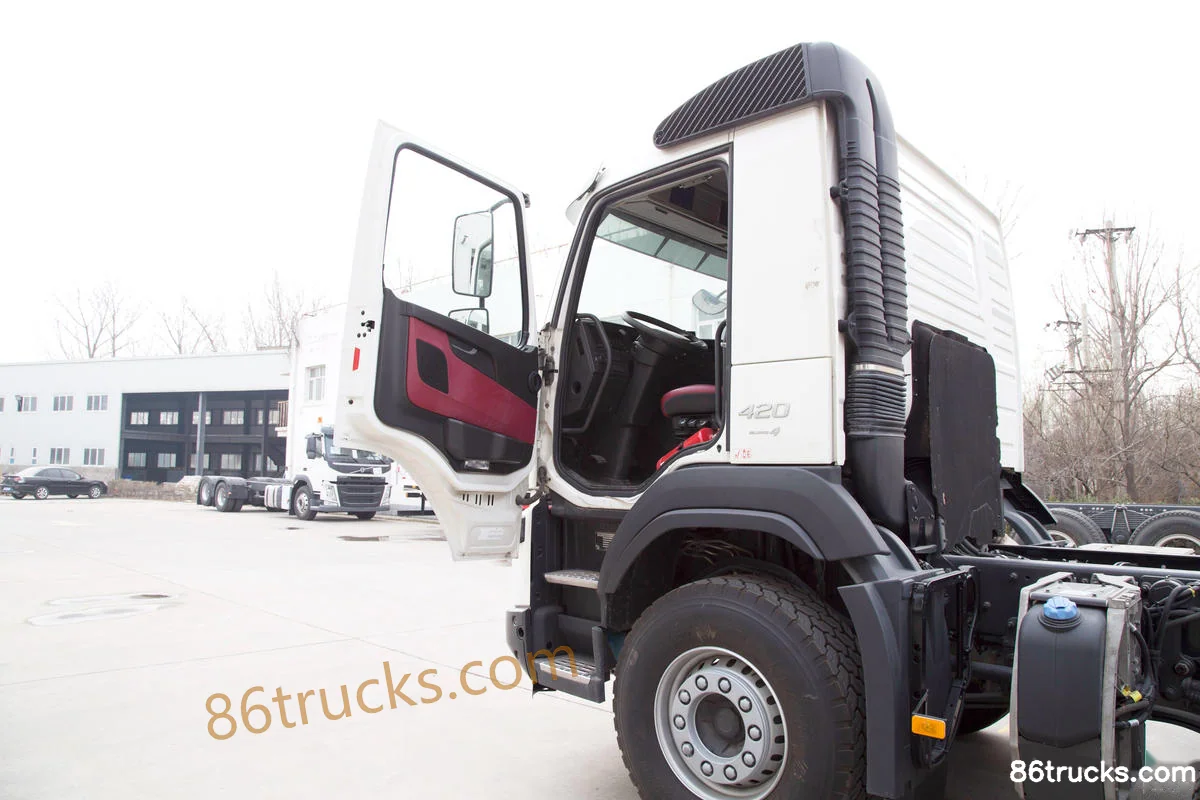

Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) Cab (1) | 86Trucks Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) Cab (2) | 86Trucks Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) Cab (3) | 86Trucks

Chassis3

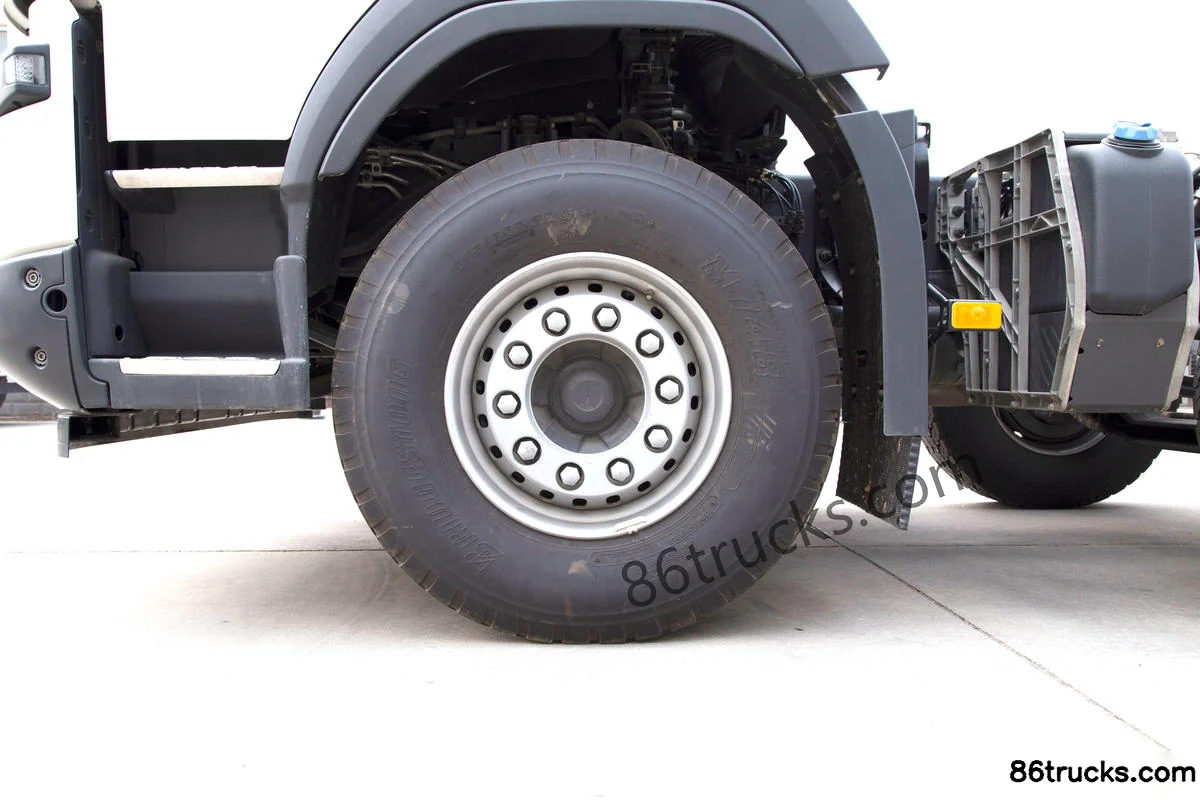

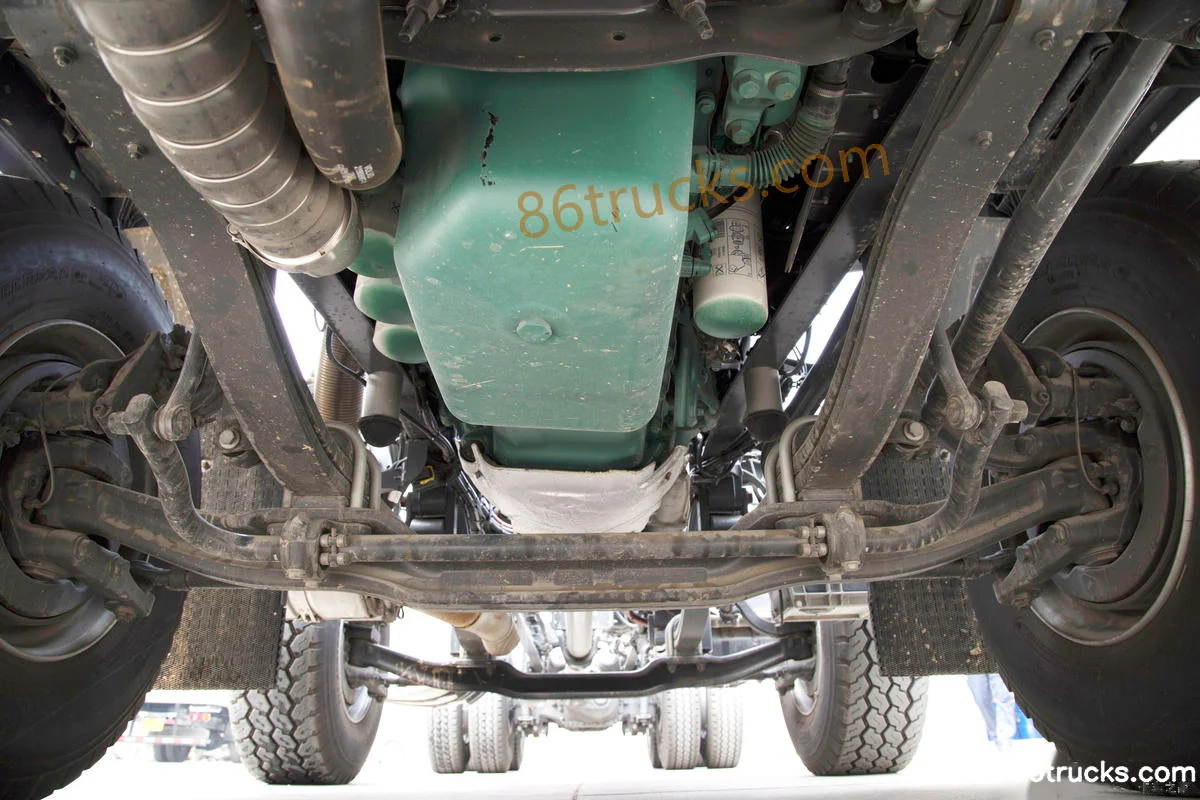

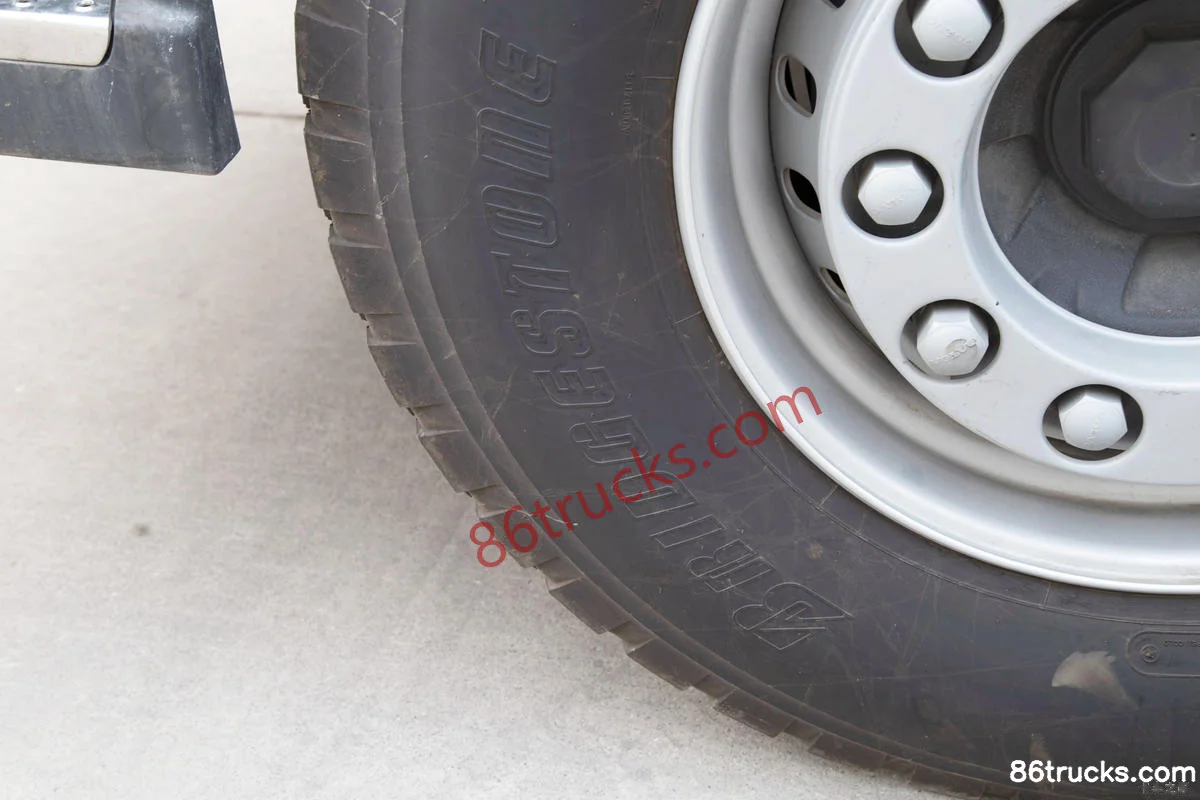

Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) (1) | 86Trucks Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) (2) | 86Trucks Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) (3) | 86Trucks

9 photos

FAQ

What emission standard does Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis)?

Key specs of Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis): Drive: 8x4; Horsepower: 420 hp; Emission: China IV; Fuel: Diesel; Transmission: Volvo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) suited for?

Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) differ from other variants in the same series?

Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis) belongs to Volvo FMX heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Volvo FMX Heavy Truck 420 hp 8X4(12 wheels) Special Vehicle (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
