Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY)

Export reference
From $15,000
MSRP ¥10.8M CNY
Horsepower: 127
Emission: China VI
Fuel: Diesel
Engine: De Wei D20
Transmission: WLY
Curb Weight:: 2.53ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) is a Light Truck featuring 3.22m cargo length, Stake type cargo body, 5Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a De Wei D20 engine, 127 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 127 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5041CCY-FM
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Yunnei PowerD20TCIF1
transmission: WLYWLY5G32
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2m
Cab height: 2.9m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.53ton
Rated payload: 1.495ton
GVWR: 4.35ton
Max. speed: 90km/h
Origin: Beijing Changping
tonnage class: Light Truck
Approach angle: 23°
departure angle: 13°
market segment: Agricultural product transport, green channel
Remarks: Optional hydraulic brake
Front/rear suspension: 1.085/1.55m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD20TCIF1
Engine info: De Wei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Max torque: 350N·m
Max torque speed: 1400-2400rpm
Rated speed: 3200rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.22m
Cargo box width: 1.9m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab width: 1800mm
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2500kg
Axle ratio: 4.33
Leaf spring count: 7/4+5
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Service brake
Brake Type: Air brake

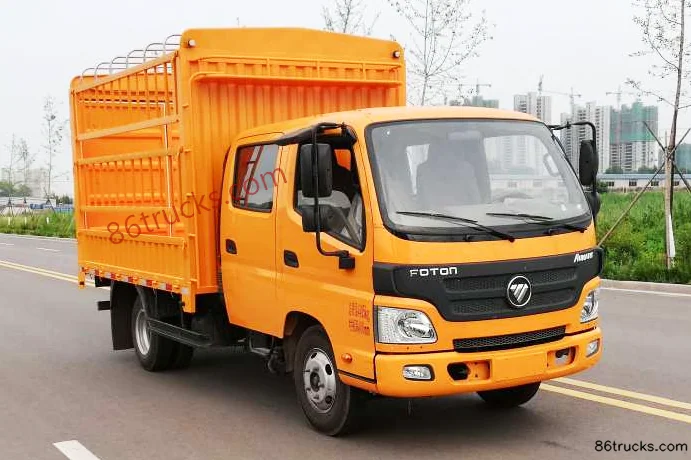

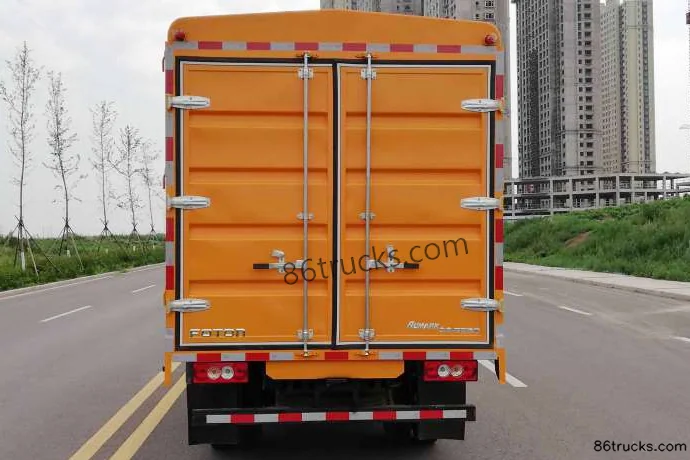

Photos

Exterior2

2 photos

FAQ

What is the export price of Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY), and what does it include?

Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) export reference is about From $15,000; MSRP is ¥10.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY)?

Key specs of Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY): Drive: 4x2; Horsepower: 127 hp; Emission: China VI; Fuel: Diesel; Engine: De Wei D20; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) suited for?

Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) differ from other variants in the same series?

Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY) belongs to Foton 1 Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aumark 1 Series 127hp 4X2(6 wheels) 3.22m Double Row Stake Truck (China VI)(WLY)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
