Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake)

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Isuzu493
Curb Weight:: 2.565ton
Wheelbase:: 3360mm
Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) is a Light Truck featuring 4.155m cargo length, stake body cargo body, 2Personnel volume and 1.735t payload. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JXW1040BDJ2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Jiangxi IsuzuJE493ZLQ5
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 2.18m
Cab height: 2.315m
Front track width: 1565mm
rear track: 1508mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 20°
departure angle: 16°
market segment: Daily industrial goods transport
Remarks: Optional driver's seat with shock absorber
Front/rear suspension: 1.09/1.545m
Version: Flagship Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Jiangxi Isuzu
Engine Model: Jiangxi IsuzuJE493ZLQ5
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.155m
Cargo box width: 1.94m
Cargo box height: 0.4m
*Cargo box interior width: 1.9400000572205
Cab parameters
Cab width: 1880mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1840kg
rear axle allowable load: 2655kg
Leaf spring count: 3/2+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Reverse Camera:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Service brake
Exhaust brake:
hydraulic retarder:
smart configuration
Cruise control (CCS):

Photos

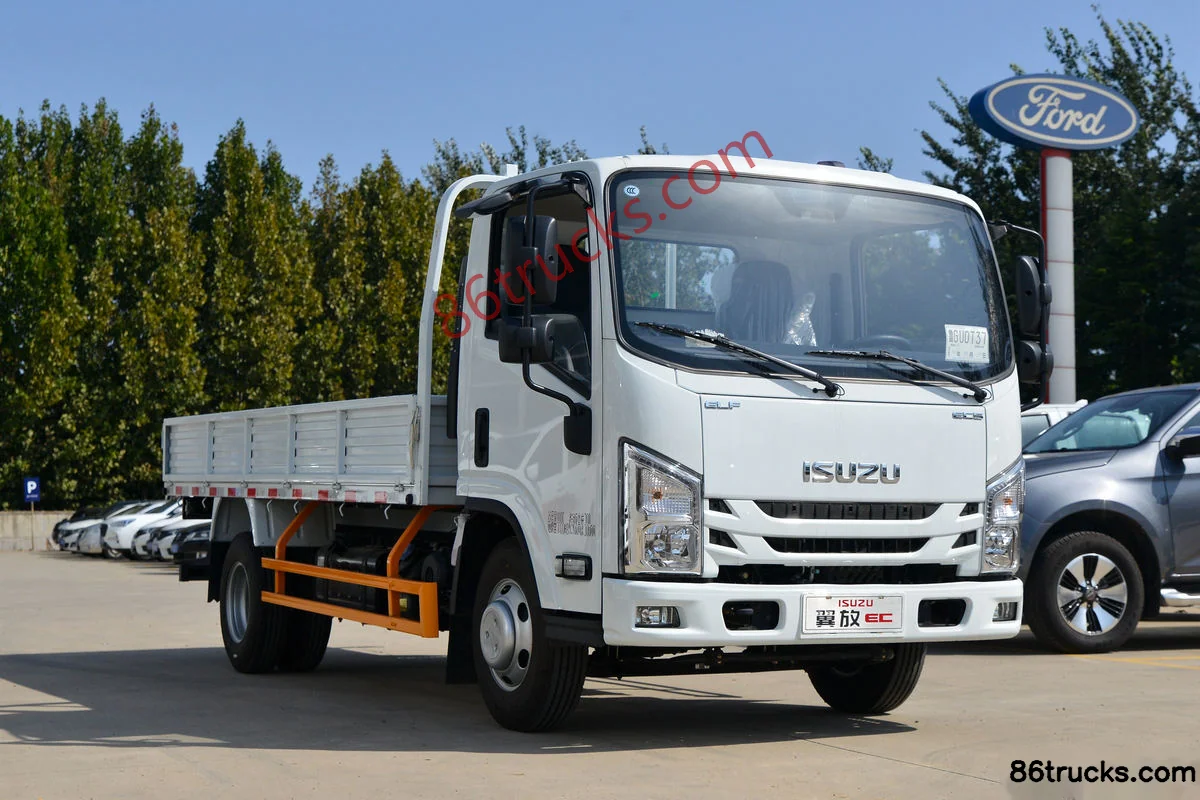

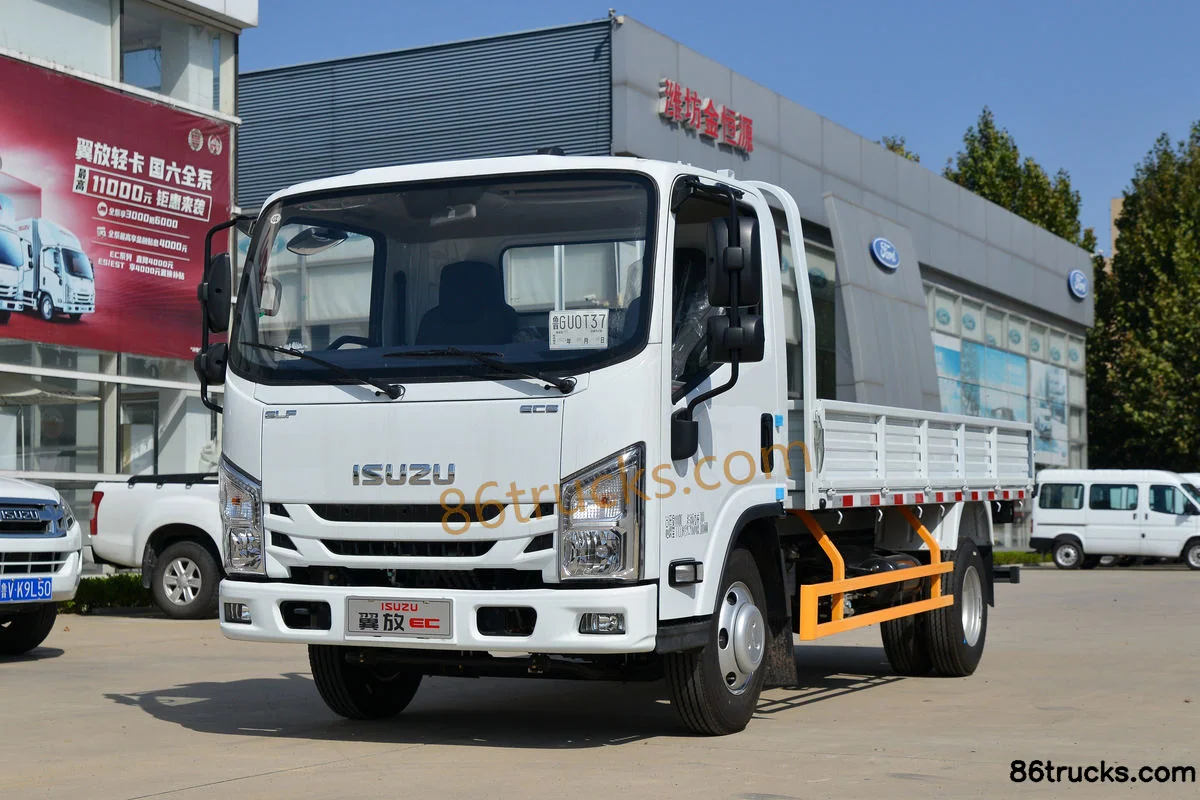

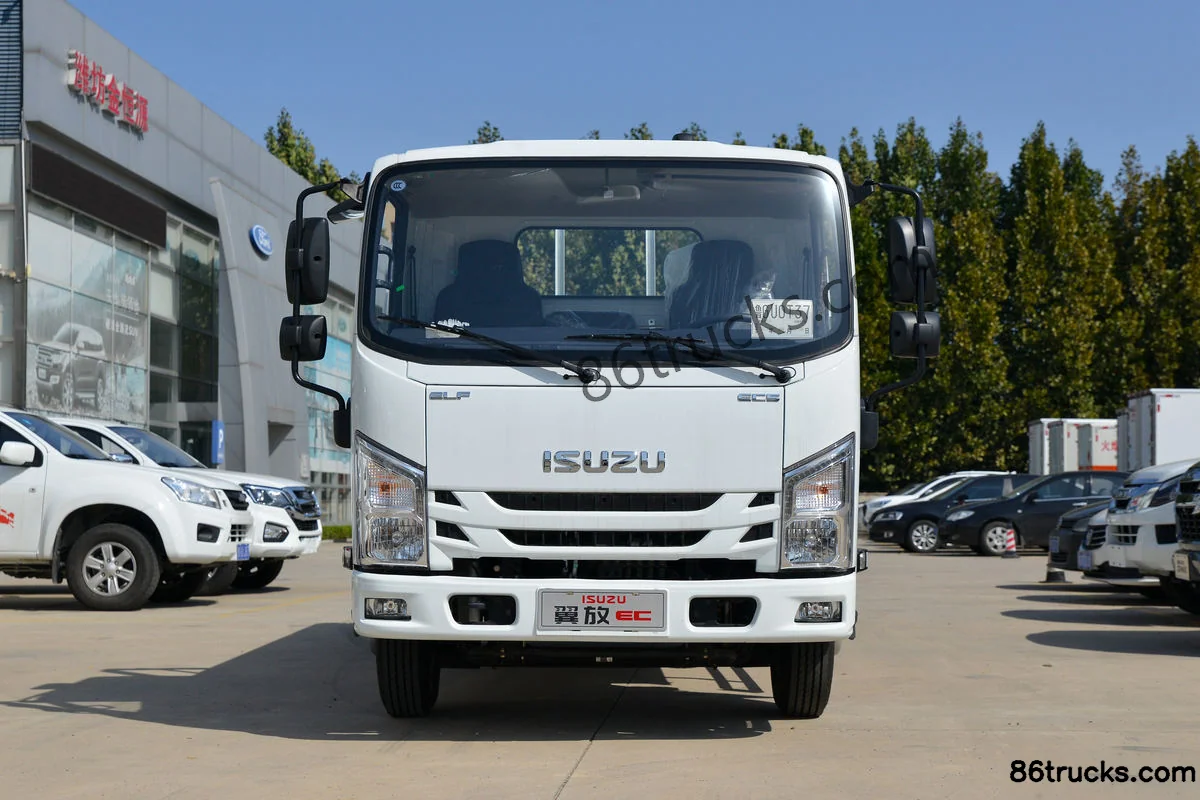

Exterior3

Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Exterior (1) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Exterior (2) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Exterior (3) | 86Trucks

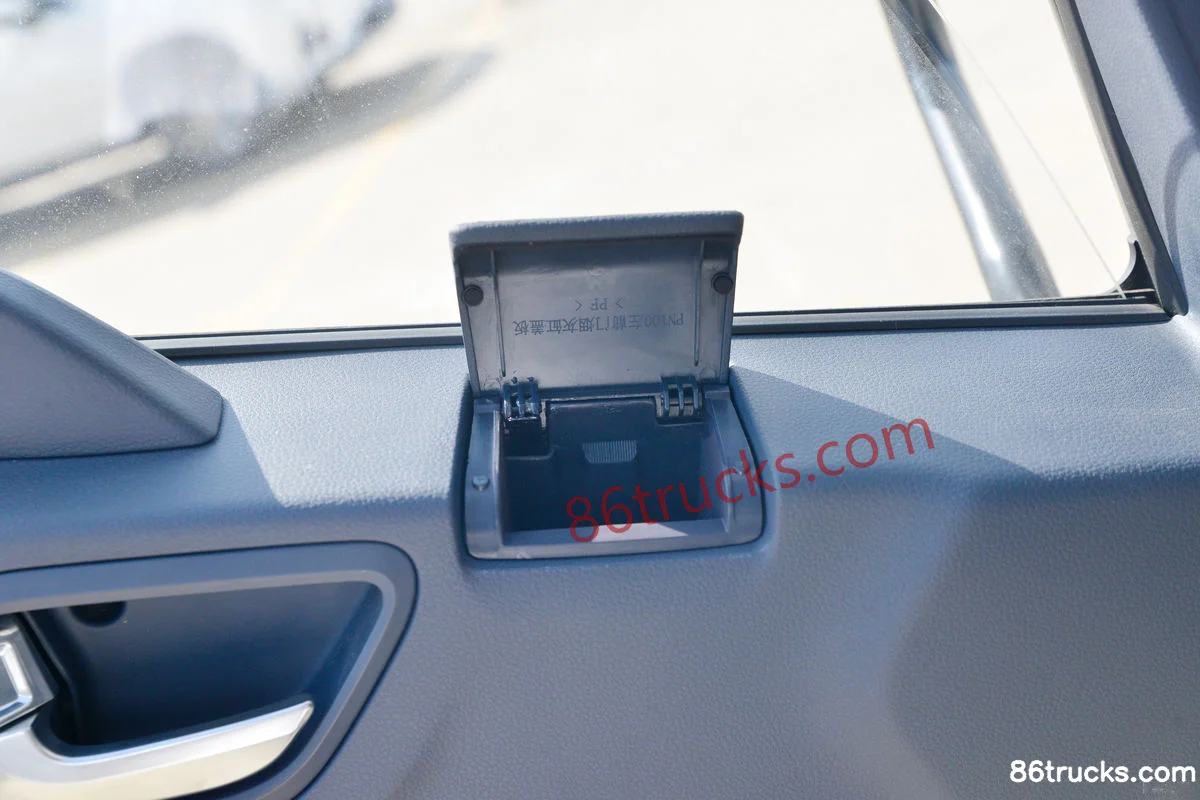

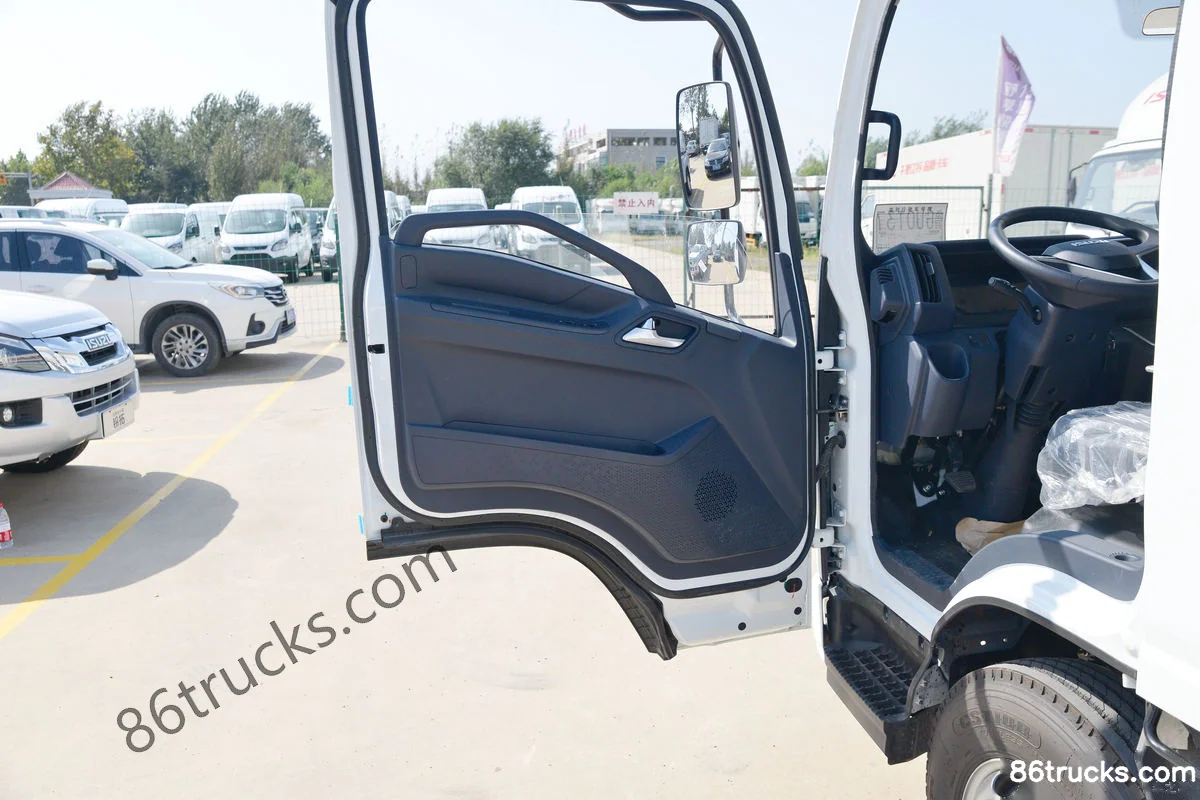

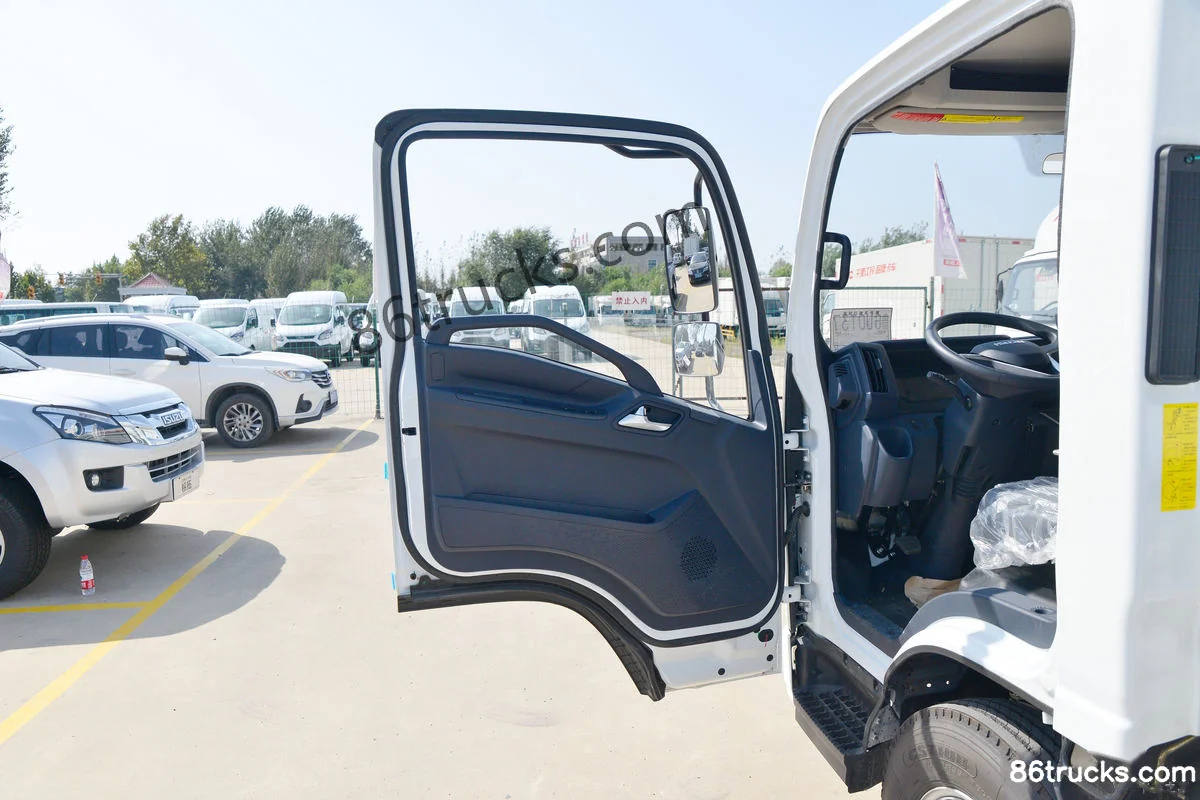

Cab3

Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Cab (1) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Cab (2) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Cab (3) | 86Trucks

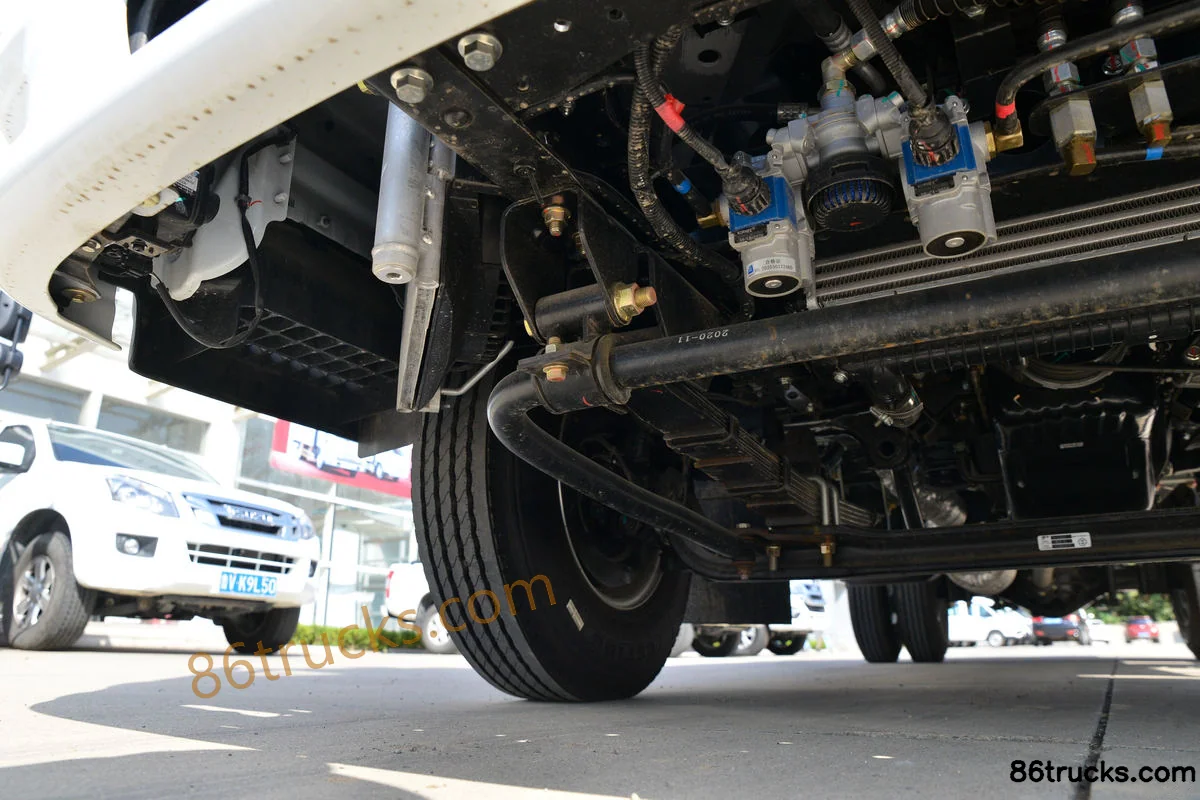

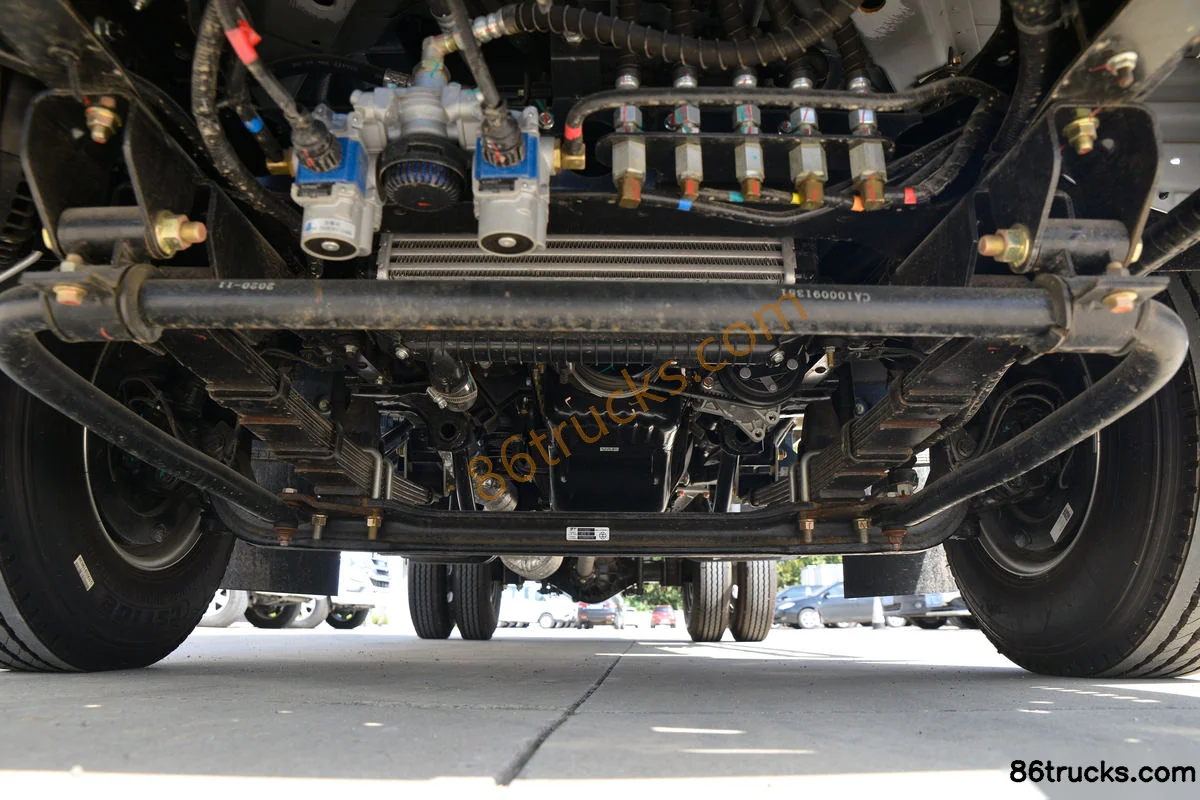

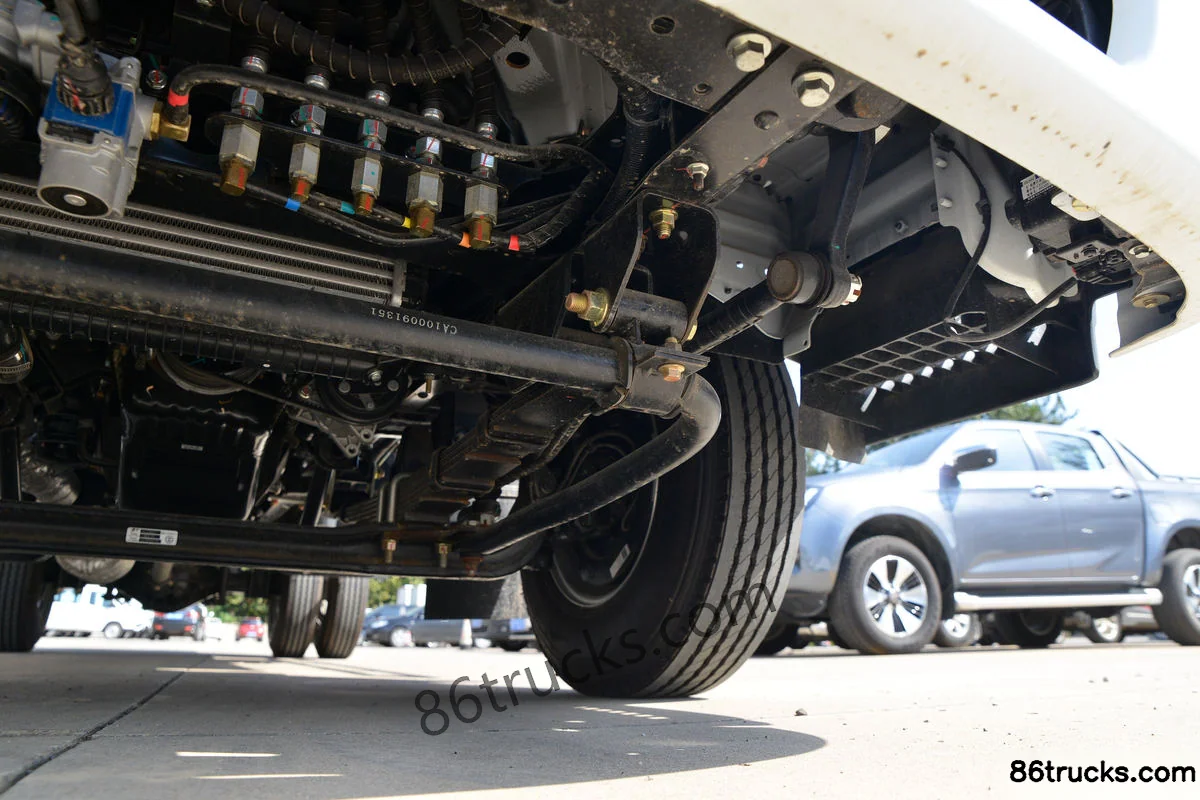

Chassis3

Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Chassis (1) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Chassis (2) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Chassis (3) | 86Trucks

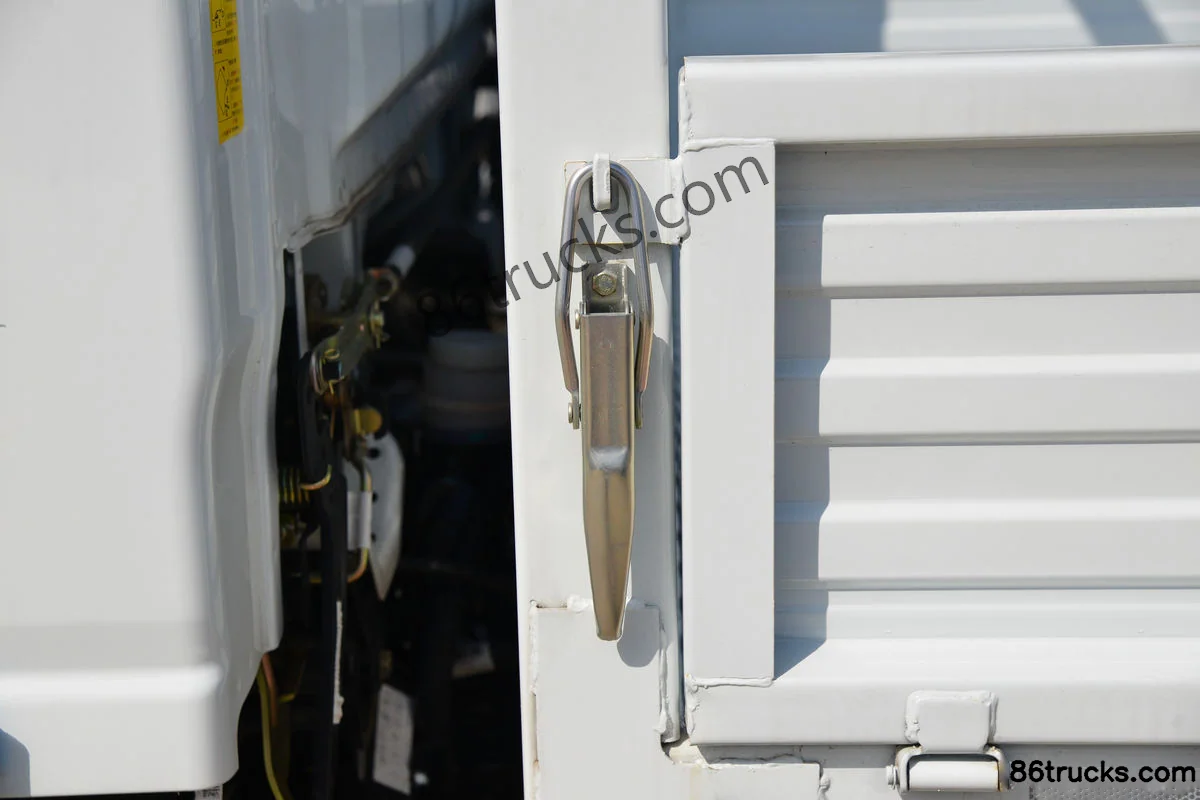

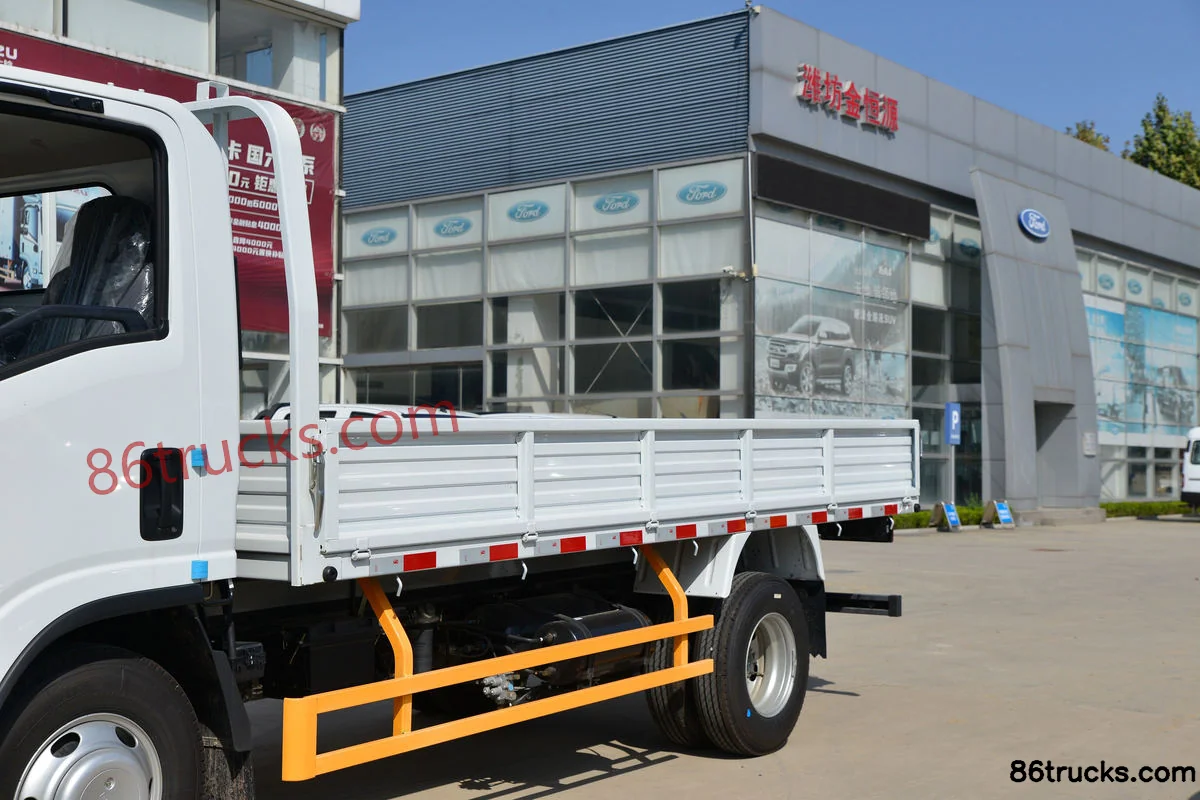

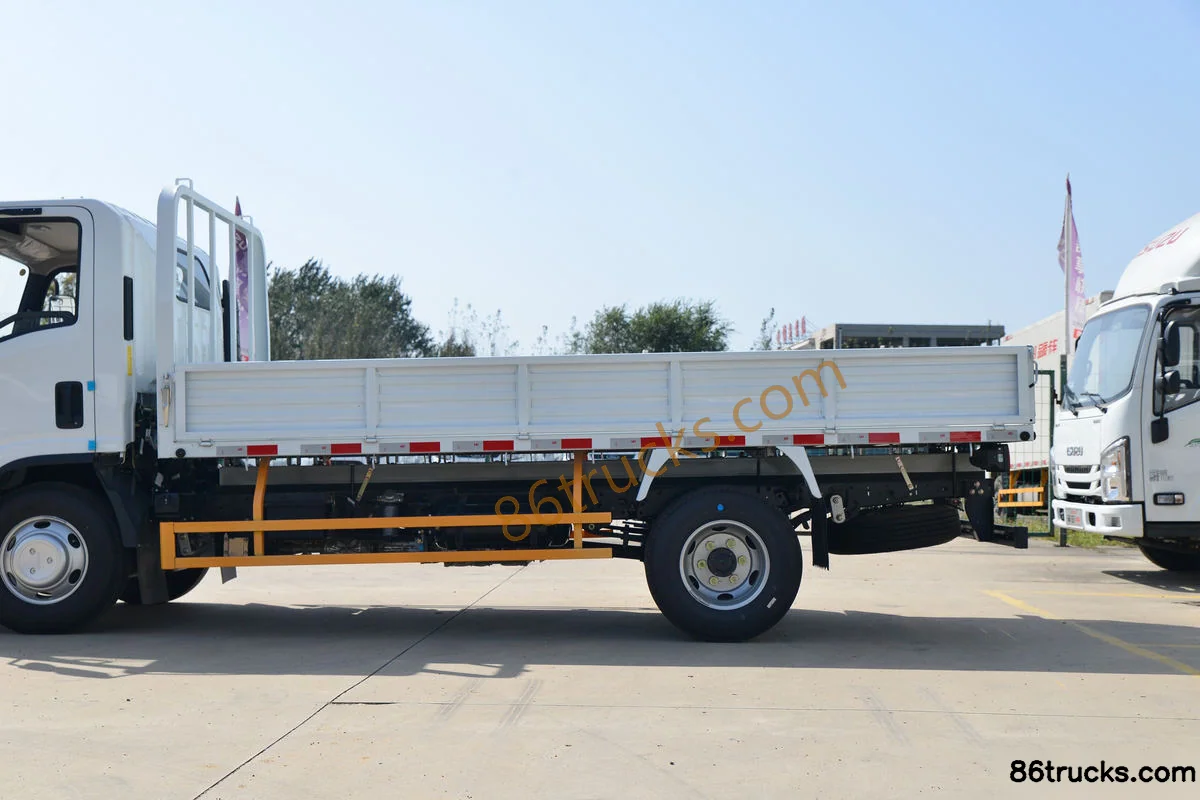

Body3

Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Body (1) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Body (2) | 86Trucks Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake)?

Key specs of Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake): Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu493. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) suited for?

Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) differ from other variants in the same series?

Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake) belongs to Jiangxi Isuzu Yifang EC Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jiangxi Isuzu Yifang EC5 Flagship 116hp 4X2(6 wheels) 4.155m single-row flatbed light truck (hydraulic brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
