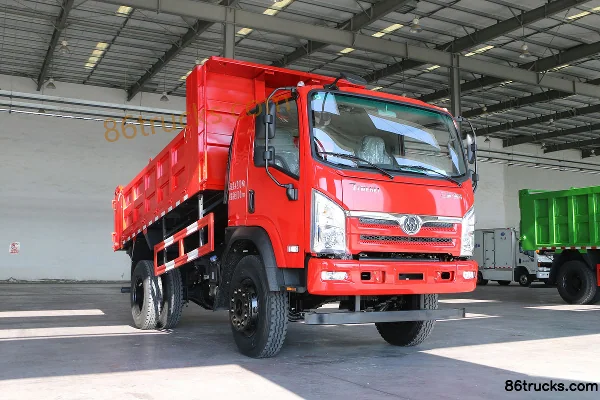

Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck

Export reference
From $19,167
MSRP ¥13.8M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.975ton
Wheelbase:: 3300mm
Tire Size:: 7.50R16LT 6PR,8.25R16LT 6PR
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Rear-dump body

Overview

The Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck is a Light Truck featuring 0.995t payload, 4.165t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP3.7Q130E50 engine, 130 hp, China V emissions and Fast Gear transmission.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ2043L02Y2E5
Drive type: 4X2
Wheelbase: 3300mm
engine: WeichaiWP3.7Q130E50
transmission: Fast Gear8JS85F
Rear Axle Ratio: 5.143
Cab length: 5.995m
Cab width: 2.49m
Cab height: 2.75m
Front track width: 1750,1842mm
rear track: 1640,1750mm
Curb Weight: 2.975ton
Rated payload: 0.995ton
GVWR: 4.165ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 30°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3.7Q130E50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.66L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1400-1800rpm
Rated speed: 2900rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.8m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: T3
Cab width: 1995mm
fuel tank
Fuel tank capacity: 140L
Chassis Specs
Front axle description: 2.7T
Front axle allowable load: 1705kg
rear axle description: 153
rear axle allowable load: 2460kg
Axle ratio: 5.143
Leaf spring count: 8/11+8
Tire
Tire Size: 7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What is the export price of Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck, and what does it include?

Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck export reference is about From $19,167; MSRP is ¥13.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck?

Key specs of Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck suited for?

Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke 130hp 4X2(6 wheels) 3.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
