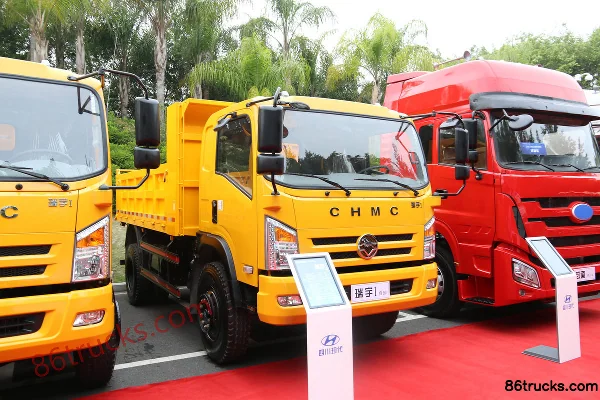

Sichuan Hyundai Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck
EXW
From $34,444
Export quote
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu
Main model photos
49 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sichuan Hyundai Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck | 4x2 / 180hp / China V | From $34,444 | |
| Sichuan Hyundai Ruiyu 160 hp 6X2(8 wheels) 4.7m dump truck | 6x2 / 160hp / China V | From $30,278 | |
| Sichuan Hyundai Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck | 6x2 / 180hp / China V | From $34,444 | |
| Sichuan Hyundai Ruiyu 160 hp 6X2(8 wheels) 4.7m dump truck | 6x2 / 160hp / China V | From $25,833 | |
| Sichuan Hyundai Ruiyu Light Truck 160hp 4X2(6 wheels) 4.68m Dump Truck | 4x2 / 160hp / China IV | From $26,111 |
Sichuan Hyundai Ruiyu 160 hp 6X2(8 wheels) 4.7m dump truck
EXW
From $30,278
Export quote
Sichuan Hyundai Ruiyu 180 hp 6X2(8 wheels) 4.7m Dump Truck
EXW
From $34,444
Export quote
Sichuan Hyundai Ruiyu 160 hp 6X2(8 wheels) 4.7m dump truck
EXW
From $25,833
Export quote

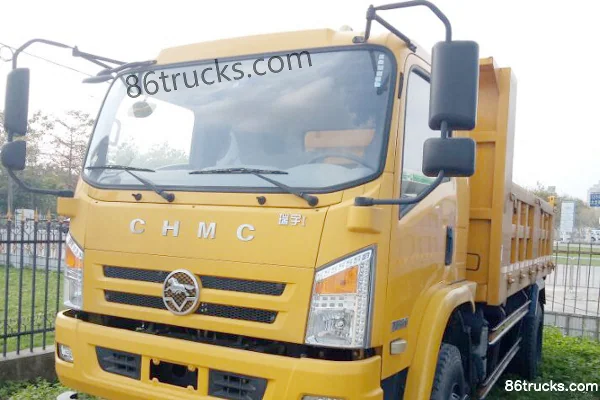

Sichuan Hyundai Ruiyu Light Truck 160hp 4X2(6 wheels) 4.68m Dump Truck
EXW
From $26,111
Export quote
Series Specs
Basic Info
Model code (announced): CNJ3240RPC43V / CNJ3230RPC43V / CNJ3180RPC43V / CNJ3120ZQP39M / CNJ3040RPC37M / CNJ3160ZGP37M / CNJ3120ZGP38M
Drive type: 4X2 / 6X2
Wheelbase: 1700+2600 / 3950 / 3700 / 3850mm
Engine Model: YuchaiYC6JA180-50 / YuchaiYC4E160-56 / YuchaiYC4E160-42 / YuchaiYC4D130-41 / YuchaiYC4E160-45 / YuchaiYC4E140-46
Transmission Model: Fast Gear10JS90A / 6-speed transmission / Fast Gear8-85CY1KQ / WLYWLY6HQ-53DY3Q / Fast Gear8JS85F / Fast Gear8JS85E
Rear Axle Ratio: 6.333 / 6.833 / 6.83
Cab length: 7.45 / 7.05 / 5.995 / 6.75 / 6.89 / 6.697m
Cab width: 2.34 / 2.44 / 2.36 / 2.38 / 2.46 / 2.467m
Cab height: 3.017 / 2.98 / 3.05 / 2.7 / 2.745m
Front track width: 1780/1780 / 1940 / 1780 / 1750 / ,1900mm
rear track: 1750 / 1860 / 1660mm
Curb Weight: 8.38 / 8.07 / 6.83 / 2.72 / 7.6 / 6.7ton
Rated payload: 15.925 / 14.285 / 9.995 / 4.95 / 1.58 / 8 / 4.99ton
GVWR: 24.5 / 22.55 / 18.26 / 11.975 / 4.495 / 15.795 / 11.885ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 18 / 28°
departure angle: 14 / 24°
Remarks: Overall width optional 2.44 m (corresponding cargo box width optional 2.3 m); Cargo box height optional 1 m/1.5 m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Number of cylinders: 6 / 4cylinder
Displacement: 6.87 / 4.26 / 4.214L
Emission standard: China V / China IV
Max output power: 132 / 118 / 96 / 103kW
Max hp: 180 / 160 / 130 / 140Horsepower
Max torque: 700 / 600 / 550 / 420 / 430N·m
Max torque speed: 1200-1800 / 1300-1600 / 1400-1800rpm
Rated speed: 2300 / 2600 / 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection / Electronic unit pump SCR / Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic unit pump
Transmission Parameters
Transmission Brand: Fast Gear / WLY
shift method: Manual
Forward gears: 10 / 6 / 8Gear
Number of Reverse Gears: 2 / 1pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.7 / 4.68 / 4.4 / 4.3 / 4.5m
Cargo box width: 2.2 / 2.3 / 2.16 / 2.26m
Cargo box height: 1.2 / 0.8m
Cab parameters
Cab: Ruiyu 180 / Ruiyu 160
FAQ
What kind of truck is Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu Medium Truck Dump Trucks?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu Medium Truck is an export-oriented Dump Trucks lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu export reference is about $23,333 – $34,444. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu cover?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu mainly covers: Drive: 4x2 / 6x2; Horsepower: 160 hp / 180 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu?
For Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is Dump Trucks typically used for?
Dump Trucks is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu include?
Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hyundai Commercial Vehicle Sichuan Hyundai Ruiyu?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
