Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck

Export reference
From $20,319
MSRP ¥14.63M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 5.95ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20 18PR
Rated payload: 11.855ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Rear dump type

Overview

The Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck is a Medium-duty truck featuring 11.855t payload, 18t GVW, Rear dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY30180-66 engine, 180 hp, China VI emissions and Fast Gear transmission.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV3181GP6D1
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYCY30180-66
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.83
Cab length: 6m
Cab width: 2.41m
Cab height: 2.85m
Front track width: 1810mm
rear track: 1750mm
Curb Weight: 5.95ton
Rated payload: 11.855ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCY30180-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 132kW
Max hp: 180Horsepower
Transmission Parameters
Transmission Model: 10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump type
Cargo box type: Rear dump type
Cargo box length: 3.8m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 232×80/7+4mm
rear axle allowable load: 11500kg
Axle ratio: 6.83
Leaf spring count: 8/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

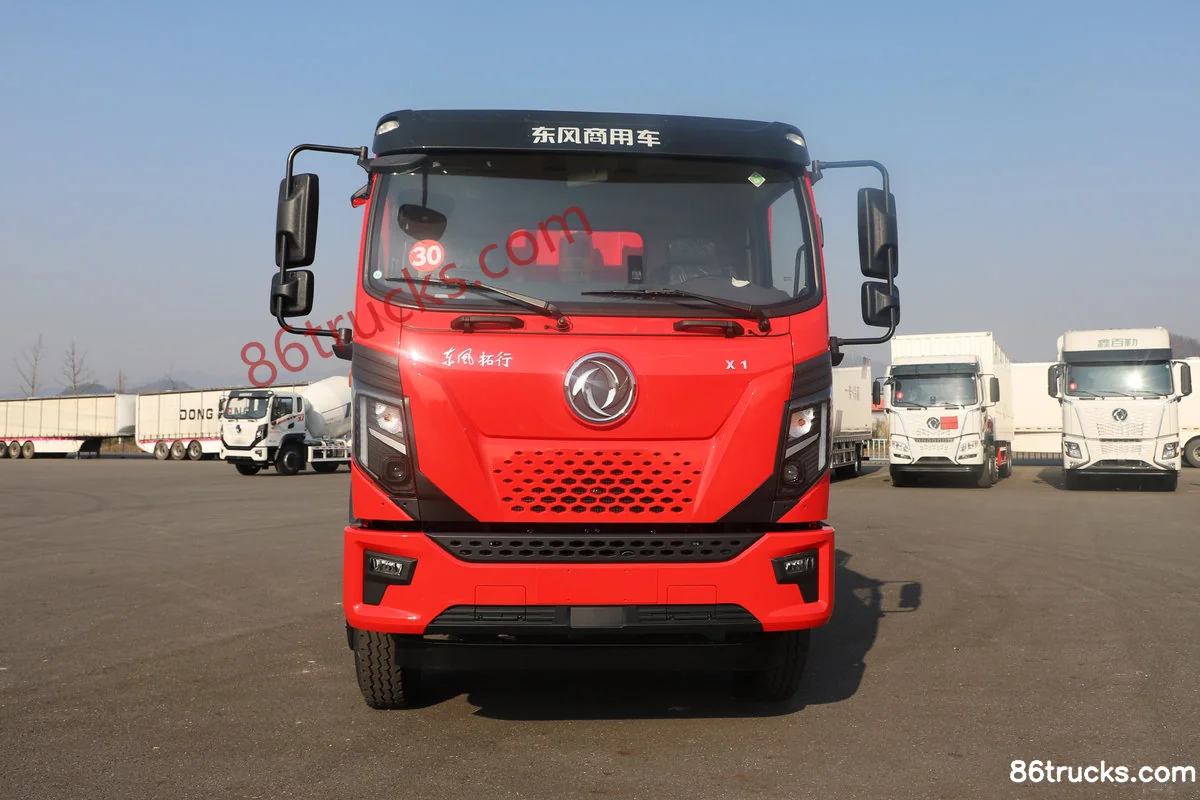

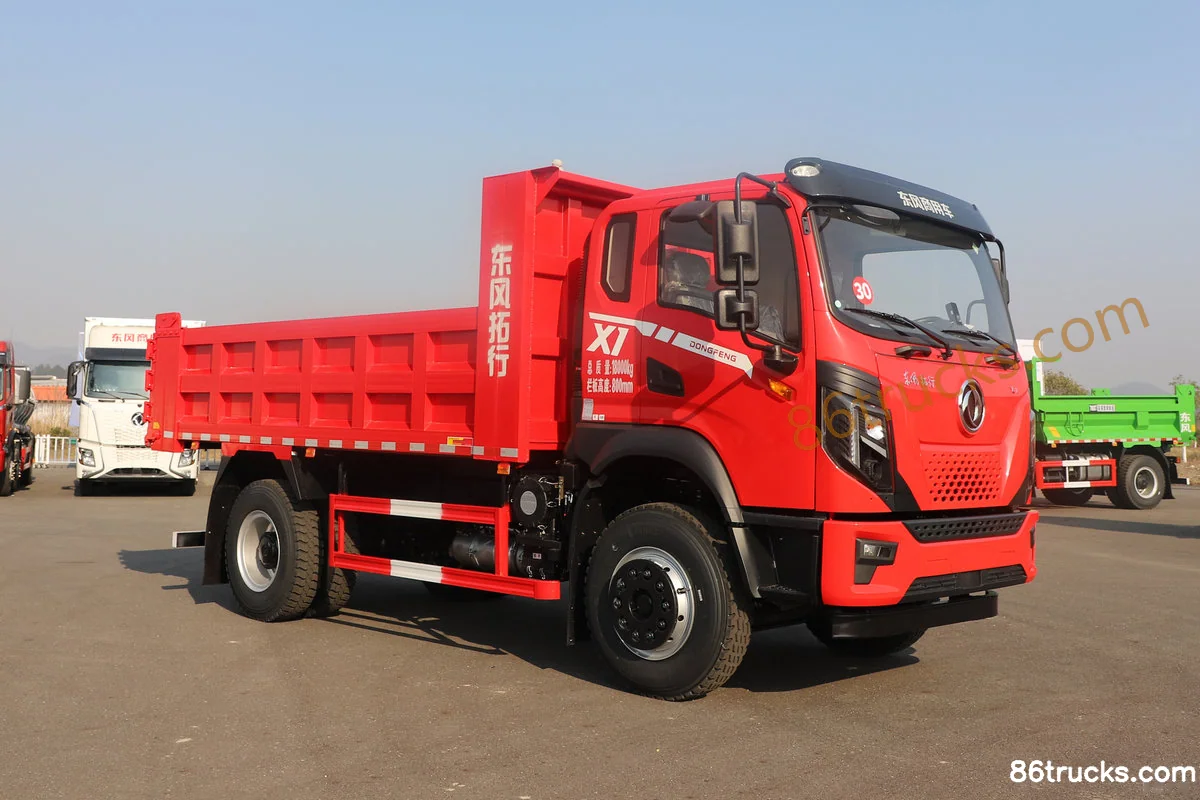

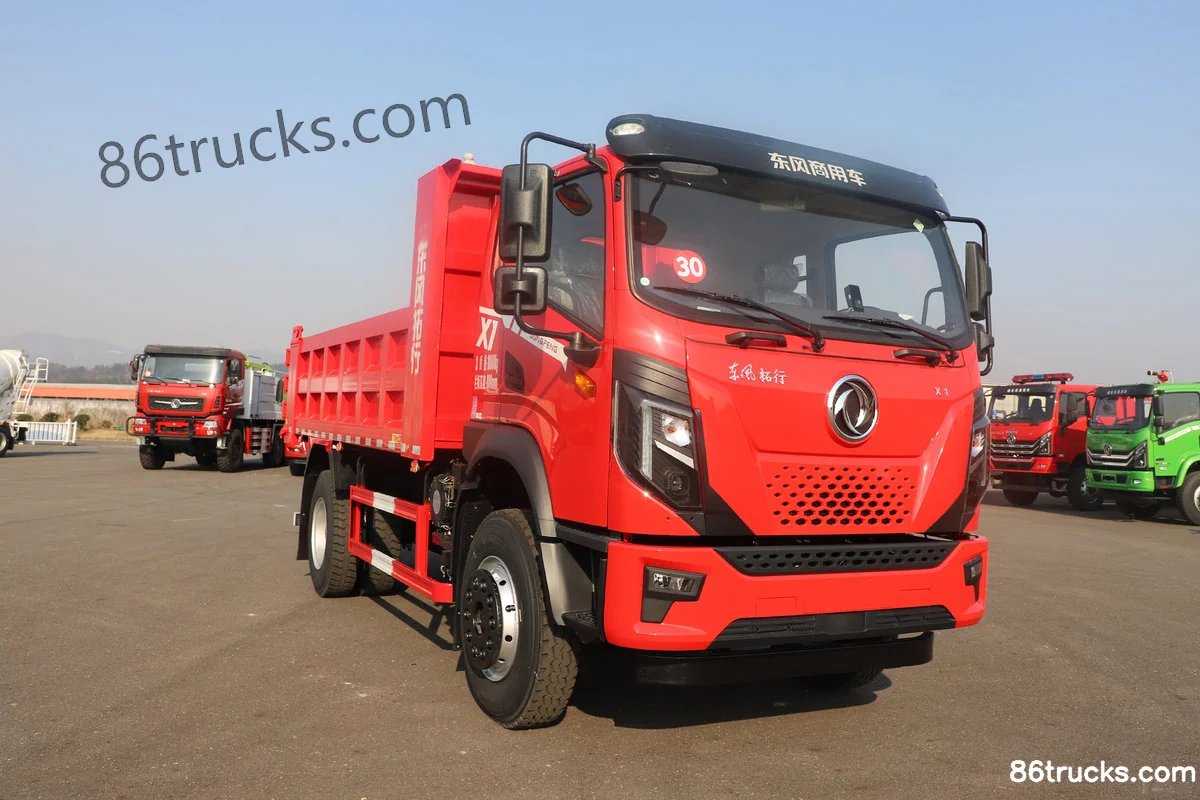

Exterior3

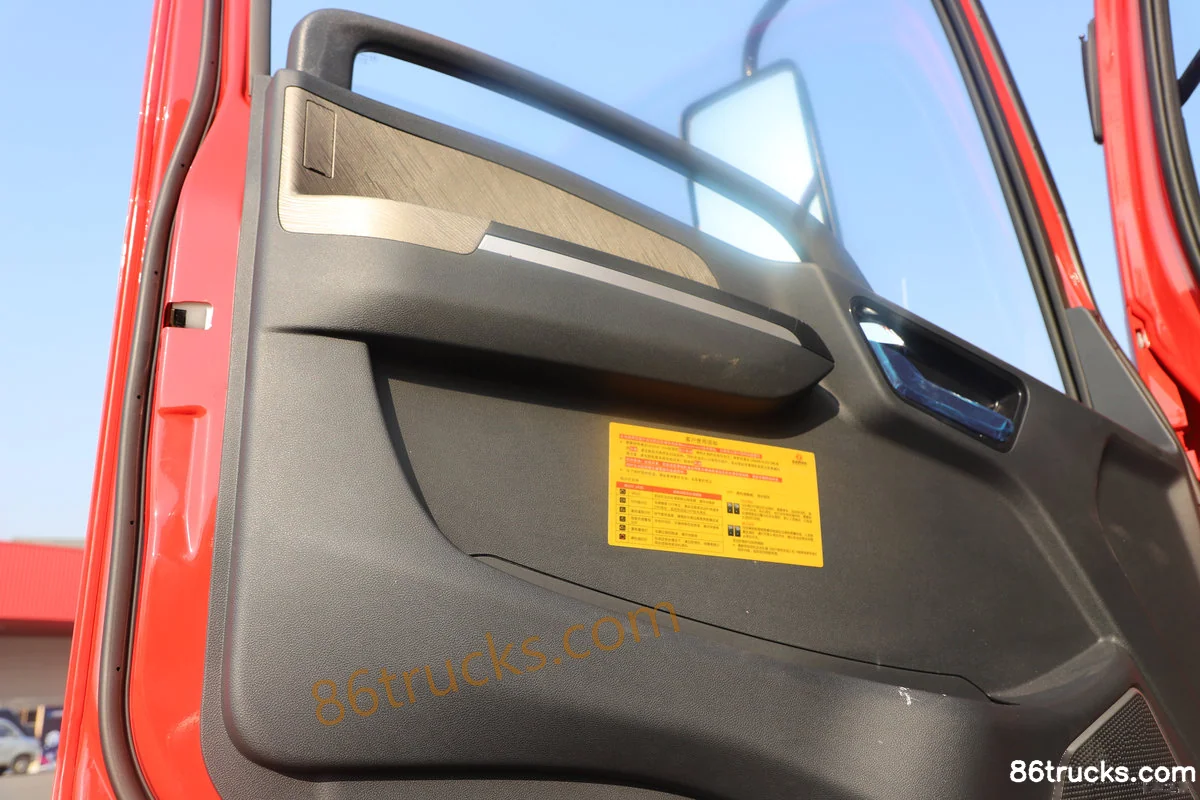

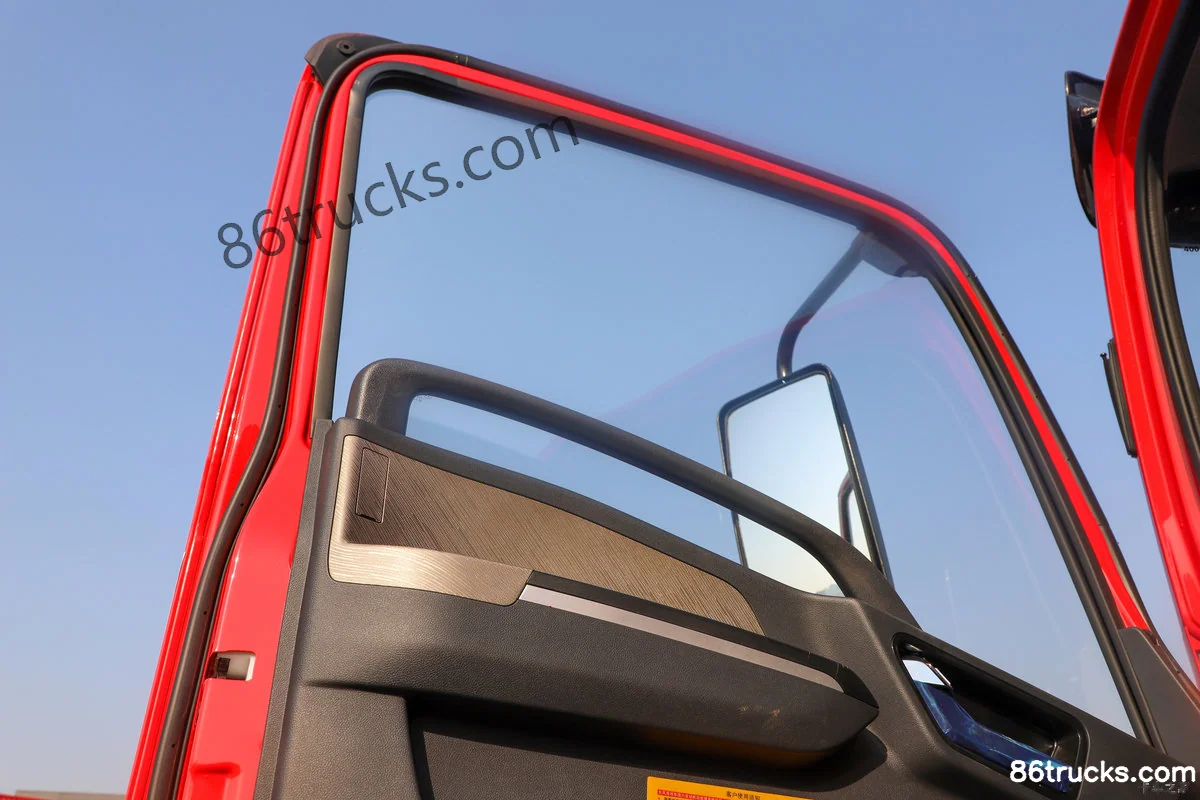

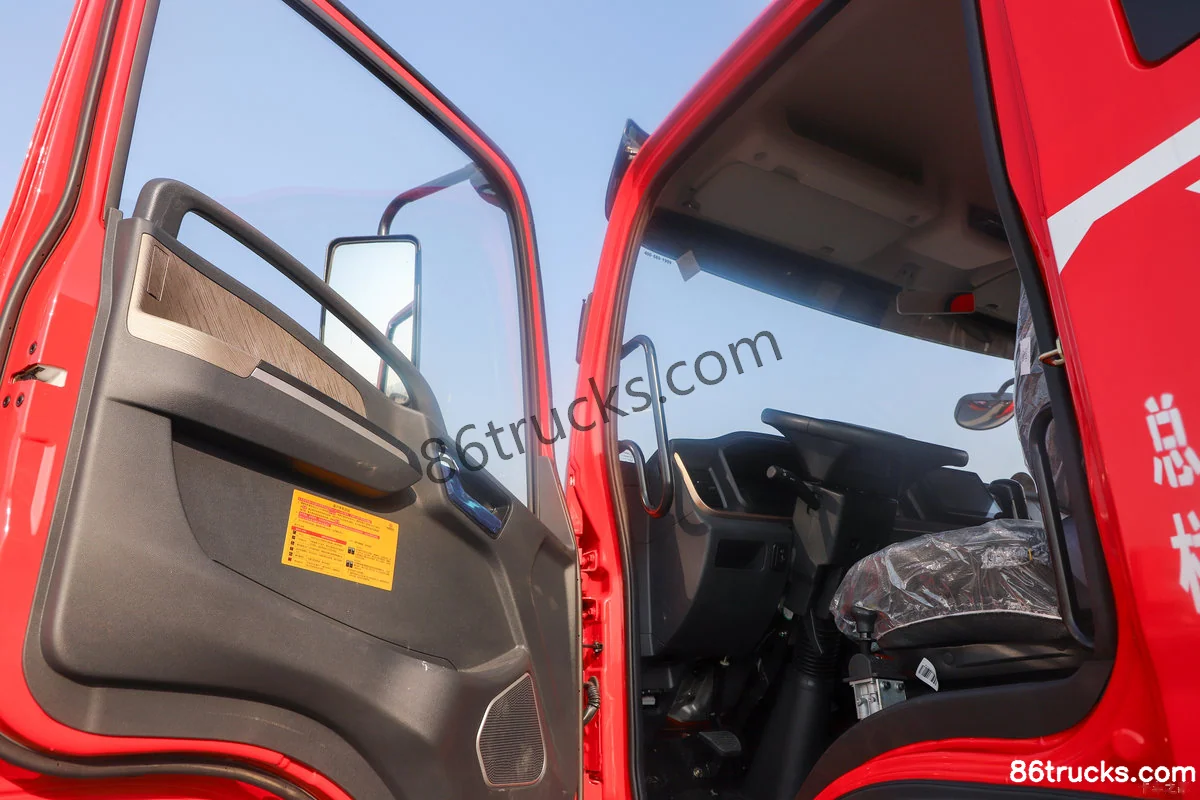

Cab3

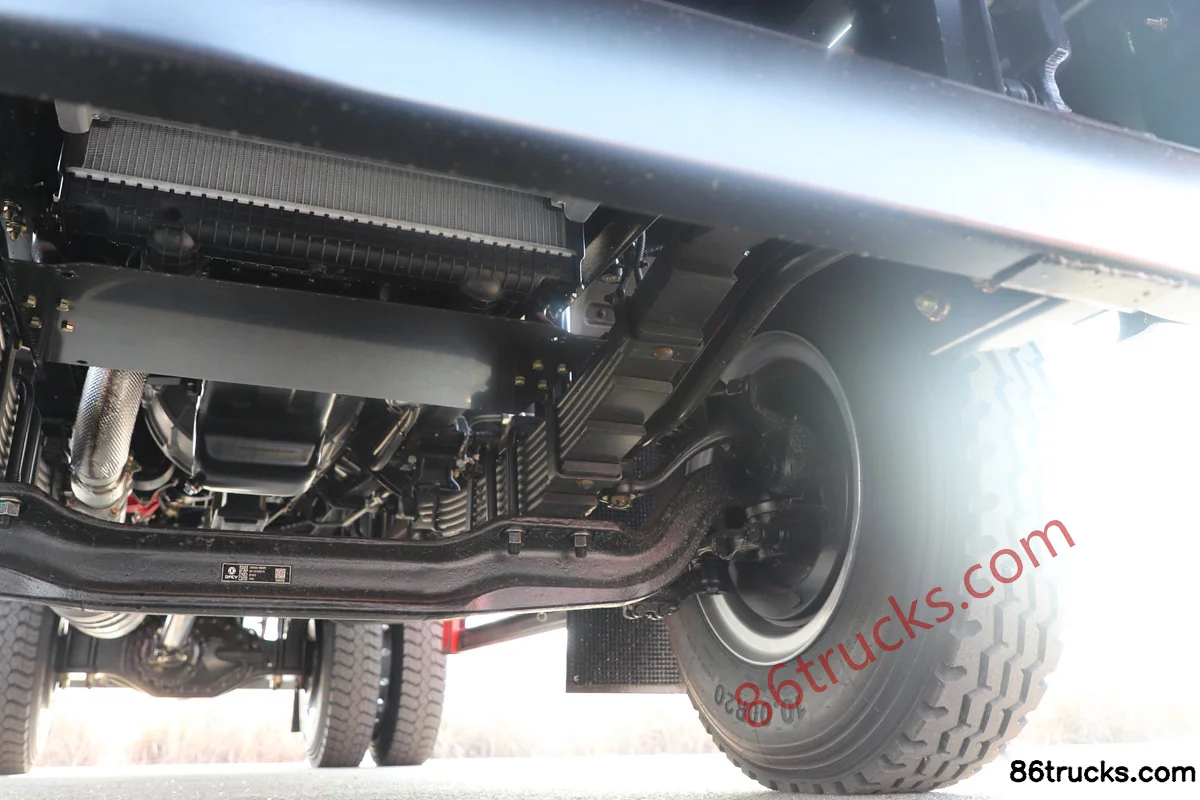

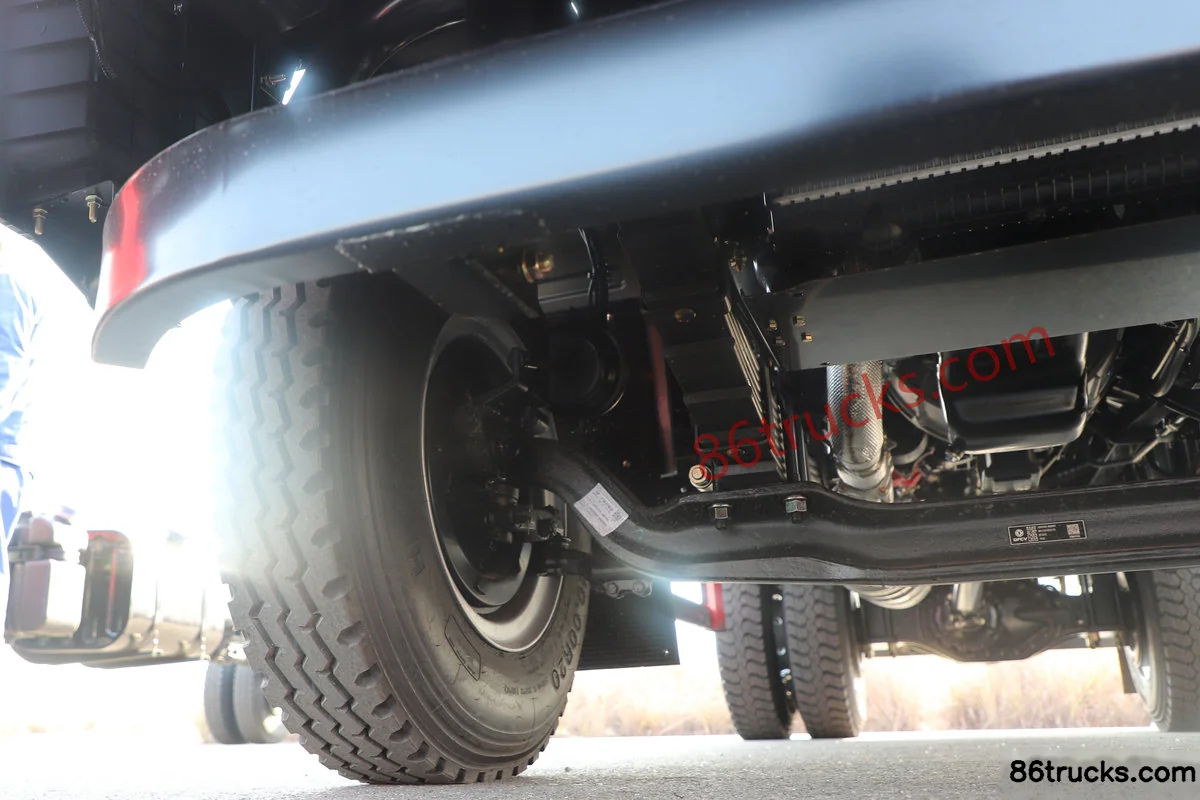

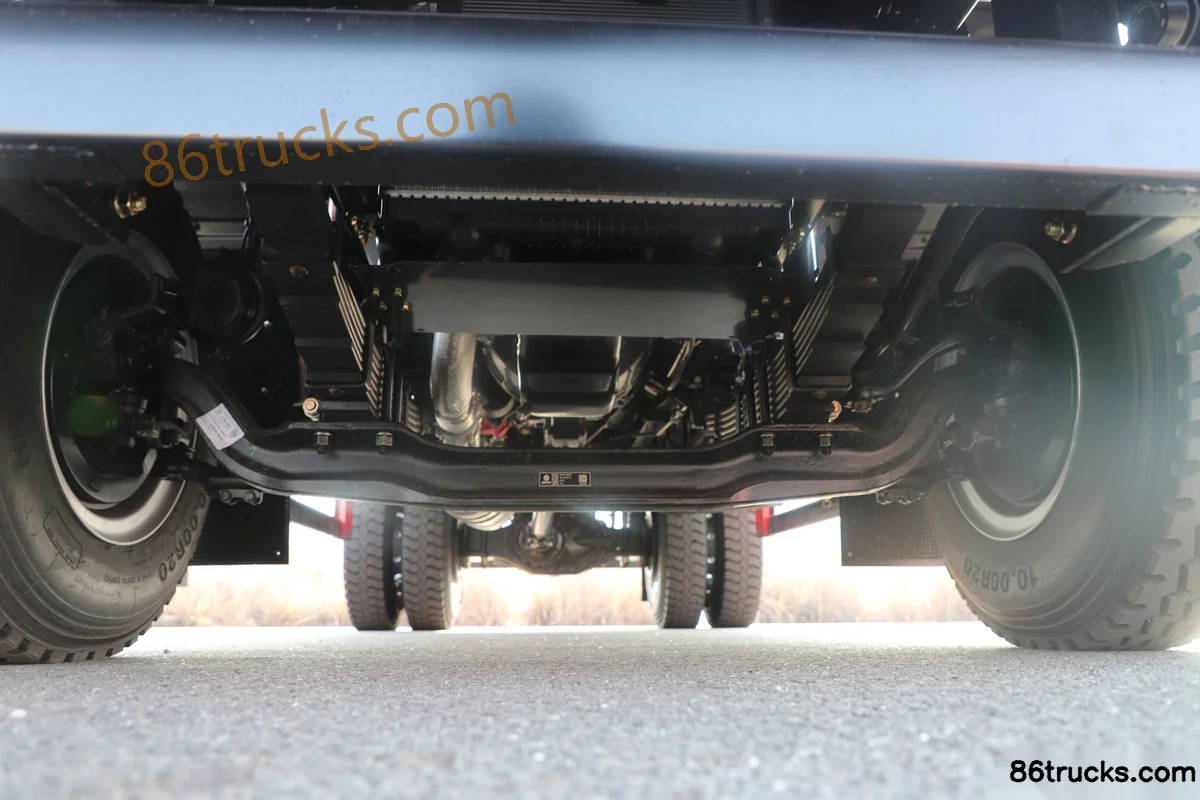

Chassis3

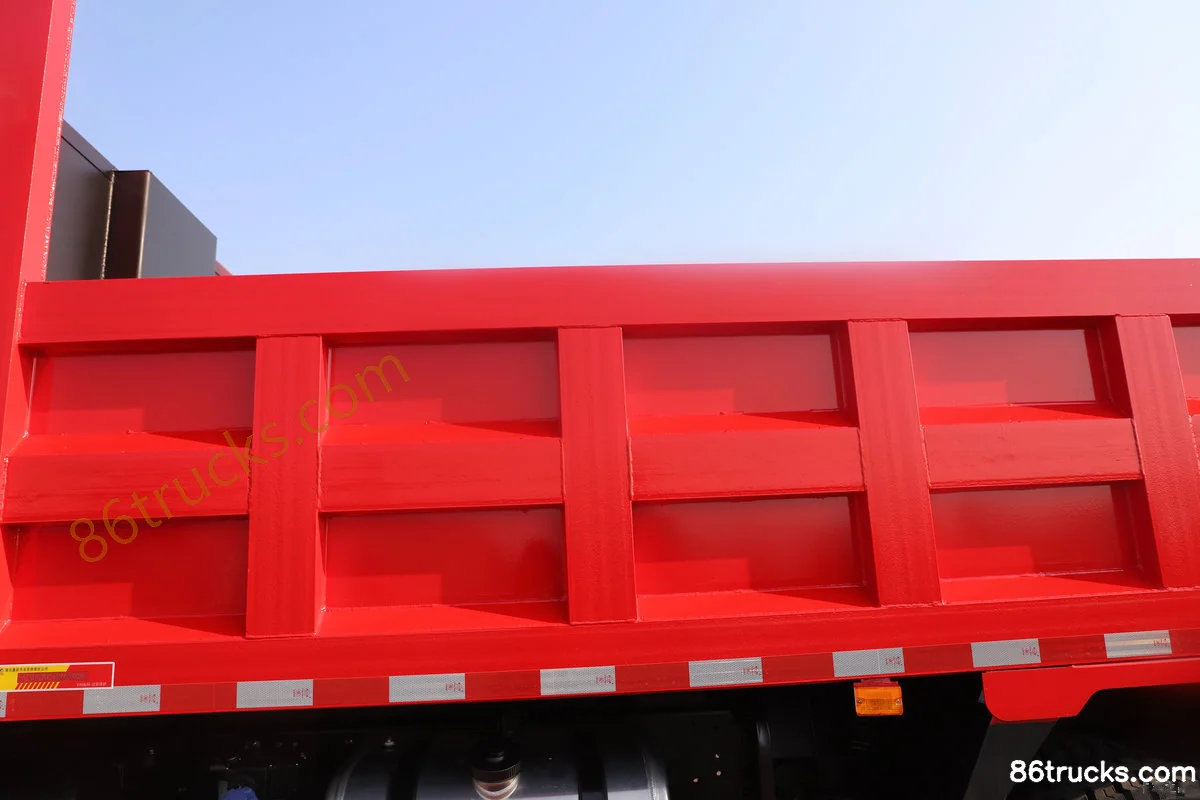

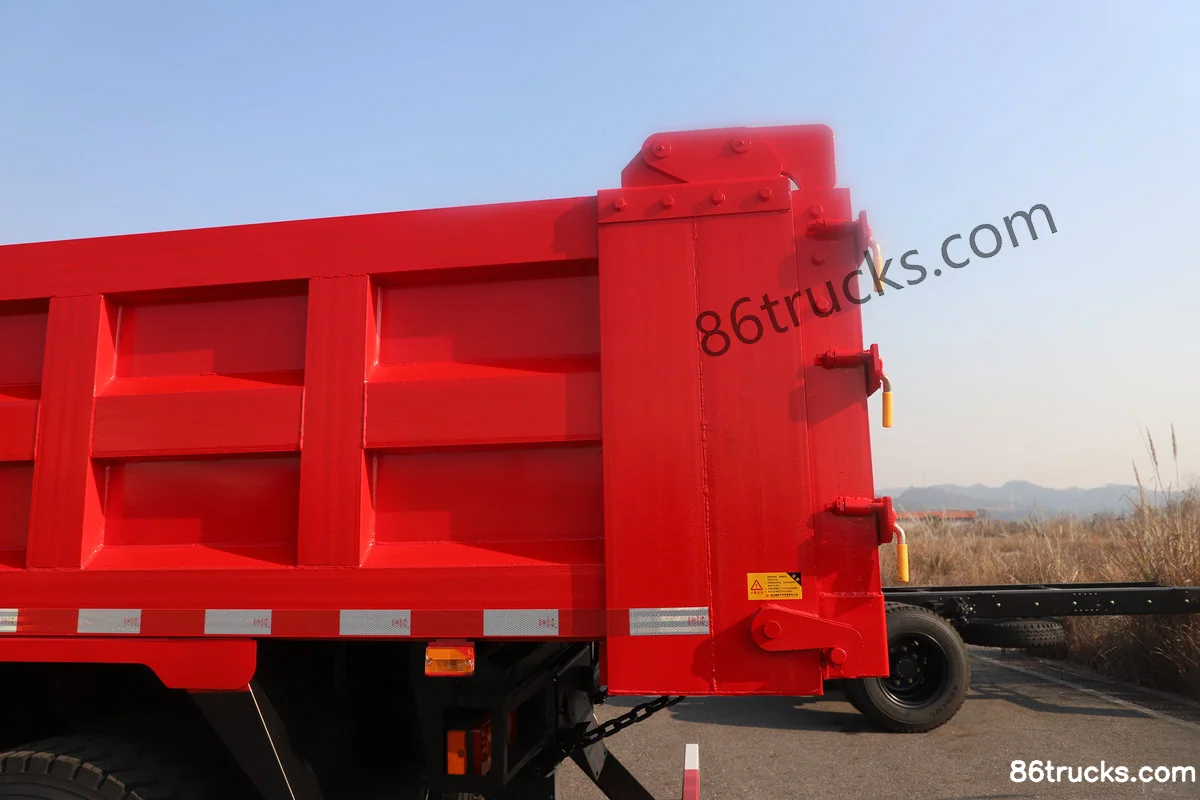

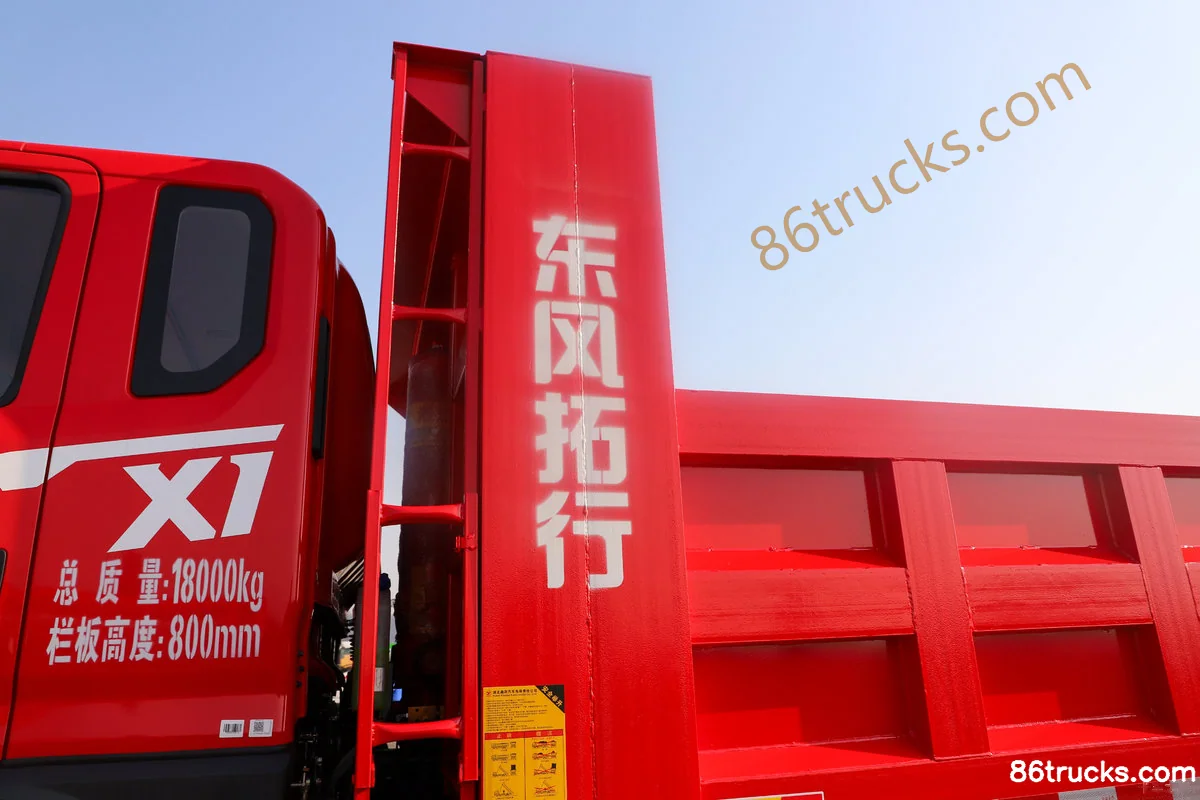

Body3

12 photos

FAQ

What is the export price of Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck, and what does it include?

Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck export reference is about From $20,319; MSRP is ¥14.63M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck?

Key specs of Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck suited for?

Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck differ from other variants in the same series?

Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck belongs to Dongfeng Tuoxing X1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing X1 3L Diesel 180 hp 4X2(6 wheels) Fast Gear 10-Speed 3.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
