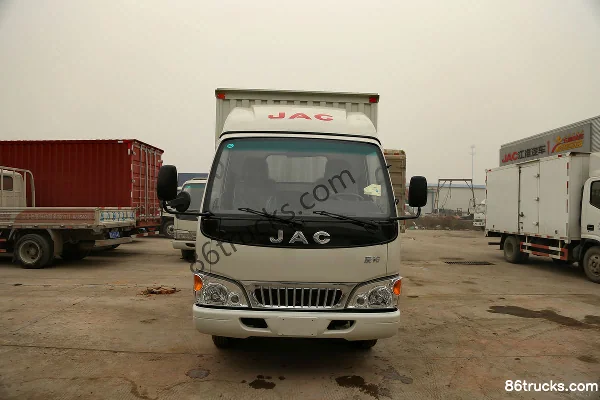

JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck

Export reference
From $11,806
MSRP ¥8.5M CNY
Horsepower: 116
Emission: China IV
Fuel: Diesel
Engine: Yunnei 4100
Transmission: Xingrui
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei 4100 engine, 116 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5045CCYP92K3C2
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: Yunnei PowerYN33CRD1
transmission: Xingrui LC5T28
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.13m
Cab height: 2.9m
Front track width: 1580mm
rear track: 1395mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.105/1.582m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRD1
Engine info: Yunnei 4100
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.298L
Emission standard: China IV
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 2.01m
Cargo box height: 0.4m
*Cargo box interior width: 2.0099999904633
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1545kg
rear axle allowable load: 2745kg
Axle ratio: 4.875
Leaf spring count: 5/9+7
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
Power steering:
clutch booster:
Service brake
Brake Type: Air brake

Photos

0 photos

FAQ

What is the export price of JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck, and what does it include?

JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck export reference is about From $11,806; MSRP is ¥8.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck?

Key specs of JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck: Drive: 4x2; Horsepower: 116 hp; Emission: China IV; Fuel: Diesel; Engine: Yunnei 4100; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck suited for?

JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck differ from other variants in the same series?

JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling 33 wide body 116 hp 4X2(6 wheels) 3.85m semi-row stake truck light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
