FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: FAW Jiefang
Curb Weight:: 15.5ton
Wheelbase:: 1900+3450+1350mm
Tire Size:: 12R22.5 16PR
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box length: 6.8m

Overview

The FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI) is a Heavy truck featuring 15.37t payload, 31t GVW, 6.8m cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10HNG350E60 engine, 350 hp, China VI emissions and FAW Jiefang transmission.

China VI 350 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3310P1K15L4T4NE6A80
Drive type: 8X4
Wheelbase: 1900+3450+1350mm
engine: WeichaiWP10HNG350E60
transmission: FAW JiefangCA10TAX160M
Rear Axle Ratio: 5.921
Cab length: 9.76m
Cab width: 2.55m
Cab height: 2.89m
Front track width: 2020/2020mm
rear track: 1878/1878mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Qingdao
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 37°
Version: 2.0 version
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10HNG350E60
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 9.5L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1100-1500rpm
Rated speed: 1900rpm
Engine Type: SPI+ER+EGR+TWC
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX160M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 6.8m
Cargo box width: 2.35m
Cargo box height: 0.8m
Cab parameters
Cab: HanV
Cab tilting: Electric
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 450L
Chassis Specs
Front axle description: DH401
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 300 hub reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 10/10/10
Tire
Tire Size: 12R22.5 16PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
interior configuration
AC control type: Automatic
Power Windows:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:

Photos

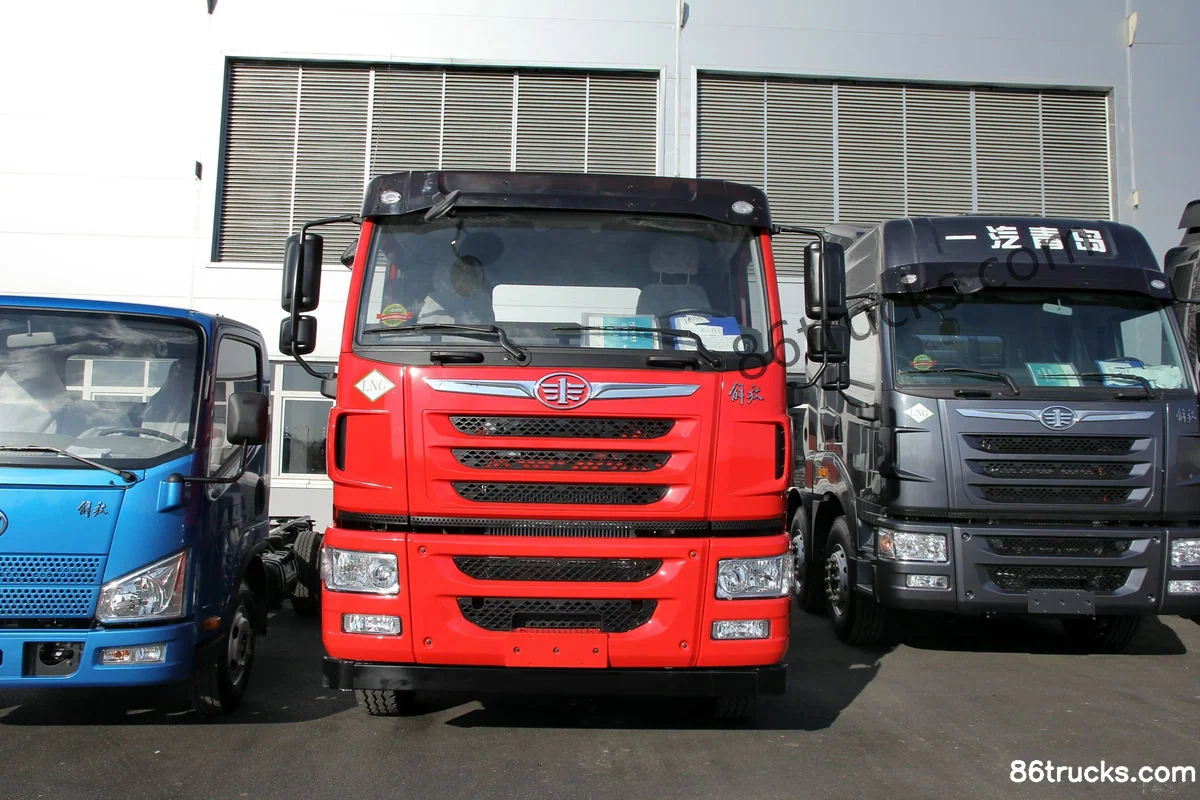

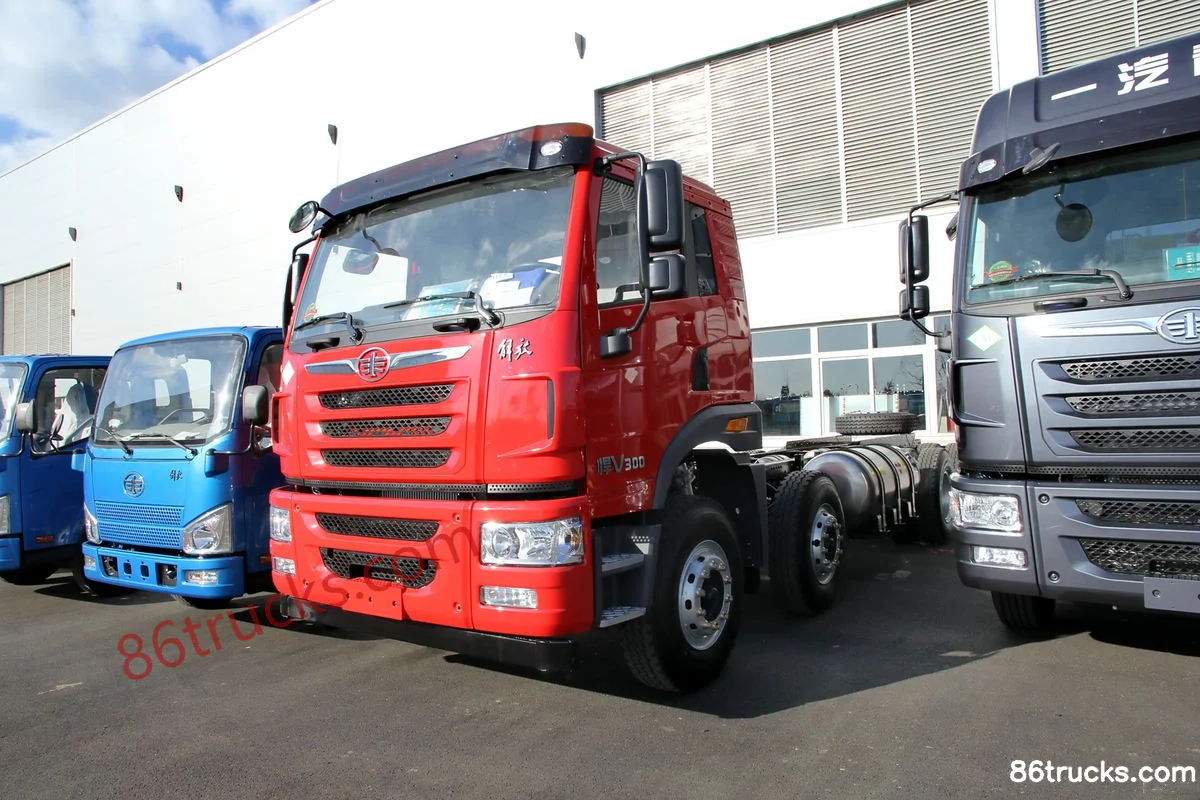

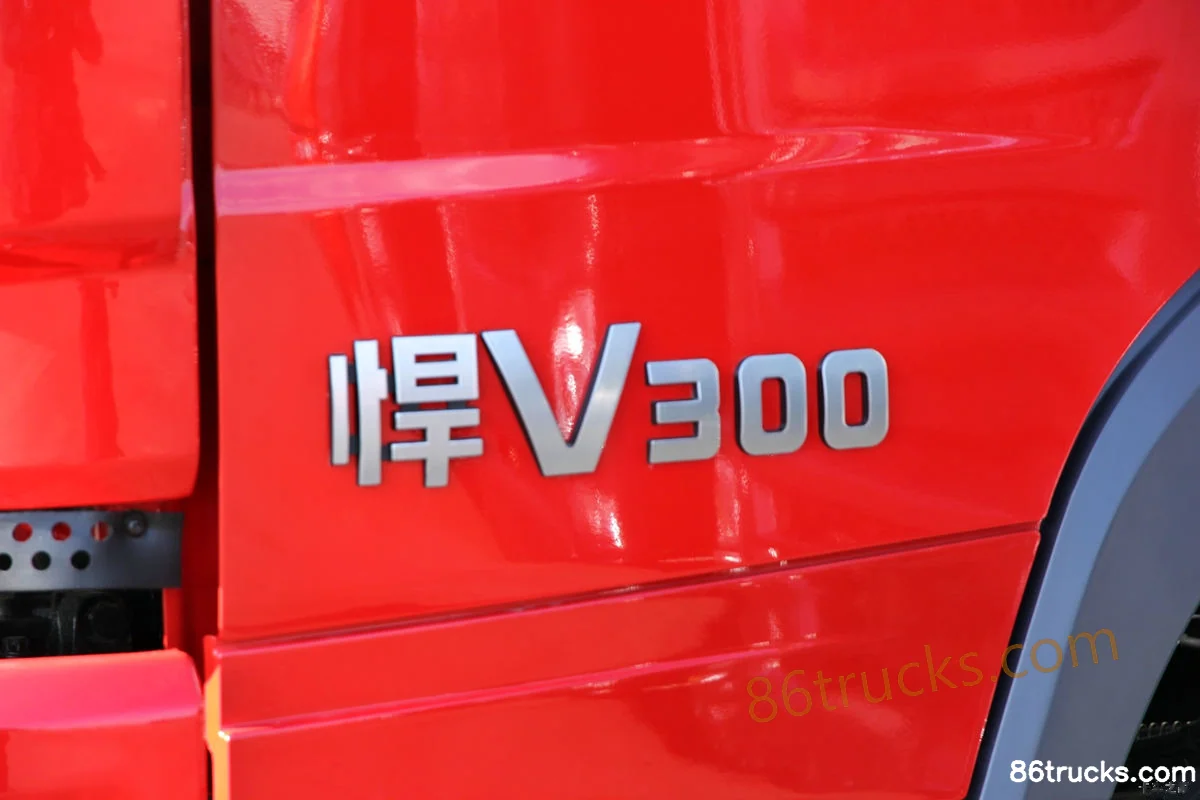

Exterior3

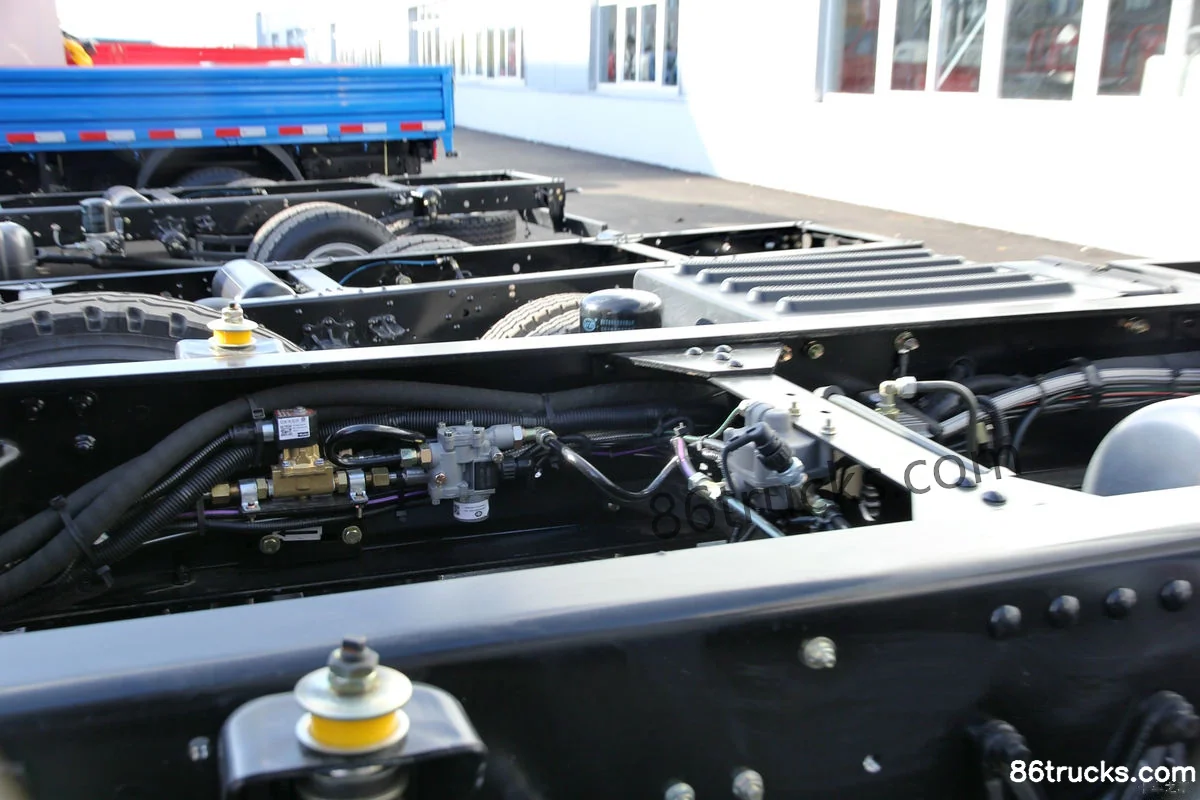

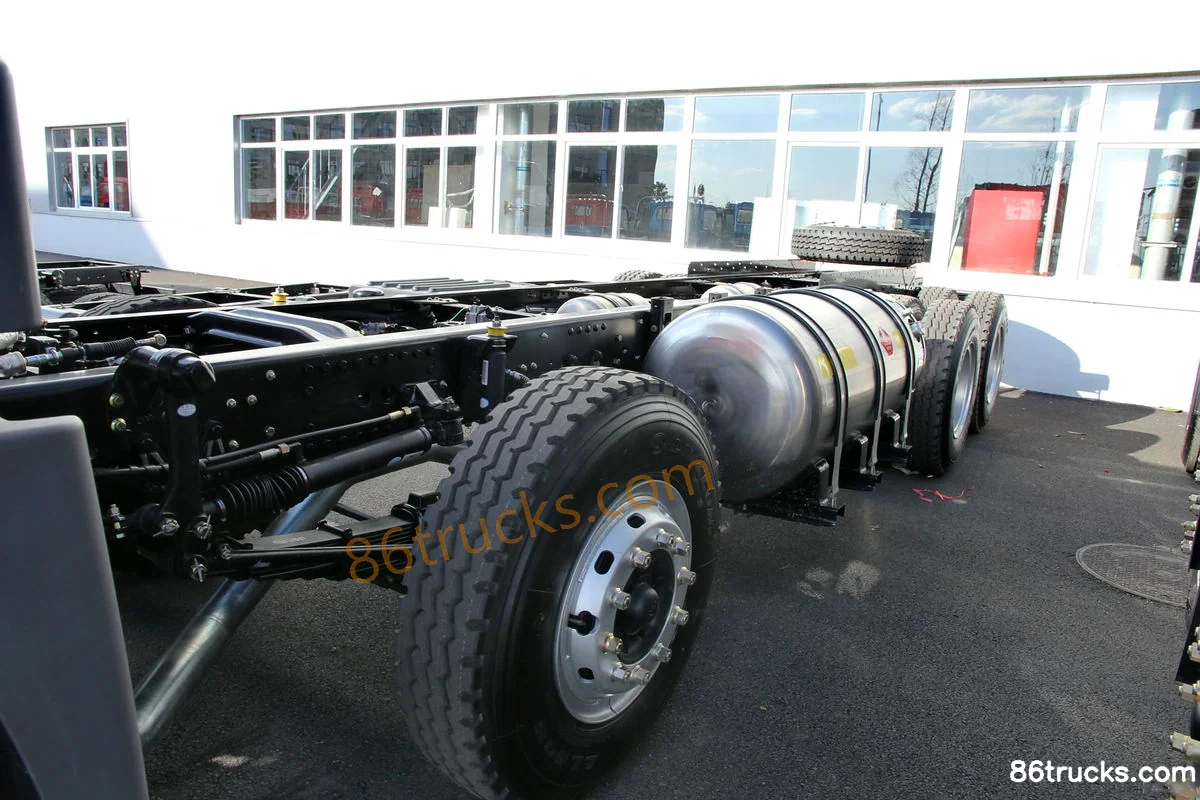

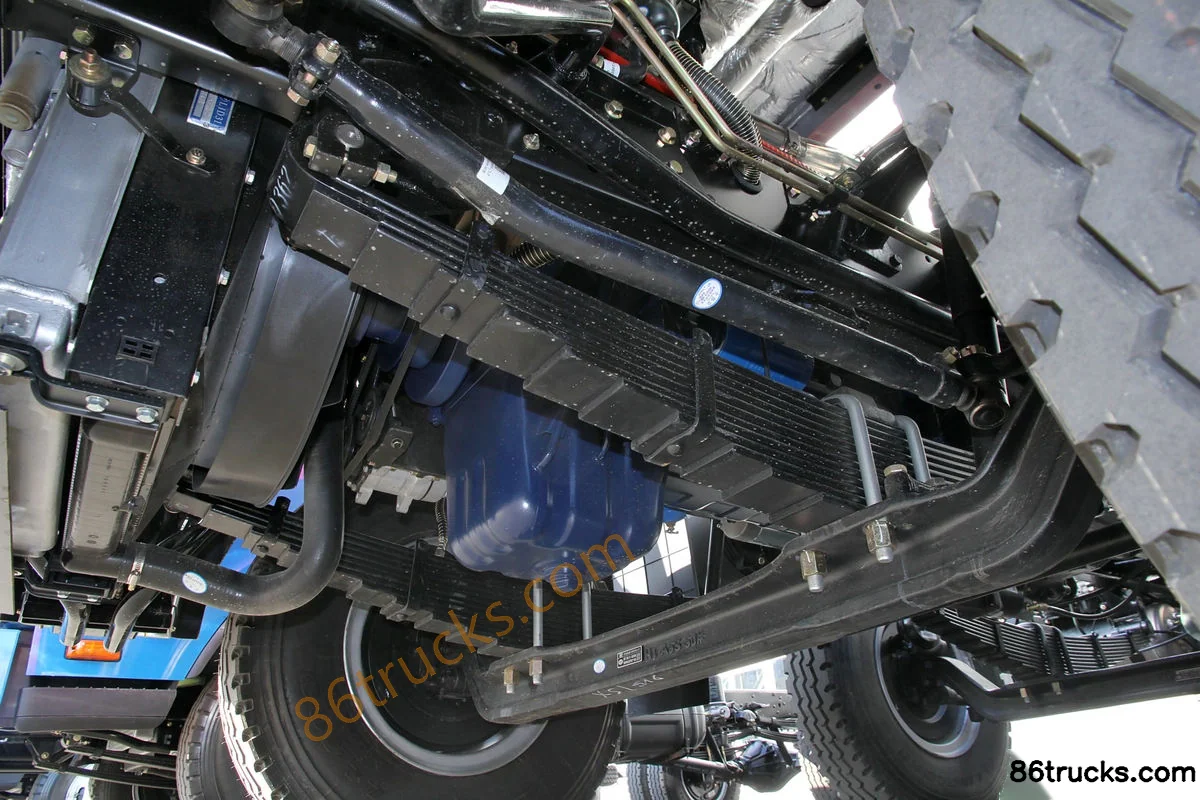

Chassis3

6 photos

FAQ

What emission standard does FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI)?

Key specs of FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI) suited for?

FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI) differ from other variants in the same series?

FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI) belongs to FAW Jiefang Qingdao HanV heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV Heavy Truck 2.0 Edition 350 hp 8X4(12 wheels) 6.8m LNG Dump Truck (300 Hub Reduction Axle) (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
