Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake)

Export reference
MSRP N/A
Horsepower: 110
Emission: China IV
Fuel: Diesel
Engine: Foton493
Transmission: JMC
Curb Weight:: 2.8ton
seating capacity: 5Personnel
Rated payload: 1.37ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake) is a Light Truck featuring 3.155m cargo length, Van body cargo body, 5Personnel volume and 1.37t payload. On the powertrain side, it comes with a Foton493 engine, 110 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 110 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049XXY-AD
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.2m
engine: Foton4J28TC
transmission: JMCJC528
Cab length: 5.995m
Cab width: 2.05m
Cab height: 2.9m
Front track width: 1530mm
rear track: 1485mm
Curb Weight: 2.8ton
Rated payload: 1.37ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Front/rear suspension: 1.12/1.515m
Version: Tech Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: Foton4J28TC
Engine info: Foton493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3600rpm
Engine Type: Inline, vertical, water-cooled
Transmission Parameters
Transmission Model: JMCJC528
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.155m
Cargo box width: 1.9m
Cargo box height: 1.9m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1350kg
rear axle description: 3145
rear axle allowable load: 3145kg
Leaf spring count: 3+1/6+7
Tire

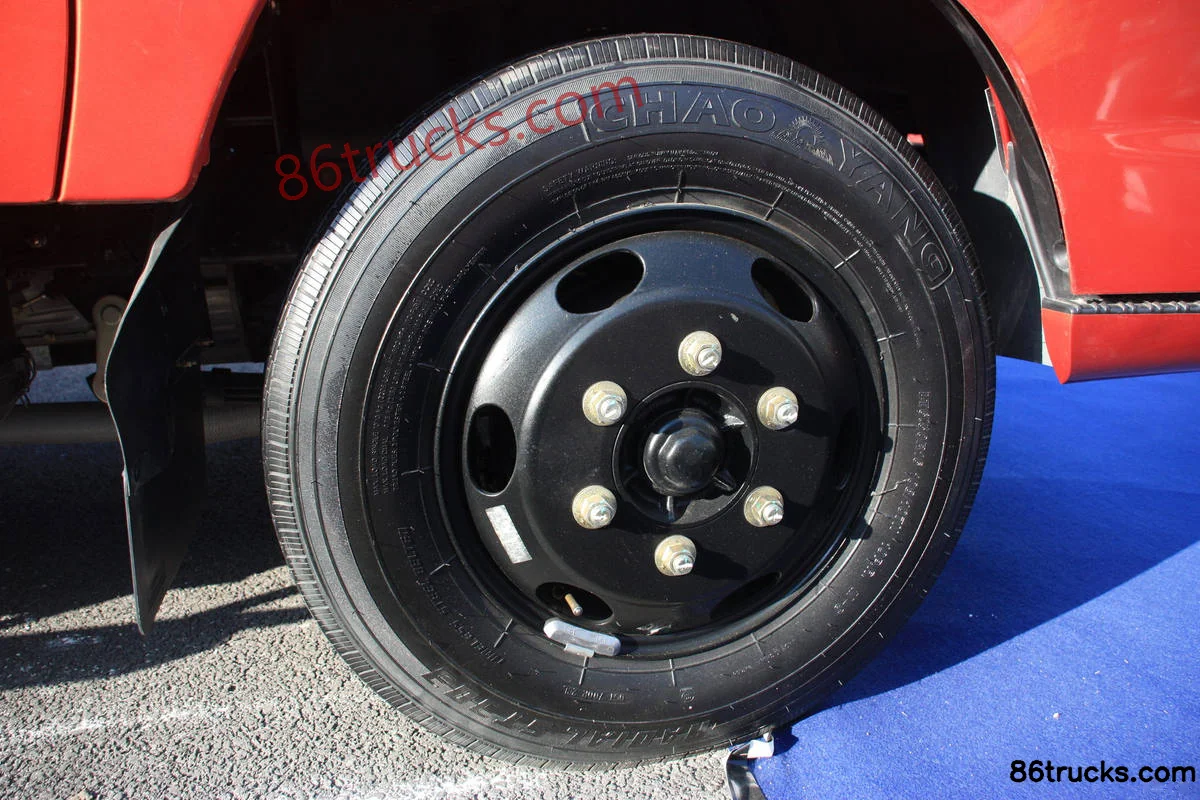

Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

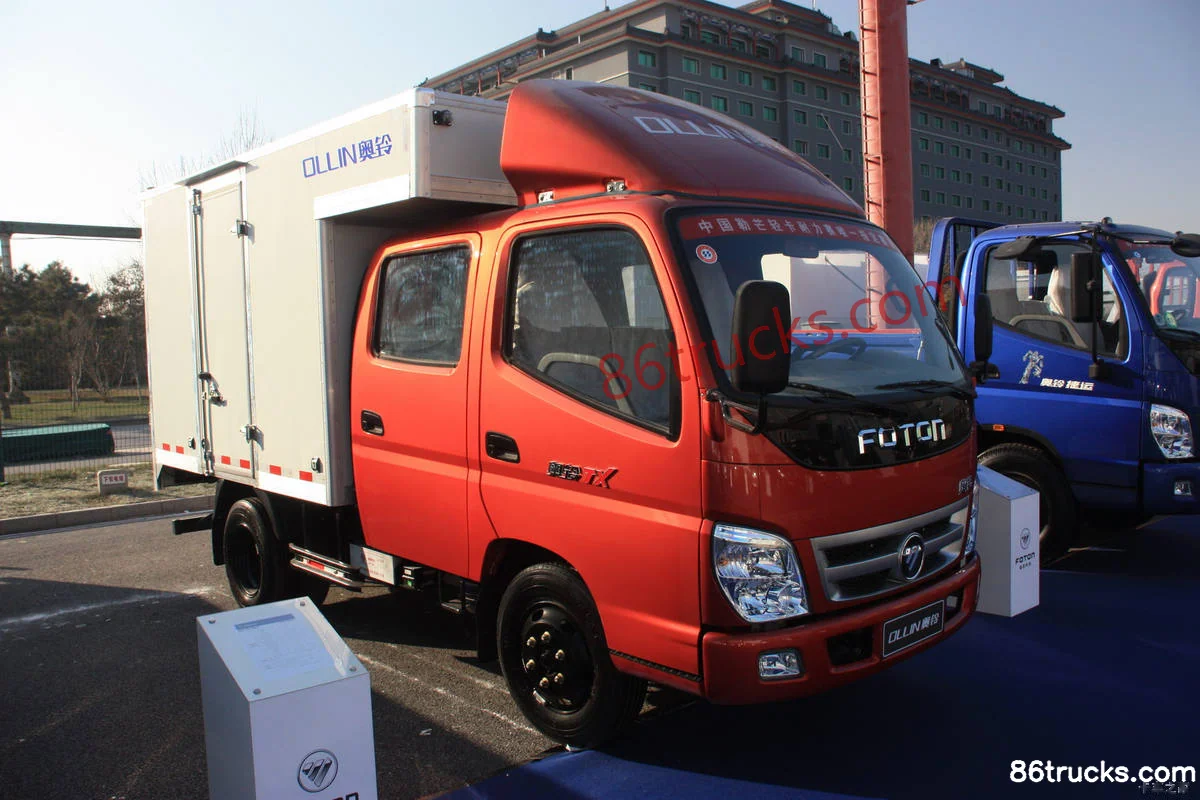

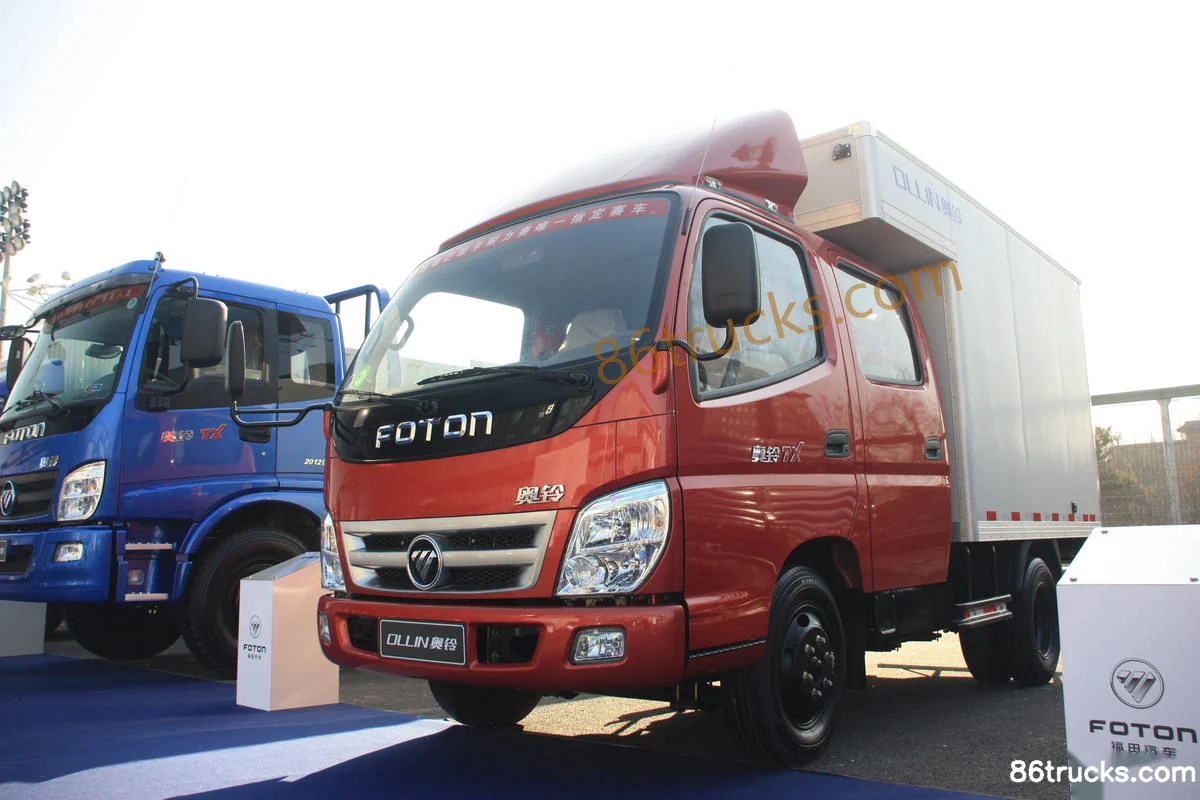

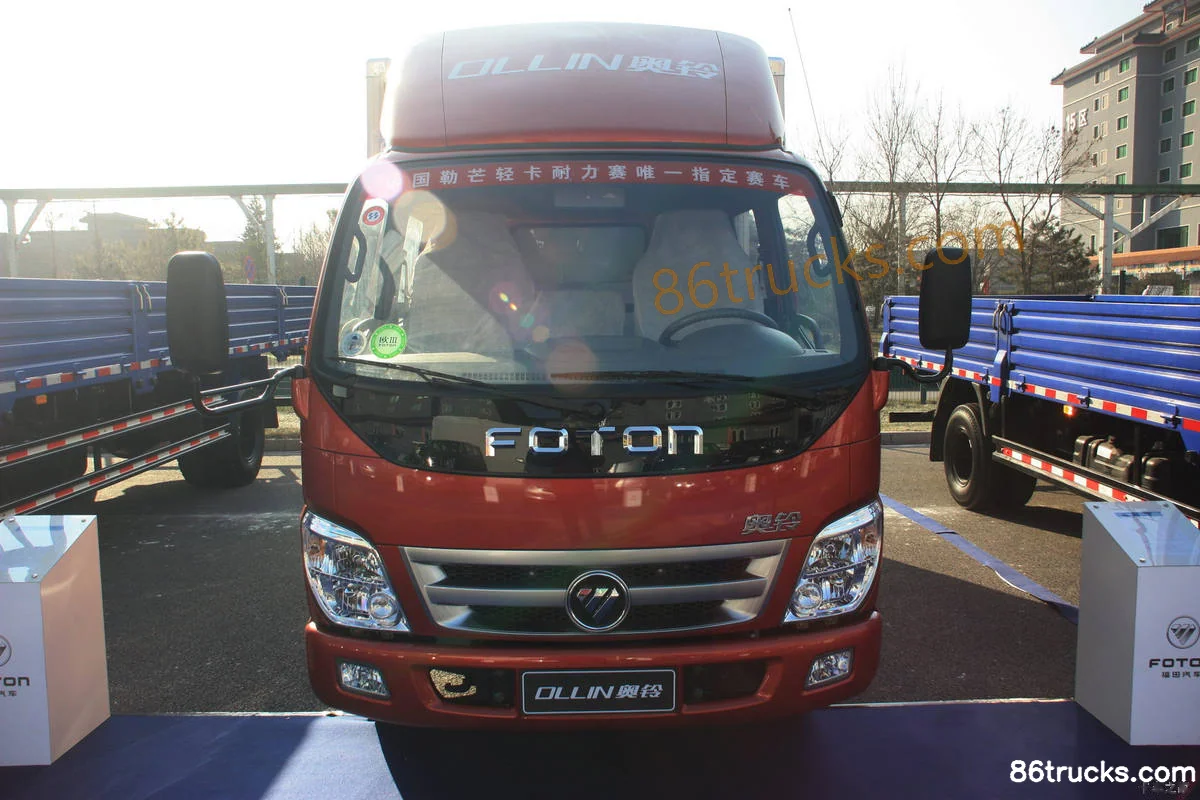

Exterior3

Cab1

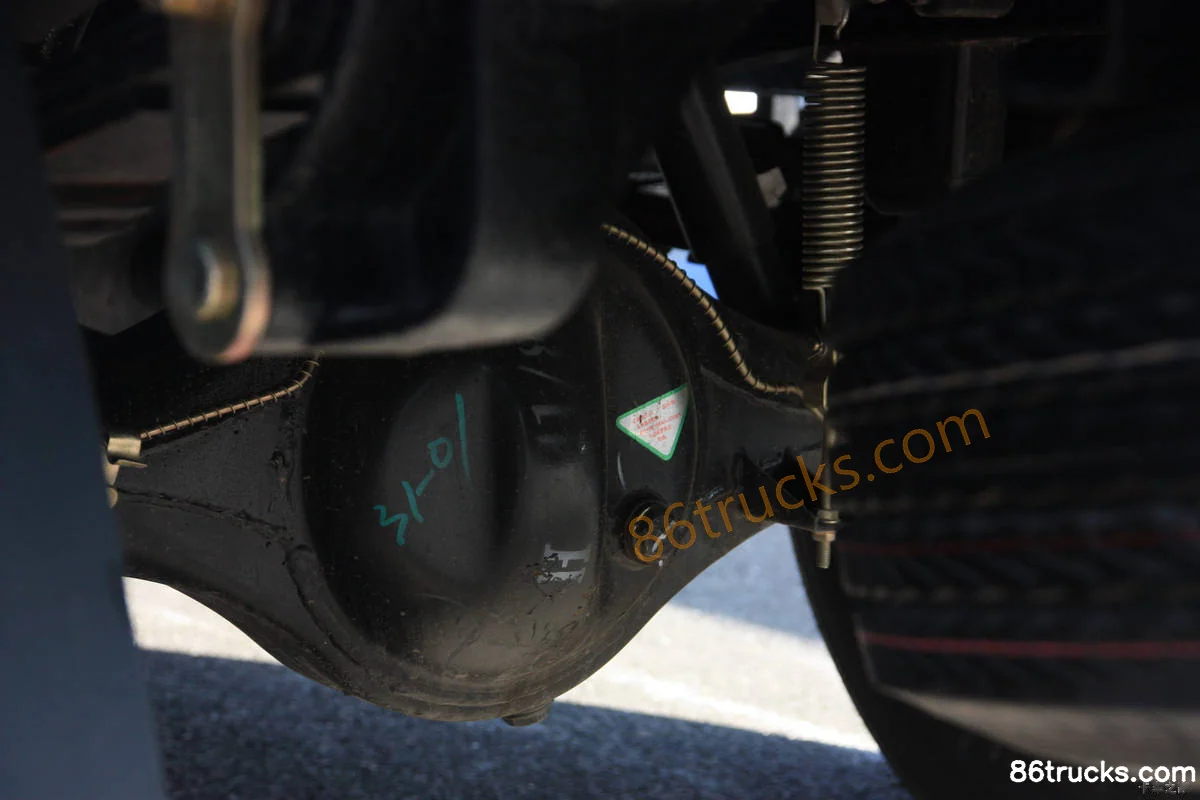

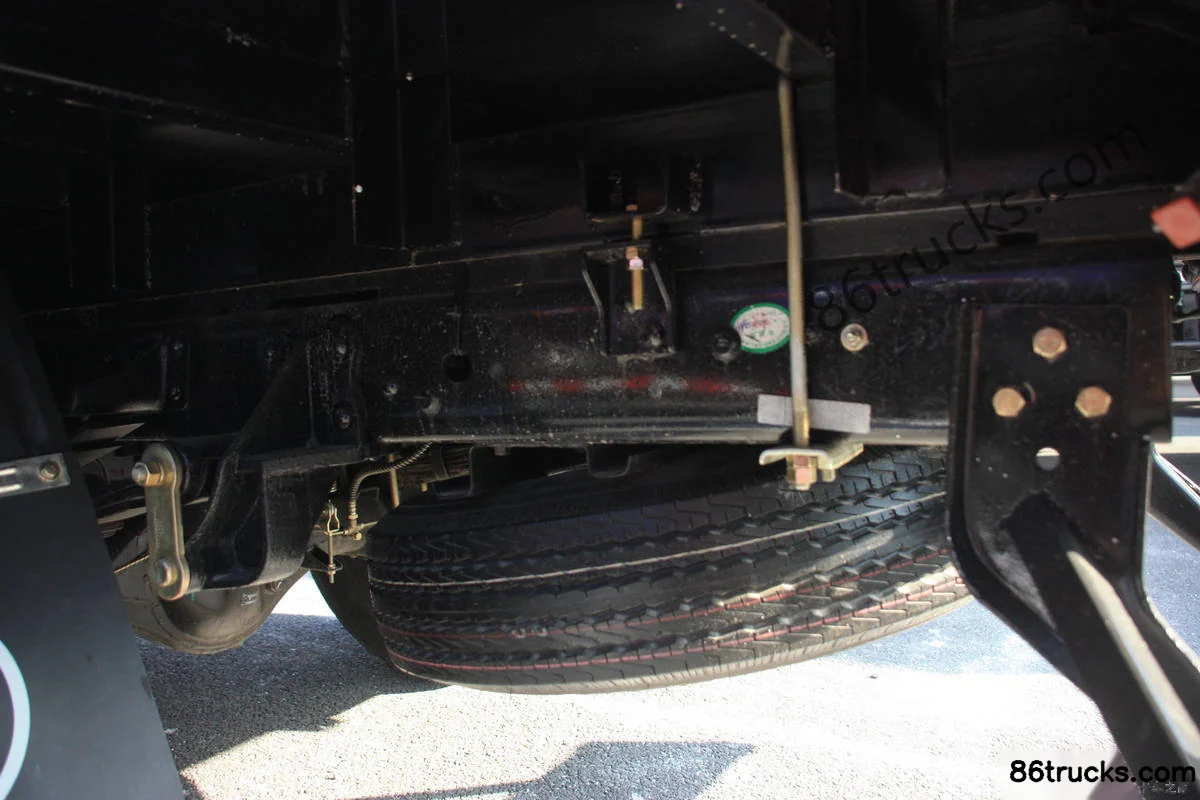

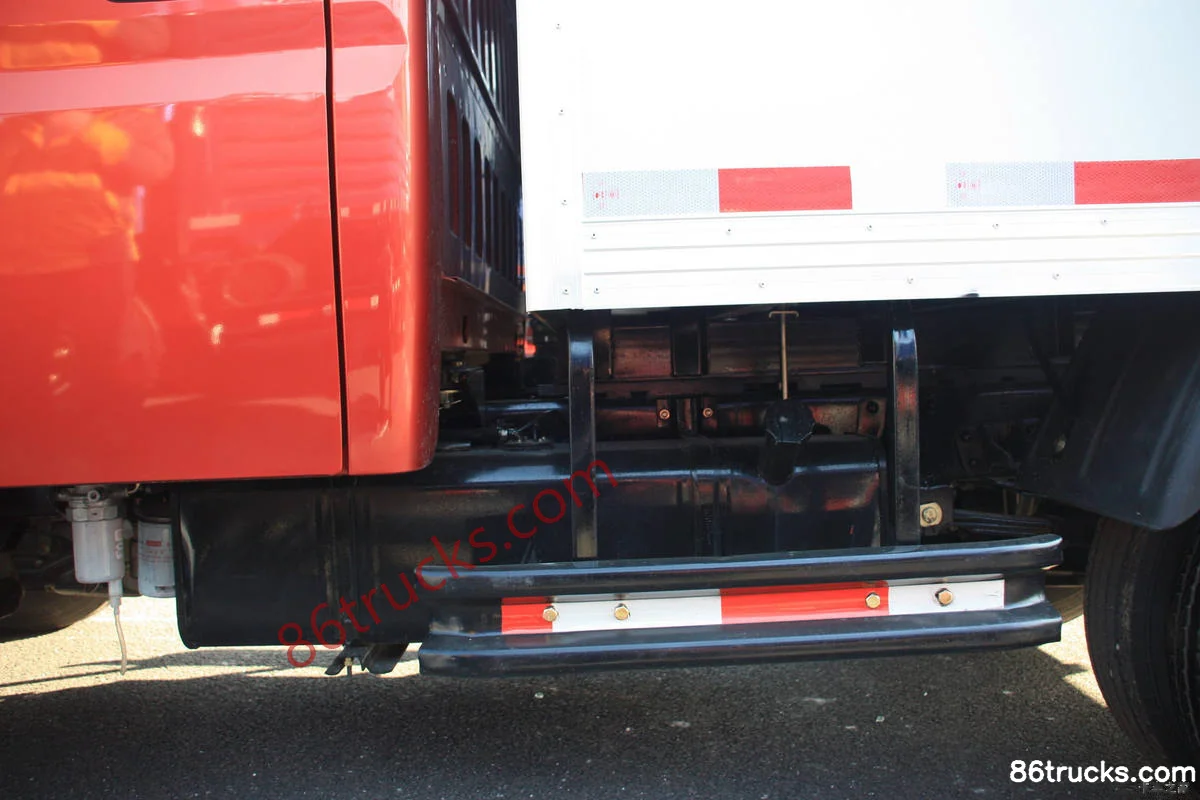

Chassis3

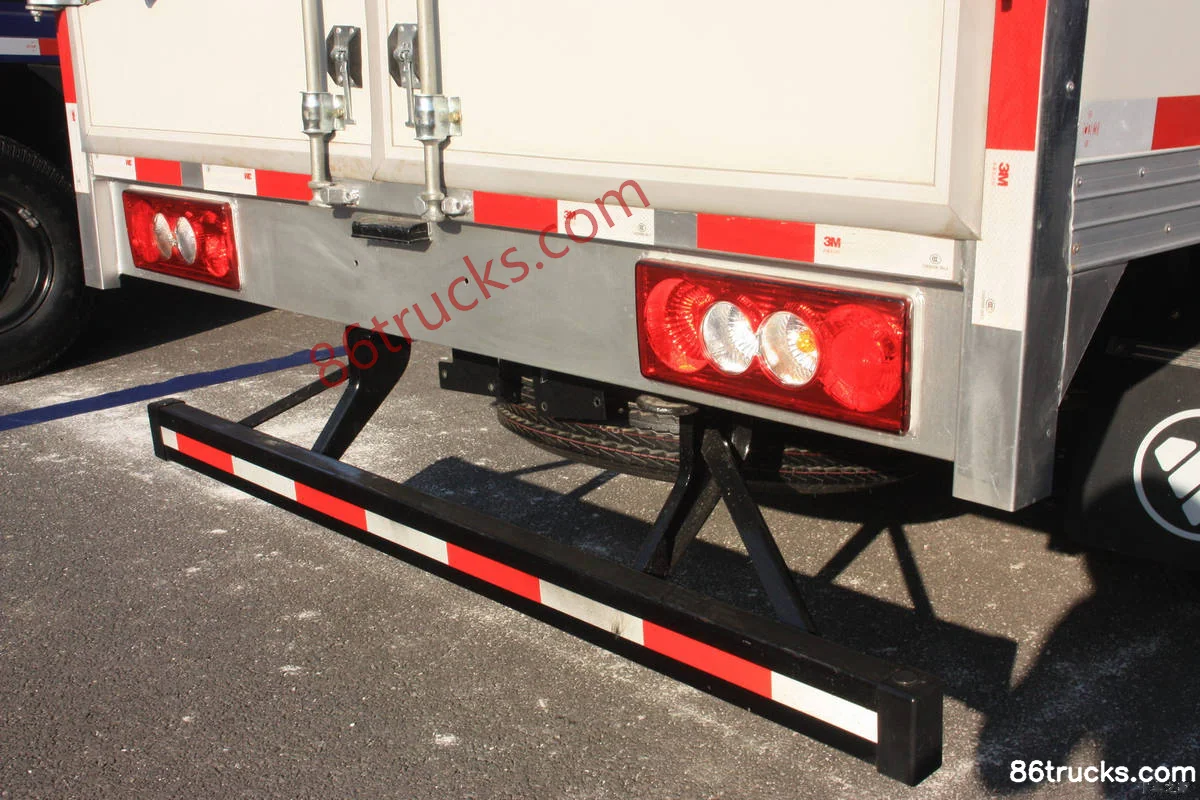

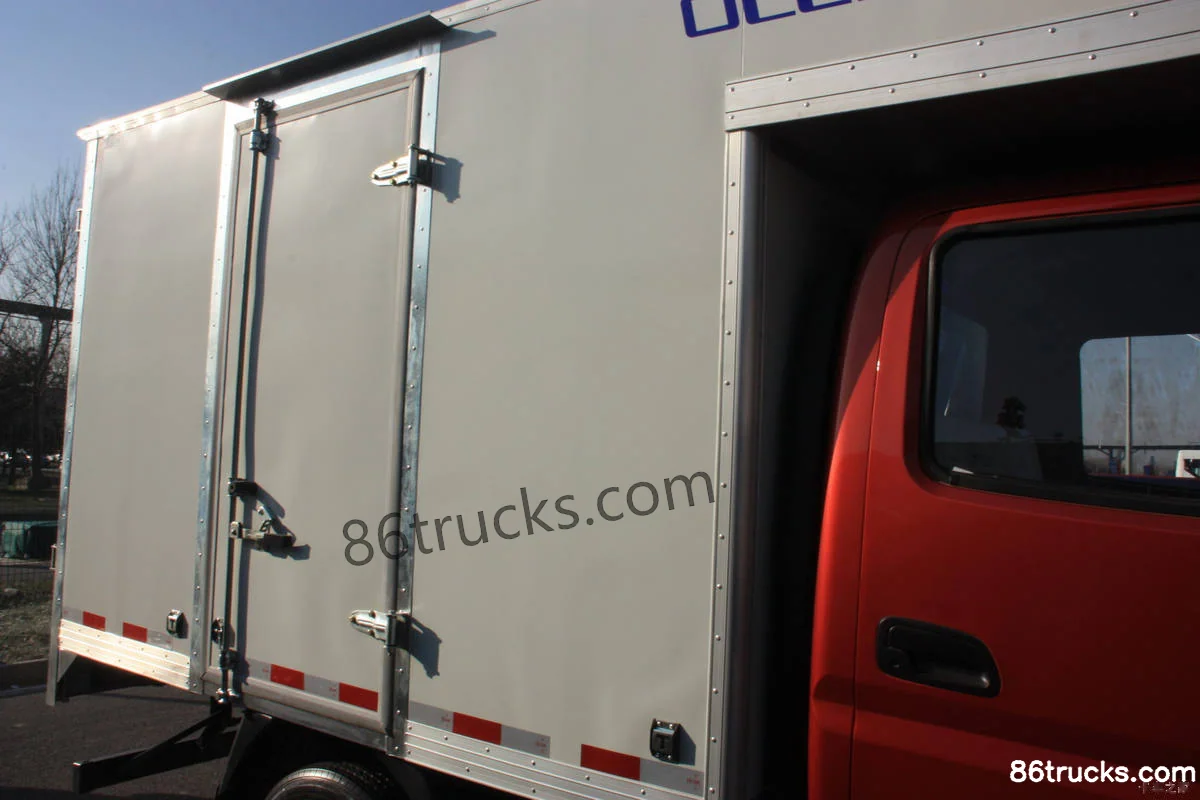

Body2

9 photos

FAQ

What emission standard does Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake)?

Key specs of Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake): Drive: 4x2; Horsepower: 110 hp; Emission: China IV; Fuel: Diesel; Engine: Foton493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake) suited for?

Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake) differ from other variants in the same series?

Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake) belongs to Foton TX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin TX Tech Edition 110 hp 4X2(6 wheels) 3.2m double-row van light truck (hydraulic brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
