Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck

Export reference
From $25,000
MSRP ¥18M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.5ton
Wheelbase:: 3350mm
Tire Size:: 10.00R20 18PR
Rated payload: 11.305ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Rear-dump body

Overview

The Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck is a Medium-duty truck featuring 11.305t payload, 18t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1NQ190E50 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3180A3R5
Drive type: 4X2
Wheelbase: 3350mm
engine: WeichaiWP4.1NQ190E50
transmission: Fast Gear8JS85F
Rear Axle Ratio: 6.833
Cab length: 5.995m
Cab width: 2.46m
Cab height: 2.84m
Front track width: 1765mm
rear track: 1730mm
Curb Weight: 6.5ton
Rated payload: 11.305ton
GVWR: 18ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 24°
departure angle: 23°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S160-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.767L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs

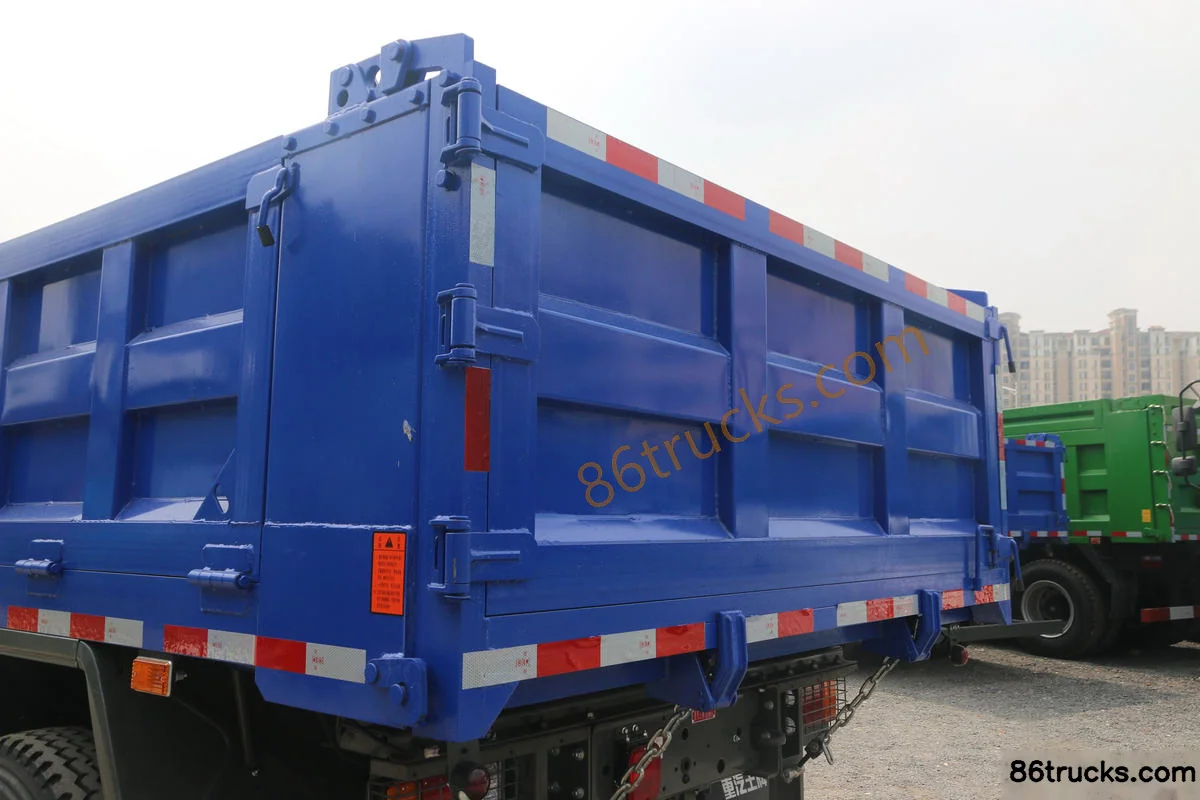

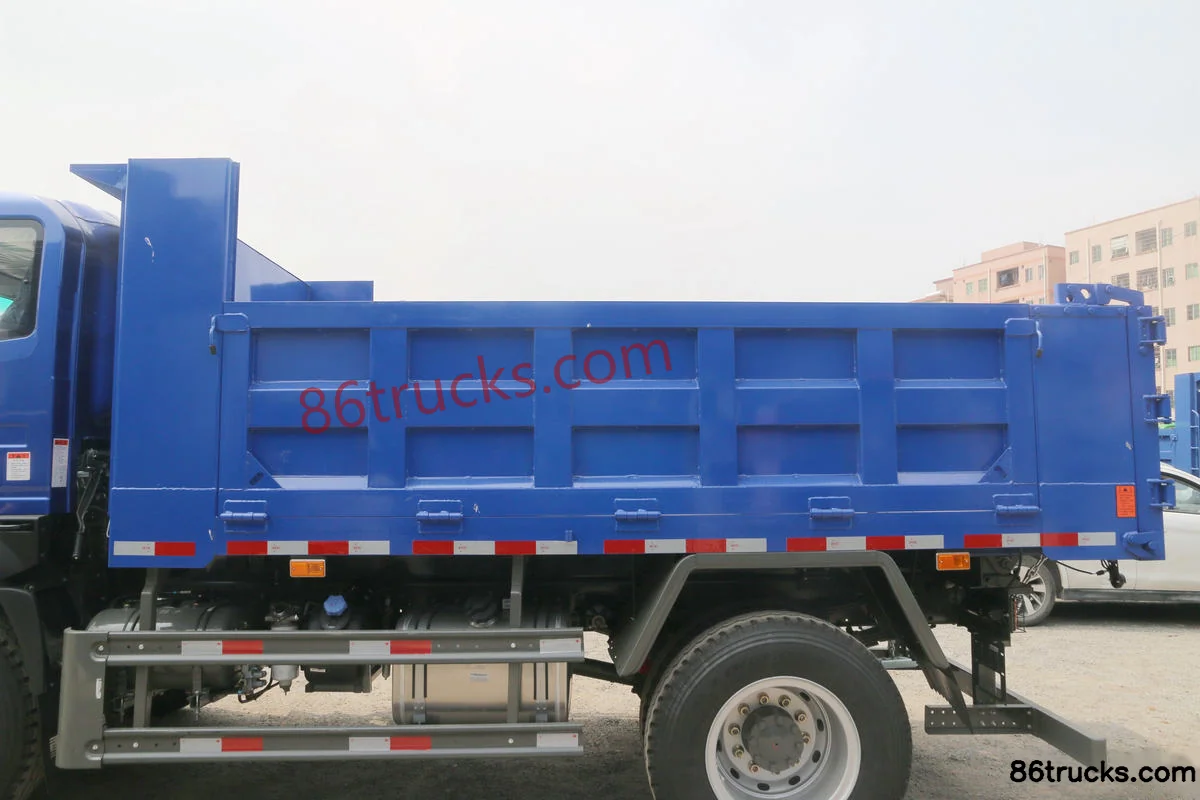

Cargo box parameters
hydraulic cylinder brand & model: φ130 small front lift cylinder, dual straight cylinders 110×1020
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.8m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab suspension: 4-point mechanical suspension
Cab width: 1880mm
Cab tilting: Manual
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L

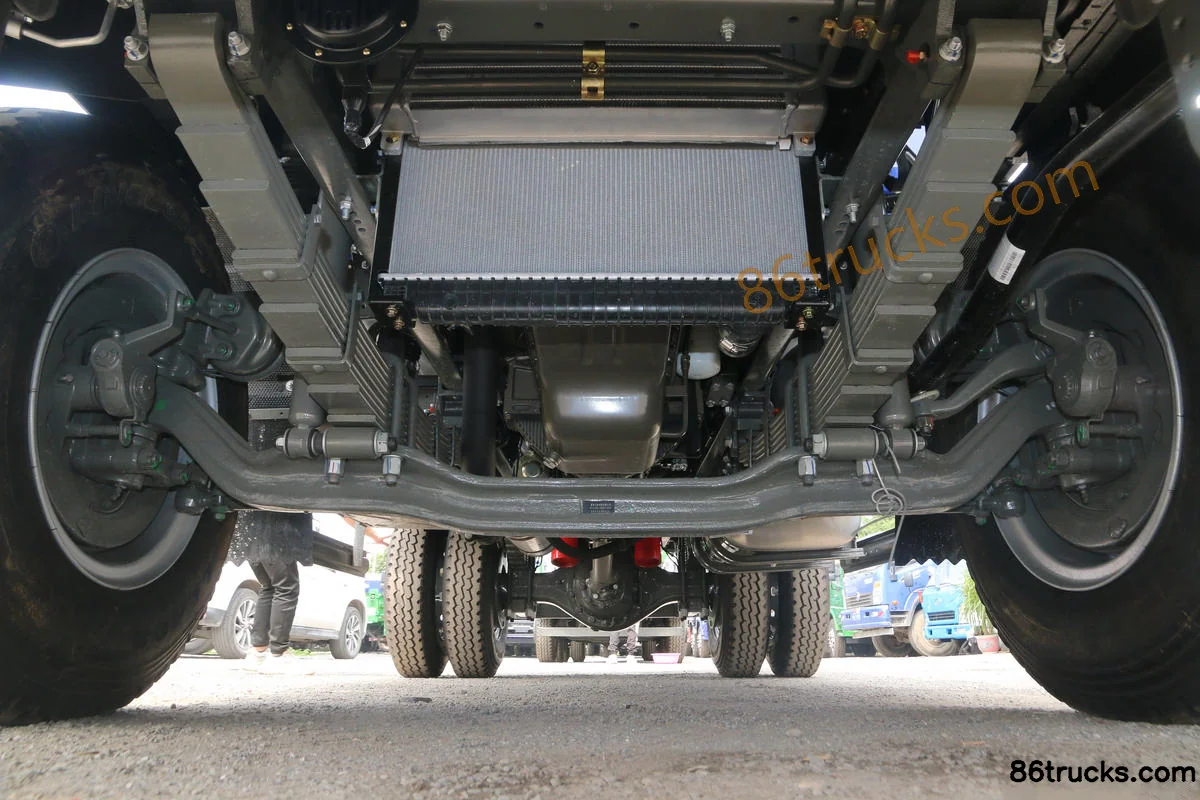

Chassis Specs
Front axle description: CZ1092BCU
Front axle allowable load: 6500kg
rear axle description: CZ1534FU
rear axle allowable load: 11500kg
Axle ratio: 6.833
Leaf spring count: 11/11+9
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Remote key:
Electronic Central Lock:

Photos

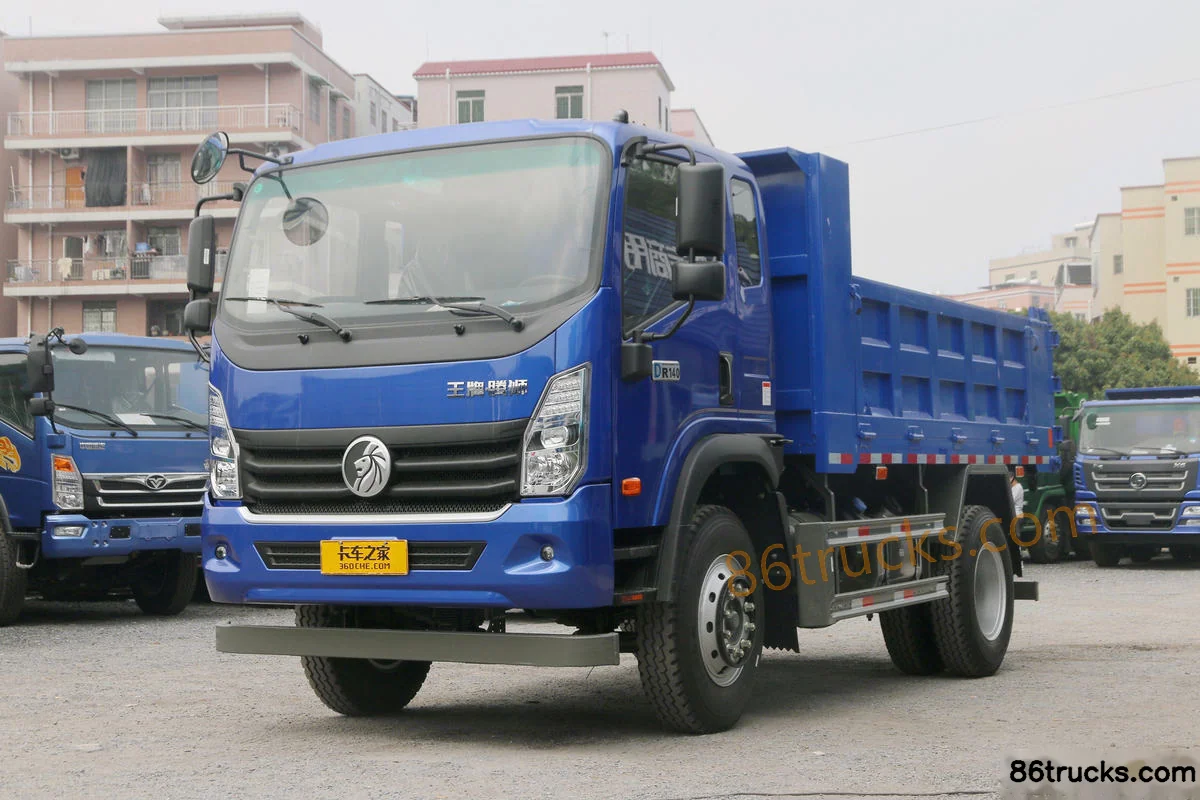

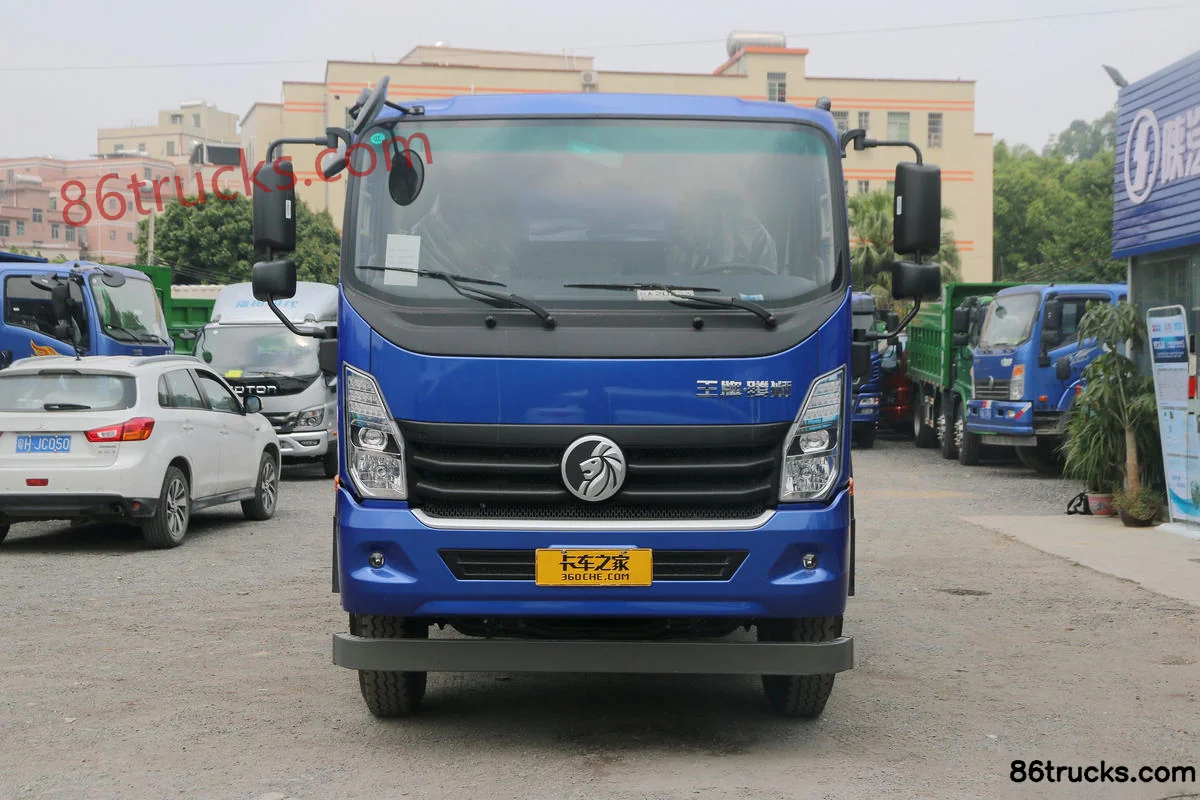

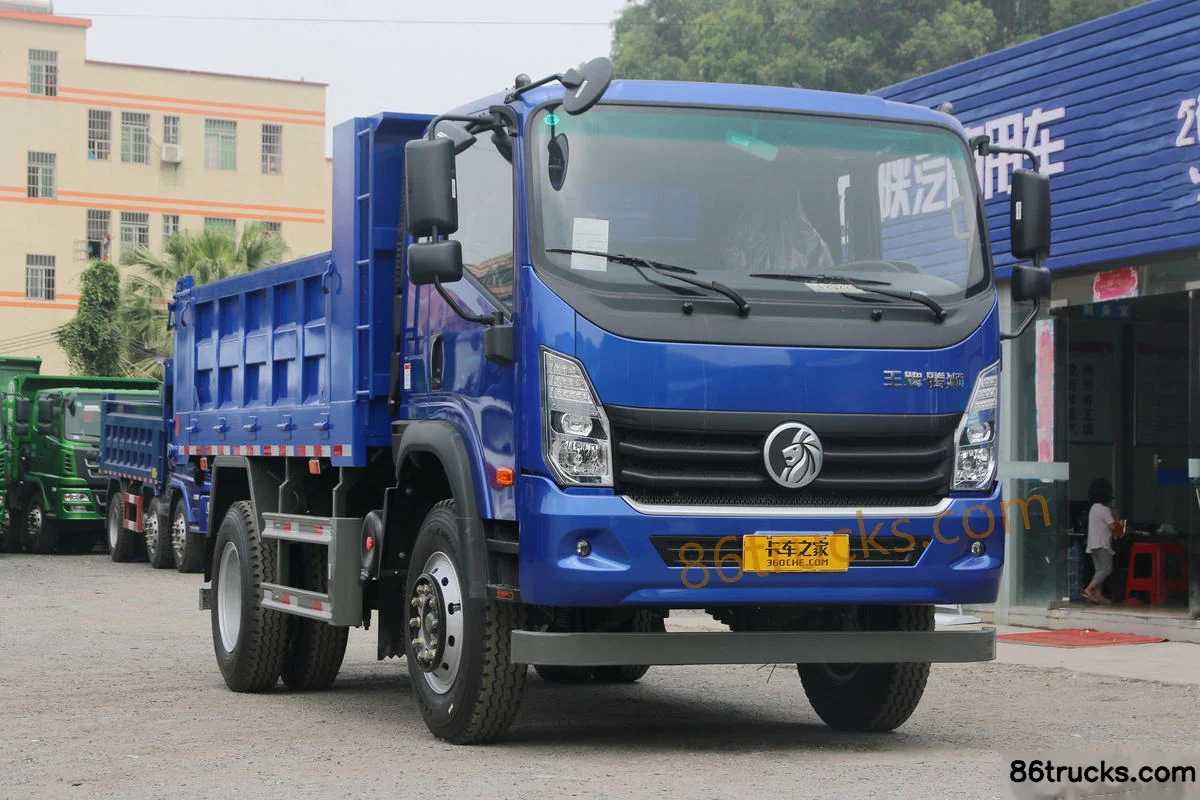

Exterior3

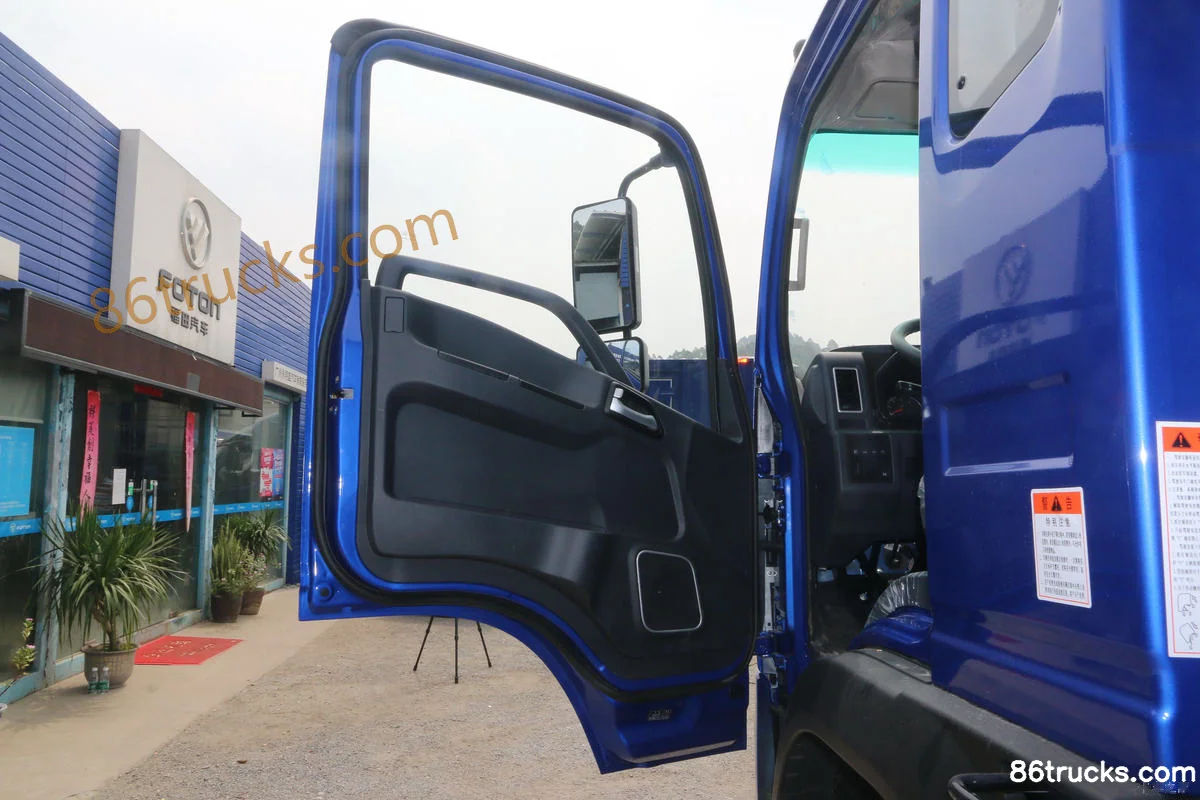

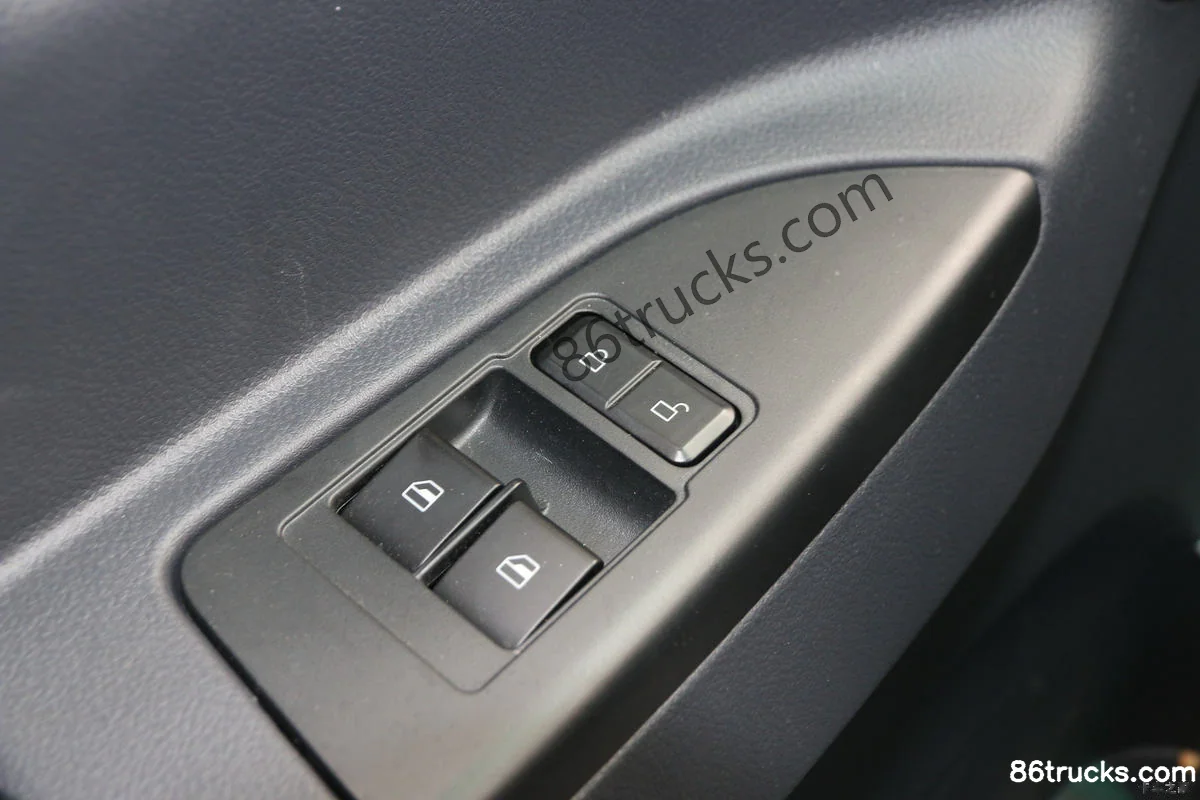

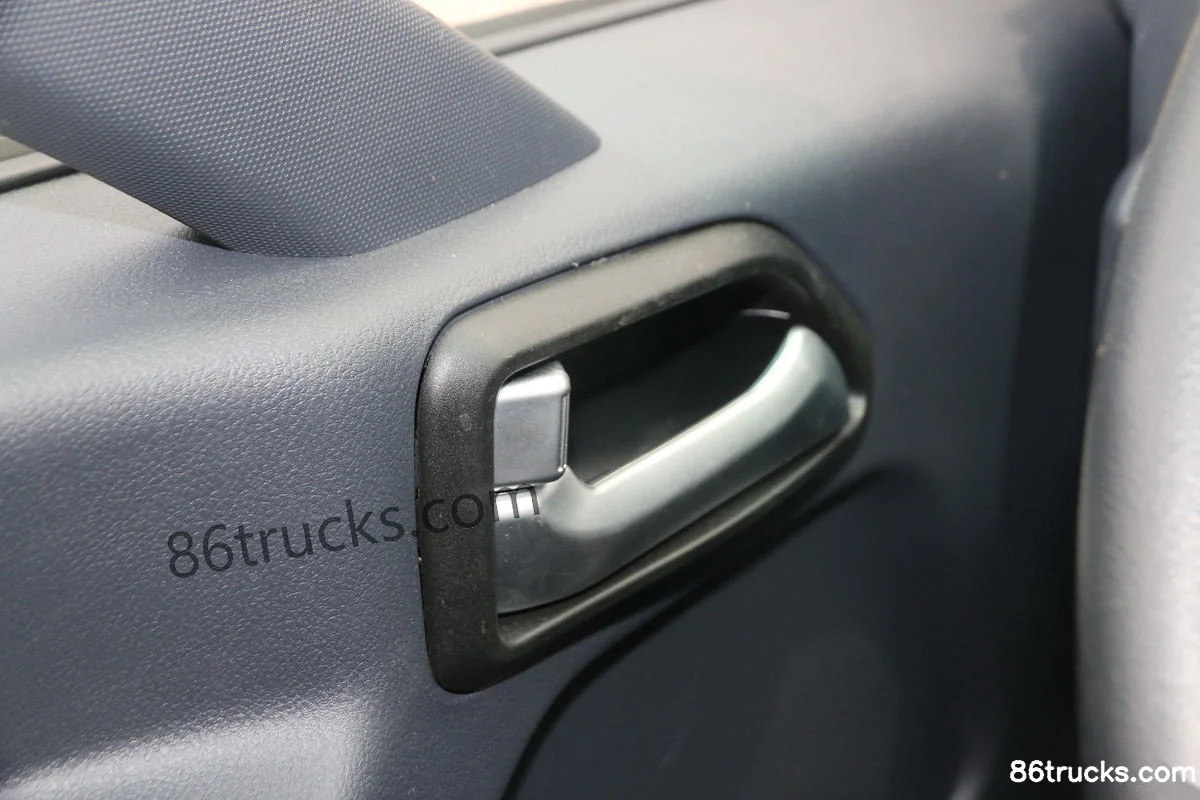

Cab3

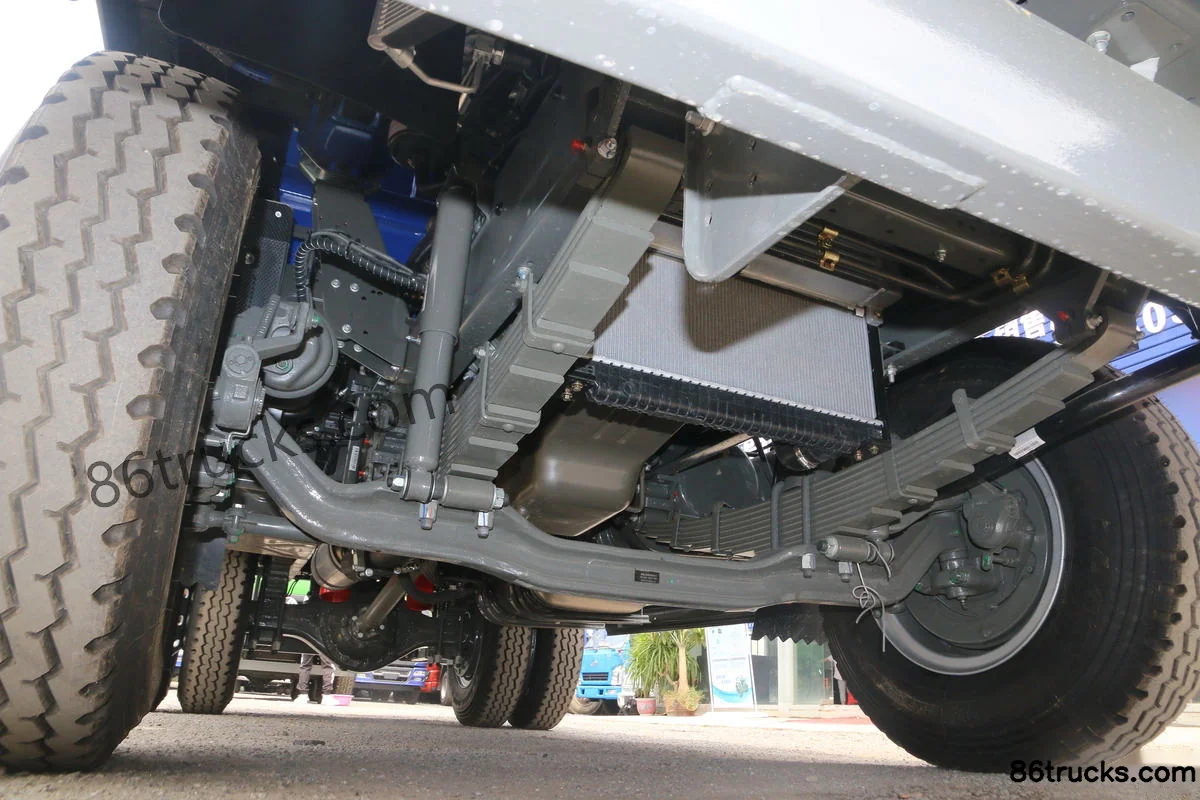

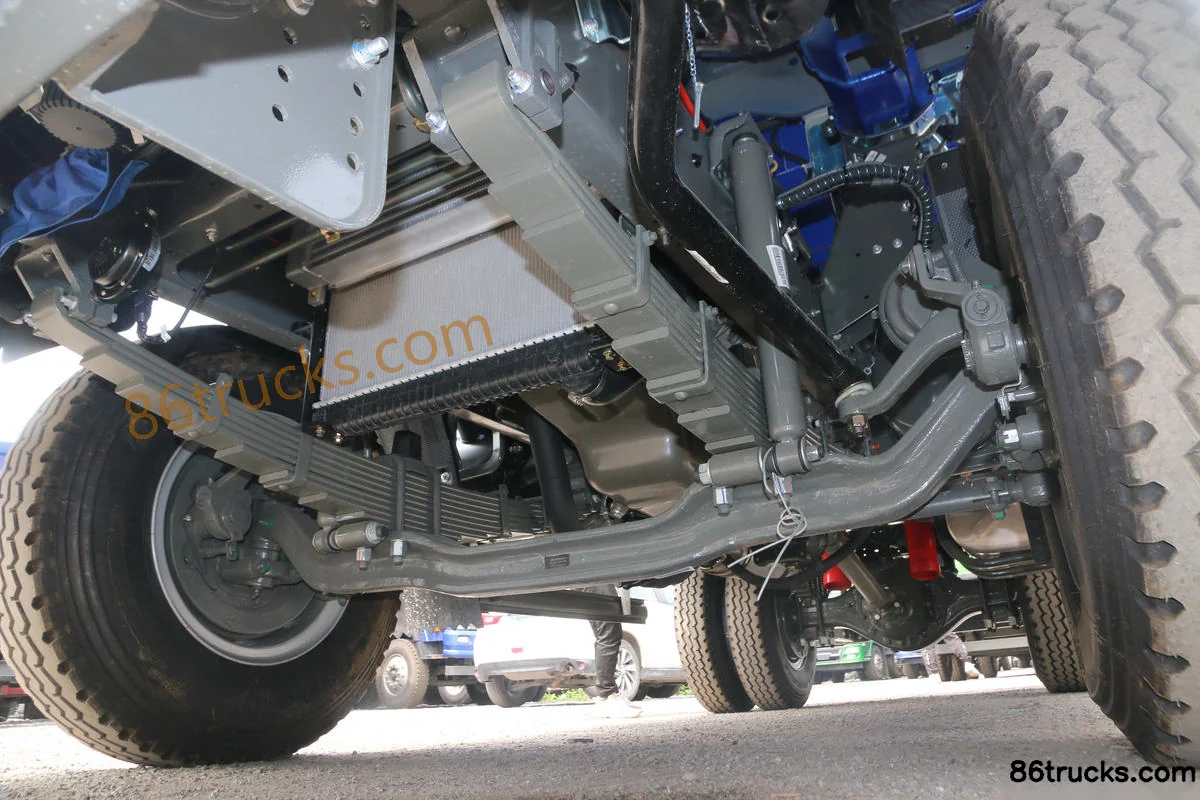

Chassis3

Body3

12 photos

FAQ

What is the export price of Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck, and what does it include?

Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck export reference is about From $25,000; MSRP is ¥18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck?

Key specs of Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck suited for?

Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck differ from other variants in the same series?

Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck belongs to Sinotruk Tengshi Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Tengshi 190hp 4X2(6 wheels) 3.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
