SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 4450+1350mm
Tire Size:: 315/80R22.5
Front axle allowable load:: 7000kg
Displacement:: 13.48L
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Transmission Fast Gear

Overview

The SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI) is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a DongfengZ14NS6B560 engine, Fast Gear transmission and Diesel fuel.

China VI 560 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4259CP6454
Drive type: 6X4
Wheelbase: 4450+1350mm
engine: DongfengZ14NS6B560
transmission: Fast GearC16JSDQXL260
Rear Axle Ratio: 2.714
Cab length: 7.875m
Cab width: 2.53m
Cab height: 3.98m
Front track width: 2065mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
Remarks: FHB400 retarder
Version: High-spec version
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengZ14NS6B560
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 13.48L
Emission standard: China VI
Max output power: 418kW
Max hp: 560Horsepower
Max torque: 2650N·m
Max torque speed: 900-1400rpm
Rated speed: 1800rpm
Transmission Parameters
Transmission Model: Fast GearC16JSDQXL260
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1400L
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 6.5T disc
Front axle allowable load: 7000kg
Fifth wheel: 90
Frame Dimensions: (970-850)*270/8 single layermm
rear axle description: 469 single reduction dual axle disc brake
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.714
Tire
Tire Size: 315/80R22.5
Number of tires: 10pcs
Control configuration
ABS:

Photos

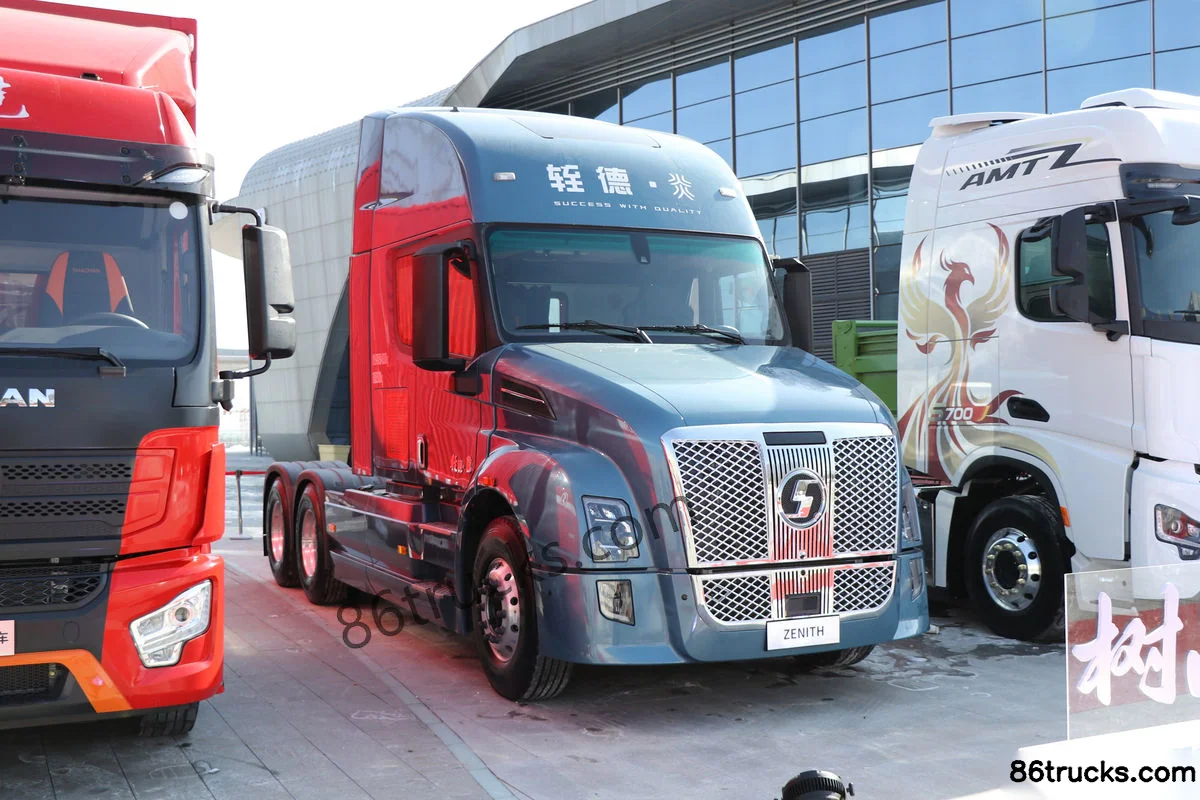

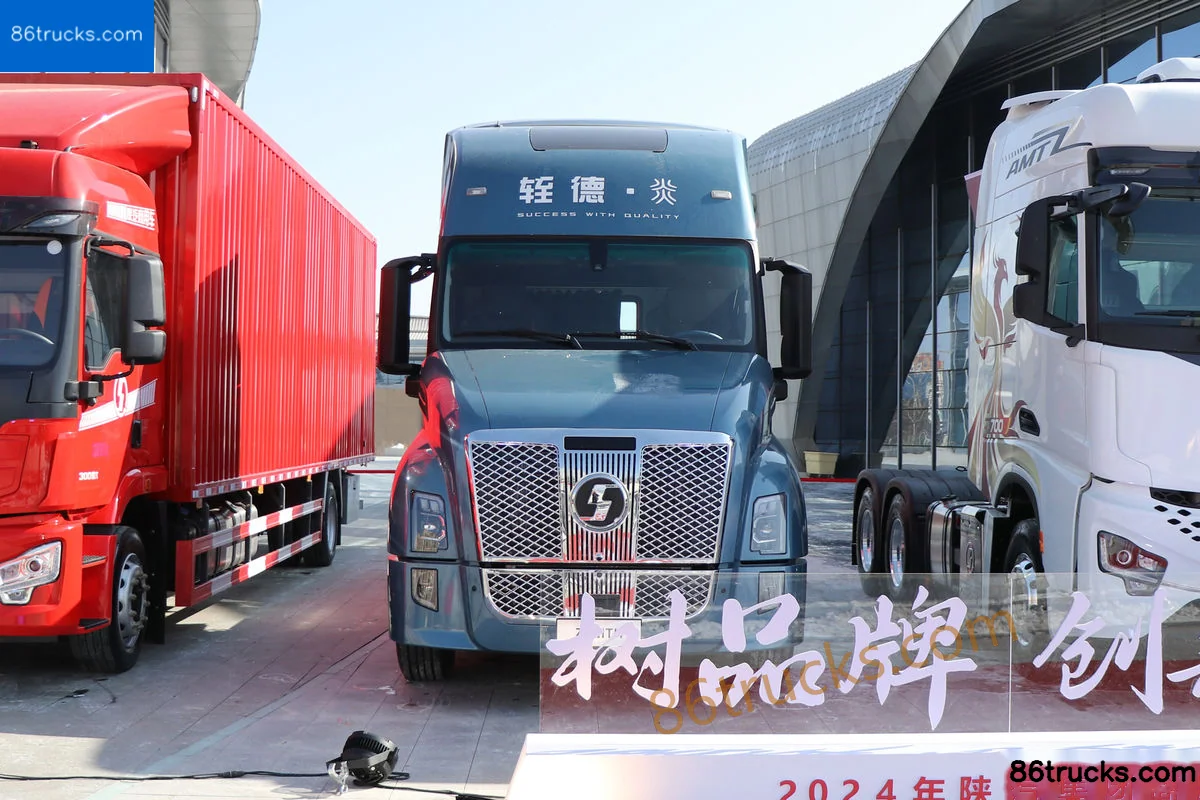

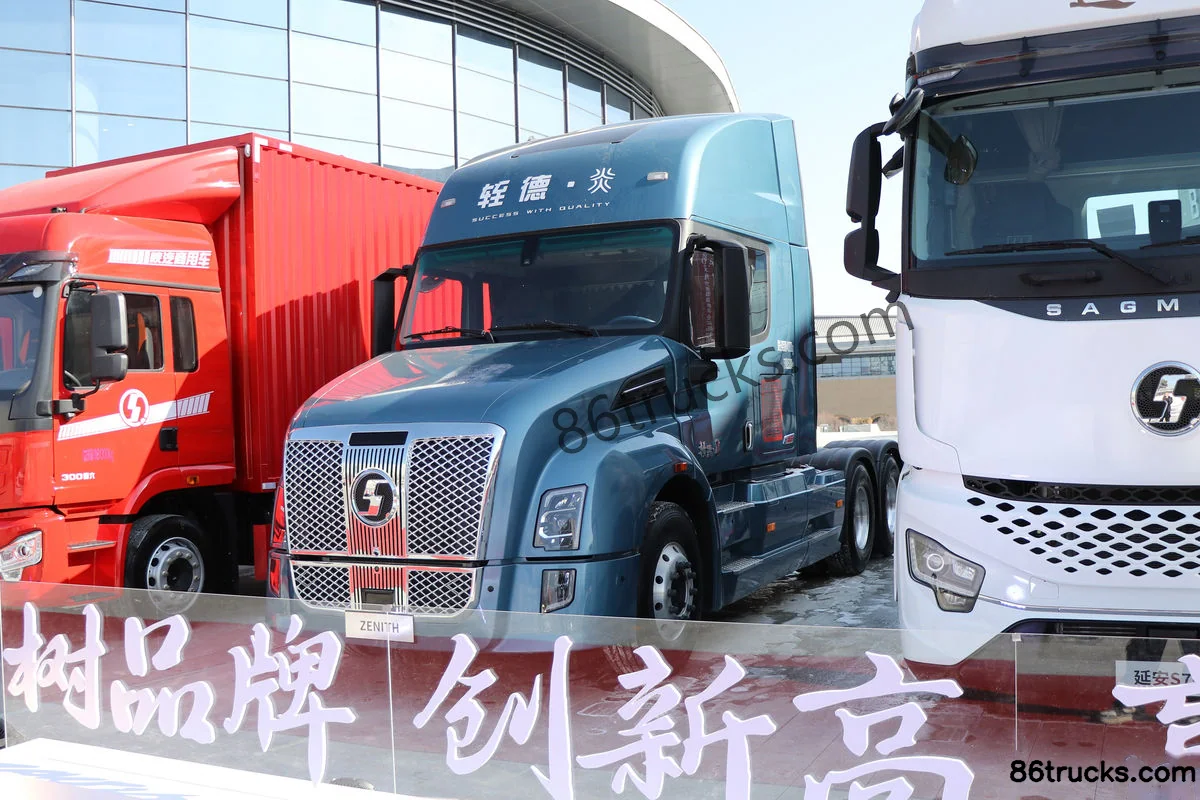

Exterior3

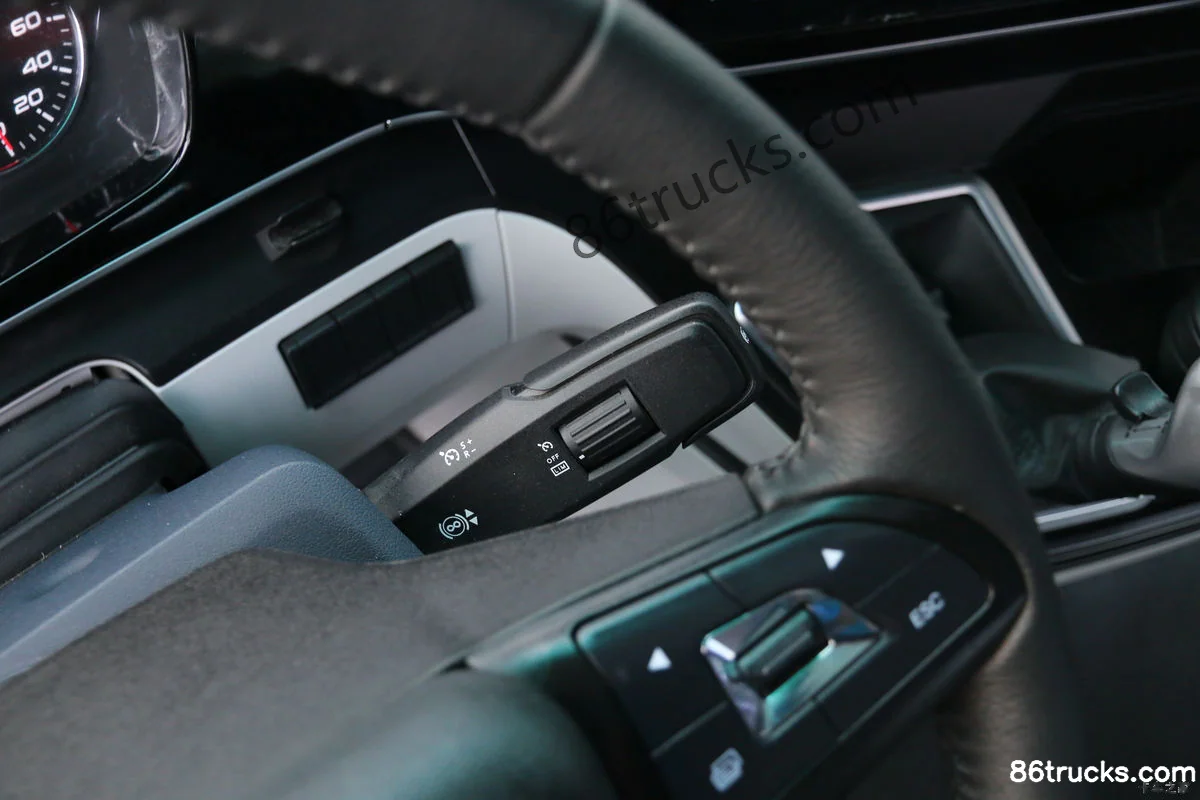

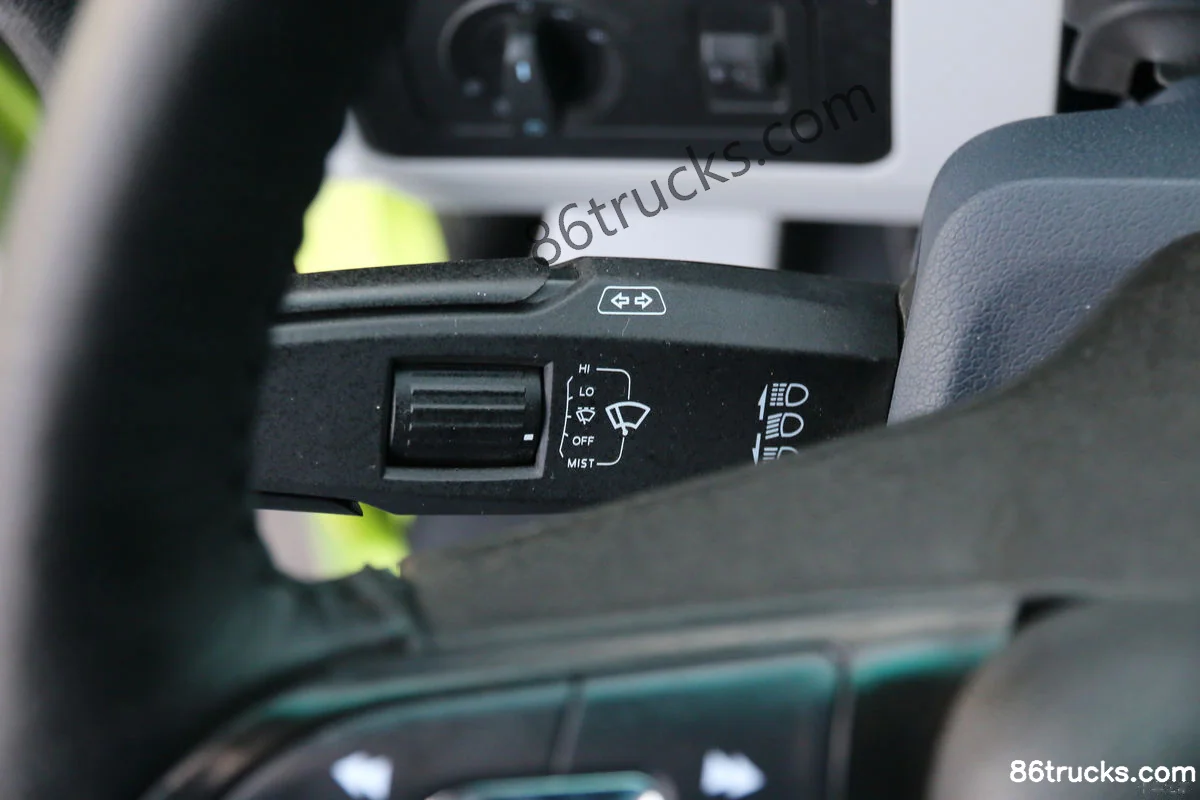

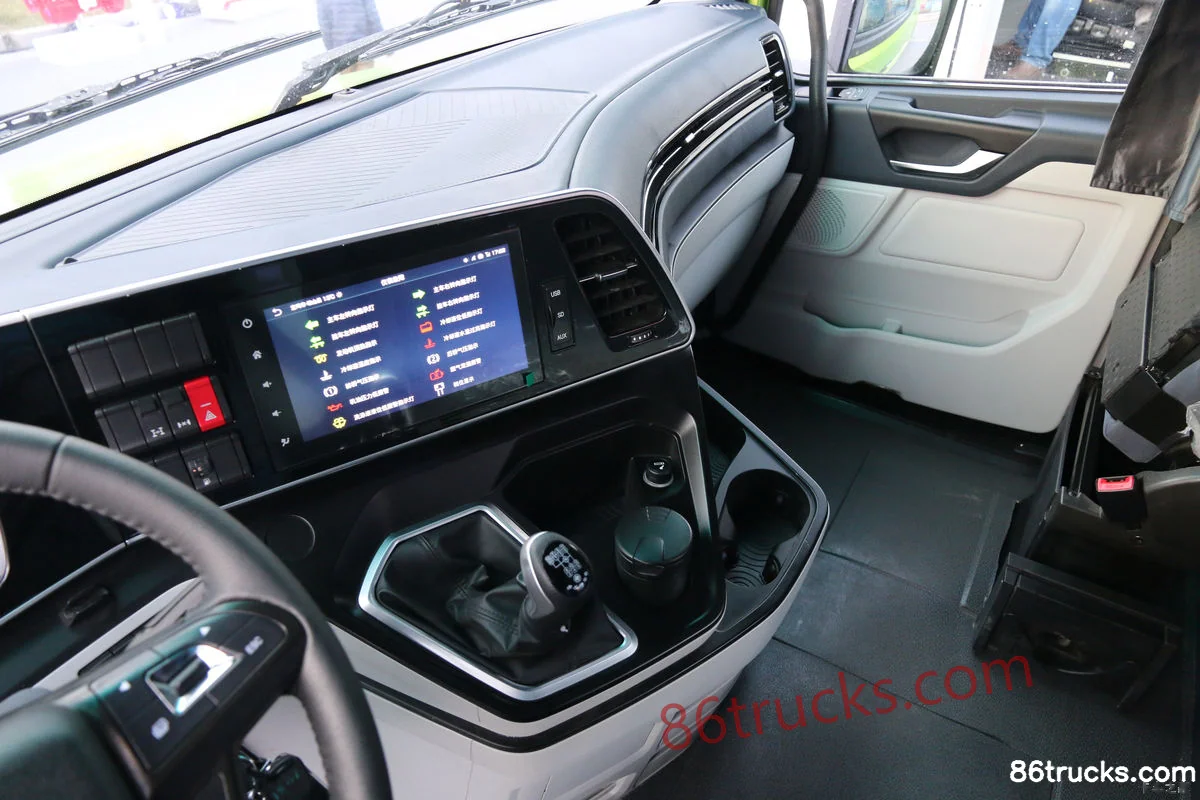

Cab3

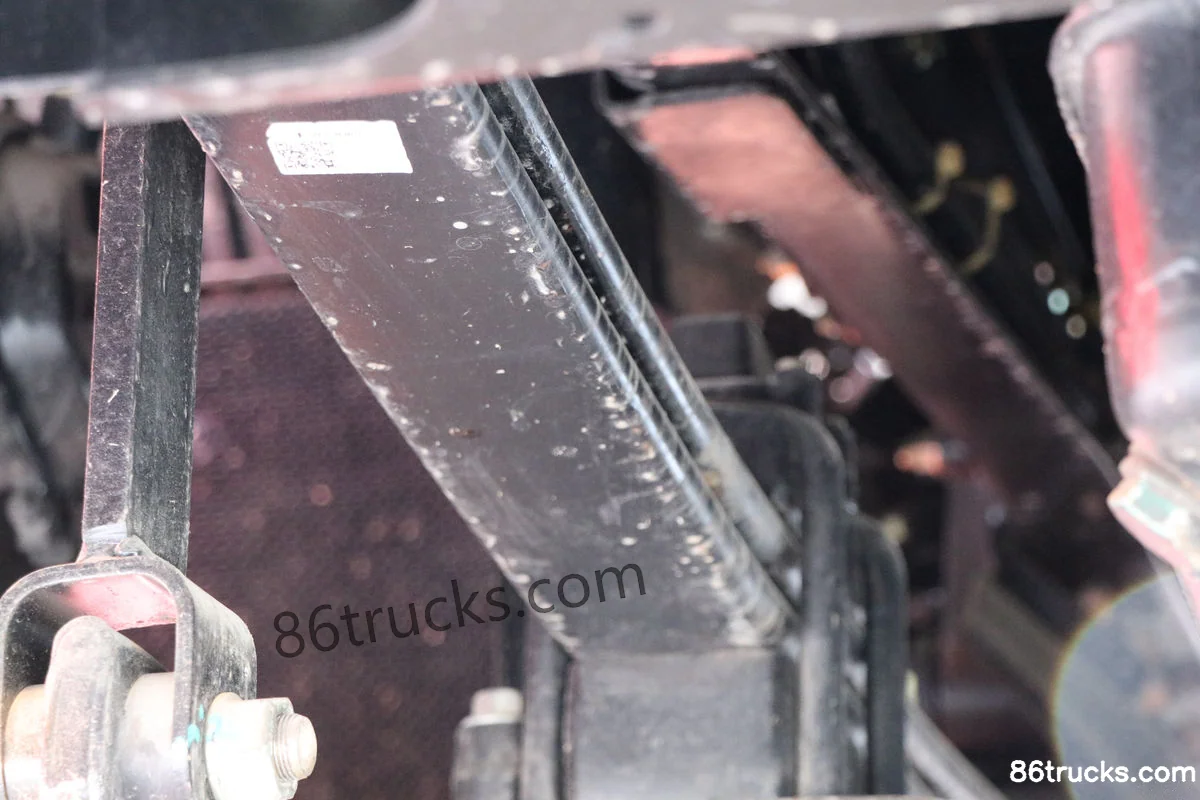

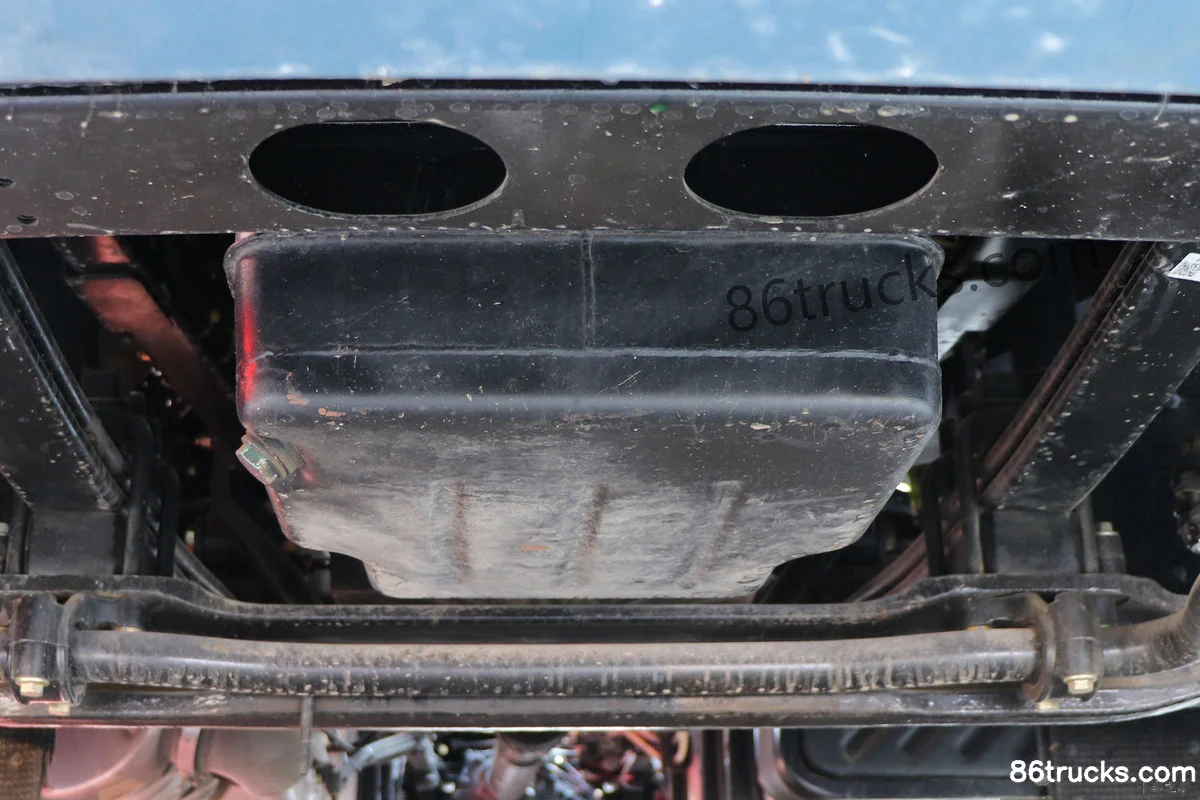

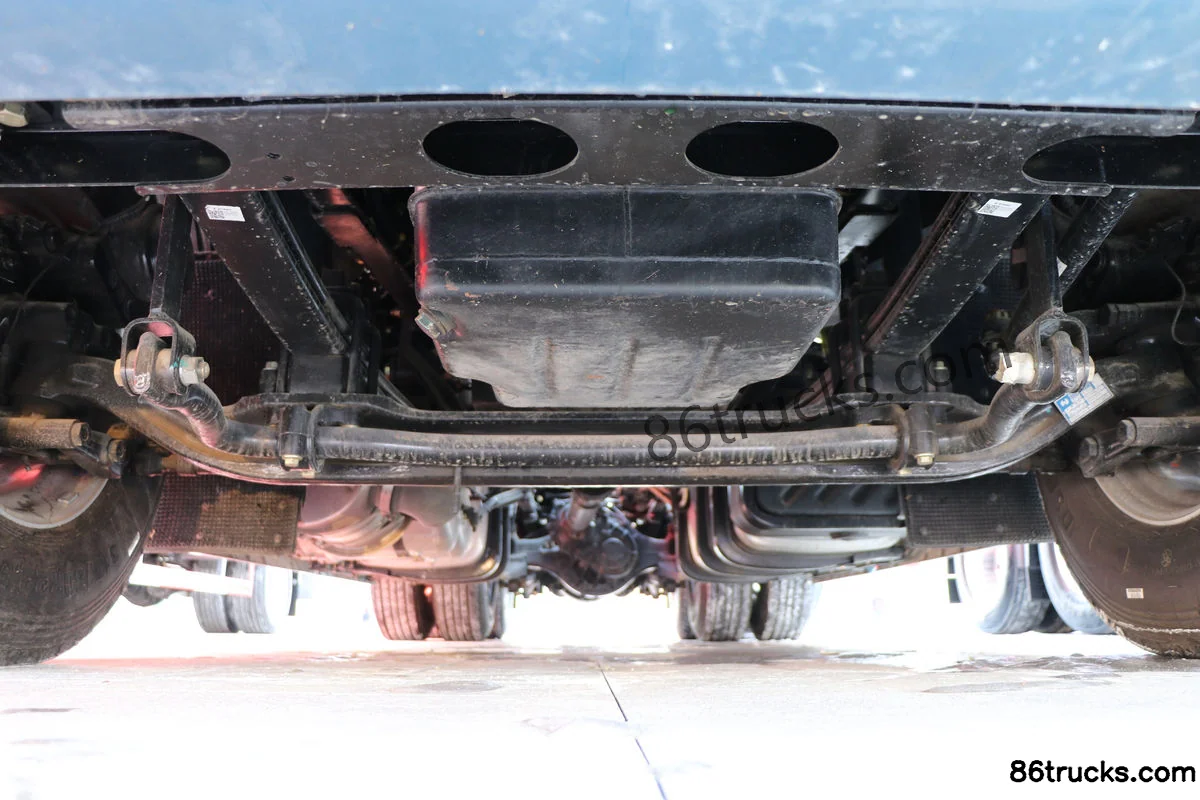

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI)?

Key specs of SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI): Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI) suited for?

SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI) differ from other variants in the same series?

SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI) belongs to SHACMAN Commercial Vehicle Zhide·Yan Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Zhide Yan High-End Edition 560 hp 6X4(10 wheels) Long-Nose Tractor Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
