FAW Jiefang Hanwei(J5M) Heavy Truck 380hp 6X6(10 wheels) Tractor Truck
EXW
From $35,417
Export quote
FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks
Main model photos
67 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Hanwei(J5M) Heavy Truck 380hp 6X6(10 wheels) Tractor Truck | 6x6 / 380hp / China III / Euro III | From $35,417 | |
| FAW Jiefang Hanwei (J5M) heavy truck 260 hp 6X2(8 wheels) tractor truck (Xichai) | 6x2 / 260hp / China III / Euro III | From $32,500 | |
| FAW Jiefang Hanwei (J5M) Heavy Truck 280 hp 4X2(6 wheels) Tractor Truck (Xichai) | 4x2 / 280hp / China III / Euro III | From $28,611 | |
| FAW Jiefang Hanwei (J5M) Heavy Truck 260 hp 4X2(6 wheels) Tractor Truck (Xichai) | 4x2 / 260hp / China III / Euro III | From $26,528 | |
| FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 4X2(6 wheels) Tractor Truck | 4x2 / 240hp / China III / Euro III | From $26,528 |
FAW Jiefang Hanwei (J5M) heavy truck 260 hp 6X2(8 wheels) tractor truck (Xichai)
EXW
From $32,500
Export quote
FAW Jiefang Hanwei (J5M) Heavy Truck 280 hp 4X2(6 wheels) Tractor Truck (Xichai)
EXW
From $28,611
Export quote
FAW Jiefang Hanwei (J5M) Heavy Truck 260 hp 4X2(6 wheels) Tractor Truck (Xichai)
EXW
From $26,528
Export quote

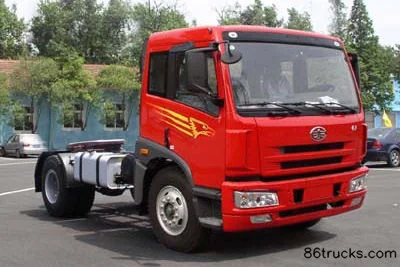

FAW Jiefang Hanwei (J5M) Heavy Truck 240 hp 4X2(6 wheels) Tractor Truck
EXW
From $26,528
Export quote
Series Specs
Basic Info
Model code (announced): CA4253P2K14T / CA4203P7K1T3E / CA4163P7K1E
Drive type: 6X6 / 6X2 / 4X2
Wheelbase: 3800+1350 / 1900+2500 / 3400mm
Min. turning diameter: 13.4 / 12.6m
Cab length: 7.7 / 6.705 / 5.705m
Cab width: 2.49 / 2.493m
Cab height: 3.05 / 3.15 / 3.134m
Front track width: 2020 / 1928/1928 / 1928mm
rear track: 1847/1847 / 1847mm
Gross Trailer Weight: 36.205 / 28 / 31.8ton
Curb Weight: 9.6 / 7.2 / 6.405ton
GVWR: 24.99 / 20.43 / 16.49ton
Max. speed: 95 / 93 / 100km/h
Origin: Changchun, Jilin
tonnage class: Heavy truck
Remarks: High-top cab optional. / Optional flat roof cab, BF6M1013-24E3 engine net power 177kW, BF6M1013-26E3, CA6DL1-26E3 engine net power 192kW, CA6DL1-28E3, BF6M1013-28E3 engine net power 206kW, engine to VIN correspondence: LFWRKULG for BF6M1013-24E3 engine, LFWRKUMG for BF6M1013-26E3, BF6M1013-28E3, CA6DL1-26E3, CA6DL1-28E3 engines. Maximum trailer weight vs engine correspondence: 28000kg (BF6M1013-24E3 engine), 31000kg (BF6M1013-26E3, CA6DL1-26E3 engines), 33800kg (BF6M1013-28E3, CA6DL1-28E3 engines). Trailer weight (kg) also: 33800. / Engine power parameters are net power values. An additional leaf spring pad can be optionally installed on the rear suspension. GCW 28800kg corresponds to BF6M1013-24E3, CA6DF3-24E3 engines; GCW 31800kg corresponds to BF6M1013-26E3, CA6DL1-26E3, CA6DL1-26E3F engines; GCW 34600kg corresponds to BF6M1013-28E3, CA6DL1-28E3, CA6DL1-28E3F engines. GCW (kg) also available: 34600. Flat-top cab optional. Overall dimensions L×W×H (mm): 5705 ×2493 ×3134,2890 / Engine power parameters are net power values. An additional leaf spring pad can be optionally installed on the rear suspension. GCW 28800kg corresponds to BF6M1013-24E3, CA6DF3-24E3 engines; GCW 31800kg corresponds to BF6M1013-26E3, CA6DL1-26E3, CA6DL1-26E3F engines; GCW 34600kg corresponds to BF6M1013-28E3, CA6DL1-28E3, CA6DL1-28E3F engines. GCW (kg) also available: 34600. Flat-top cab optional. Overall dimensions L×W×H (mm): 5705 ×2493 ×3134,2890. / Engine power parameters are net power values. An additional leaf spring pad can be optionally installed on the rear suspension. GCW 28800kg corresponds to BF6M1013-24E3, CA6DF3-24E3 engines; GCW 31800kg corresponds to BF6M1013-26E3, CA6DL1-26E3, CA6DL1-26E3F engines; GCW 34600kg corresponds to BF6M1013-28E3, CA6DL1-28E3, CA6DL1-28E3F engines. GCW (kg) also available: 34600. Flat-top cab optional.
Energy Type: Diesel
Engine parameters
Engine Brand: Shanghai Hino / Xichai / Dachai
Engine Model: Shanghai HinoP11C-UR / XichaiCA6DL1-26E3 / XichaiCA6DL1-28E3 / DachaiBF6M1013-24E3
Number of cylinders: 6cylinder
Cylinder arrangement: Inline
Displacement: 10.52 / 7.7 / 7.146L
Emission standard: China III / Euro III
Max output power: 280 / 191 / 206 / 177kW
Max hp: 380 / 260 / 280 / 240Horsepower
Max torque: 1600 / 1050 / 1100 / 850N·m
Max torque speed: 1300 / 1300-1700 / 1400rpm
Rated speed: 2100 / 2300rpm
Transmission Parameters
Transmission Model: Fast GearRTO-16110B / Fast Gear9JS135 / Fast Gear8JS118
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10 / 9 / 8Gear
Number of Reverse Gears:
fuel tank
Fuel tank/air tank material: Iron / aluminum alloy
Fuel tank capacity: 340 / 300L
Cab parameters
Cab: Flat roof / High roof
seating capacity: 3 / 2Personnel
Seat rows: Single Row / Sleeper cab
Chassis Specs
Suspension type: Leaf spring
rear axle description: SC3030 wheel-side reduction axle / 485 stamped-welded axle
FAQ
What kind of truck is FAW Jiefang FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks?
FAW Jiefang FAW Jiefang Hanwei J5M Heavy Truck is an export-oriented Tractor Trucks lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks?
FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks export reference is about $26,528 – $35,417. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks cover?
FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks mainly covers: Drive: 4x2 / 6x2 / 6x6; Horsepower: 240 hp / 260 hp / 280 hp / 380 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks?
For FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks: 1) confirm destination emission; 2) pick drive by payload/route (long-haul heavy often 6×4); 3) choose horsepower; 4) compare reference price and photos. Then open a model for engine/gearbox and request a quote.
What is Tractor Trucks typically used for?
Tractor Trucks units mainly pull semi-trailers for line-haul, port and long-distance work. Focus on horsepower, drive and emission for your trailer and route.
How many models does FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks include?
FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang Hanwei J5M Heavy Truck Tractor Trucks?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
