JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck

Export reference
From $9,972
MSRP ¥7.18M CNY
Horsepower: 102
Emission: China IV
Fuel: Diesel
Engine: JMC493
Transmission: JMC
Curb Weight:: 1.865ton
seating capacity: 2Personnel
Rated payload: 1.45ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck is a Light Truck featuring 3.1m cargo length, stake body cargo body, 2Personnel volume and 1.45t payload. On the powertrain side, it comes with a JMC493 engine, 102 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1031TA4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2490mm
Box length class: 3.1m
engine: Nanchang JMC JX493ZLQ4B
transmission: JMCJC520T9DB
Cab length: 4.735m
Cab width: 1.69m
Cab height: 2.04m
Front track width: 1395mm
rear track: 1375mm
Curb Weight: 1.865ton
Rated payload: 1.45ton
GVWR: 3.445ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22°
Remarks: CD, Titanium Silver Interior, Bamboo Plywood Side Panel Cargo Box
Front/rear suspension: 1.065/1.18m
Version: Standard version
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX493ZLQ4B
Engine info: JMC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 220N·m
Max torque speed: 1800-2200rpm
Rated speed: 3800rpm
Engine Type: Inline, high-pressure common rail
Transmission Parameters
Transmission Model: JMCJC520T9DB
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.1m
Cargo box width: 1.6m
Cargo box height: 0.38m
*Cargo box interior width: 1.6000000238419
Cab parameters
Cab: Tilt cab
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1580kg
rear axle allowable load: 1865kg

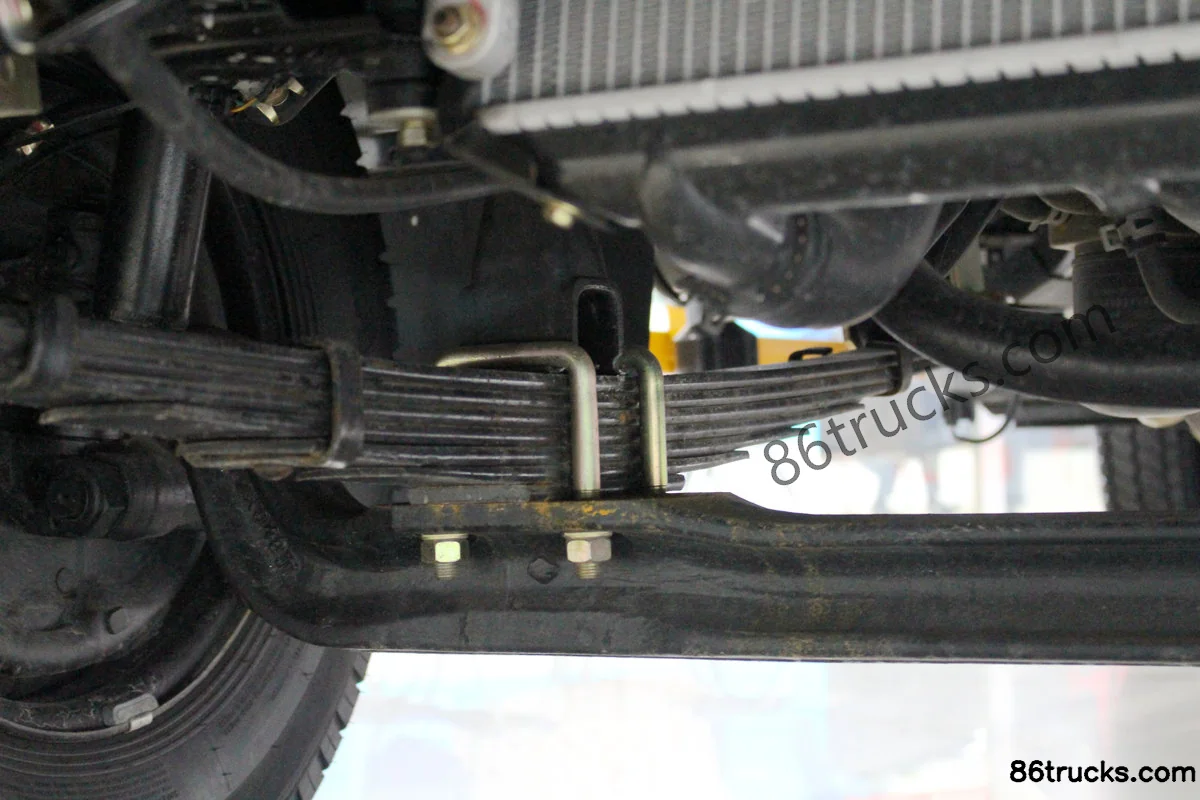

Leaf spring count: 5/5
Tire
Tire Size: 6.50-15LT
Number of tires: 4pcs
Control configuration
Power steering:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Hydraulic brake

Photos

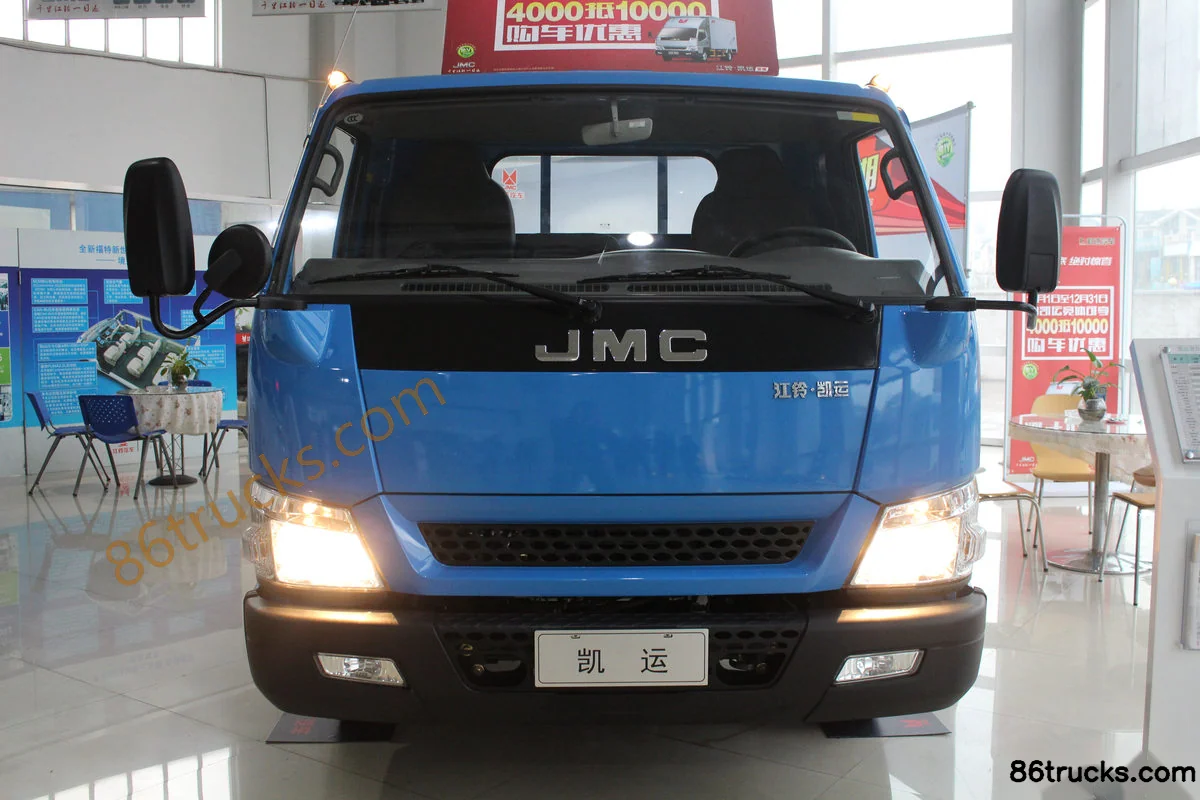

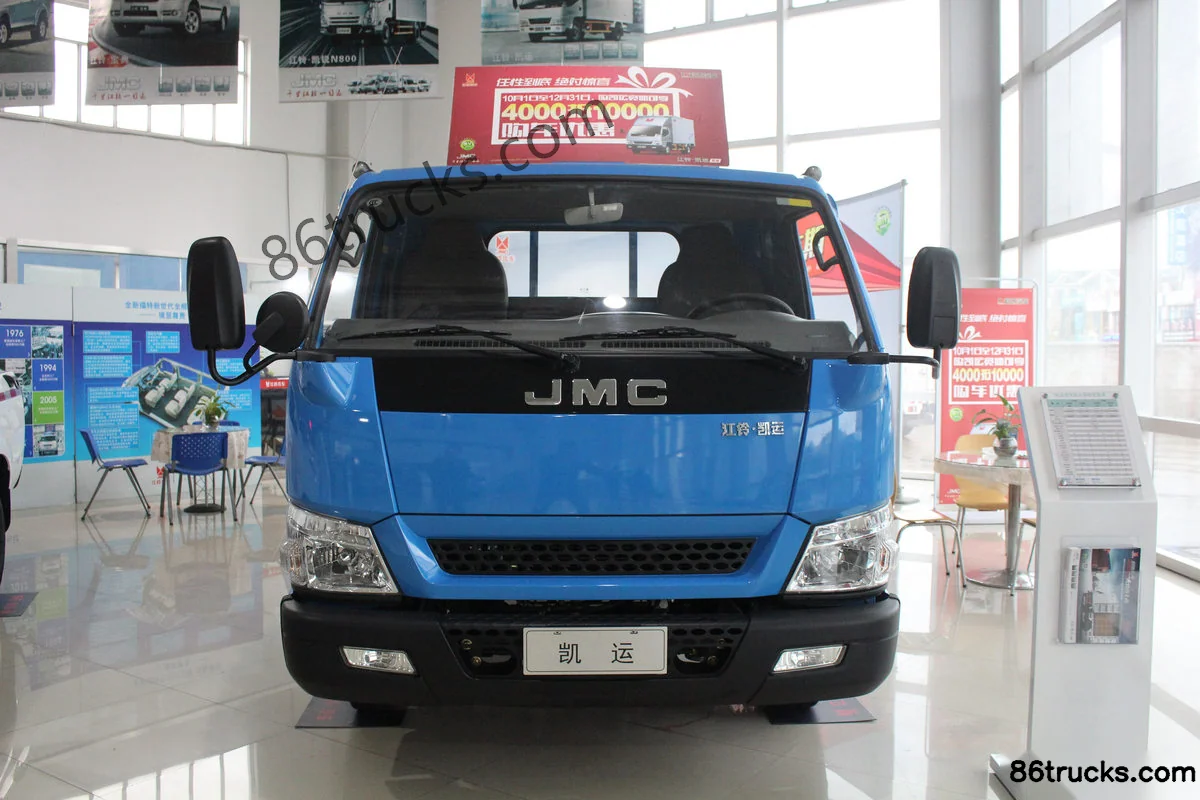

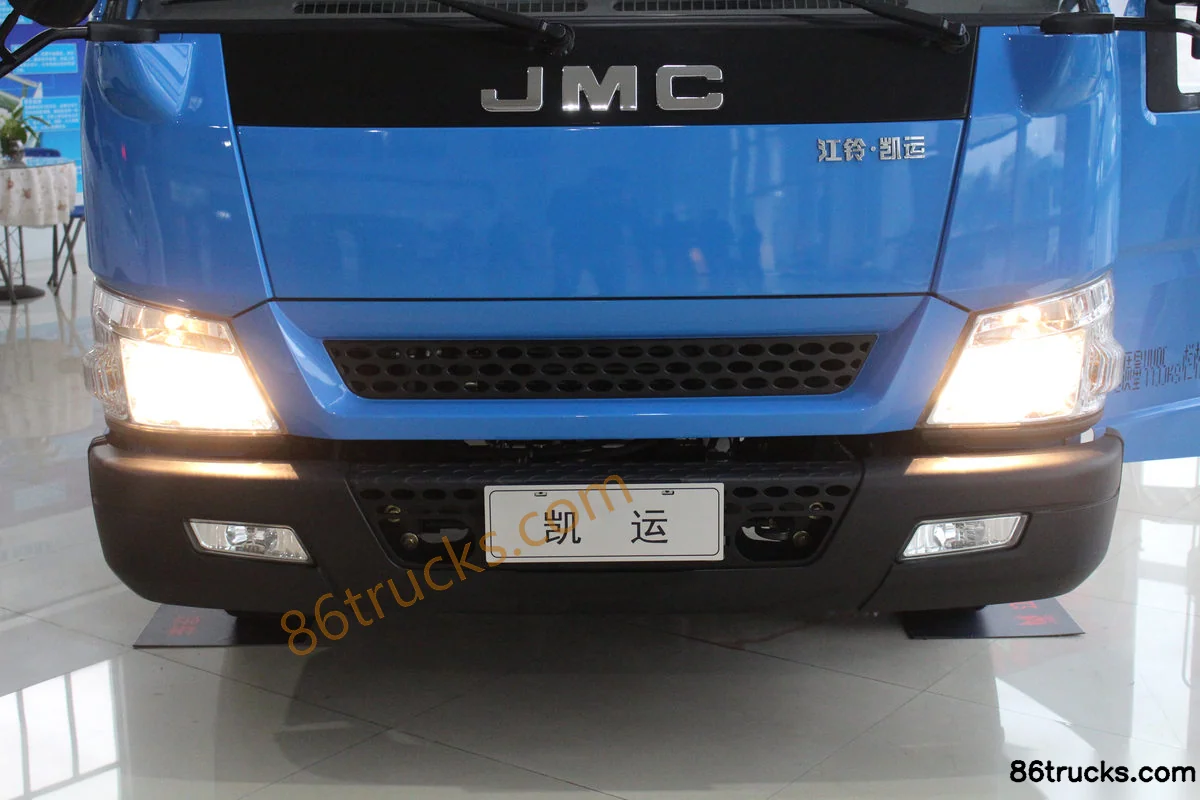

Exterior3

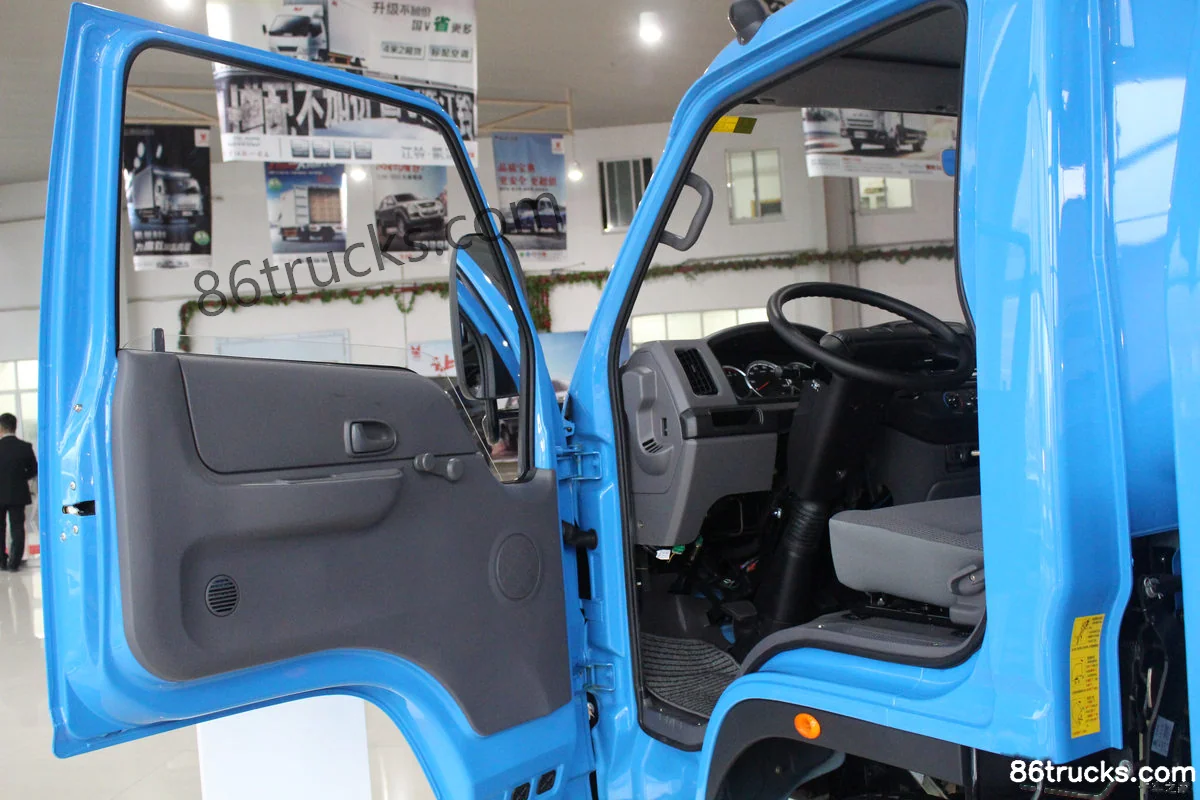

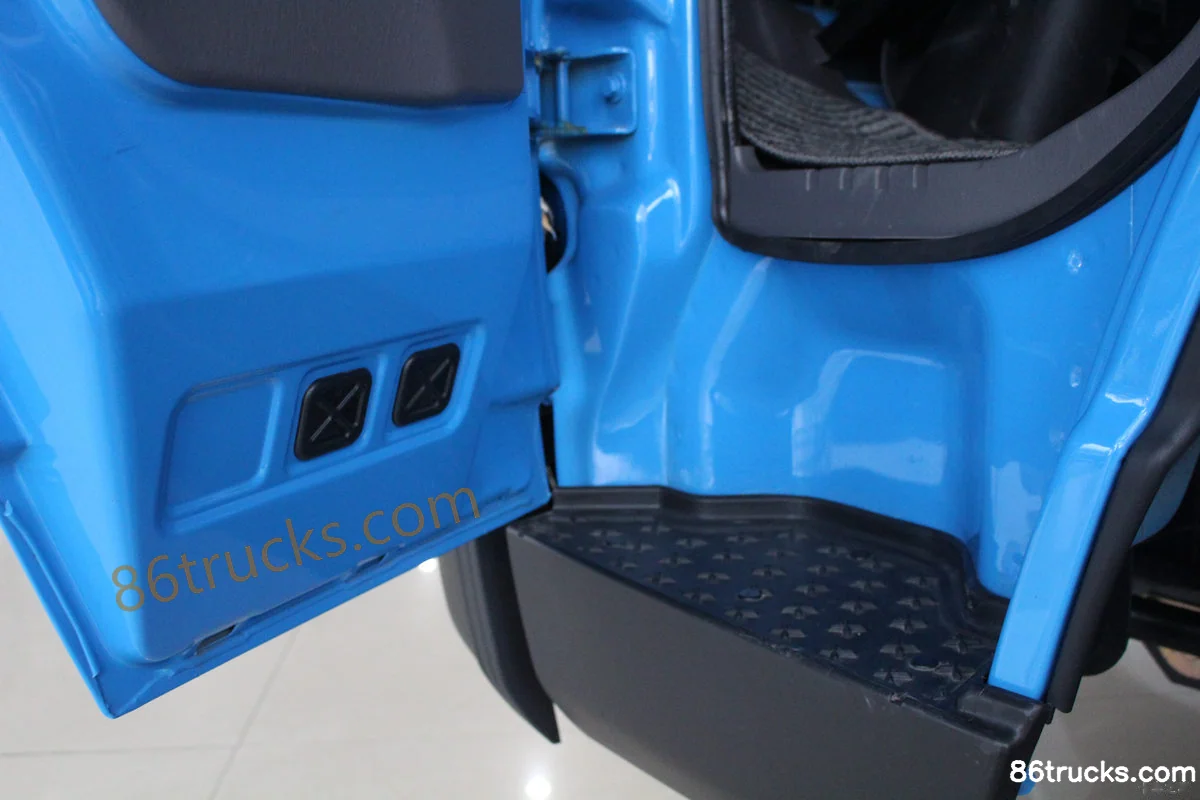

Cab3

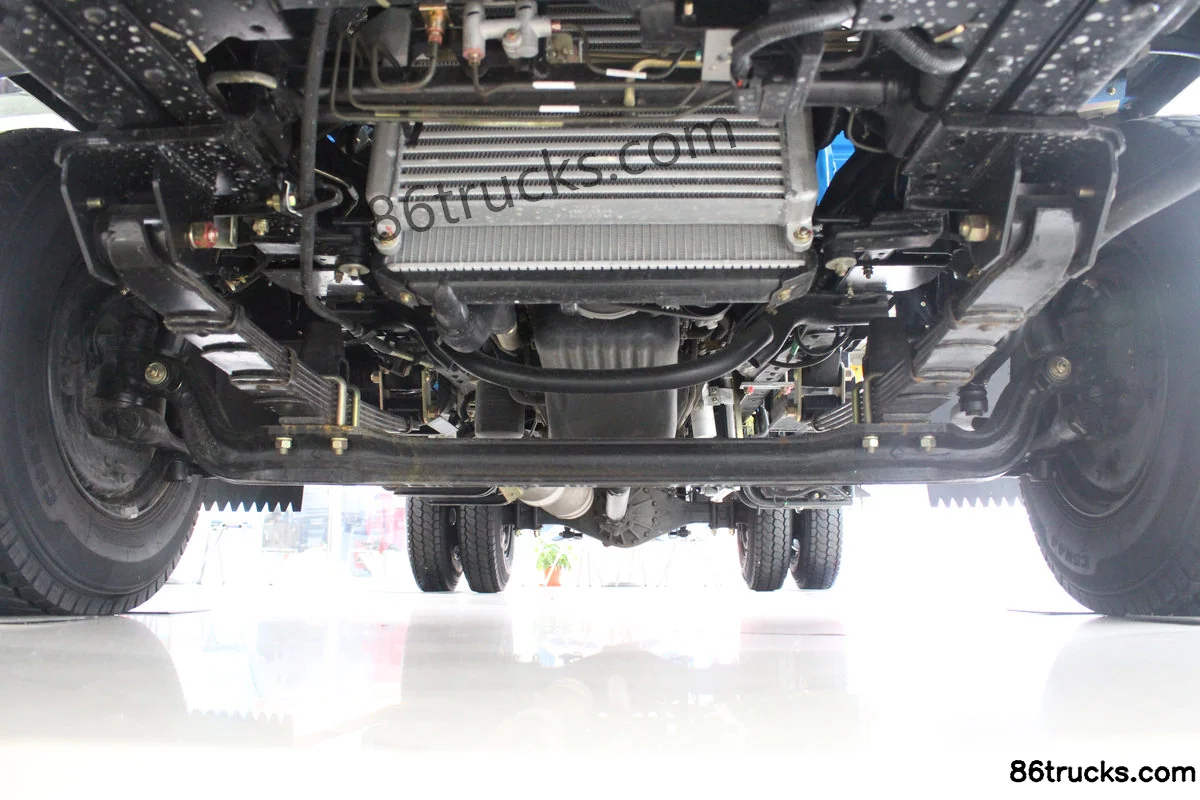

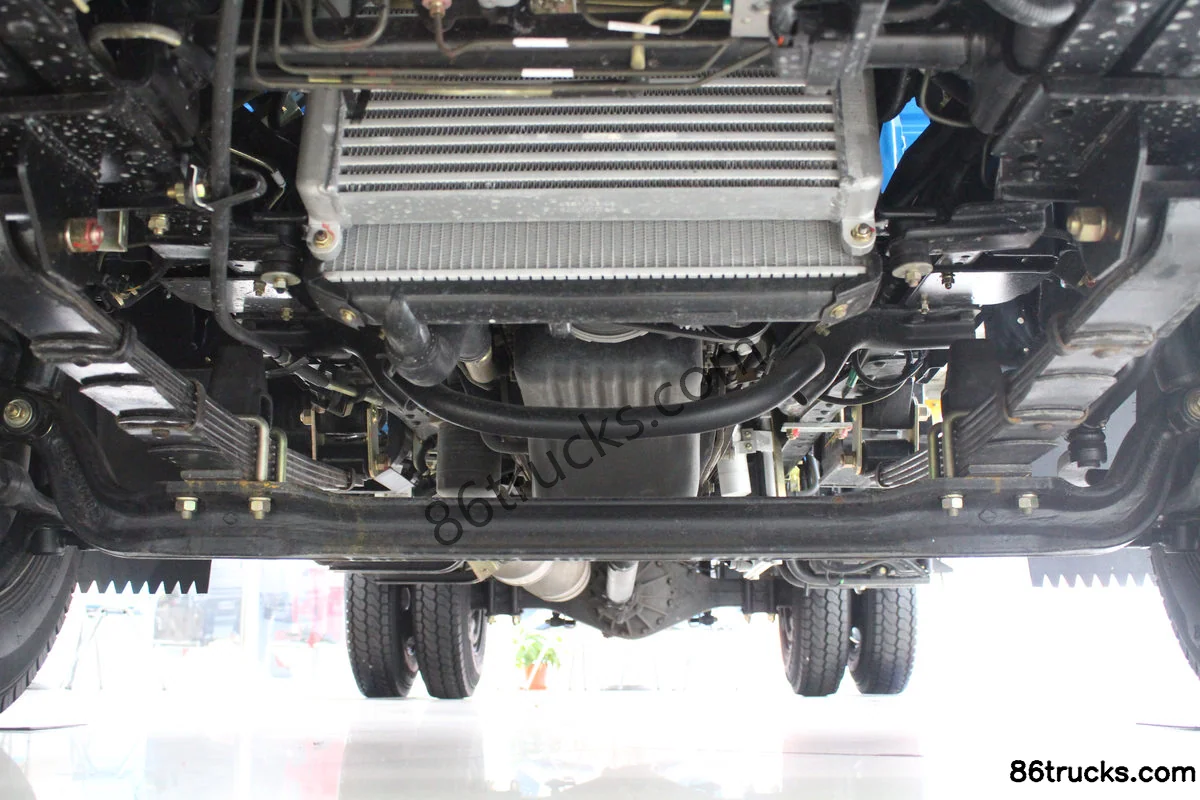

Chassis3

9 photos

FAQ

What is the export price of JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck, and what does it include?

JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck export reference is about From $9,972; MSRP is ¥7.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck?

Key specs of JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China IV; Fuel: Diesel; Engine: JMC493; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck suited for?

JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck differ from other variants in the same series?

JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck belongs to JMC New Kaiyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Shunda Standard Edition 102 hp 4X2(6 wheels) 3.1m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
