Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh

Export reference
MSRP N/A
Rated payload:: 7.705ton
Wheelbase:: 3800mm
Cargo box length:: 4.2m
Model code (announced):: CDW3164K401EZABEV
Cab length:: 6.99m
GVWR:: 16.2ton
Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh exterior
View more photos (9)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Wangpai
Curb Weight: 8.3ton

Overview

The Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh is a Medium-duty truck featuring CATL battery/range, Wangpai motor, 4X2 (6 wheels) drive and 7.705t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CDW3164K401EZABEV
Drive type: 4X2
Wheelbase: 3800mm
Cab length: 6.99m
Cab width: 2.46m
Cab height: 2.84m
Curb Weight: 8.3ton
Rated payload: 7.705ton
GVWR: 16.2ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Wangpai
Motor 1 Model: TZ380XSCDW08
total rated power: 120kW
Peak power: 185kW
Motor 1 Peak Power: 185kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 165kWh
Transmission Parameters
Number of gears: 4Gear
shift type: AMT manual/auto
Transmission Model: J4S100A
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10600kg
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:

Photos

Exterior3

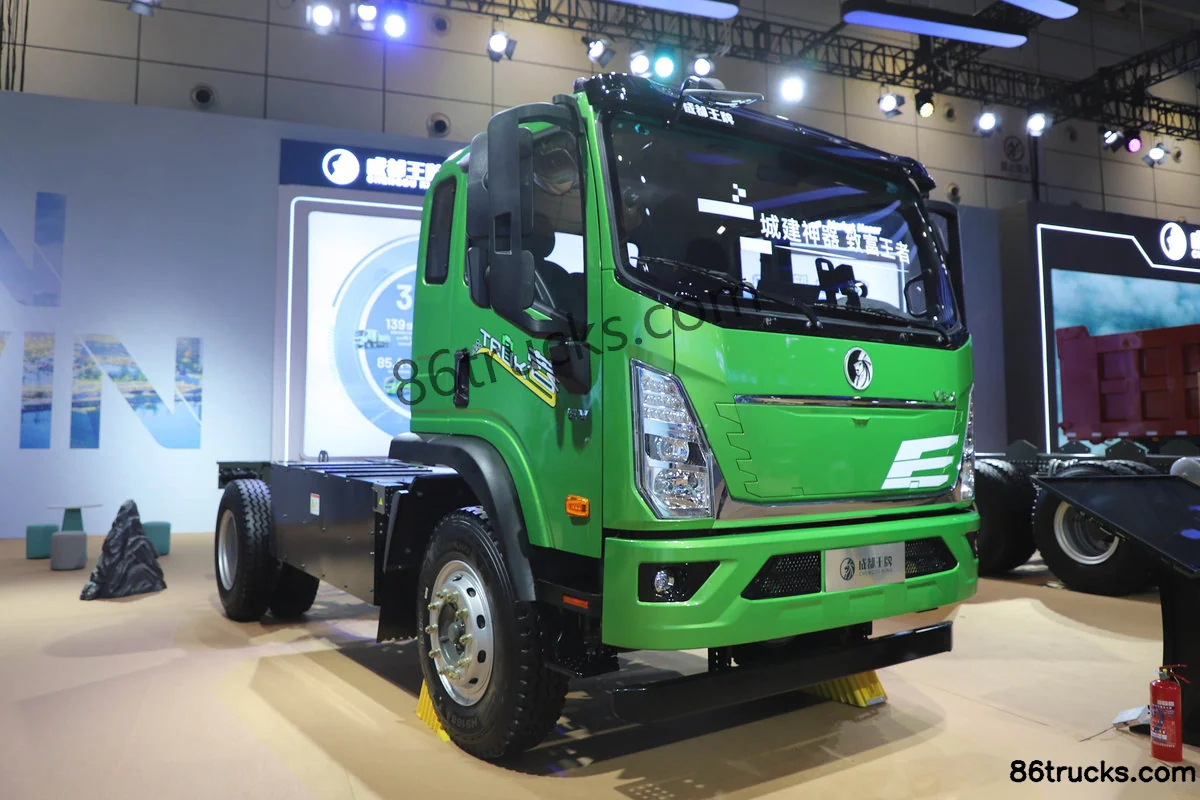

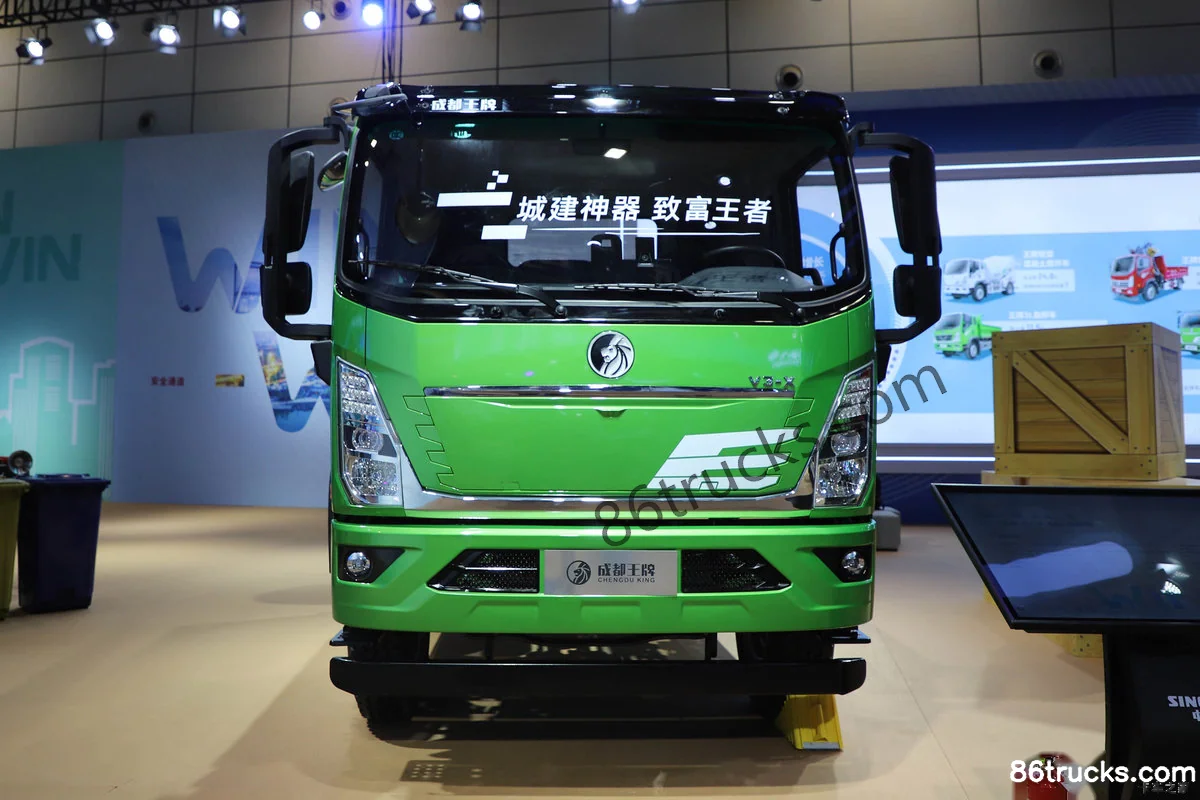

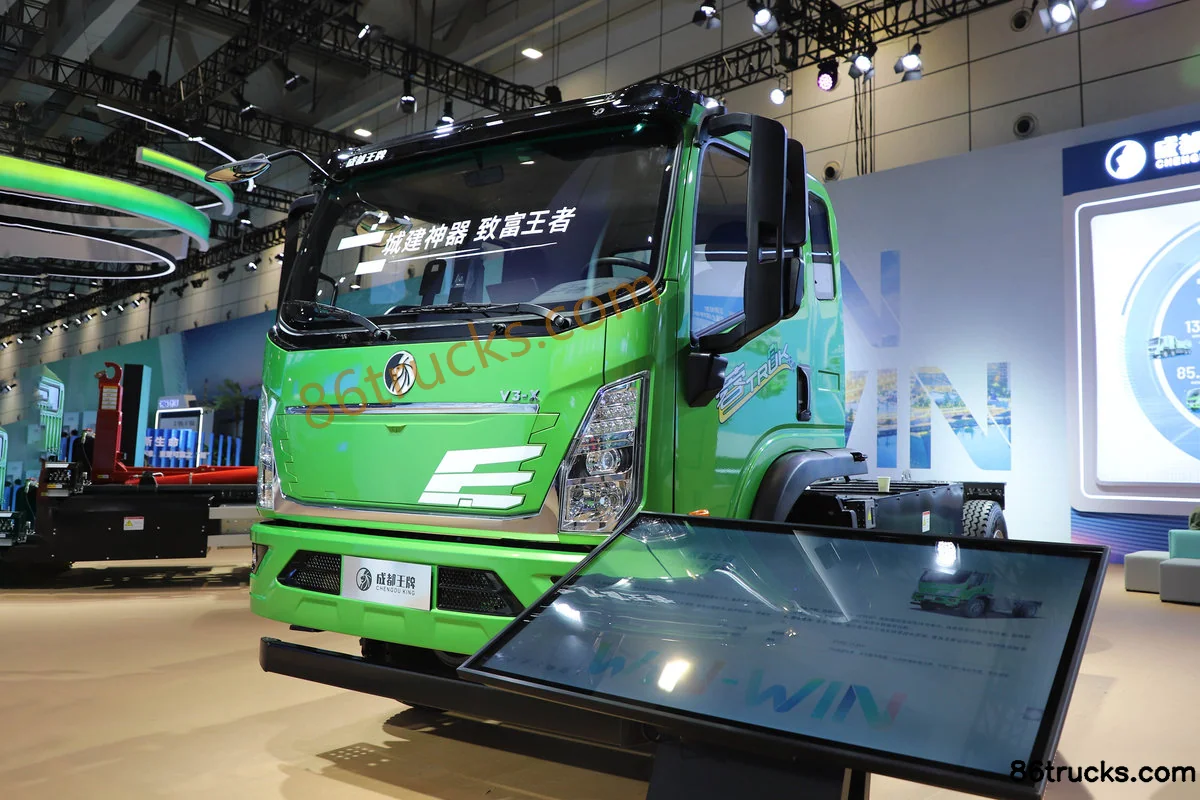

Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Exterior (1) | 86Trucks Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Exterior (2) | 86Trucks Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Exterior (3) | 86Trucks

Cab3

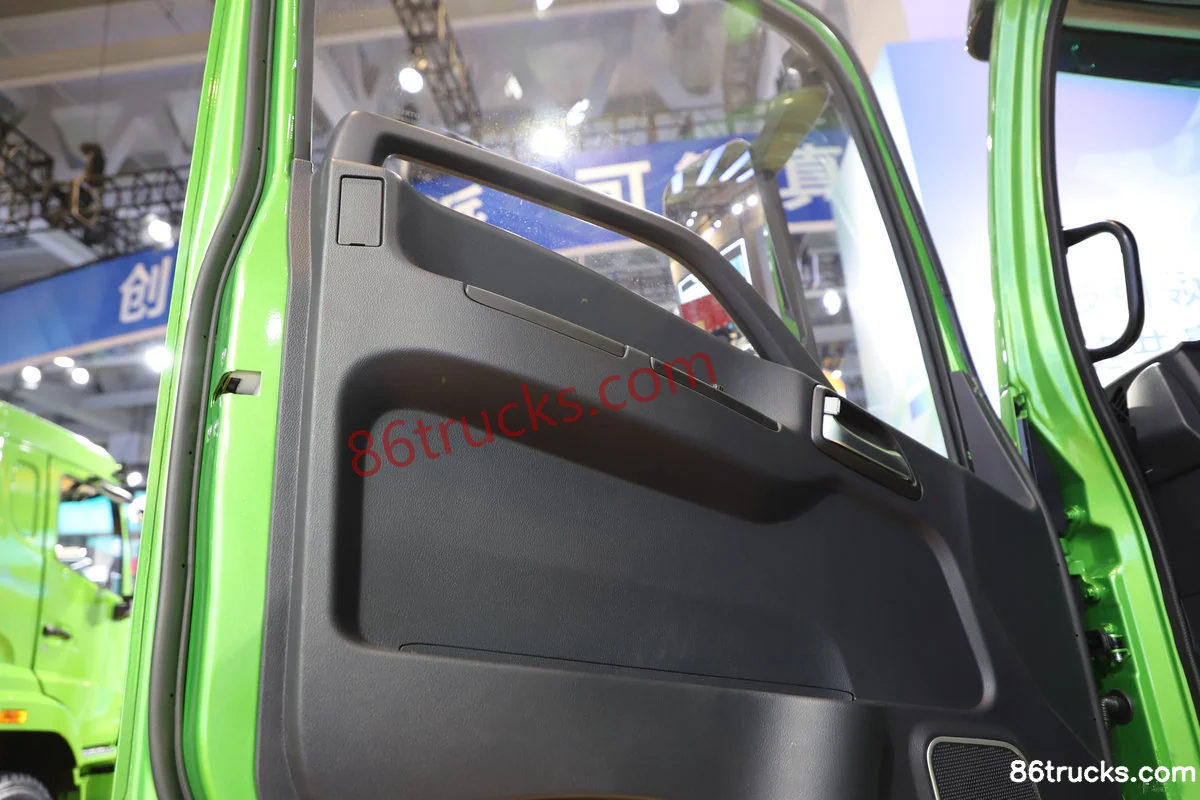

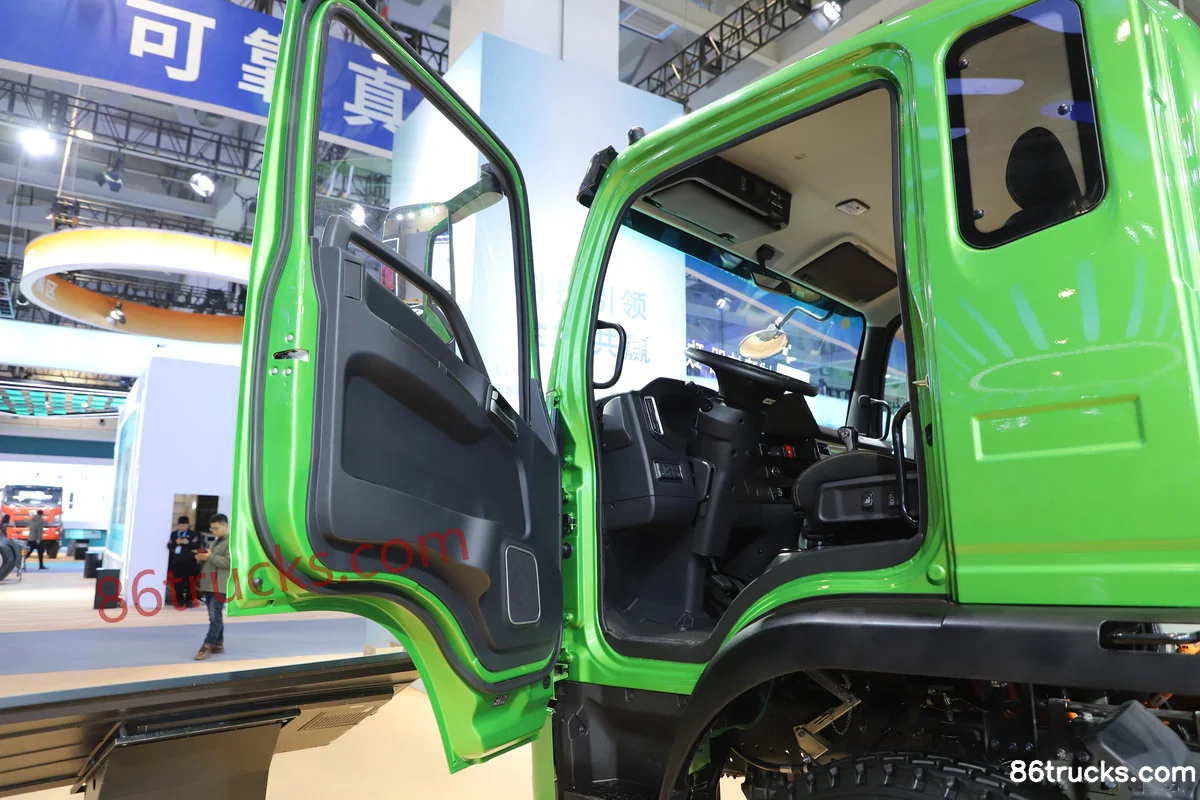

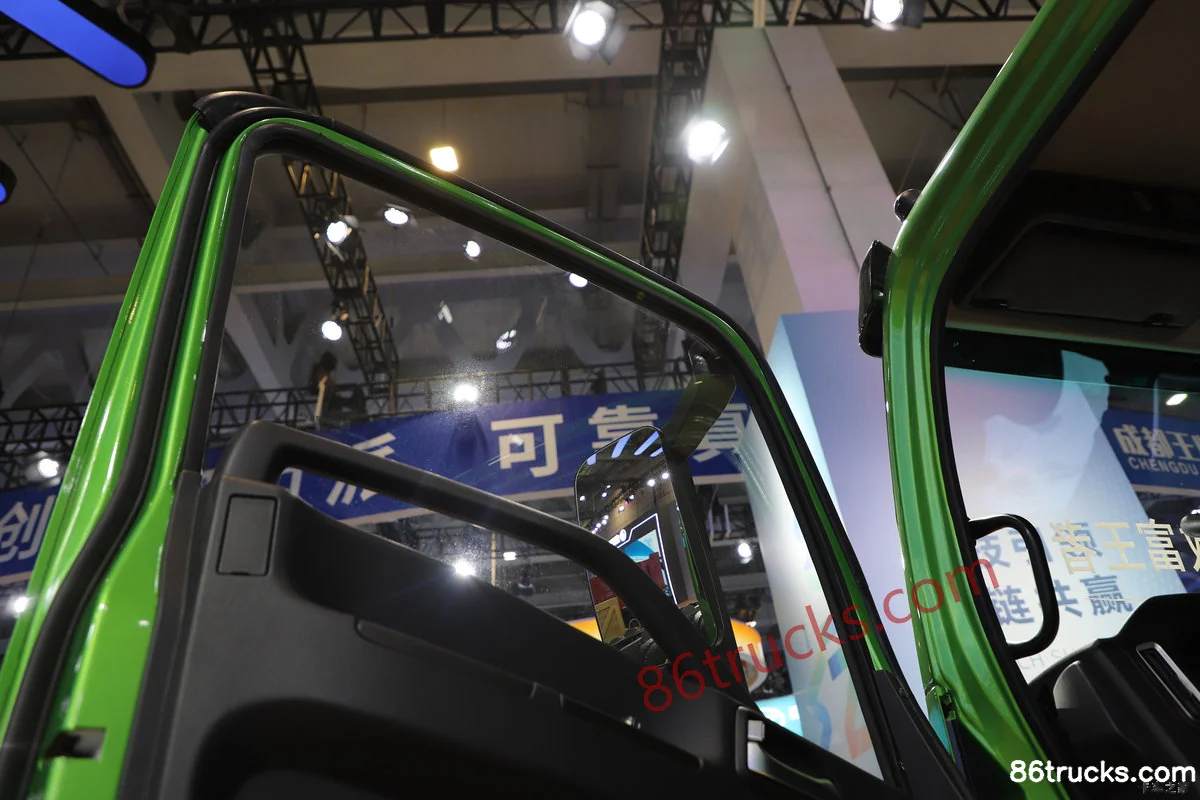

Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Cab (1) | 86Trucks Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Cab (2) | 86Trucks Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Cab (3) | 86Trucks

Chassis3

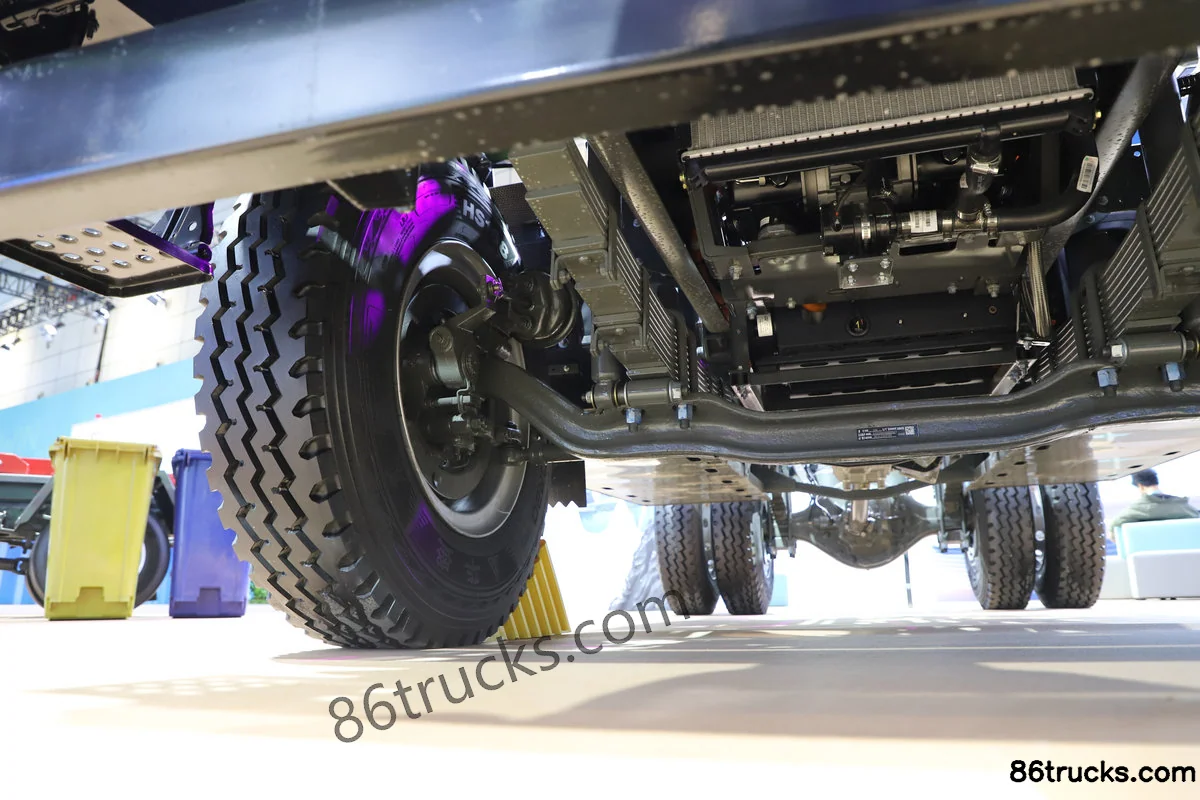

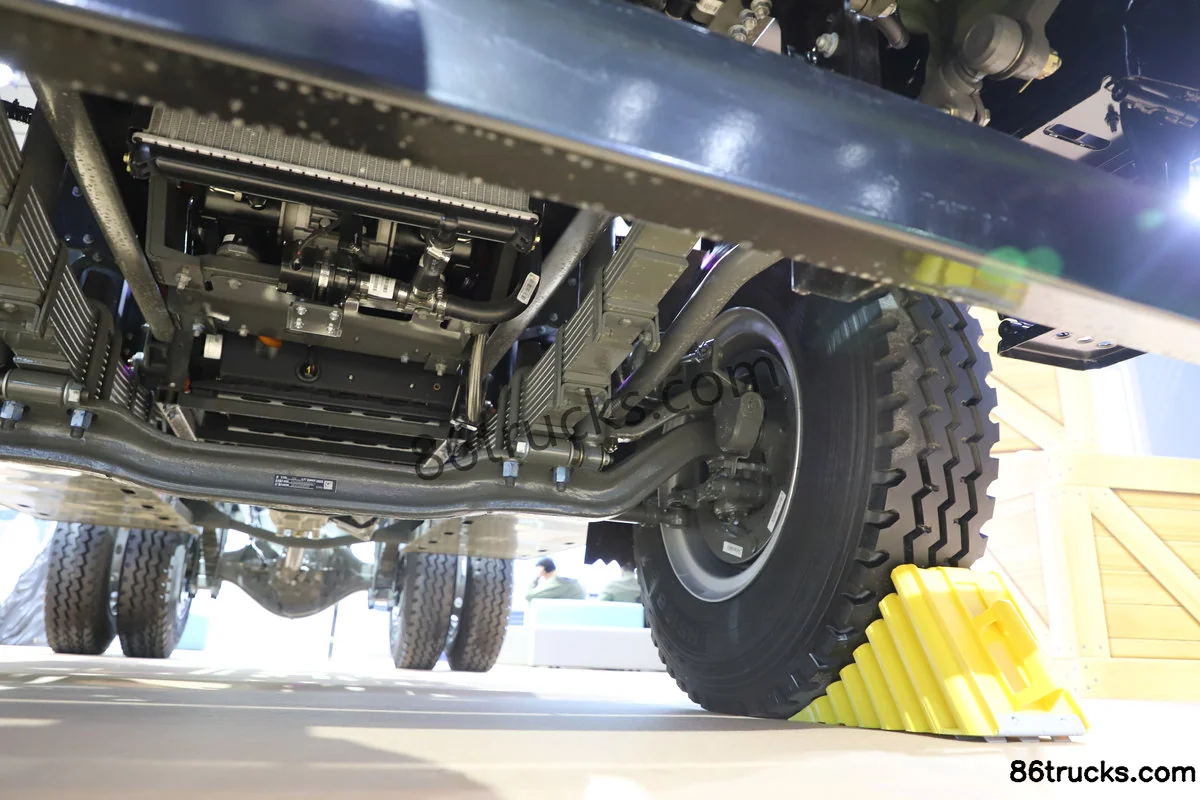

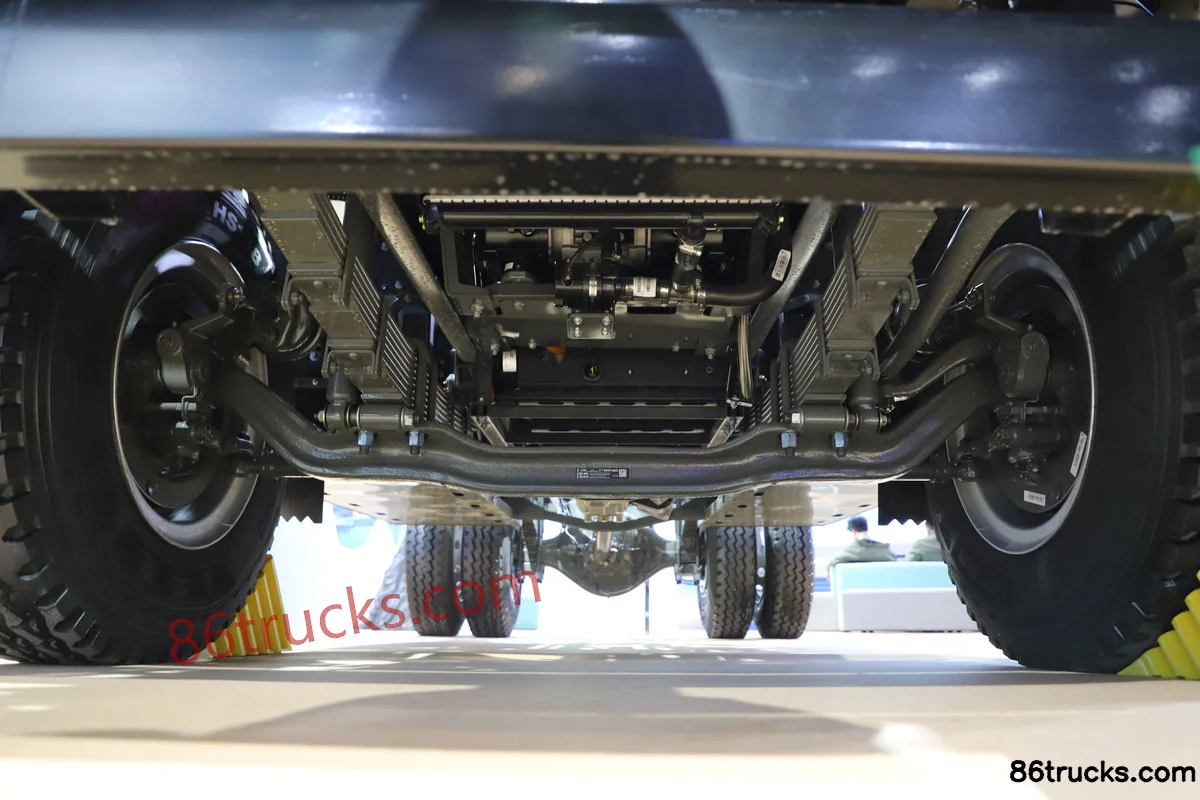

Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Chassis (1) | 86Trucks Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Chassis (2) | 86Trucks Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh?

Key specs of Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh suited for?

Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh differ from other variants in the same series?

Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh belongs to Sinotruk V3-X Medium Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V3-X 4X2(6 wheels) 4.2m Electric Single Row Dump Truck CATL 165kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
