JAC Junling EG5 4X2(6 wheels) 4.1m Single-row Pure Electric Dump Truck CATL 164.8kWh
EXW
From $39,583
Export quote
JAC G light truck electric dump truck
Main model photos
215 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Junling EG5 4X2(6 wheels) 4.1m Single-row Pure Electric Dump Truck CATL 164.8kWh | 4x2 | From $39,583 | |
| JAC Junling G5 4X2(6 wheels) Electric Single-Row Detachable Container Garbage Truck CATL 162.28kWh (Qinhong Brand) | 4x2 | From $47,222 | |
| JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh | 4x2 |
JAC Junling G5 4X2(6 wheels) Electric Single-Row Detachable Container Garbage Truck CATL 162.28kWh (Qinhong Brand)
EXW
From $47,222
Export quote

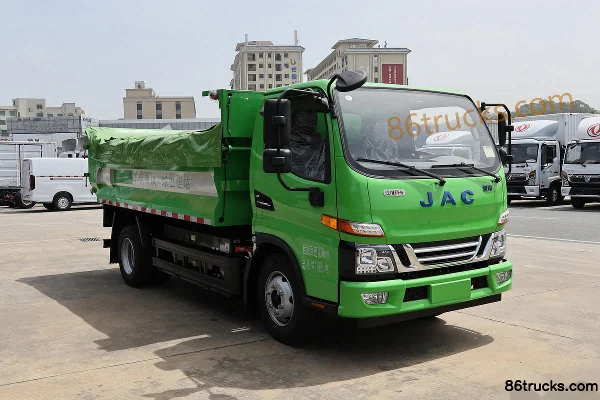

JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh
EXW
Export quote
Series Specs
Basic Info
Model code (announced): HFC3122EV1 / SQH5122ZXXBEVPZ
Drive type: 4X2
Wheelbase: 3300mm
Cab length: 5.995 / 5.58m
Cab width: 2.19 / 2.095m
Cab height: 2.145 / 2.18m
CLTC range: 300km
Curb Weight: 5.2 / 4.93ton
Rated payload: 6.6 / 6.87ton
GVWR: 11.995ton
Max. speed: 85km/h
Origin: Hefei, Anhui / Chengdu, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: JAC
Motor 1 Model: TZ370XS-SJ003
Motor Type: Permanent magnet synchronous motor
Peak power: 210kW
Motor 1 Peak Power: 210kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 164.8 / 162.28 / 81.14kWh
Transmission Parameters
Number of gears: 2Gear
shift type: AMT manual/auto
Transmission Model: J2S130
Forward gears: 2Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.1 / 3.8m
Cargo box width: 2.075m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 3995kg
rear axle description: 7.2T
rear axle allowable load: 8000kg
Tire
Tire Size: 245/70R17.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
FAQ
What kind of truck is JAC JAC G light truck electric dump truck?
JAC JAC G light truck is an export-oriented electric dump truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC G light truck electric dump truck?
JAC G light truck electric dump truck export reference is about $39,583 – $47,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC G light truck electric dump truck cover?
JAC G light truck electric dump truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC G light truck electric dump truck?
For JAC G light truck electric dump truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is electric dump truck typically used for?
electric dump truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does JAC G light truck electric dump truck include?
JAC G light truck electric dump truck currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC G light truck electric dump truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
