JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh

Export reference
MSRP N/A
Rated payload:: 6.87ton
Wheelbase:: 3300mm
Cargo box type:: stake body
Model code (announced):: HFC3122EV1
Cab length:: 5.995m
GVWR:: 11.995ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: JAC
Curb Weight: 4.93ton

Overview

The JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh is a Light Truck featuring CATL battery/range, JAC motor, 4X2 (6 wheels) drive and 6.87t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3122EV1
Drive type: 4X2
Wheelbase: 3300mm
Cab length: 5.995m
Cab width: 2.19m
Cab height: 2.145m
Curb Weight: 4.93ton
Rated payload: 6.87ton
GVWR: 11.995ton
Max. speed: 85km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: JAC
Motor 1 Model: TZ370XS-SJ003
Motor Type: Permanent magnet synchronous motor
Motor 1 Peak Power: 210kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 81.14kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 2.075m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 3995kg
rear axle allowable load: 8000kg

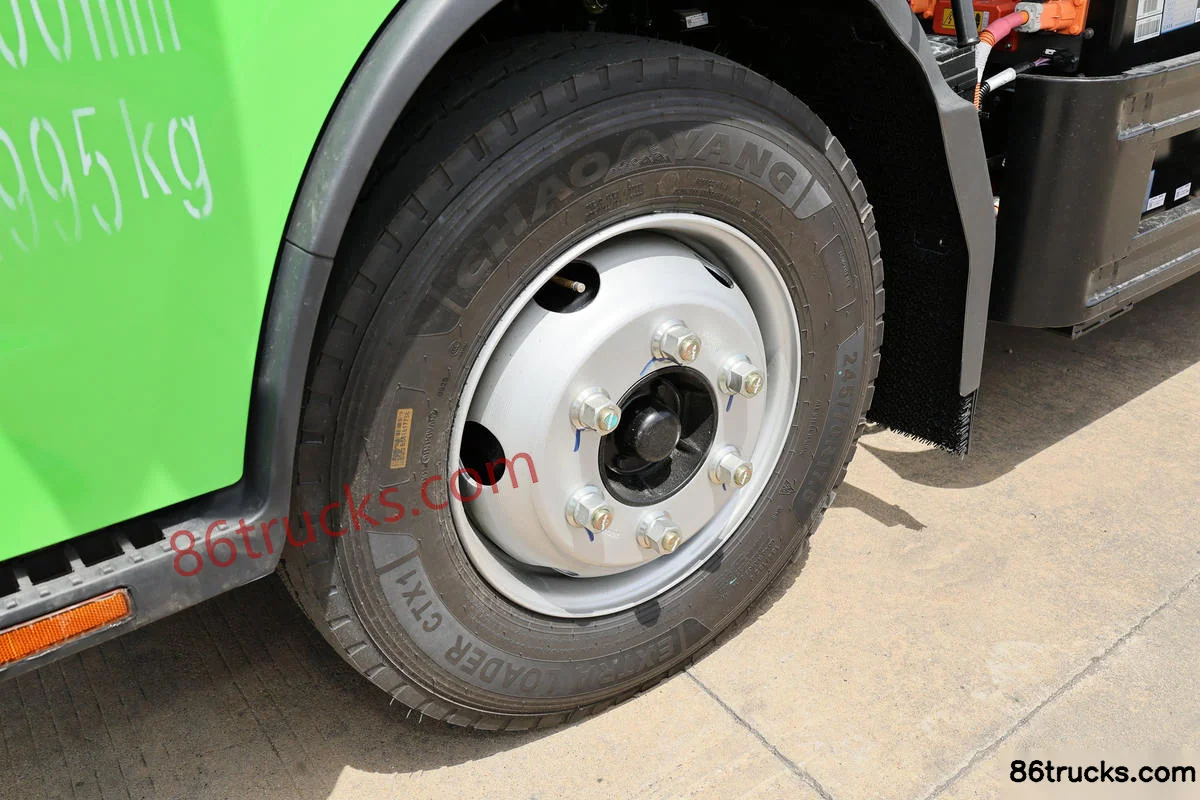

Tire

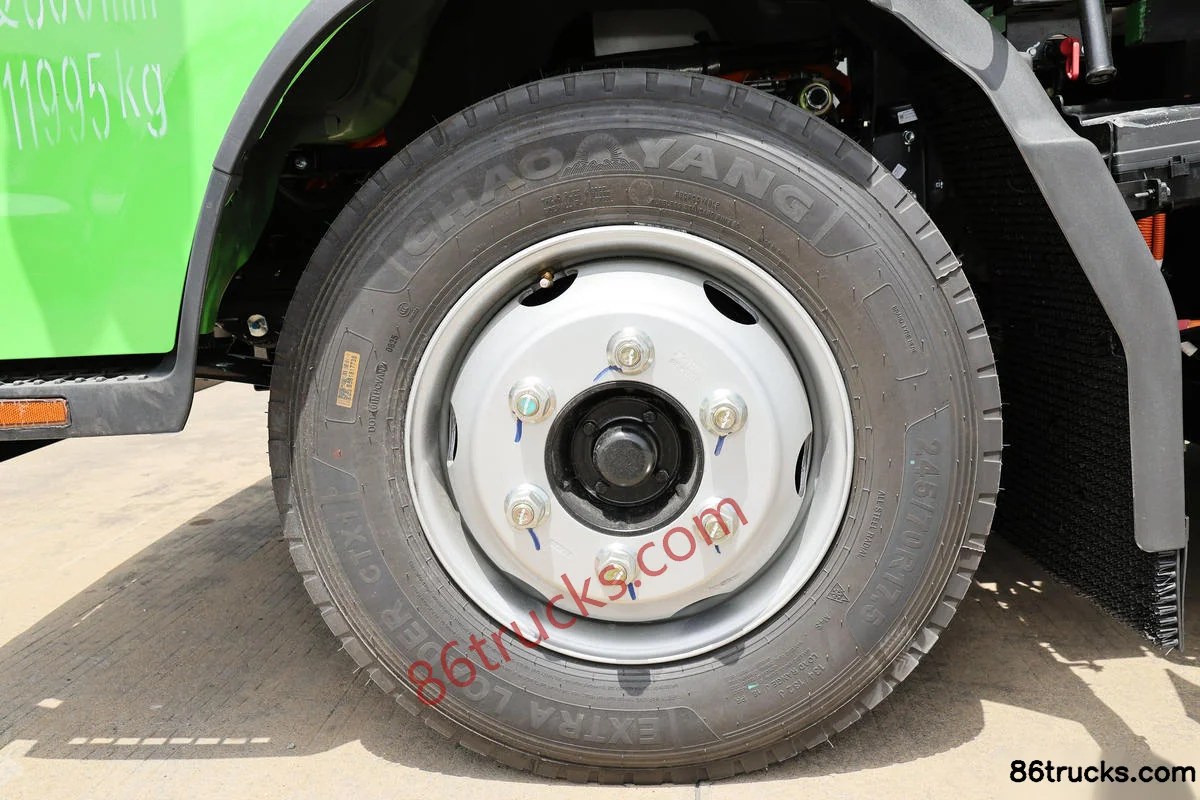

Tire Size: 245/70R17.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

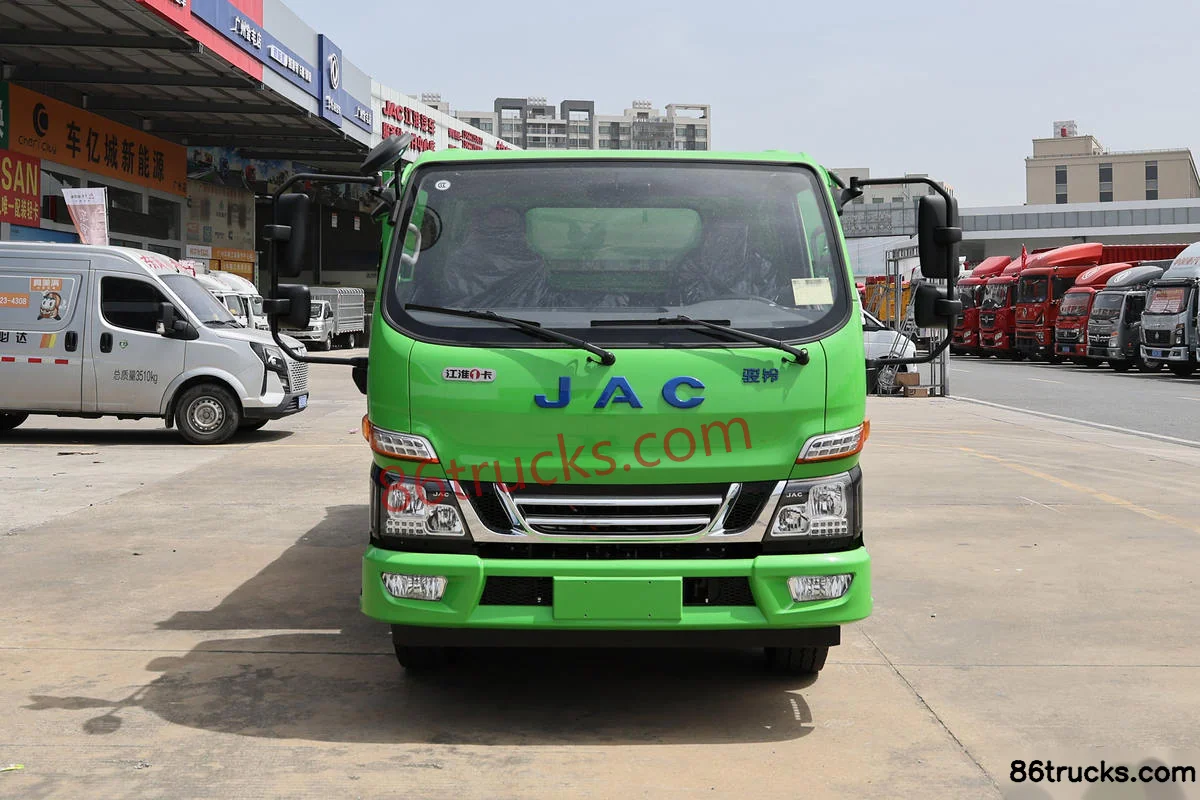

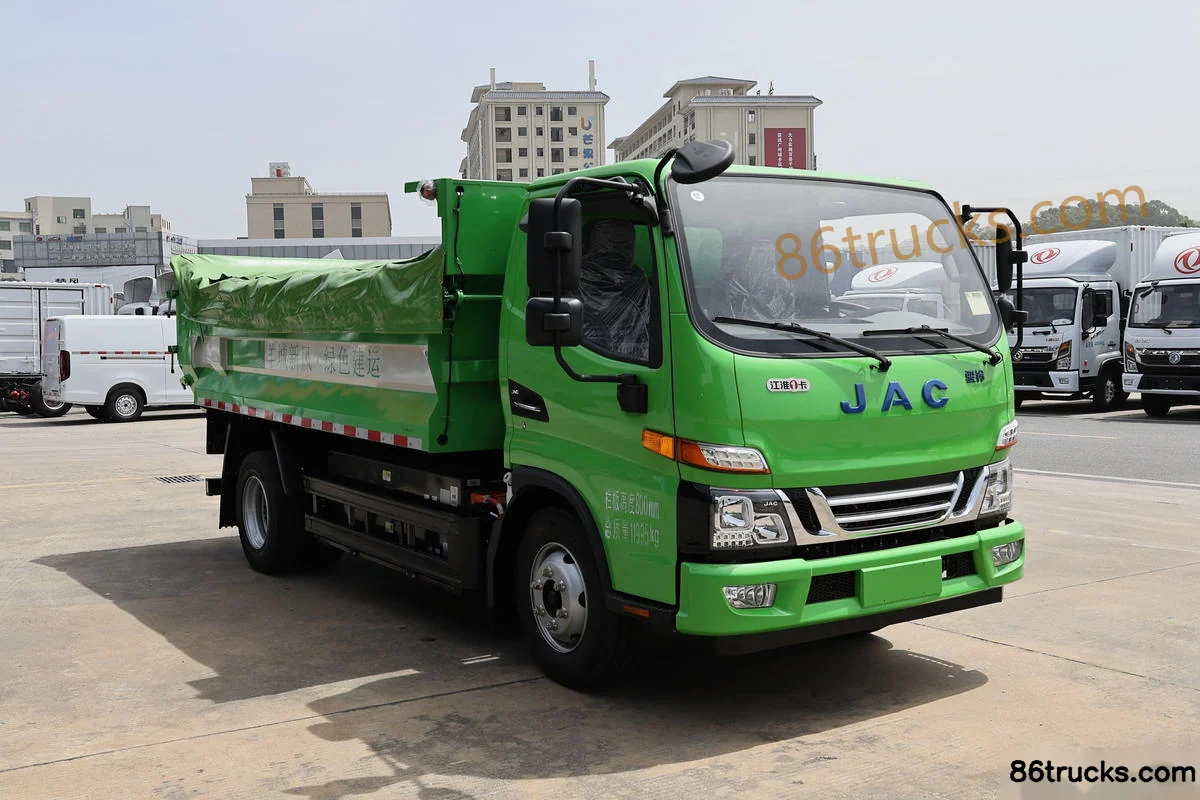

Exterior3

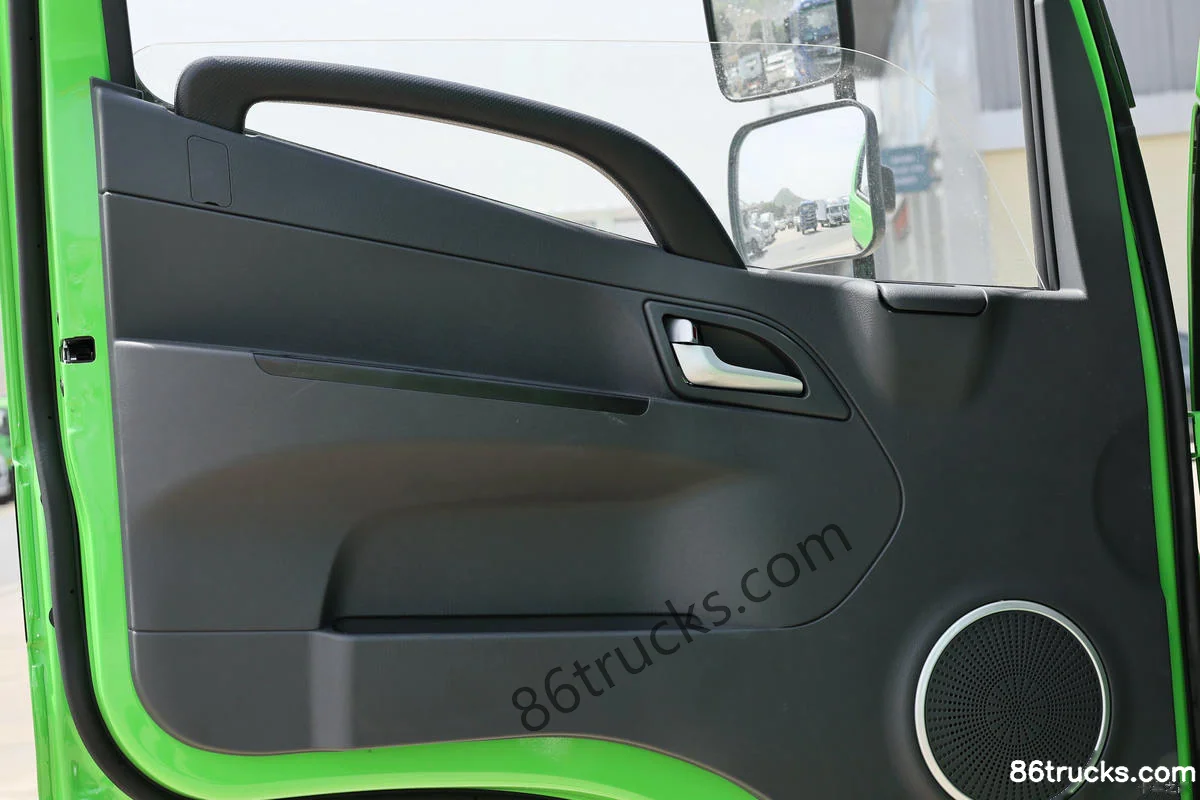

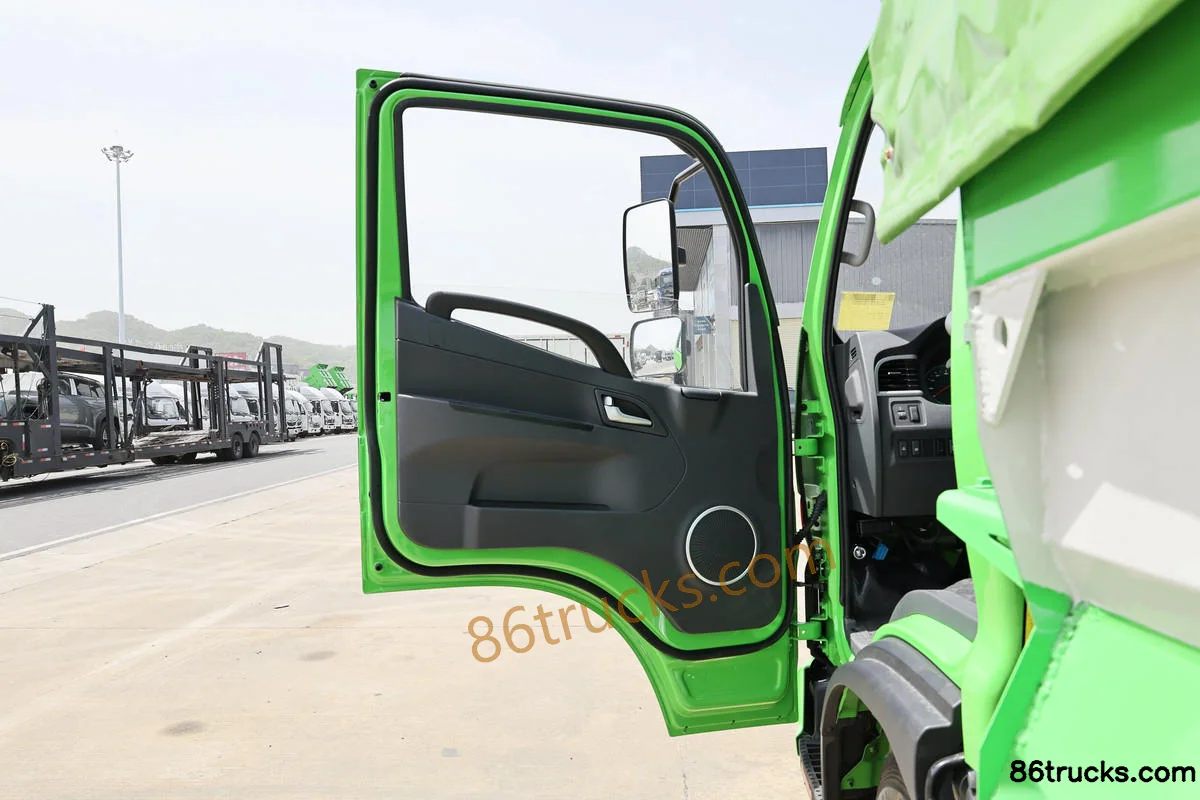

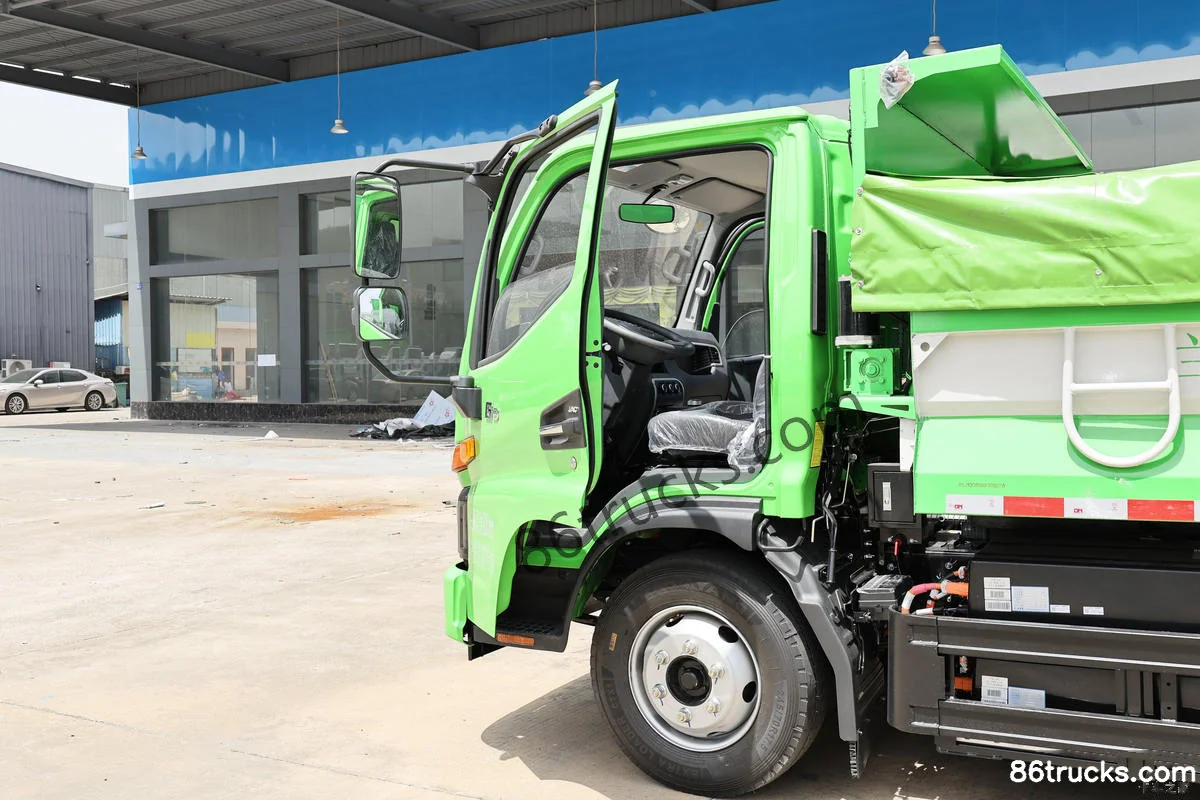

Cab3

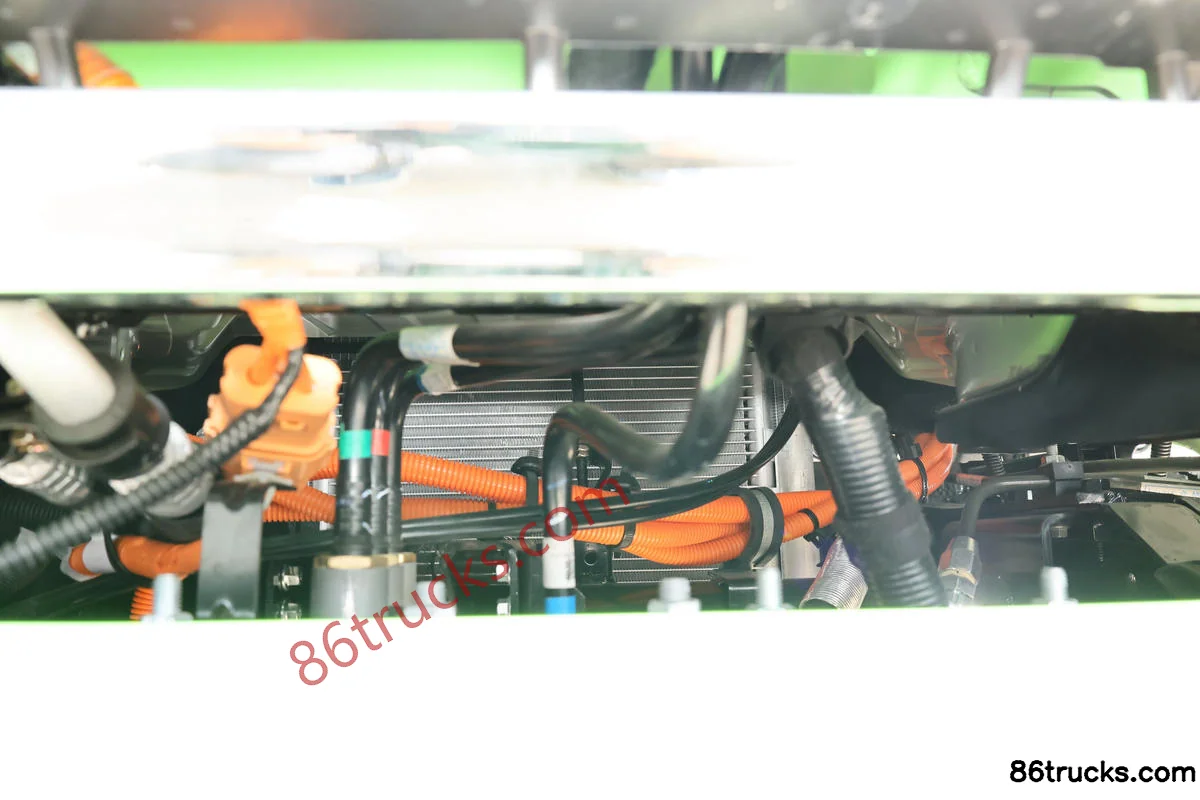

Chassis3

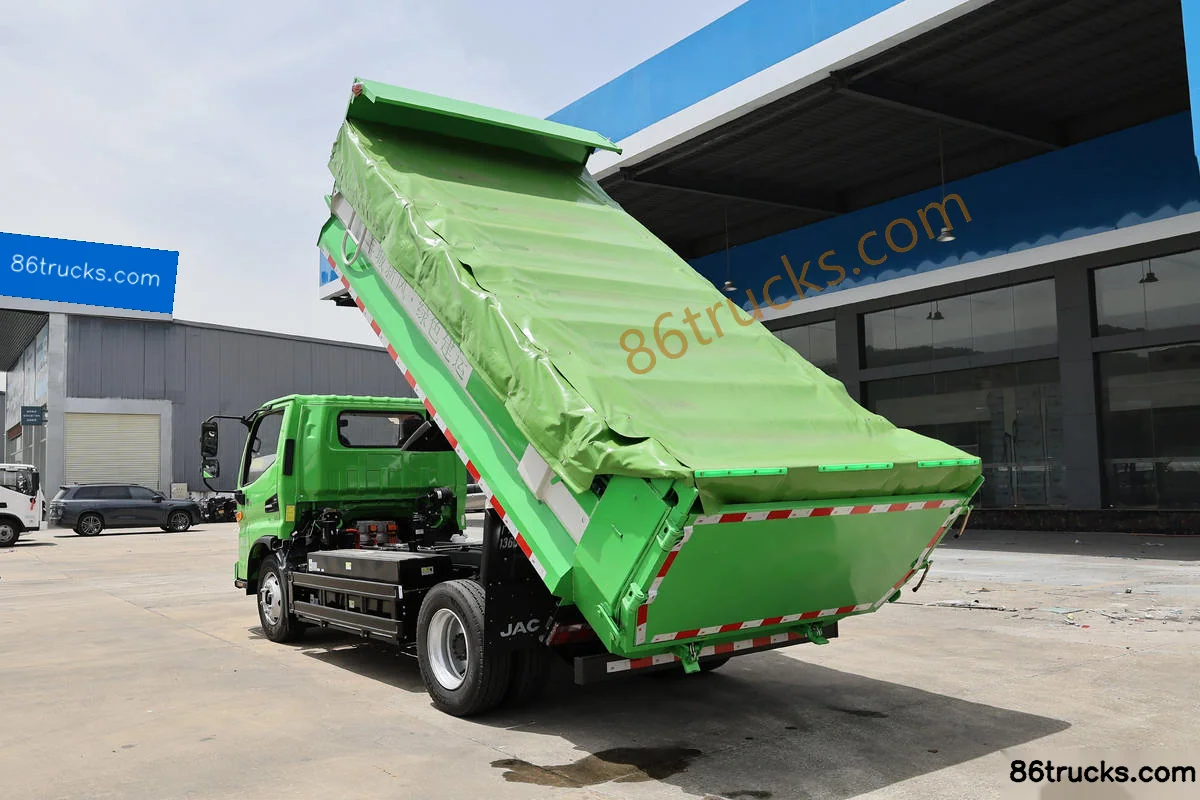

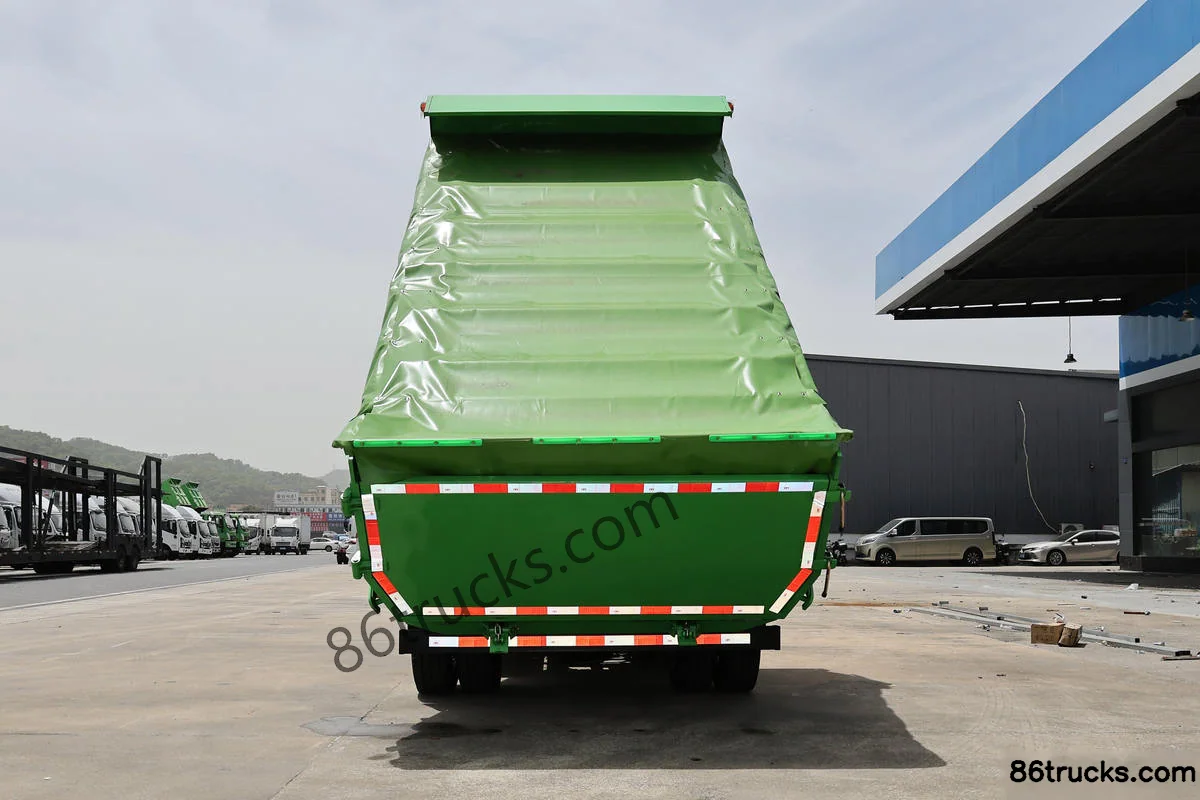

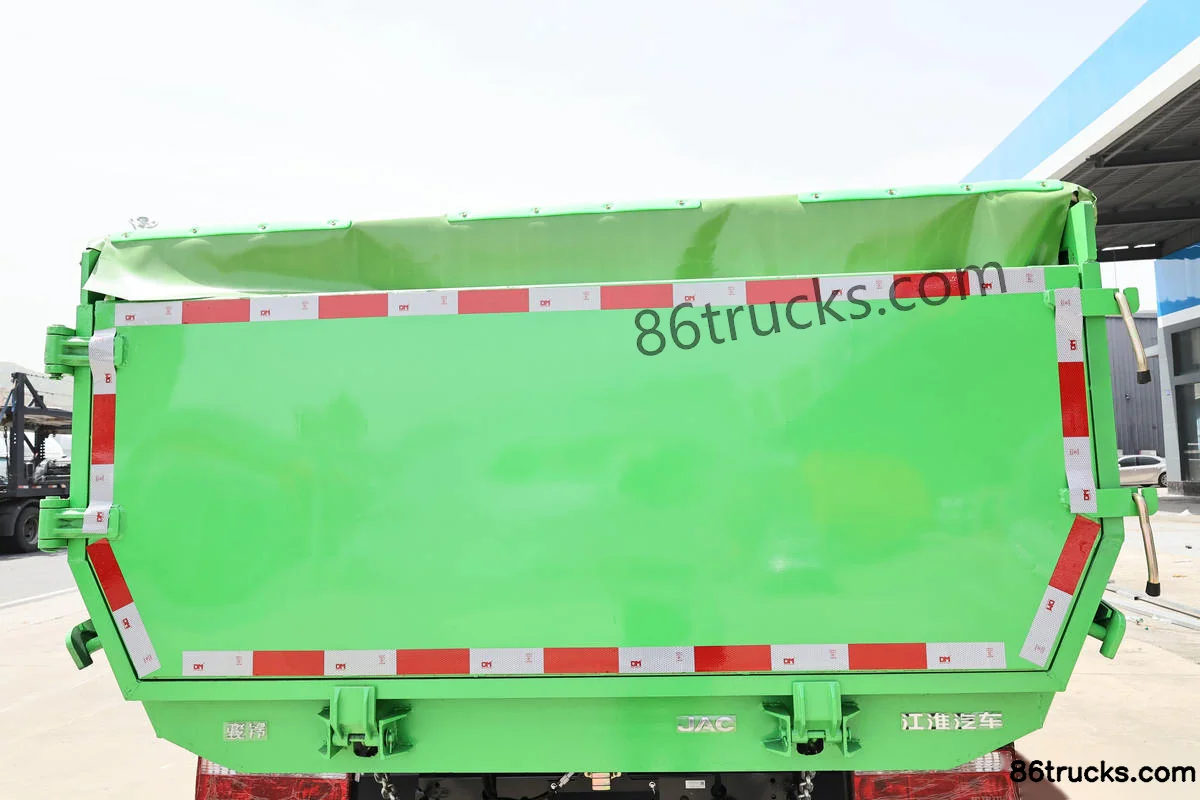

Body3

12 photos

FAQ

What are the key specs of JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh?

Key specs of JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh suited for?

JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh differ from other variants in the same series?

JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh belongs to JAC G light truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G5 12T 4X2(6 wheels) 3.8m Single Row Dump Truck CATL 81.14kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
