Loxa Heavy Machinery 85 ton truck crane (FTC85X6)

Export reference
MSRP N/A
Max travel speed:: 80km/h
Max gradeability:: 40%
Min turning radius:: 12m
Min ground clearance:: 290cm
Rated lifting capacity:: 85ton
Min working radius:: 3m

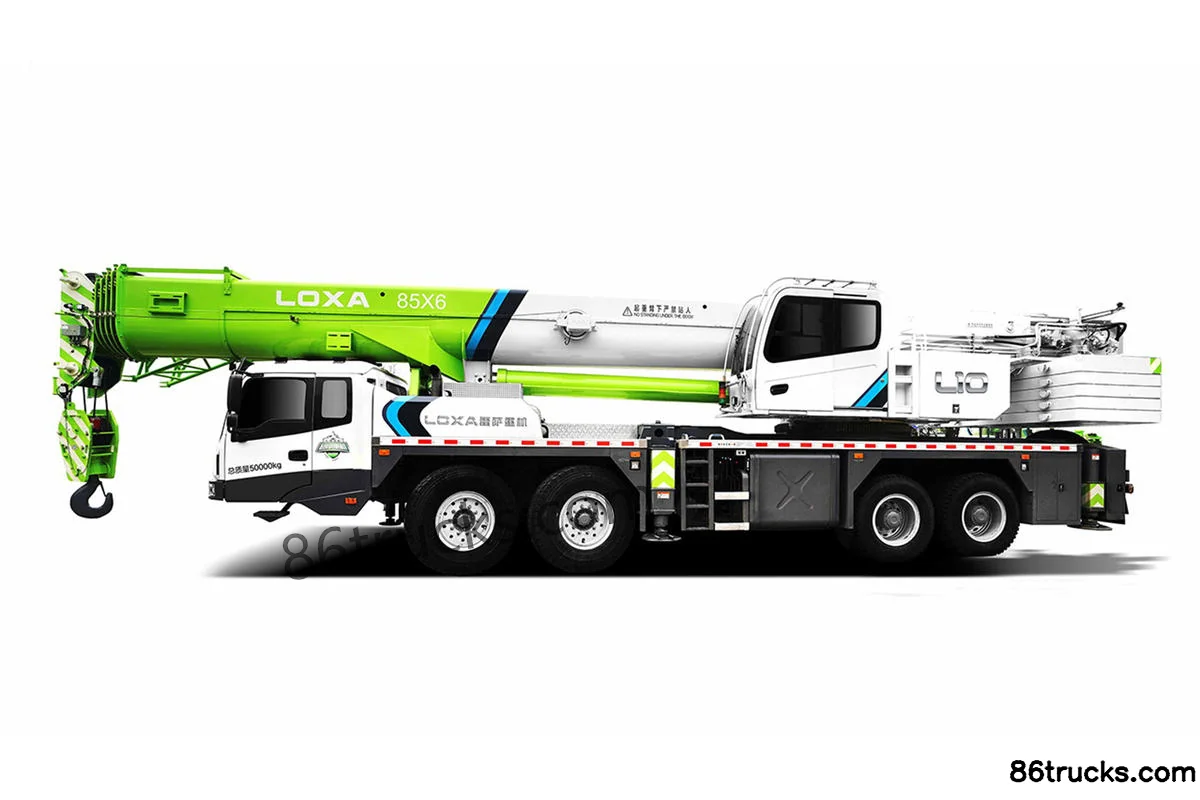

Loxa Heavy Machinery 85 ton truck crane (FTC85X6) exterior
View more photos (2)
total counterweight: 50ton
Max output power: 276kW
Machine dimensions: L×W×H: 14.98×2.83×3.85m
Model: FTC85X6

Overview

The Loxa Heavy Machinery 85 ton truck crane (FTC85X6) is a crane truck featuring 50ton GVW and 276kW power.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Machine dimensions: L×W×H: 14.98×2.83×3.85m
Model: FTC85X6
total counterweight: 50ton
Max travel speed: 80km/h
Max gradeability: 40%
Min turning radius: 12m
Min ground clearance: 290cm
Lifting capacity
Rated lifting capacity: 85ton
Min working radius: 3m
Max lift height - base boom: 14m
Max lift height: 63m
Max lifting height - main boom + jib: 88m
Boom length - main boom: 13.5m
Boom length - fully extended: 63m
Boom length - main boom + jib: 89.5m
Operating Parameters
Max hoisting speed of main winch: 130m/min
Auxiliary winch max lift speed: 115m/min
Outrigger span: longitudinal × lateral: 8×6.31m
Engine parameters
Engine Model: WeichaiWP12.375E50
Max output power: 276kW
Rated speed: 1900rpm

Photos

Exterior2

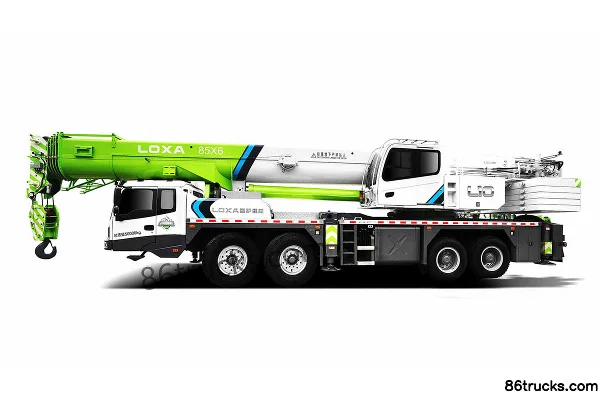

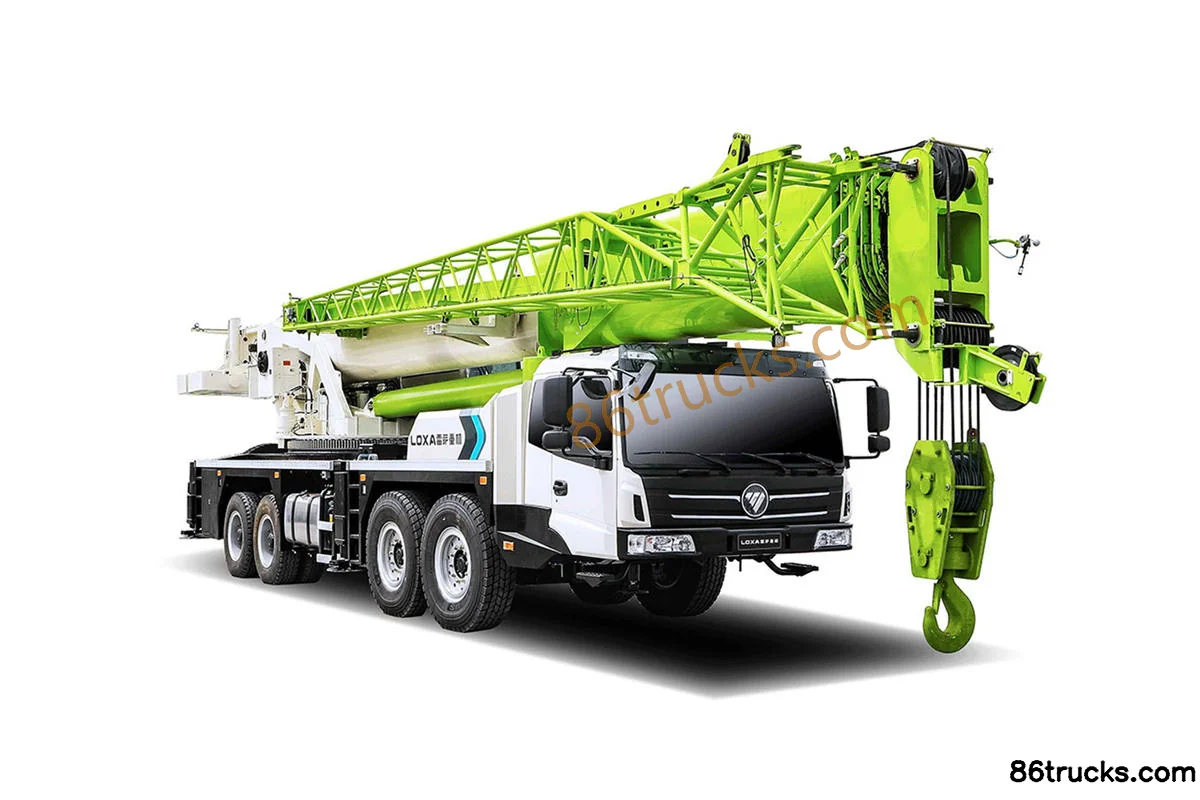

Loxa Heavy Machinery 85 ton truck crane (FTC85X6) Exterior (1) | 86Trucks Loxa Heavy Machinery 85 ton truck crane (FTC85X6) Exterior (2) | 86Trucks

2 photos

FAQ

What transport jobs is Loxa Heavy Machinery 85 ton truck crane (FTC85X6) suited for?

Loxa Heavy Machinery 85 ton truck crane (FTC85X6) is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Loxa Heavy Machinery 85 ton truck crane (FTC85X6) differ from other variants in the same series?

Loxa Heavy Machinery 85 ton truck crane (FTC85X6) belongs to Loxa Heavy Machinery Loxa (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Loxa Heavy Machinery 85 ton truck crane (FTC85X6)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Loxa Heavy Machinery 85 ton truck crane (FTC85X6)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
