SANY 1600-ton 9-axle All-terrain Crane
EXW
Export quote
SANY all-terrain crane crane truck
Main model photos
19 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SANY 1600-ton 9-axle All-terrain Crane | — | ||
| SANY 400-ton 6-axle All-terrain Crane | — |

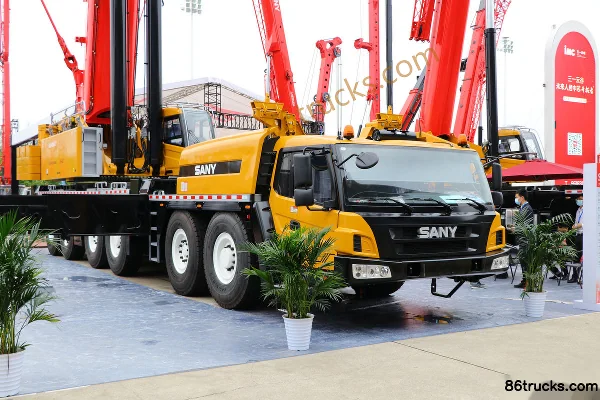

SANY 400-ton 6-axle All-terrain Crane
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SANY 220 Ton All Terrain Crane (SAC2200) | — | ||
| SANY 22 Ton All Terrain Crane (QAY220) | — |
SANY 220 Ton All Terrain Crane (SAC2200)
EXW
Export quote
SANY 22 Ton All Terrain Crane (QAY220)
EXW
Export quote
Series Specs
Basic Info
Machine dimensions: L×W×H: 21.535×3×4 / 17.538×3×4 / 15.53×2.995×4m
Model: SAC16000S / SAC4000T7 / SAC2200 / QAY220
Operating weight: 1600 / 400 / 60ton
Wheelbase: 1650+2140+1620+1650+3070+1650+3070+1650 / 1650+3370+1650+2440+1650 / 2750+1650+2490+1650mm
Max travel speed: 75 / 80 / 81km/h
Max gradeability: 58%
Min turning radius: 5m
Approach/departure angle: 17.8/13 / 14/9 / 20/17°
Min ground clearance: 325cm
Lifting capacity
Rated lifting capacity: 1600 / 400 / 220ton
Rated lifting moment: 1350KN.m
Max lift height - base boom: 80.1 / 80 / 14m
Max lift height: 62.5m
Max lifting height - main boom + jib: 130m
Boom length - main boom: 13.5m
auxiliary jib installation angle: 40°
Operating Parameters
Boom full raise/lower time: 90/90sec
Swing Speed: 1.8r/min
Max hoisting speed of main winch: 130m/min
Auxiliary winch max lift speed: 130m/min
Outrigger span: longitudinal × lateral: 9×8.5m
Boom full extension time: 550sec
Engine parameters
Engine Model: Daimler OM502LA.E3B/1 / Mercedes-BenzOM502LA
Max output power: 482 / 480 / 390kW
Rated speed: 1900 / 1800rpm
Chassis Specs
Chassis Model: SYM5905J / SYM5725J
FAQ
What kind of truck is SANY SANY all-terrain crane crane truck?
SANY SANY all-terrain crane is an export-oriented crane truck lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is crane truck typically used for?
crane truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SANY all-terrain crane crane truck include?
SANY all-terrain crane crane truck currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SANY all-terrain crane crane truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
